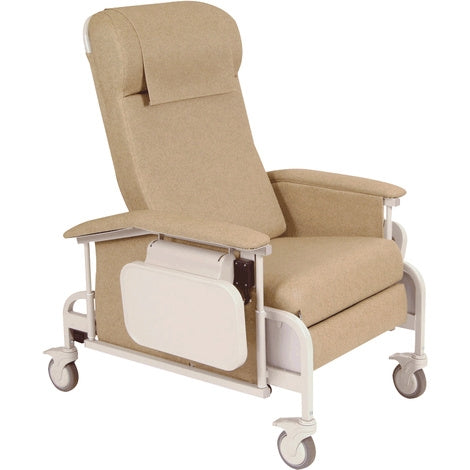

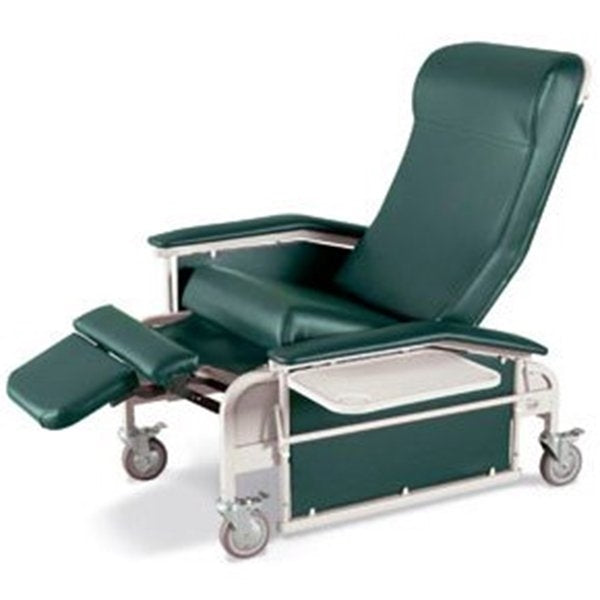

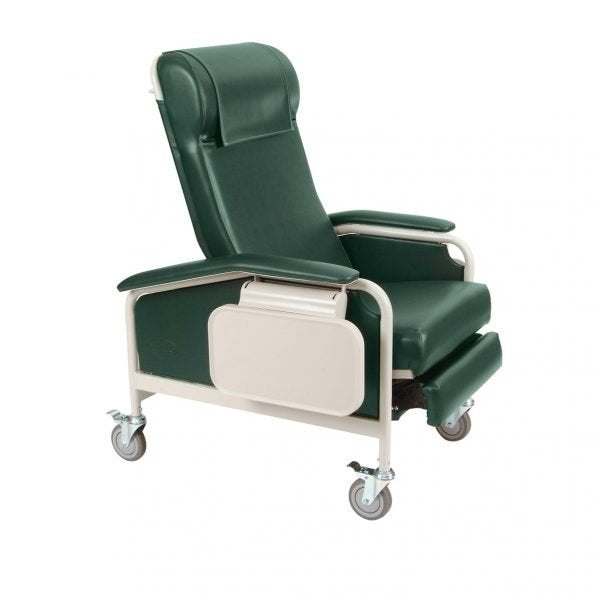

Winco Drop Arm 3-Position Care Cliner
Winco Drop Arm 3-Position Care Cliner
Product Code: 6551
$1,908.00
Description
Winco Drop Arm 3-Position Care Cliner
With arms that lower to the same height as the seat, this reclining geri chair, which can be fully customized to meet your facility's unique needs, helps ease transfers.It is ideal for use in Dialysis, Oncology, Acute care and other clinical environments. It has arms that can be lowered flush with the seat to aid in patient transfer. Drop Arm CareCliner features a standard Trendelenburg release on back with easy access handle.
- Can be customized with heat and massage for comfort
- Includes a Trendelenburg release handle located on both sides of the chair
- Includes easy-to-clean, non-porous blow molded side trays on each side of the chair
- Makes transfers easier with arms that can be lowered to the same height as the seat
- Provides comfort with adjustable elastic bands located on the back of the frame and an elastic open seat base
- Ultimate in comfort, durability and value
- Makes assisting the patients easier
- Side panels lift, making clean-ups quick and easy

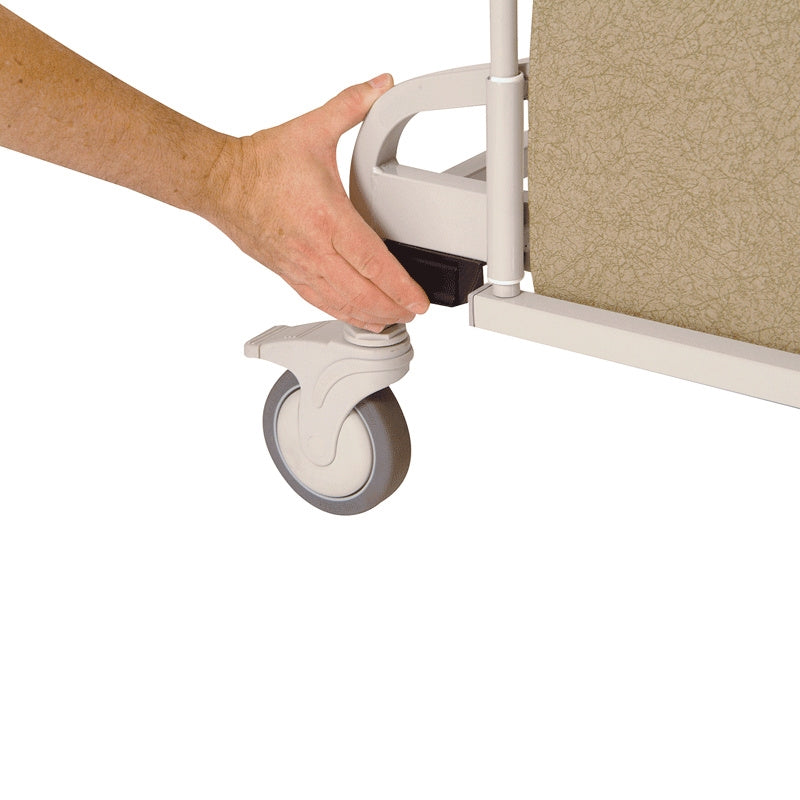

- Total lock and directional-lock casters provide ease of maneuverability
- Webbed elastic and open seat base
- Tray can contain small spills
- One-Touch Release for Drop-Arms
- Standard headrest cover
- Padded drop-down armrests
- Dual fold down side tables
- Note: SilverTex is not recommend for applications involving frequent contact with bodily fluids where bleach is the preferred or required cleaner. Bleach is not advised for cleaning SilverTex
Technical Specs
Winco Drop Arm CareCliner Specifications
| Particulars | 6550/6551 | 6570/6571 |
| Weight | 105lbs (47.63kg) | 111lbs (50.35kg) |
| Overall Height | 49" (124.46cm) | 49" (124.46cm) |
| Overall Width* | 33.75" (85.73cm) | 33.75" (85.73cm) |
| Upright Depth | 40" (101.60cm) | 43" (109.2cm) |
| Seat Height | 21" (53.34cm) | 21" (53.34cm) |
| Seat Width | 21" (53.34cm) | 25" (63.50cm) |
| Seat Depth | 20" (50.80cm) | 20" (50.80cm) |
| Seat Back Height | 31.5" (80.01cm) | 31.5" (80.01cm) |
| Weight Capacity | 275lbs (124.74kg) | 450lbs (204.12kg) |
| Overall Length (Reclined) | 76.5" (194.31cm) | 76.5" (194.31cm) |
| Armrest Height | 27" (68.58cm) | 27" (68.58cm) |
*Add 9.25" to overall width for each raised table | ||
Wheelchair Measuring Guide
Wheelchair Measuring Guide
Wheelchair Measurements:
- Hip Width:
Use this to figure seat width if it is the widest point. - Widest Point:
Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style. - Chest Width:
Measure the widest point of the thorax just below the armpit. This measurement may influence system width or back width. - Heel to Knee:
Use this for legrest extensions and seat height. - SRP to Knee (Seat Reference Point to Knee):
This will determine the seat depth. - Elbow to SRP (Elbow to Seat Reference Point):
Measure this width with the arm in a 90-degree angle at the elbow and the shoulder in a neutral position. - Shoulder Height:
This will determine the height and the style of the back panel or the start for a custom back. - Head Height:
This will help determine the proper headrest height.
