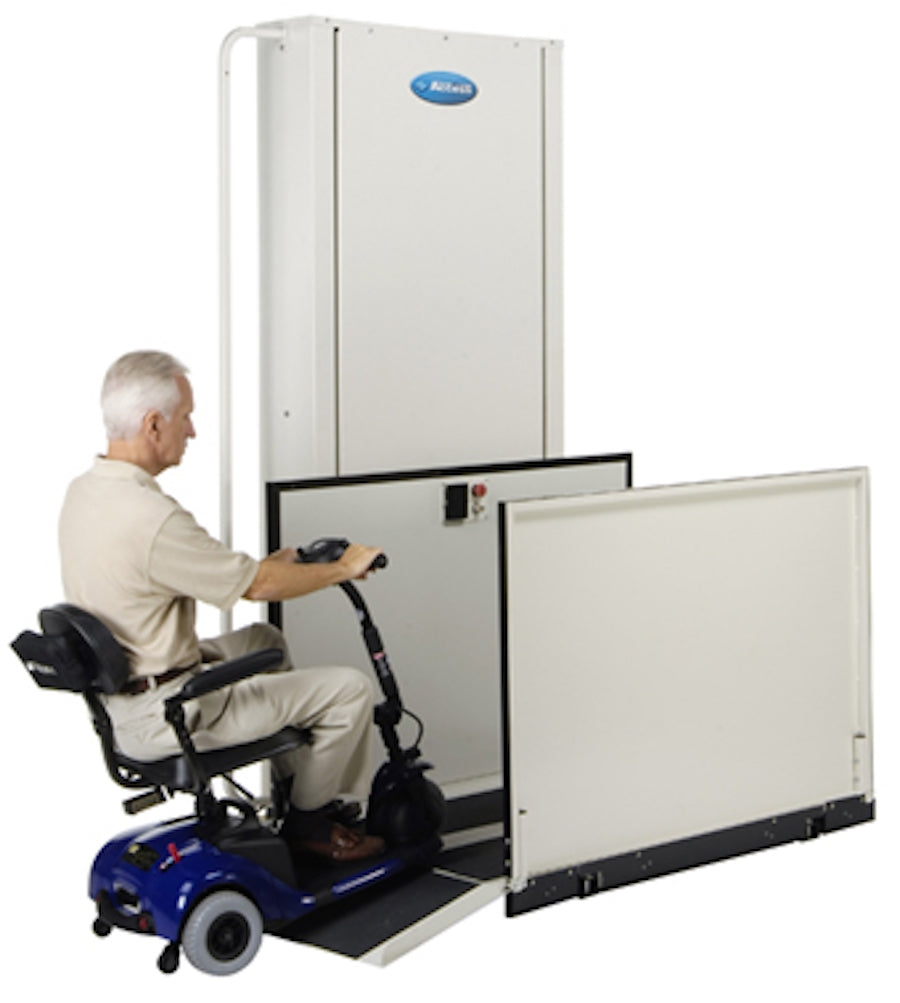

Harmar Residential Vertical Platform Lift

The Harmar Residential Vertical Platform Lift was designed to provide individuals with mobility limitations the freedom of access to their house and home. Essentially a personal elevator, the Harmar Residential Platform Lift offers smooth, controlled accesss to elevated buildings, porches and other raised structures safely and at a very economical price.

Safety: Your safety is important to us. All Harmar Vertical Platform Lifts (VPL) are ETL listed. They are not only built to meet ANSI (American National Standards Institute) and ASME (American Society of Mechanical Engineers) safety standards, but are also tested to exceed these standards. All lifts come standard with several safety options, including an emergency stop button and a solid, bottom safety pan which will immediately stop the lift if it comes into contact with any object below it.

Durability: Harmar's lifts are built to last. To ensure these VPLs are not only safe, but also reliable, they have undergone rigorous testing.

Wind: The Commercial VPL design was recently determined to be able to withstand hurricane force winds of up to 130 mph "“ a requirement for coastal regions in the US.* The quality and the features of this lift might blow you away, but you can rest assured that the wind won't.

Rain: Harmar's VPLs can be used indoors and outdoors, so we put them to the test. A little rain won't hurt your lift. Its weatherproof controls are designed to withstand the elements.

Temperature: These lifts were run continuously, at full weight capacity, for several cycles to assure that there is no possibility of the components overheating due to extended use. This means there is no need to worry about using this lift TOO often; it's built to work whenever you need it.

Strength: Testing of these lifts mandated loading the drive system with 3 tons without failing. In addition, the mechanical structure was loaded with over 5,000 lbs to test every aspect of the welding, stresses in the material, and assembly of the unit. You can ride with confidence, knowing your Harmar lift is built to be tough!

Serviceability: The electrical box and motor are housed on the top of the lift. Not only does this keep them safe if there's flooding

Powered by a 90V DC motor, the belt driven Acme screw inside the Harmar Residential Vertical Platform Lift gently and efficiently raises and lowers the platform for use. Safe to use around children, the Harmar Residential Vertical Platform Lift is equipped with a pressure sensitive 'Safety Pan' which automatically halts the platform's descent if any obstacle in encountered while lowering for additional protection.

Featuring an all-weather exterior to ensure the lift will provide years of reliable service, this robust and durable lift offers the peace of mind from knowing you can safely enter and exit your home without the risk of a potentially dangerous fall. Built with pride right here in the USA, the Harmar Residential Vertical Platform Lift's powerful and long lasting design is well worth the investment.

Do you have questions? Just contact one of our mobility advisers at 866-218-0902 about the Harmar Residential Vertical Platform Lift, and get on your way!

Features:

Wide accommodating platform fits most scooters, power chairs and more
Ramp folds up automatically to prevent rollouts or falls
Non-skid platform surface for additional safety
Weather-resistant construction for indoor and outdoor use
Safety pan prevents crushing by stoping lift if it encounters resistance
Available in heights from 4 to 6 feet
Easily accommodates most any residential application
Paddle switch controls with emergency stop button
Built with pride right here in the USA
Device included for manual lowering in case of power outage
Vertical Platform Lift Specifications:
Lifting Heights: 53" or 77"
Footprint: 49" x 69"
Platform Dimensions: 36" x 54" with high guard panels and automatically fold-up ramp
Maximum Weight Capacity: 600 lbs
Speed: 10 feet per minute
Power Supply: 115V AC - 15amp grounded circuit
Drive: Belt-driven Acme screw / 90 VDC ½ hp motor

Vertical Platform Lifts

Filters

Active filters:

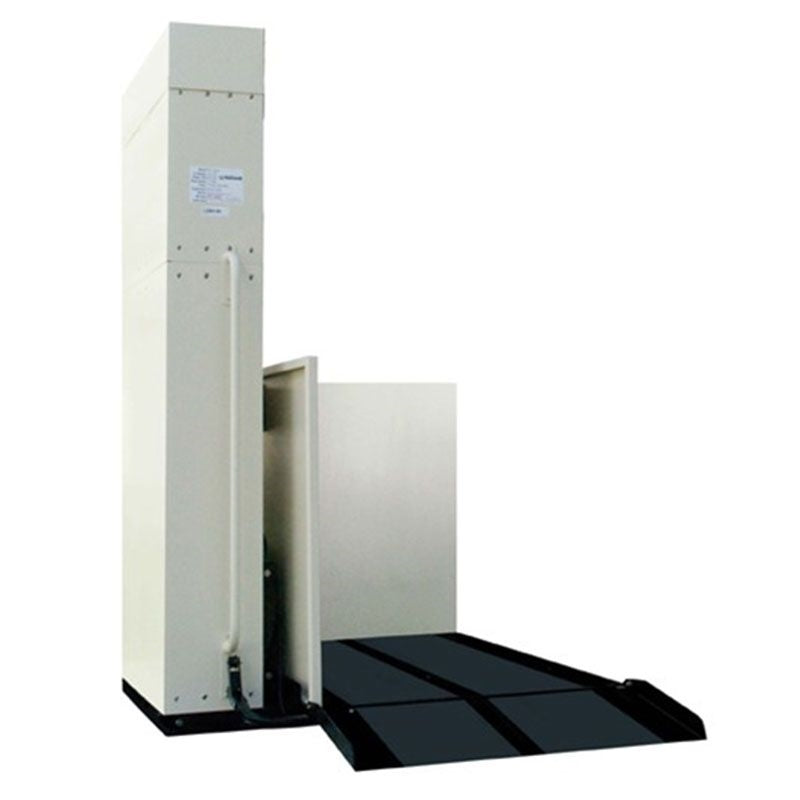

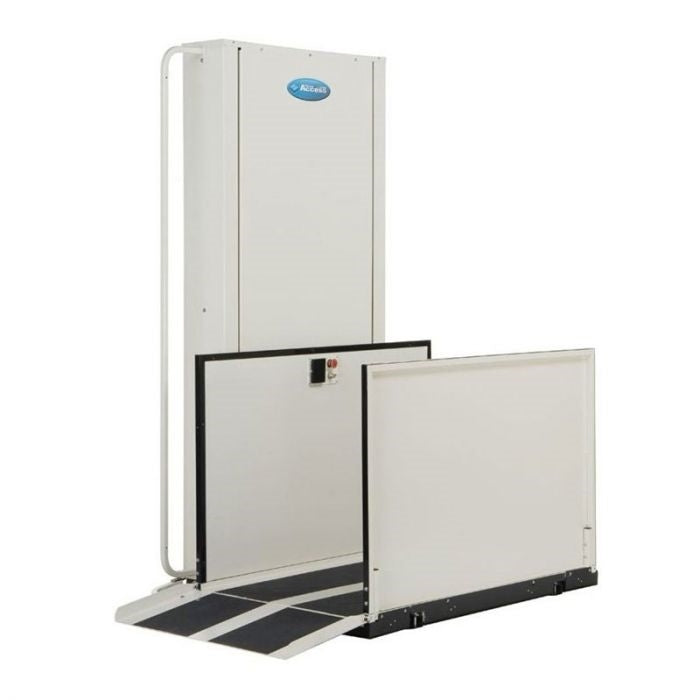

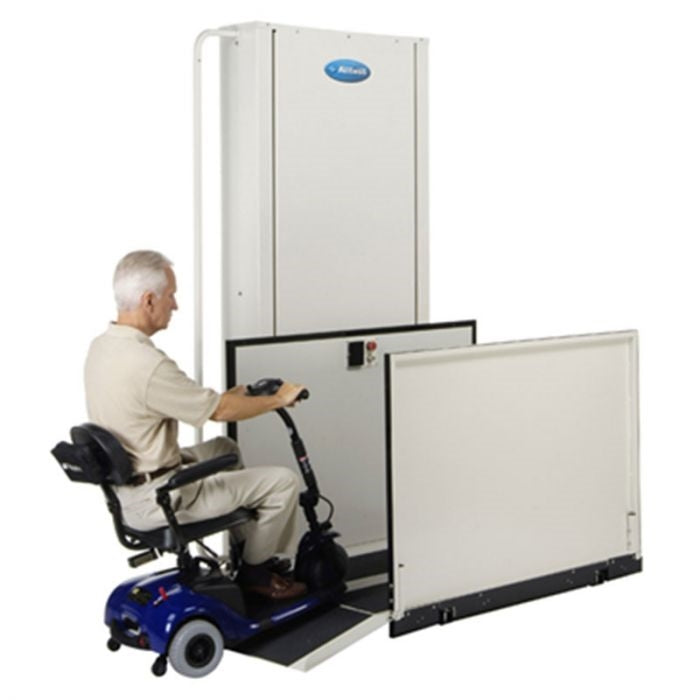

Harmar Highlander VPL Vertical Platform Lift

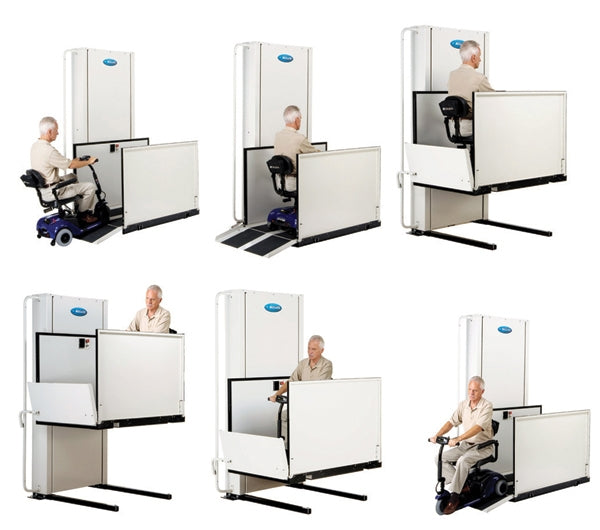

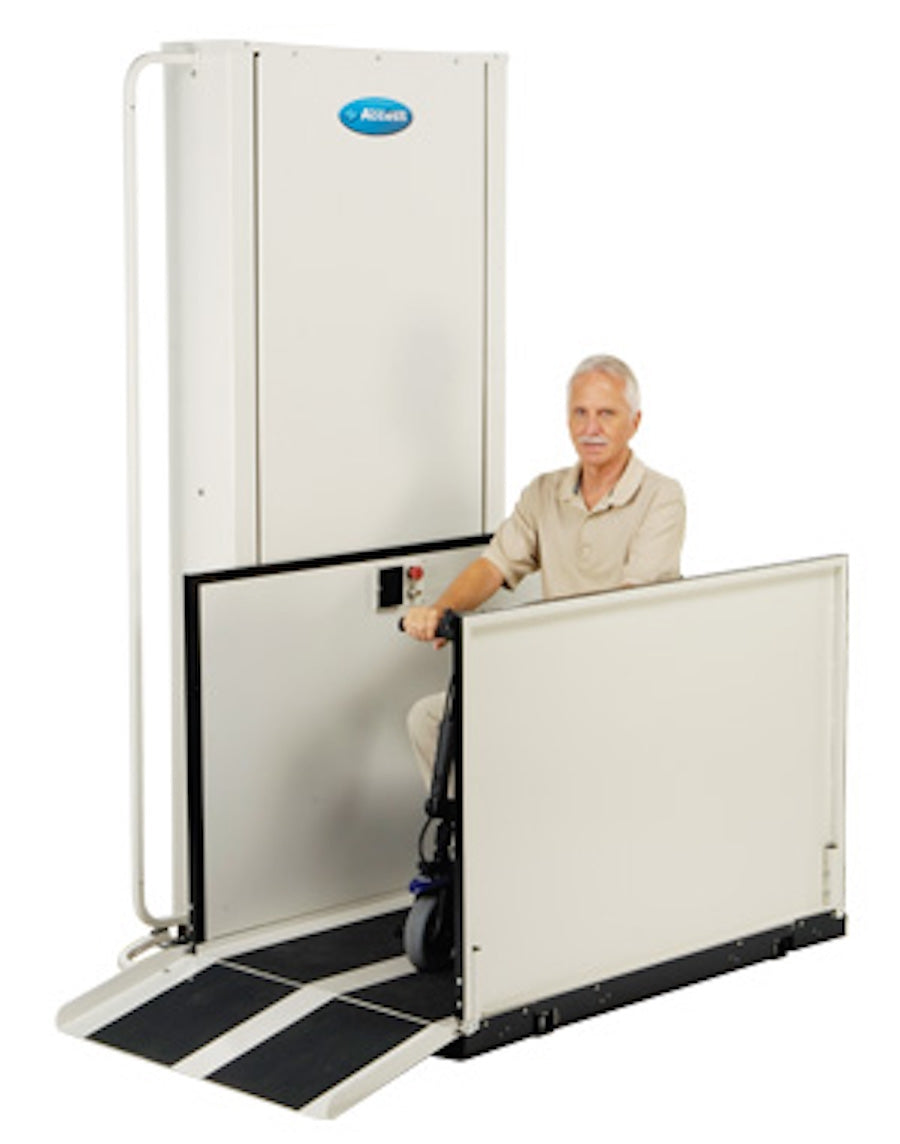

Harmar RPL400 Residential Vertical Platform Lift
