Description
PVI Rear Door Van Ramp

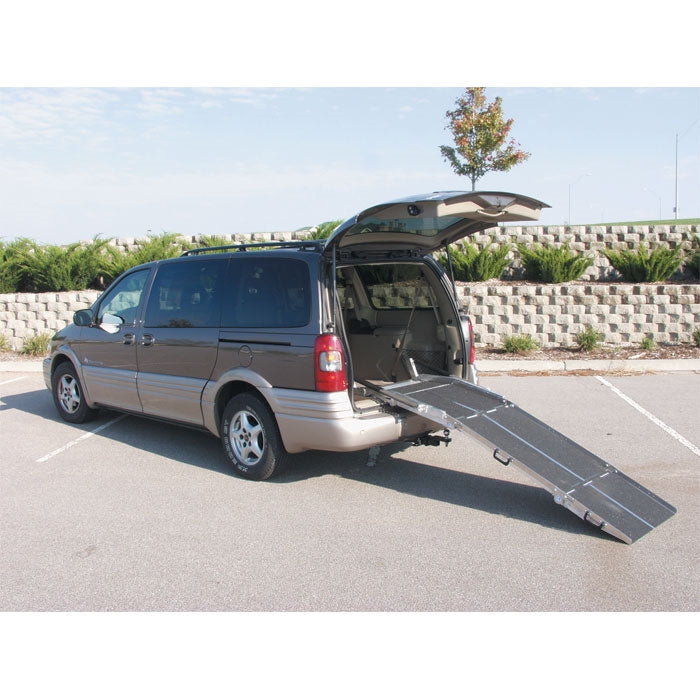

The Van Ramp is designed to mount on the inside doorway of a van, and accommodates wheelchairs & scooters with various wheel configurations. The simple installation may be done by one person and three sections are manually operated with a spring assist.Vehicle Requirements: A minimum of 34" for the inside door opening is required for this ramp. The floor to ceiling opening must be 37" for a 7' ramp and 41" for a 8' ramp.
This Multifold Access Ramp offers a full anti-slip platform and excellent stability. The ramp may be stored vertically inside a doorway for added convenience.
Are you ready to enjoy? Just contact one of our mobility advisers at 866-218-0902 about the PVI Rear Door Van Ramp.
Features:
- Limited Lifetime Warranty
- Easy Installation (Note: Conversion kit is required if rear door opening contains a threshold.)
- Mounts to Floor of Van Inside Doorway
- Three Sections, Manually Operated with Spring Assist
- Easily Operated by One Person

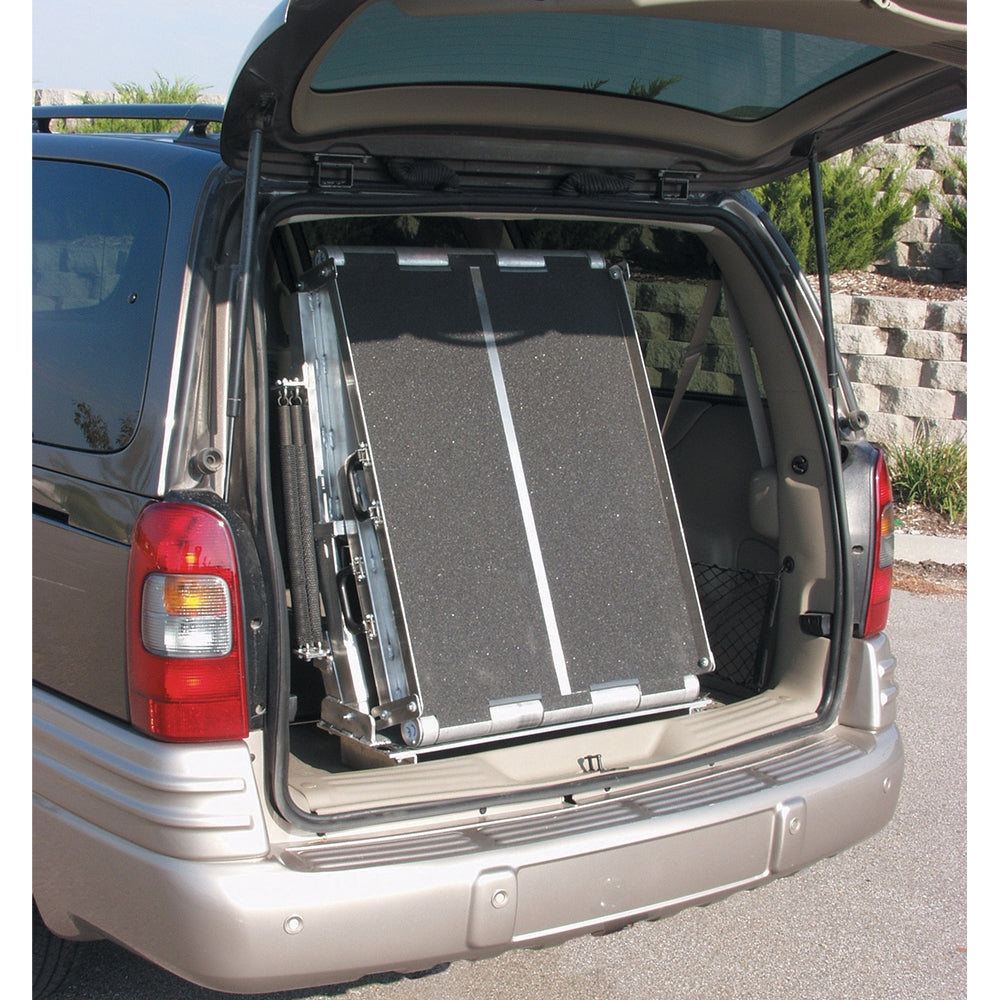

- Stores Vertically Inside Doorway
- Durable Welded Construction
- Anti-Slip, High Traction Surface
- Accommodates Wheelchairs and Scooters with Various Wheel Configurations
- This Ramp Has Been Tested at a 3X Safety Factor
Technical Specs
Specifications for PVI VAN727 Van Ramp - Rear Door: 7' x 27"
Weight and Dimensions |
|
| Platform Width | 27" |
| Platform Depth | 7-8" |
| Total Lift System Weight | 72-77 |
Capacity |
|
| Maximum Lift System Capacity | 800 lbs. |
Warranty |
|
| Limited Lifetime Warranty | |
Assembly and Installation |
|
| Assembly Required? | Yes |
| Installation Required? | No |
Wheelchair Measuring Guide
