Pride Jazzy EVO 613
Manuals, Literature
Owners Manual Product BrochureFDA Class II Medical Device*
*Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairment
Product Code: JZEVO613-613LI

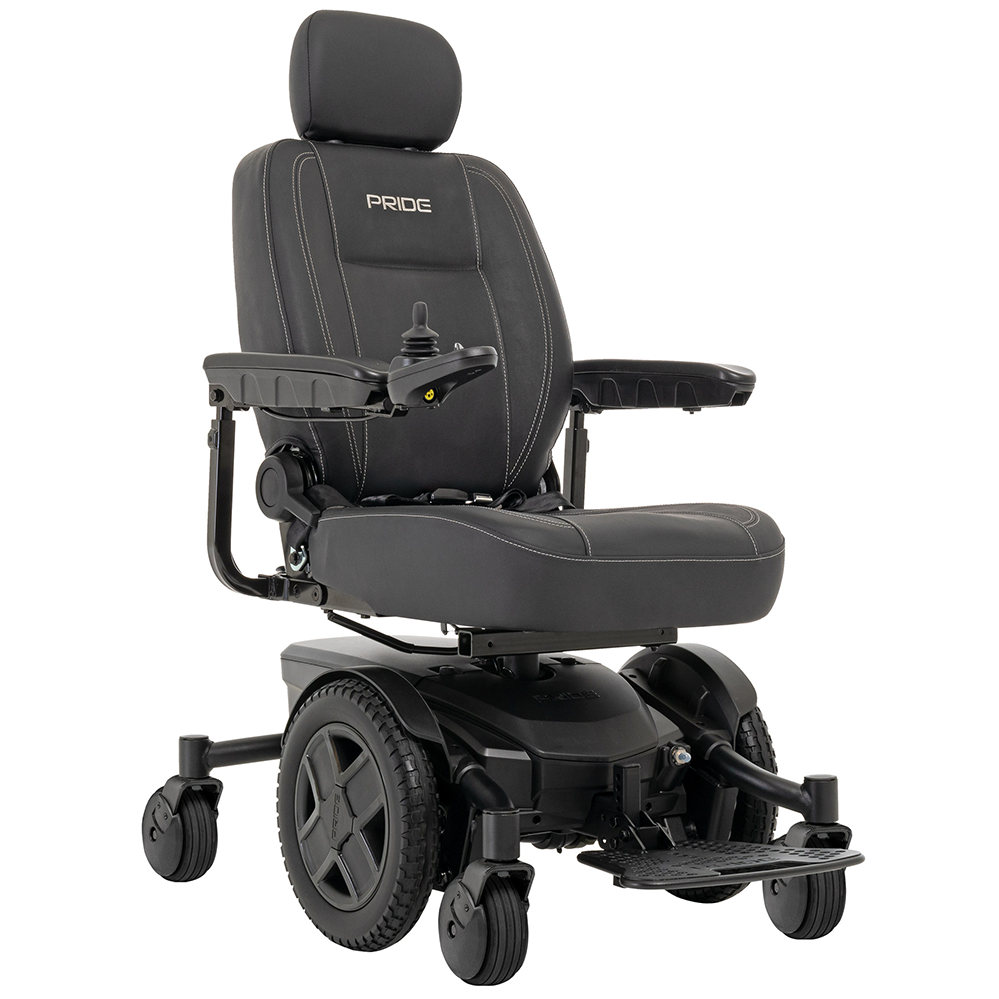

Pride Jazzy EVO 613 Power Chair

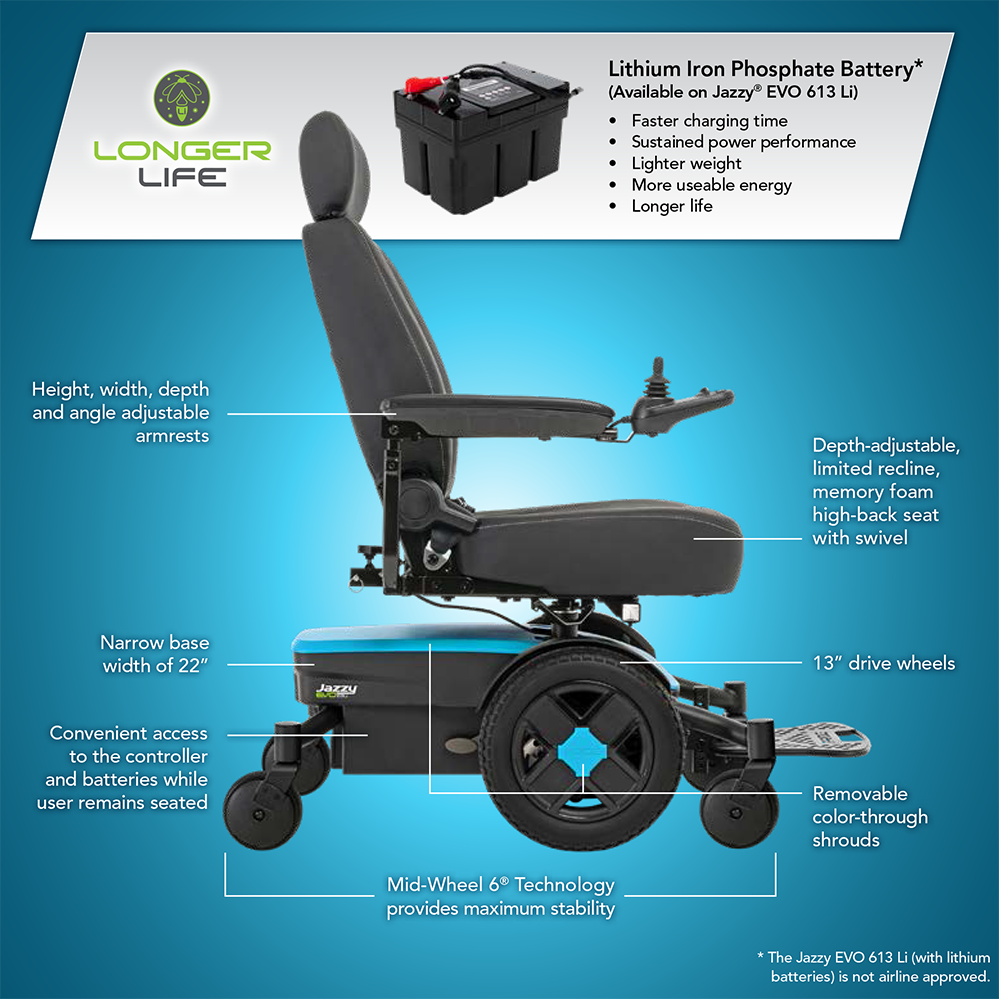

The Newest Jazzy from Pride Mobility, the EVO 613 is available with either the standard SLA U-1 batteries or upgraded Lithium ion batteries. Both options delivery plenty of power, speed, and charge range. The Lithium ion version will give you a faster charging time, sustained power performance, lighter weight, and a longer life.

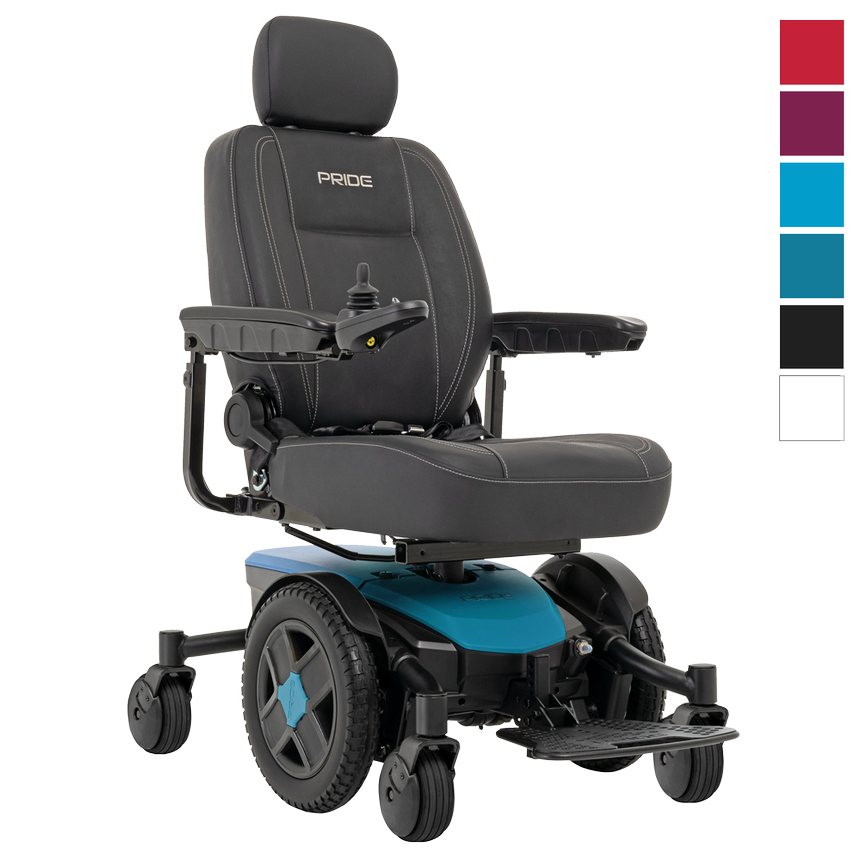

The look of the EVO is sleek and modern. 6 color options are available in a muted matte finish. Comfort and convenience come through in the EVO's memory foam high-back seat which allows you to adjust your seat depth and go into a semi-recline. Good posture and proper positioning are achieved with the EVO's height, width, and angle adjustable armrests.
The highlight of the seat is its single post which allows the seat to swivel.
You also need to know that its Mid-wheel 6 ® Technology also delivers you a tight turning radius around corners and doorways. What's more, you can also take advantage of its high back seat and single seat post that lets you swivel. Plus, the patented Active-Trac (ATX) suspension offers you a smooth and best experience over challenging and uneven surfaces.
Features
- Narrow base width of just 22"
- 17 Miles per charge with standard batteries and 21 miles with Lithium ion

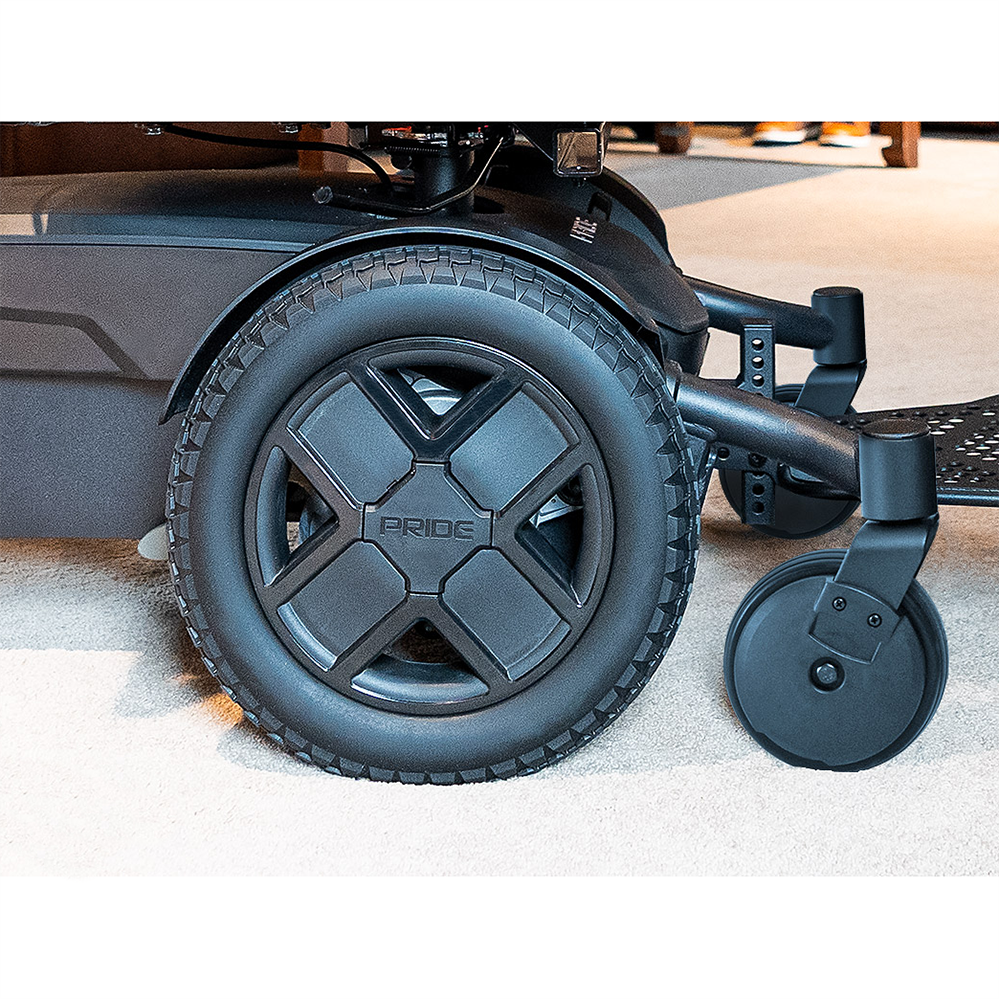

- Mid-Wheel 6 Technology creates tight 22" turning radius
- Active-Trac (ATX) Suspension provides smooth ride on uneven surfaces
- Memory Foam padded high-back seat that swivels
- Drive Range: 17.00 miles
- Top Speed: 5.00 mph
- Heaviest Piece: 94 lbs.
- Turning Radius: 22.00"
- Weight capacity: 300 lbs.
- Weight: 240 lbs.
Specifications for the Jazzy EVO 613
| Drive Range: | 17.00 miles |
| Top Speed: | 5.00 mph |
| Disassembles: | No |
| Heaviest Piece: | 94 lbs. |
| Turning Radius: | 22.00" |
| Ground Clearance: | 3.00" |
| Tire Type: | Solid |
| Drive Type: | Mid Wheel Drive |
| Foldable: | No |
| Armrest Options: |
Height Adjustable Flip-Back |
| Legrest Options: | Footplate |
| Seat Options: |
Reclining Back High-Back Seat |
| Seat Width: |
16" 18" 20" |
| Seat Depths: |
16" 18" 20" |
| Back Height: | 20" |
| Seat to Floor Height: | 21.00 |
| Maximum Seat to Floor Height: | 21.00" |
| Overall Width: | 22.00" |
| Overall Length: | 35.00" |

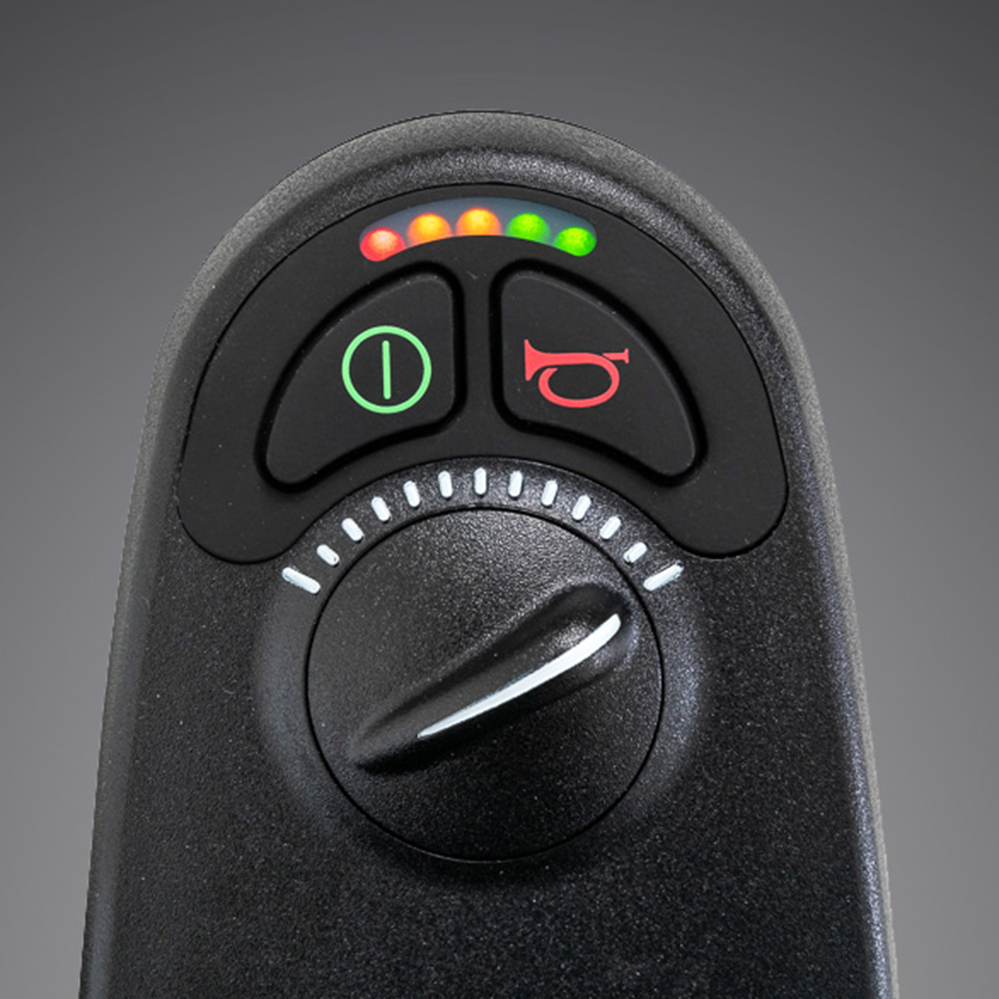

| Joystick Options: |
Right Left |
| Frame Type: | Standard Power |
| Battery Type: | Two 12 volt, NF-22 batteries |
| Batteries Included: | Yes |
| Battery Charger Type: | Off Board |
| Drive Wheel Size: | 13" |
| Caster Size: | 5" |
| Rear Caster Size: | 5" |
| Caster Type: | Solid |
| Base Weight: | 94.00 lbs. |
| Standard Seat Weight: | 48.00 lbs. |
| Battery Pack Weight: | 74.00 lbs. |
| Seat Width Ranges: |
17" or less 18" - 19" 20" - 21" |
Wheelchair Measuring Guide
Wheelchair Measurements:
- Hip Width:
Use this to figure seat width if it is the widest point. - Widest Point:
Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style. - Chest Width:
Measure the widest point of the thorax just below the armpit. This measurement may influence system width or back width. - Heel to Knee:
Use this for legrest extensions and seat height. - SRP to Knee (Seat Reference Point to Knee):
This will determine the seat depth. - Elbow to SRP (Elbow to Seat Reference Point):
Measure this width with the arm in a 90-degree angle at the elbow and the shoulder in a neutral position. - Shoulder Height:
This will determine the height and the style of the back panel or the start for a custom back. - Head Height:
This will help determine the proper headrest height.
