Pride Jazzy Elite HD Power Wheel Chair
Manuals, Literature
Product Brochure
Product BrochureFDA Class II Medical Device*
*Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairment
Product Code: J-EliteHD
$3,909.00
Description

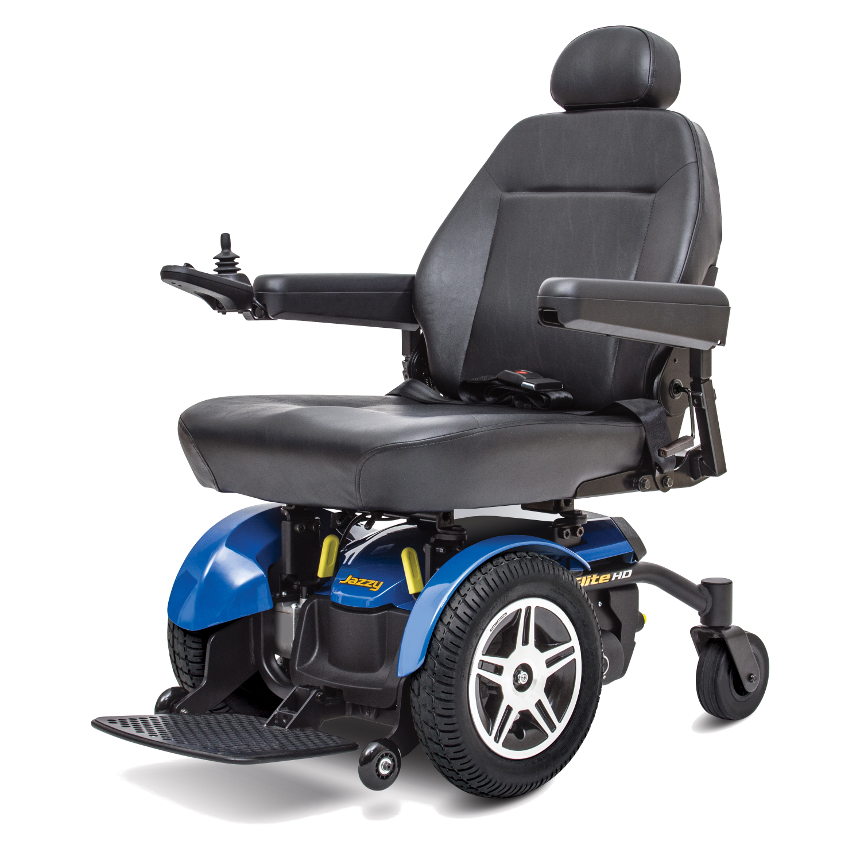

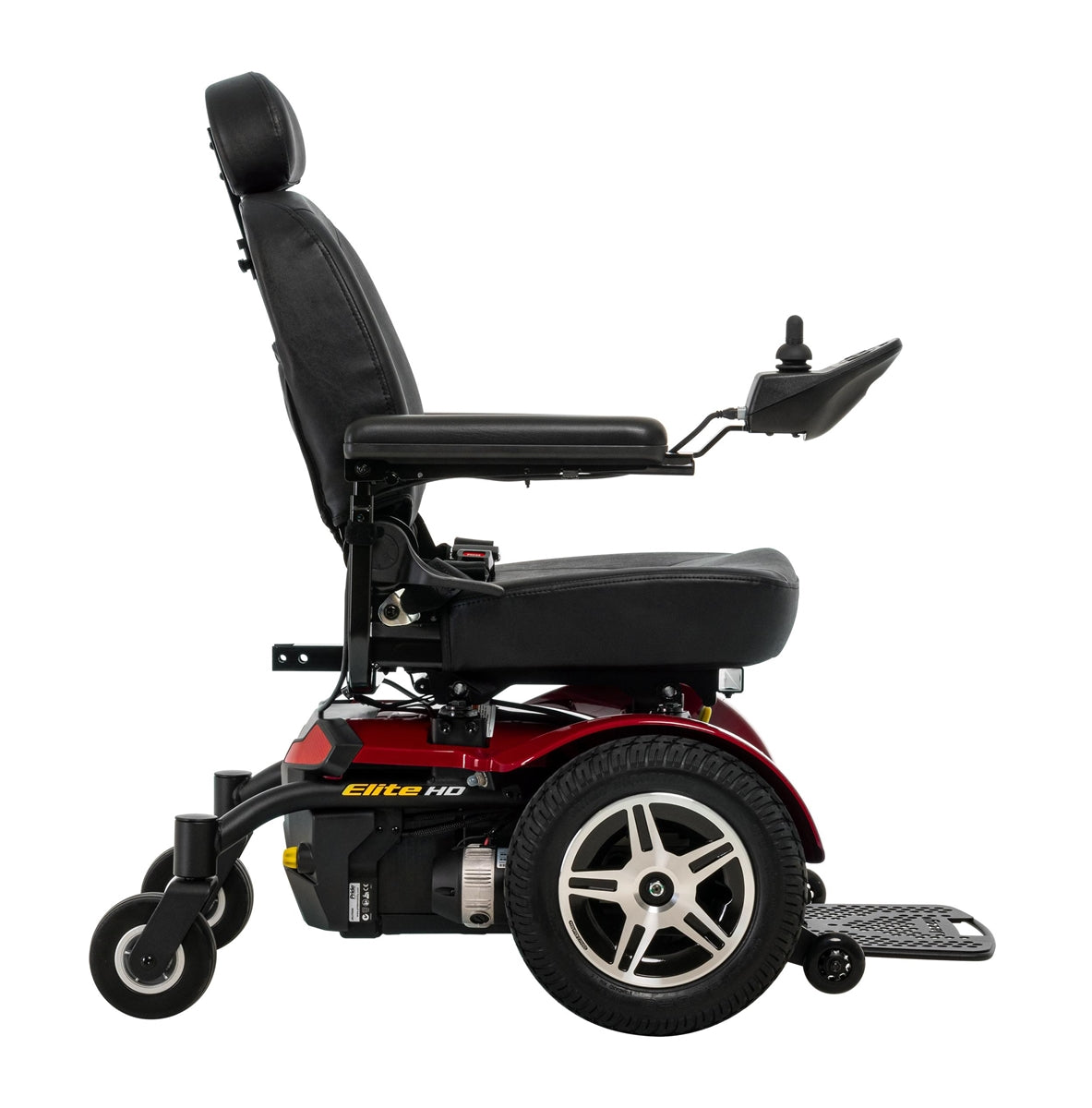

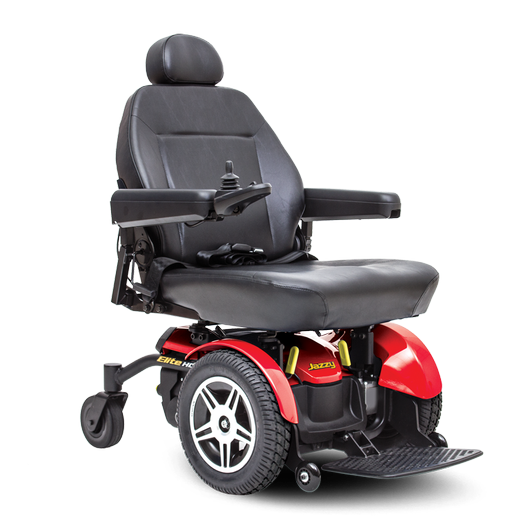

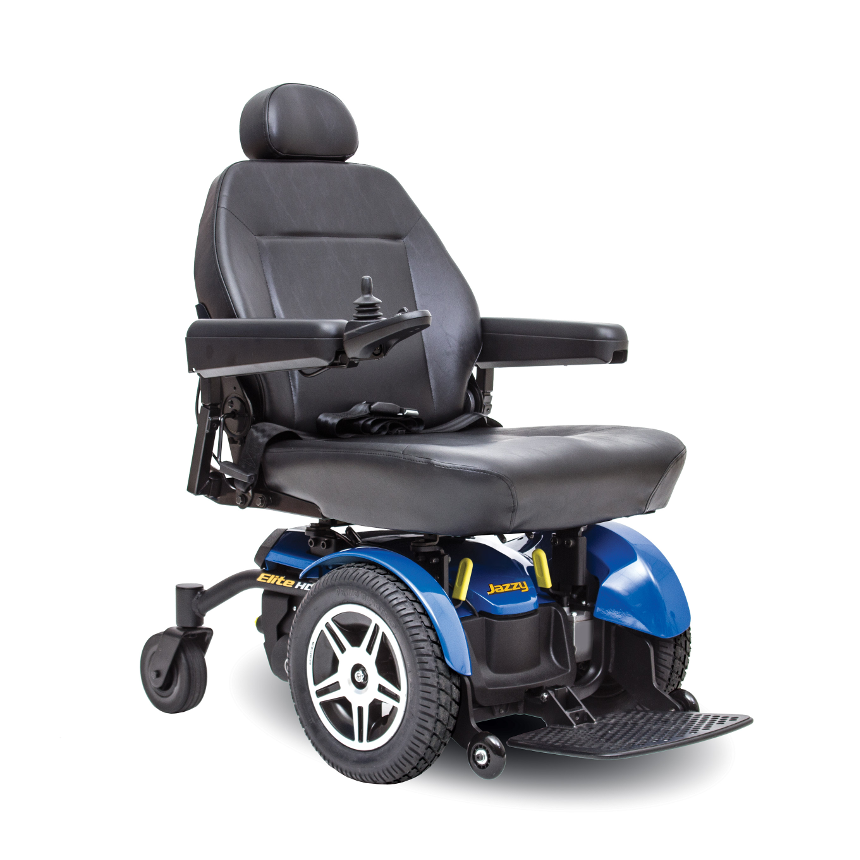

Pride Jazzy Elite HD Power Wheel Chair
The Jazzy Elite HD offers heavy-duty construction, a 450 lbs. weight capacity, and excellent performance in a stylish, highly maneuverable package!Pride's Jazzy Elite HD features blue or red color-through shrouds to protect the shrouds against nicks and scratches. It is a heavy duty power chair with 14" flat-free drive wheels that can handle most terrains.
The Jazzy Elite HD has many seat styles and sizes to choose from. High-back options include durable, black vinyl upholstery and a comfy headrest. Seats are depth adjustable on the standard seats, while the Solid Pan Seat option gives you a solid surface for seat cushion.
Features:
- Enhanced 450 lbs. weight capacity
- Front-wheel drive design for excellent maneuverability
- 14" knobby tires and optimum weight distribution provide superior traction
- Red or blue color-through shroud
- Larger foot platform
- 60 amp controller
- Built with ease of service in mind
- Extended 13-month limited warranty
Technical Specs
Specs
| Drive Range: | 9.80 miles |
| Top Speed: | 4.00 mph |
| Disassembles: | No |
| Heaviest Piece: | 99 lbs. |
| Turning Radius: | 24.00" |
| Ground Clearance: | 3.00" |
| Tire Type: | Solid |
| Maximum Incline Rating: | 6 º |
| Drive Type: | Front Wheel Drive |
| Foldable: | Yes |
| Armrest Options: |
Height Adjustable Flip-Back |
| Legrest Options: |
Footplate Elevating Legrests Swing-Away Legrests |
| Seat Options: |
Reclining Back High-Back Seat Captain's Seat |
| Power Chair Seat Width: |
18" 20" 22" |
| Seat Depths: |
18" 19" 20" 21" 22" |
| Seat to Floor Height: | 20.00 |
| Maximum Seat to Floor Height: | 22.00" |
| Overall Width: | 24.25" |
| Overall Length: | 35.50" |
| Joystick Options: |
Right Left Swing-Away |
| Adjustable Hanger Brackets: | No |
| Adjustable Angle Footplates: | No |
| Dampening Adjustment: | No |
| Battery Type: | NF-22 |
| Batteries Included: | Yes |
| Battery Charger Type: | Off Board |
| Drive Wheel Size: | 14" |
| Anti-Tip Size: | 3" |
| Caster Size: | 6" |
| Rear Caster Size: | 6" |
| Caster Type: | Solid |
| Base Weight: | 99.00 lbs. |
| Standard Seat Weight: | 52.00 lbs. |
| Battery Pack Weight: | 74.00 lbs. |
| Weight Without Batteries: | 151.00 lbs. |
| Controller Type: | 60 amp controller |
| Suspension: | No |
| Seat Width Ranges: |
18" - 19" 20" - 21" 22" - 23" |
Wheelchair Measuring Guide
Wheelchair Measuring Guide
Wheelchair Measurements:
- Hip Width:
Use this to figure seat width if it is the widest point. - Widest Point:
Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style. - Chest Width:
Measure the widest point of the thorax just below the armpit. This measurement may influence system width or back width. - Heel to Knee:
Use this for legrest extensions and seat height. - SRP to Knee (Seat Reference Point to Knee):
This will determine the seat depth. - Elbow to SRP (Elbow to Seat Reference Point):
Measure this width with the arm in a 90-degree angle at the elbow and the shoulder in a neutral position. - Shoulder Height:
This will determine the height and the style of the back panel or the start for a custom back. - Head Height:
This will help determine the proper headrest height.
