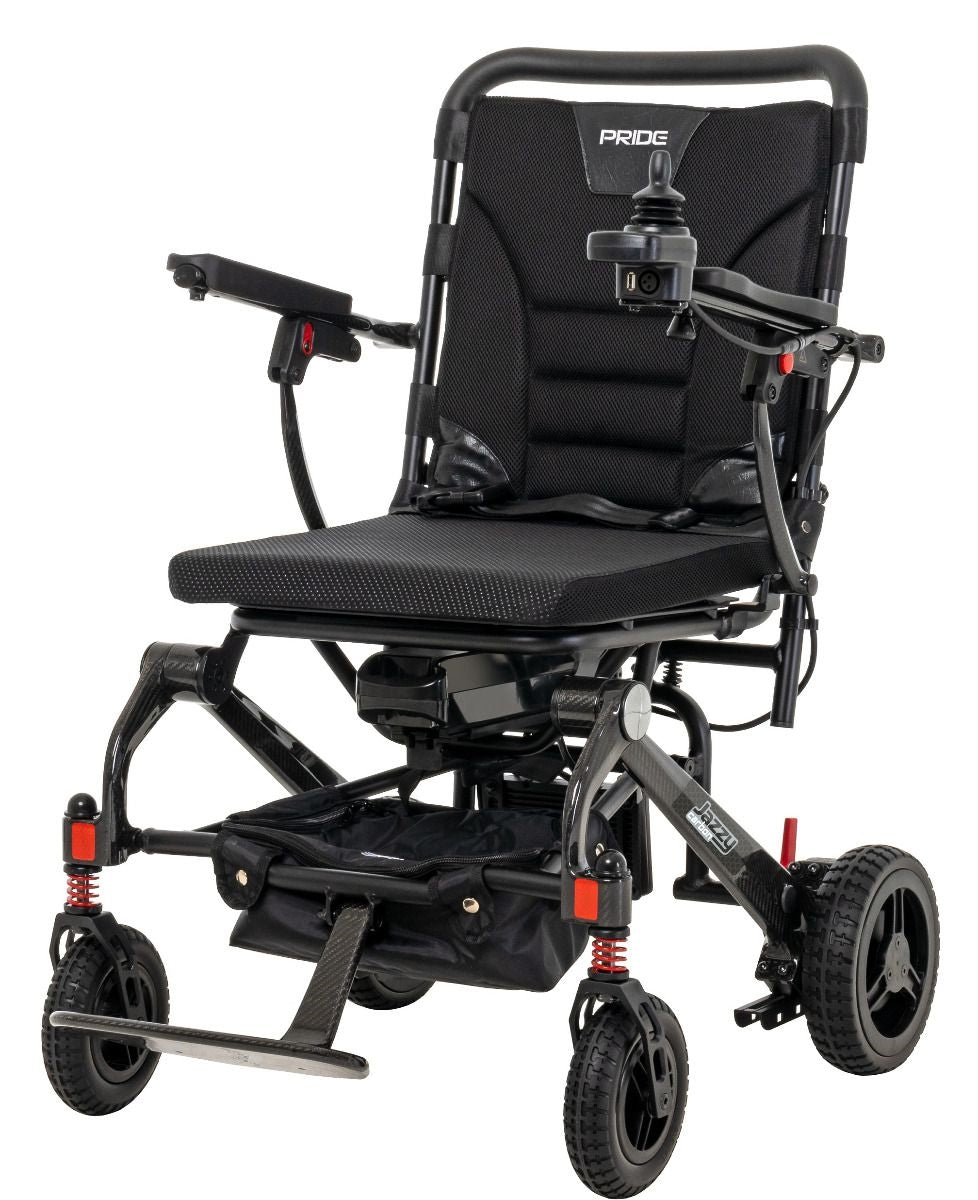

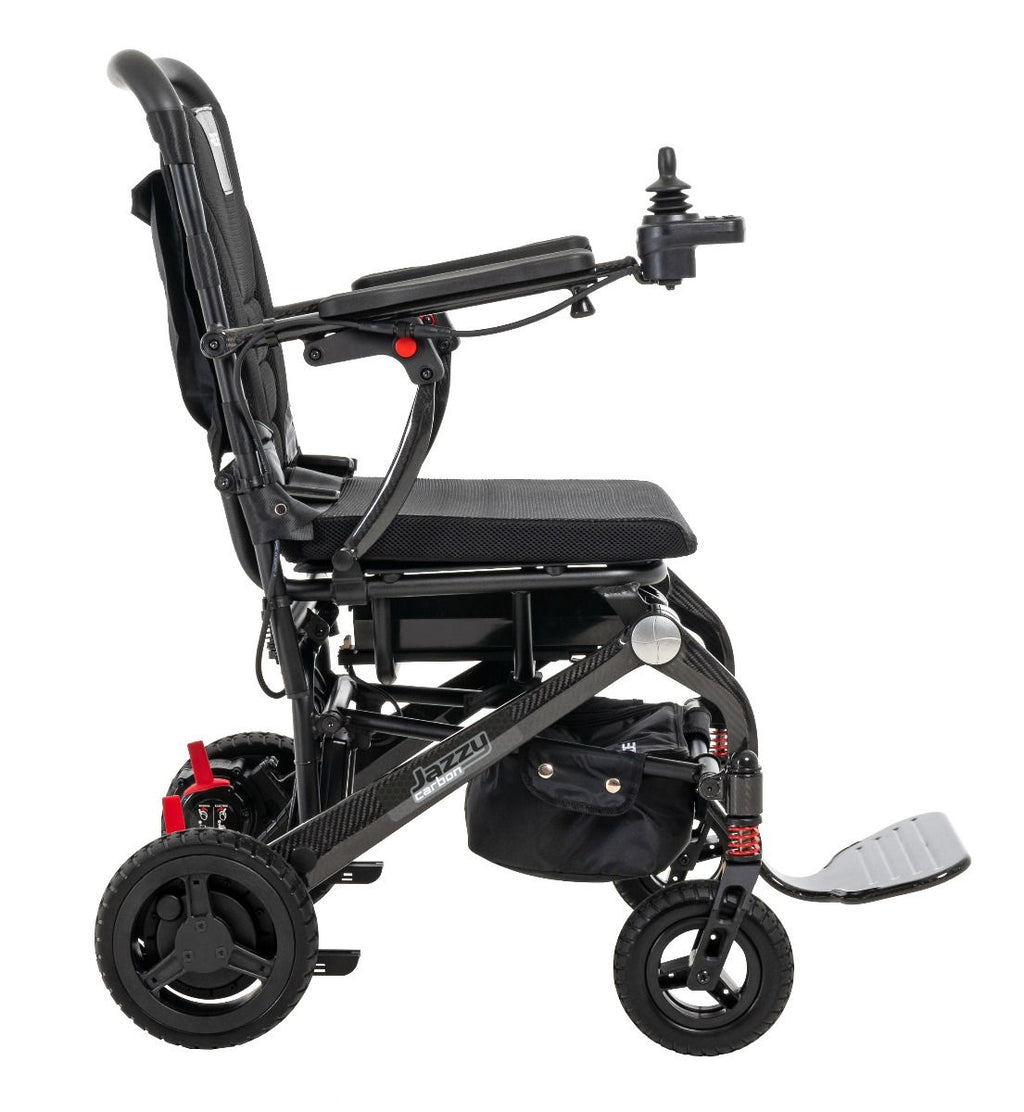

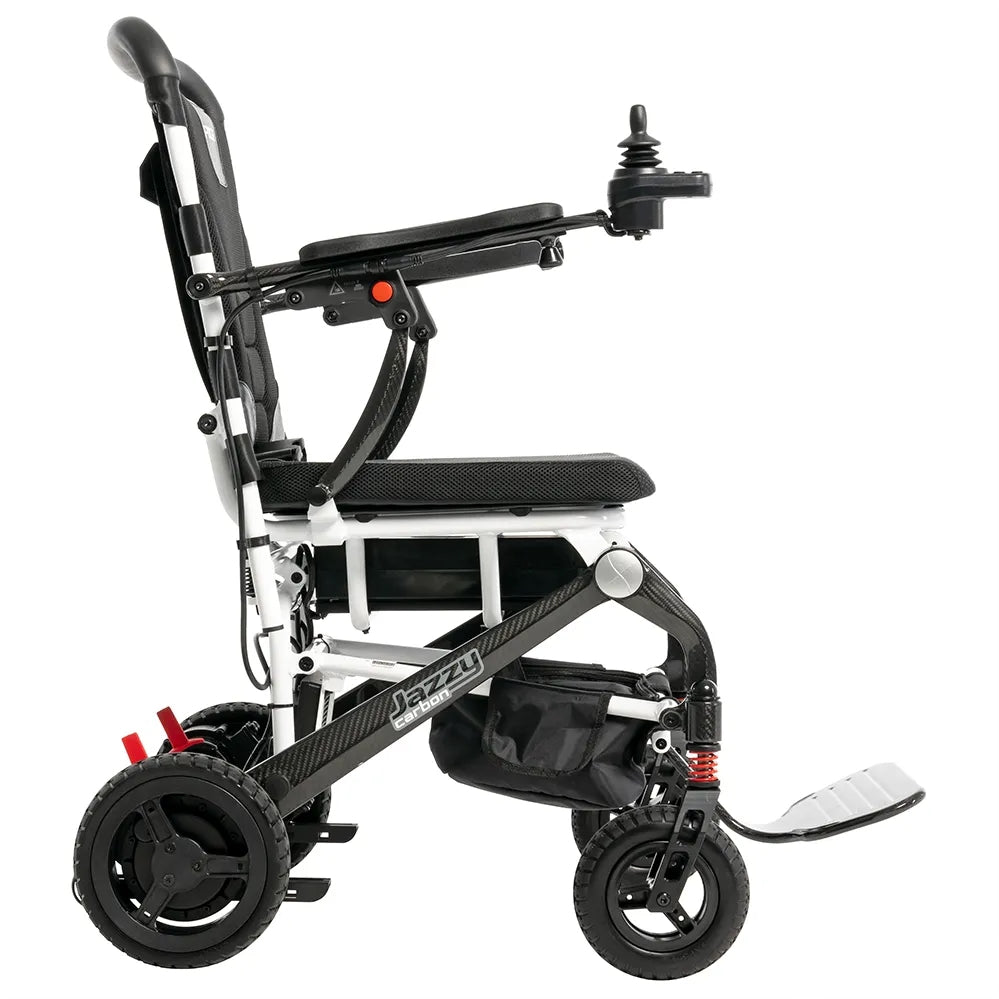

Pride Jazzy Carbon LI Powerchair
The Newest Edition to the Pride power-chair line! The Jazzy Carbon weighs in at 43.6 pounds and provides top speeds up to 3.7 mph with a weight capacity of 300 poundsYou know Jazzy ® for its industry-leading performance and quality. Now let's talk about portability. the Jazzy ® Carbon uses ultralight but exceptionally strong carbon fiber technology for its frame and a lightweight, reliable lithium-ion battery.
Travelers keep their Jazzy Carbon charged and standing by for spontaneous jet-setting adventures. They know it breezes through airport security, easily stows on the plane and gives them the mobility support they need to make the most of their travels.
- Weighing in at a stunning 43.6 pounds, the Jazzy Carbon still provides top speeds up to 3.7 mph with a weight capacity of 300 pounds.

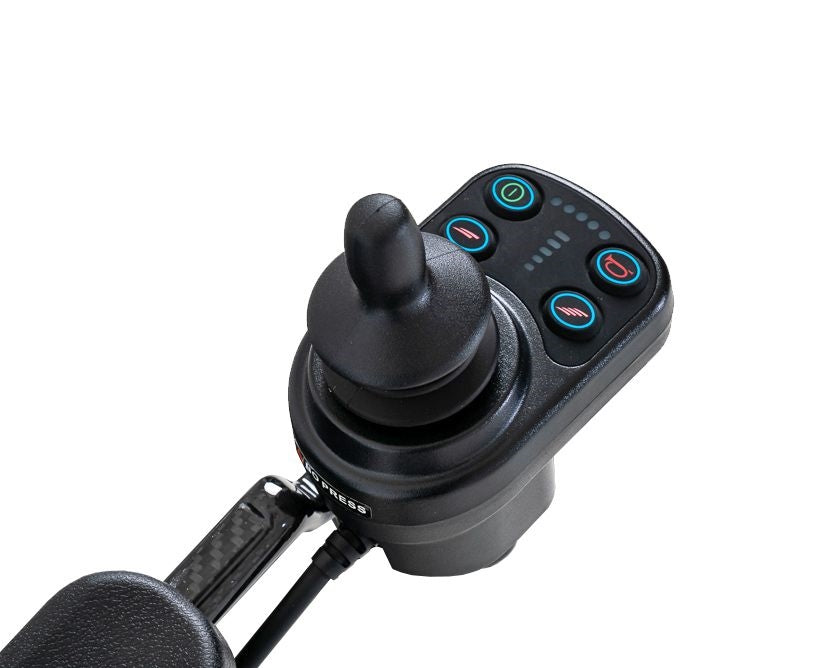

- Joystick with built in USB charger is removable for transport

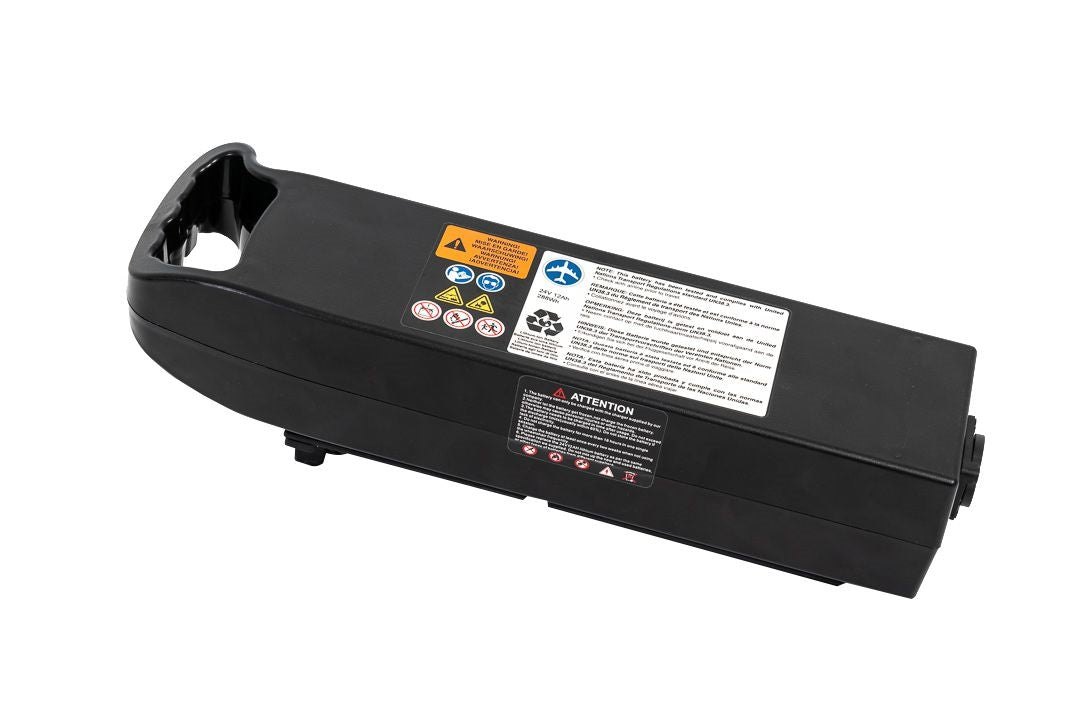

- Airline compliant lithium battery*

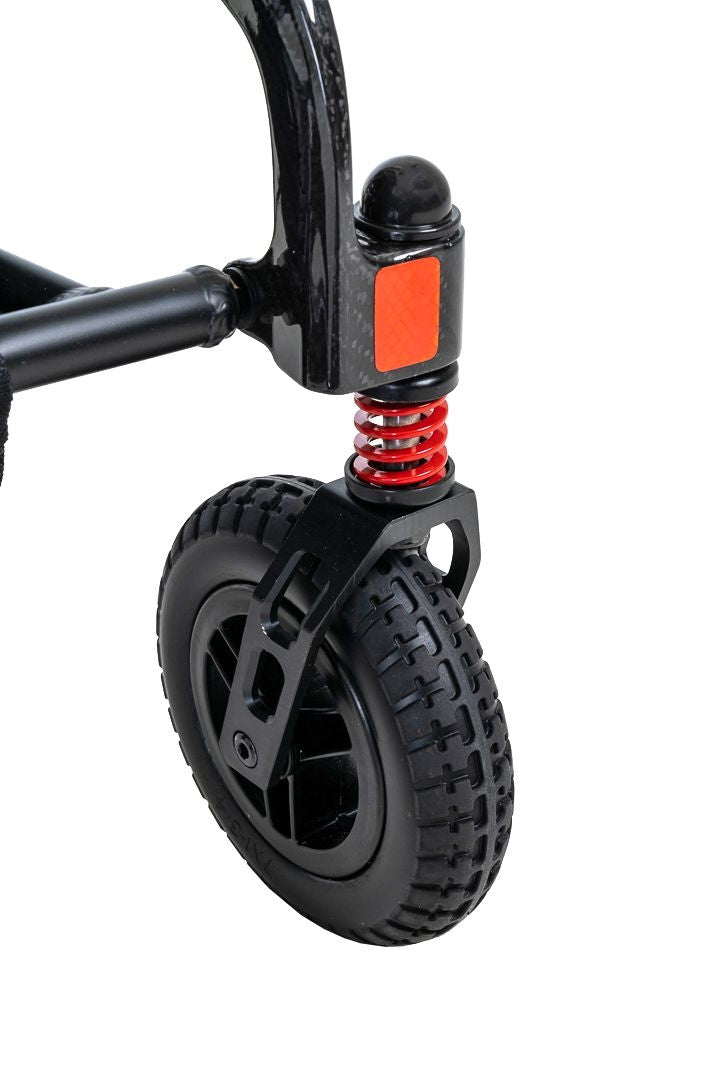

- Front suspension for a smooth ride
- Ultra-lightweight, carbon fiber frame specifically designed for traveling

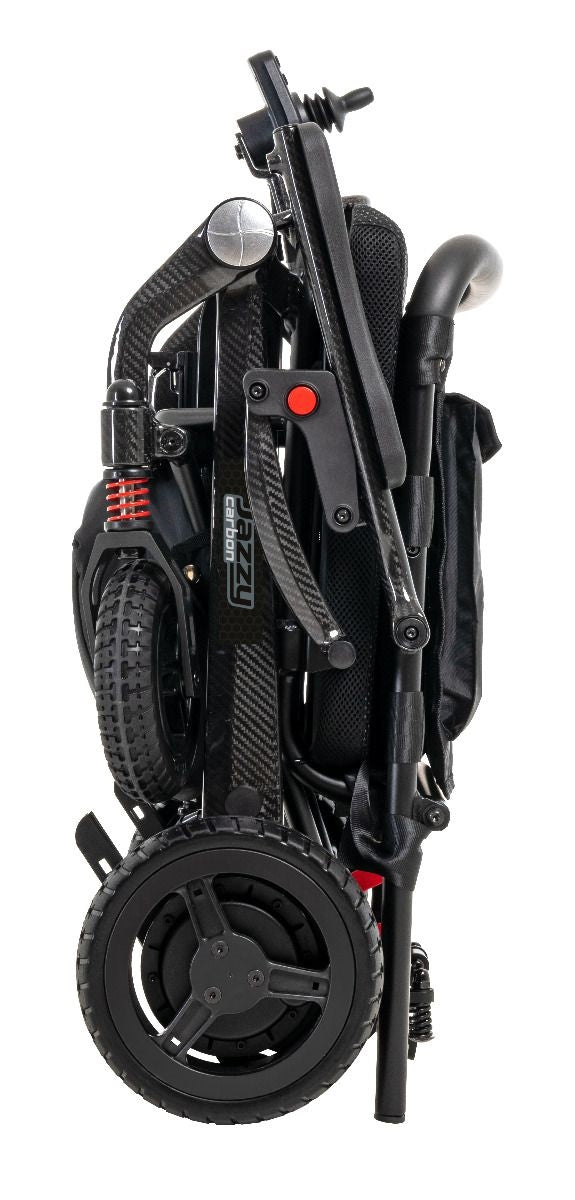

- Compact base easily folds and unfolds for easy transport in a few easy steps
- Padded seat back with storage pocket and soft, removable seat cushion for all-day comfort
- Free-wheel levers easily disengage the brake, allowing this lightweight power chair to be pushed like a manual chair
- Under-seat storage and adjustable lap belt
- 17" x 17" Seat
Technical Specs
Details and Specifications for the Pride Jazzy Carbon
|
Model |
Jazzy Carbon |
| Weight Capacity | 300 lbs. |
| Turning Radius3 | 24" |
| Overall Width3 | 24" |
| Overall Length3 | 37" |
| Maximum Speed2 | Up to 3.7 mph |
| Ground Clearance3 | 2" |
| Front Casters3 | 7" |
| Drive Wheels3 | 8.5" solid |
| Drivetrain | 24v/250W brushless motors |
| Braking System | Regenerative and electromechanical |
| Suspension | Type Front |
| Standard Seat3 | 17" x 17" black foam |
| Seat-to-Floor Range3 |
20.25" with standard
cushion
18.75" without cushion |
| Per Charge Range3,5 | Up to 9.3 miles |
| Standard Electronics | 35A Brushless Micon |
| Component Weights6 |
Base: 39.6 lbs. Battery: 4 lbs. |
| Total Weight 3 | 43.6 lbs. with batteries |
| Battery Requirements | 24V 12AH (288WH) lithium-ion |
| Battery Charger | 2 amp, lithium-ion off-board |
| Warranty |
Lifetime limited on frame; 1-year limited on electrical control/lever system, motor/drive system, bearing sleeve and battery |
1 Jazzy® Power Chairs are FDA Class II Medical Devices designed to aid individuals with mobility impairments.
2 Varies with user weight, terrain type, battery amp-hour (AH), battery charge, battery condition and tire condition. These specifications can be subject to a variance of (+/- 10%).
3 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+ or - 3%).
4 Total weight includes base, seat and batteries.
5 Tested in accordance with ANSI/RESNA, WC Vol2, section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity.
6 Battery weight may vary based on manufacturer.
Wheelchair Measuring Guide
Wheelchair Measuring Guide
Wheelchair Measurements:
- Hip Width:
Use this to figure seat width if it is the widest point. - Widest Point:
Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style. - Chest Width:
Measure the widest point of the thorax just below the armpit. This measurement may influence system width or back width. - Heel to Knee:
Use this for legrest extensions and seat height. - SRP to Knee (Seat Reference Point to Knee):
This will determine the seat depth. - Elbow to SRP (Elbow to Seat Reference Point):
Measure this width with the arm in a 90-degree angle at the elbow and the shoulder in a neutral position. - Shoulder Height:
This will determine the height and the style of the back panel or the start for a custom back. - Head Height:
This will help determine the proper headrest height.
