Pride Jazzy Air 2 Power Wheelchair
FDA Class II Medical Device*
*Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairment
Product Code: JAZZYAIR2
$4,344.00
Description

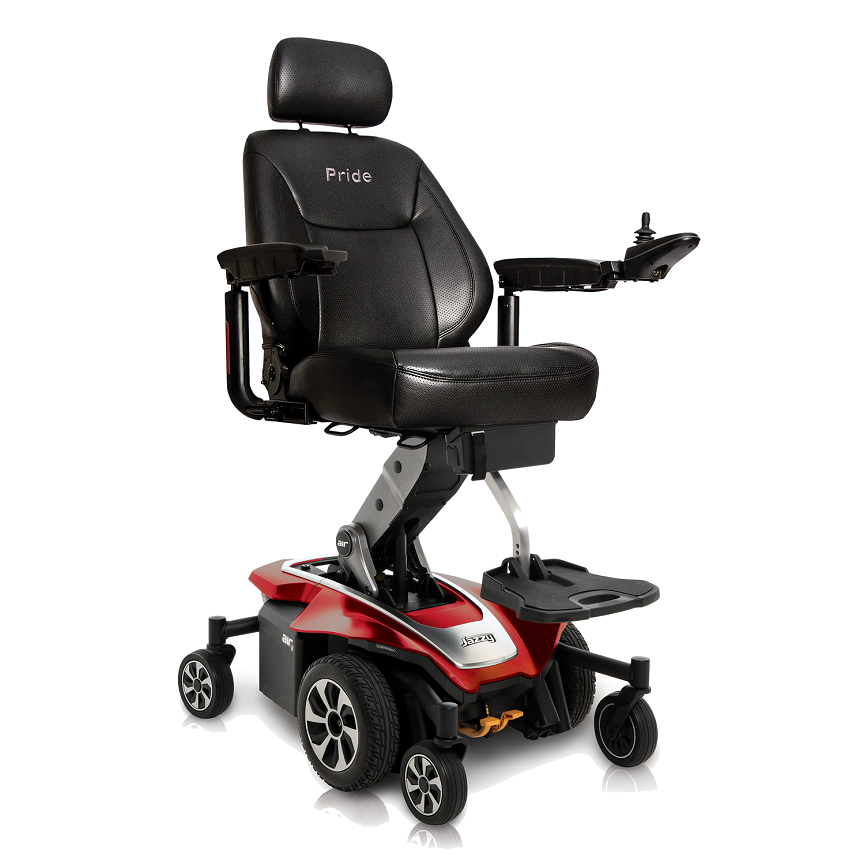

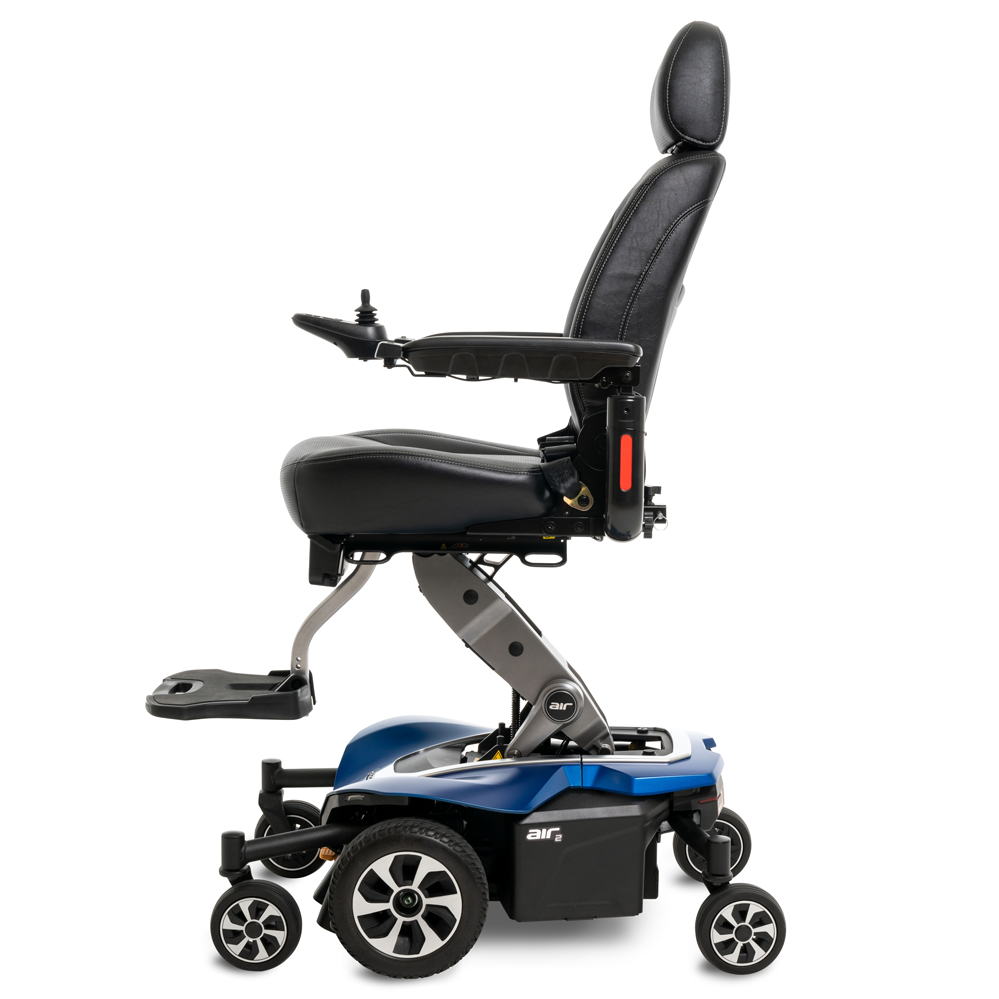

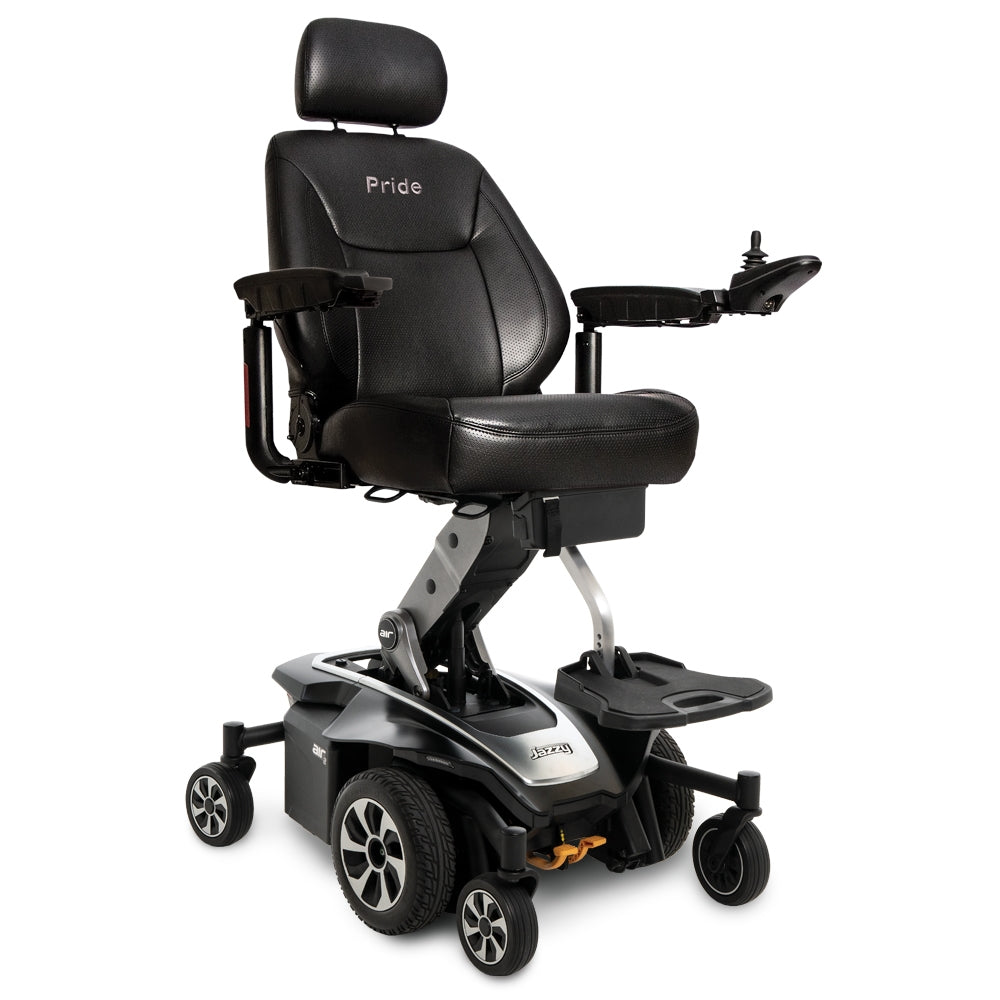

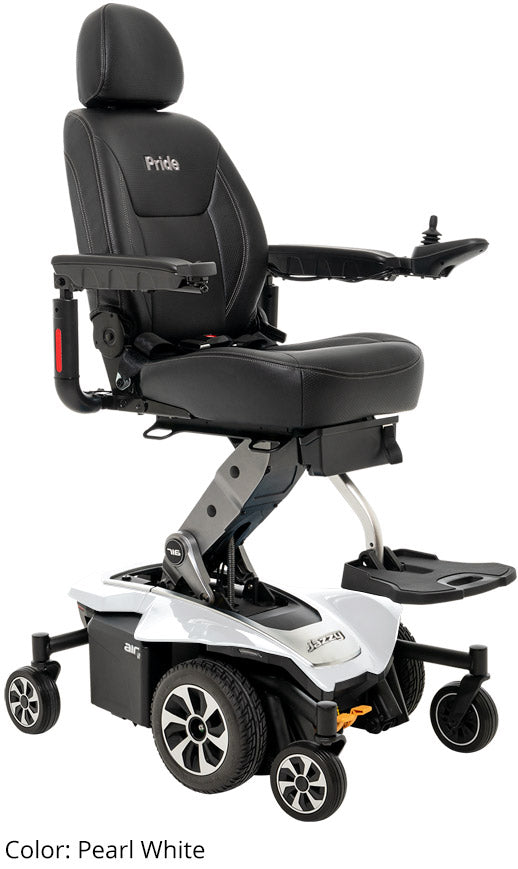

Pride Jazzy Air 2 Power Wheelchair

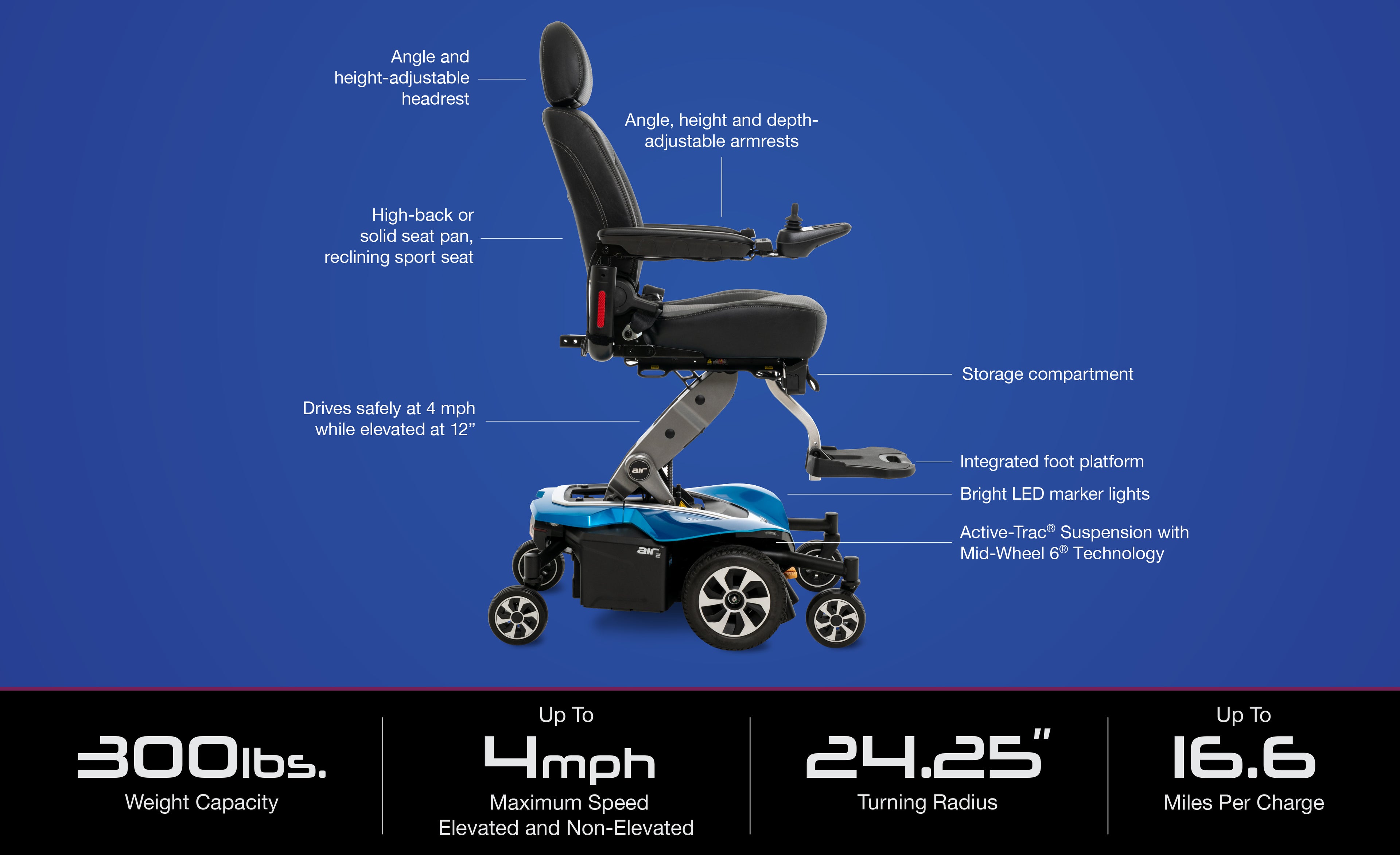

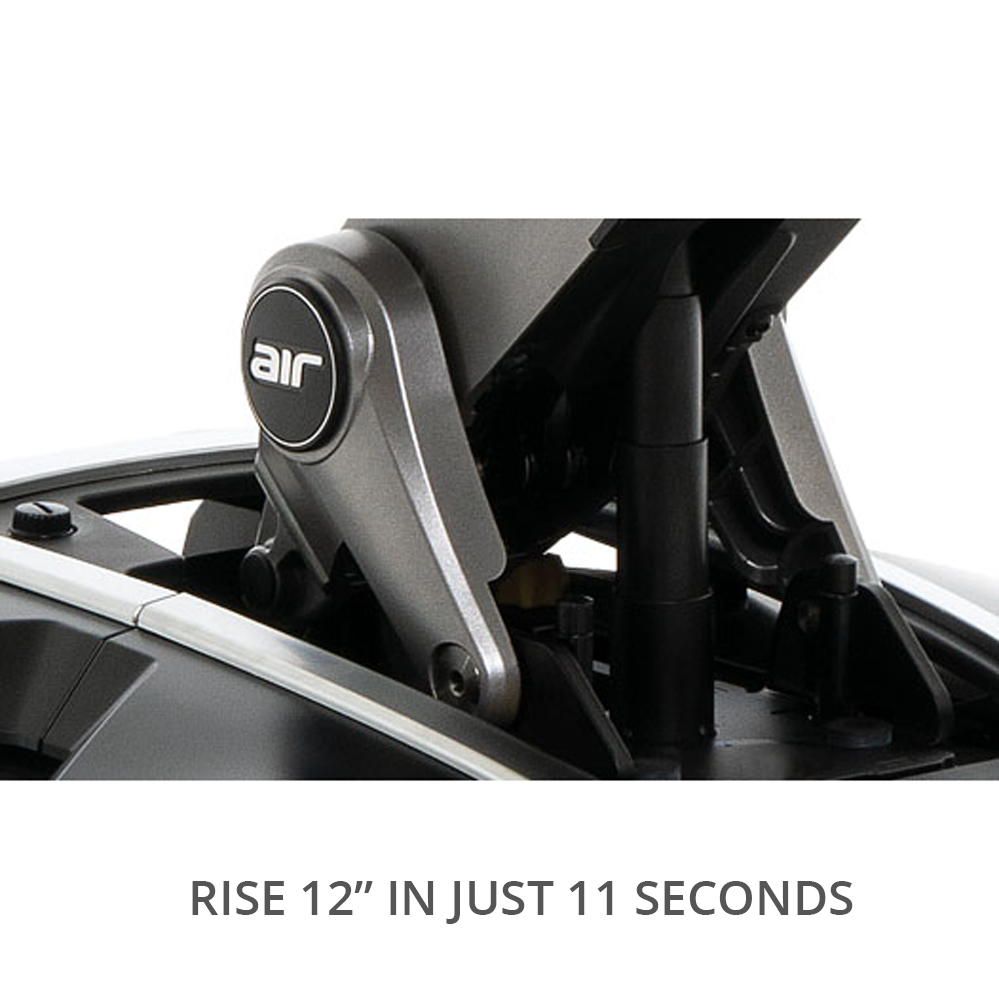

At the touch of a switch, the Jazzy Air ® 2 elevates 12" in just 11 seconds. With a sleek, more modern look, this power chair safely drives at speeds up to 4 mph while elevated, allowing users to enjoy face-to-face social engagement.
The Pride Jazzy Air 2 Power Wheelchair, It elevates in now just 11 seconds to the primary standing height position allowing quicker access to your environment.
Re-designed lift features:
- 2" lower seat-to-floor height enables user to sit comfortably at standard table or desk
- Raises and lowers in 11 seconds by using the Air switch or VR2 joystick
- Drives safely at 4 mph in the elevated position
- Integrated foot platform with rubber insert and 2"of adjustment for comfort in both the elevated and non-elevated positions
- Bright LED marker lights offers visibility in all environments

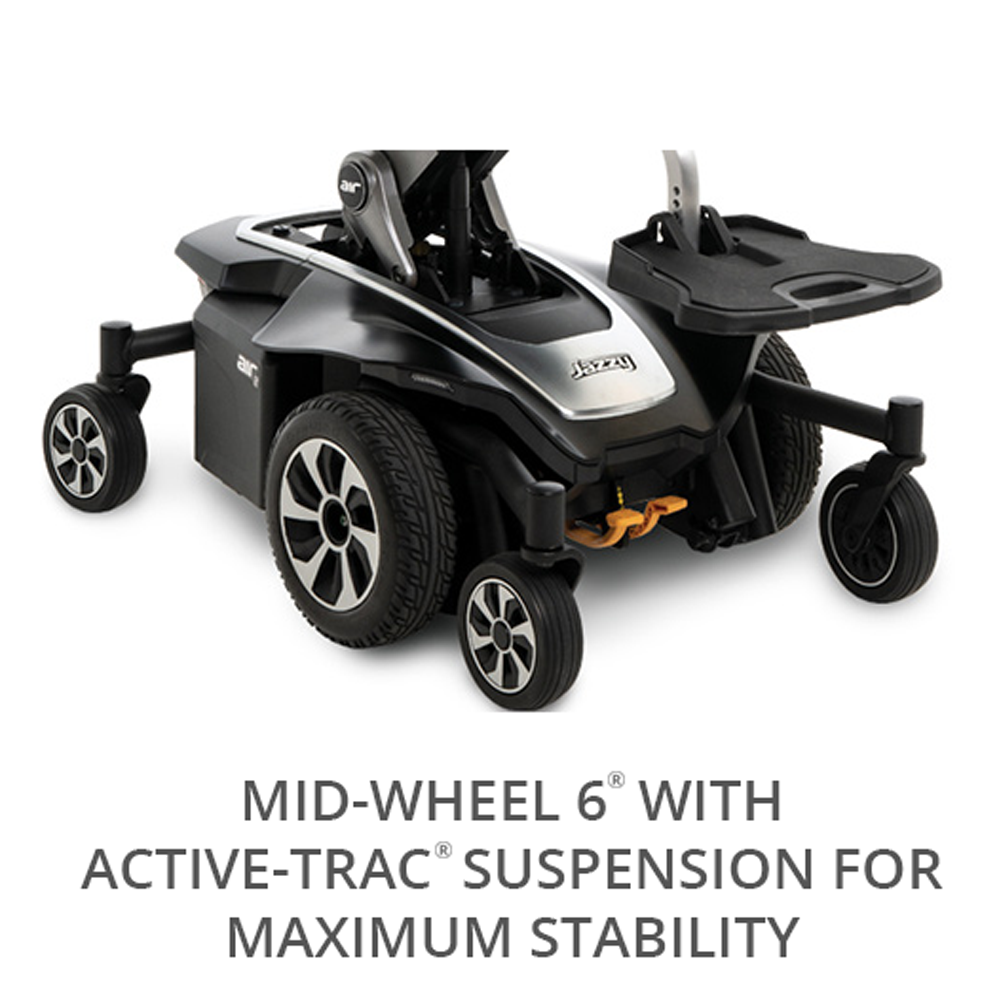

- Active-Trac ® suspension with Mid-Wheel 6 ® Technology allows for maximum stability in the elevated and non-elevated positions
- Single-sided caster forks for enhanced maneuverability
- Under seat front storage compartment keeps your valuables accessible
Technical Specs
Model:Jazzy Air® 2
- Weight Capacity 300 lbs.
- Turning Radius1 20.75"
- Width1 23.19"
- Length1,2 41.93"
- Maximum Speed3 Up to 4.0 mph (elevated and non-elevated position)
- Ground Clearance1 1" at motor bracket
- Front Wheels 6" flat free
- Drive Wheels 10" flat free
- Rear Wheels 6" flat free
- Drivetrain Two motor, Mid-Wheel 6® drive
- Braking System "Intelligent Braking" (electronic regenerative, disc park brake)
- Suspension Type Active-Trac® with Mid-Wheel 6® Technology
- High-Back Seat (max. size) 20"W x 20"-22"D
- High-Back Seat-to-Floor Range 21.25" 33"
- Battery Size (2 required) 12 volt, U-1
- Optional 40 Ah
- Battery Weight5 U1 Batteries: 24.5 lbs.
- 40 Ah Batteries: 32.5 lbs.
- Standard Battery Charger 5 amp, off-board
- Per-Charge Range3,6 Up to 16.8 miles (U1)
- Up to 19.2 miles (40 Ah)
- 13-month limited on electronics;
- 13-month on drive motors;
- 13-month limited on batteries.
Wheelchair Measuring Guide
Wheelchair Measuring Guide
Wheelchair Measurements:
- Hip Width:
Use this to figure seat width if it is the widest point. - Widest Point:
Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style. - Chest Width:
Measure the widest point of the thorax just below the armpit. This measurement may influence system width or back width. - Heel to Knee:
Use this for legrest extensions and seat height. - SRP to Knee (Seat Reference Point to Knee):
This will determine the seat depth. - Elbow to SRP (Elbow to Seat Reference Point):
Measure this width with the arm in a 90-degree angle at the elbow and the shoulder in a neutral position. - Shoulder Height:
This will determine the height and the style of the back panel or the start for a custom back. - Head Height:
This will help determine the proper headrest height.
