Description

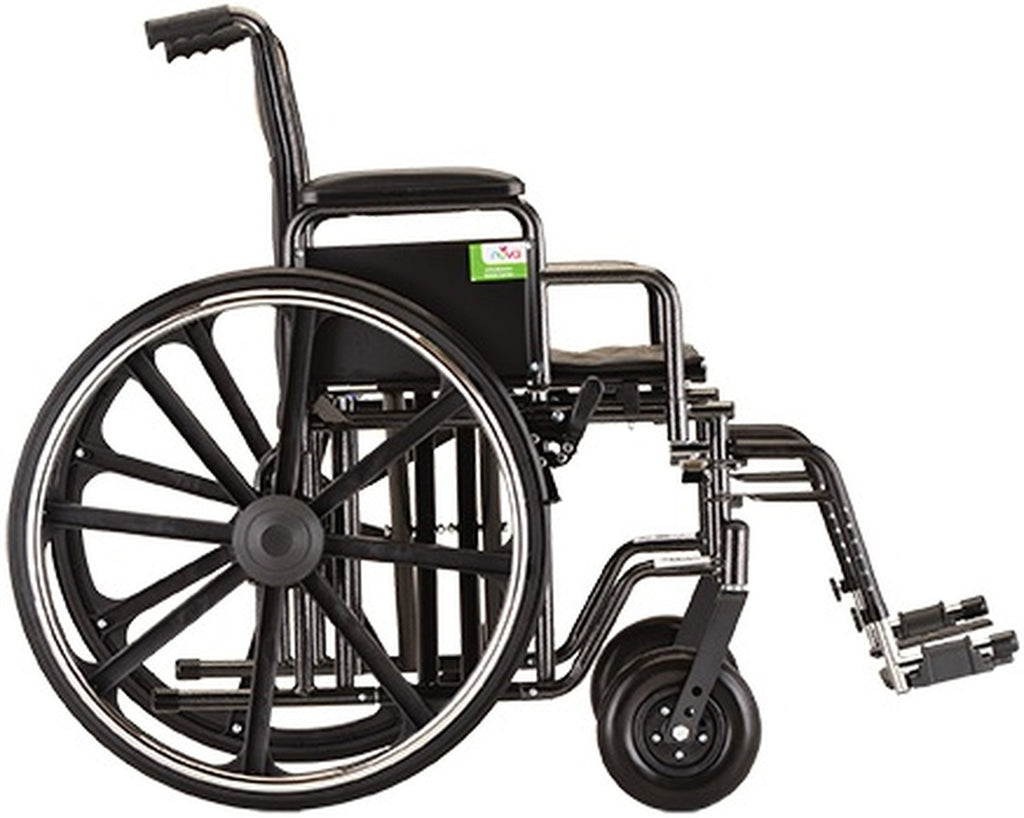

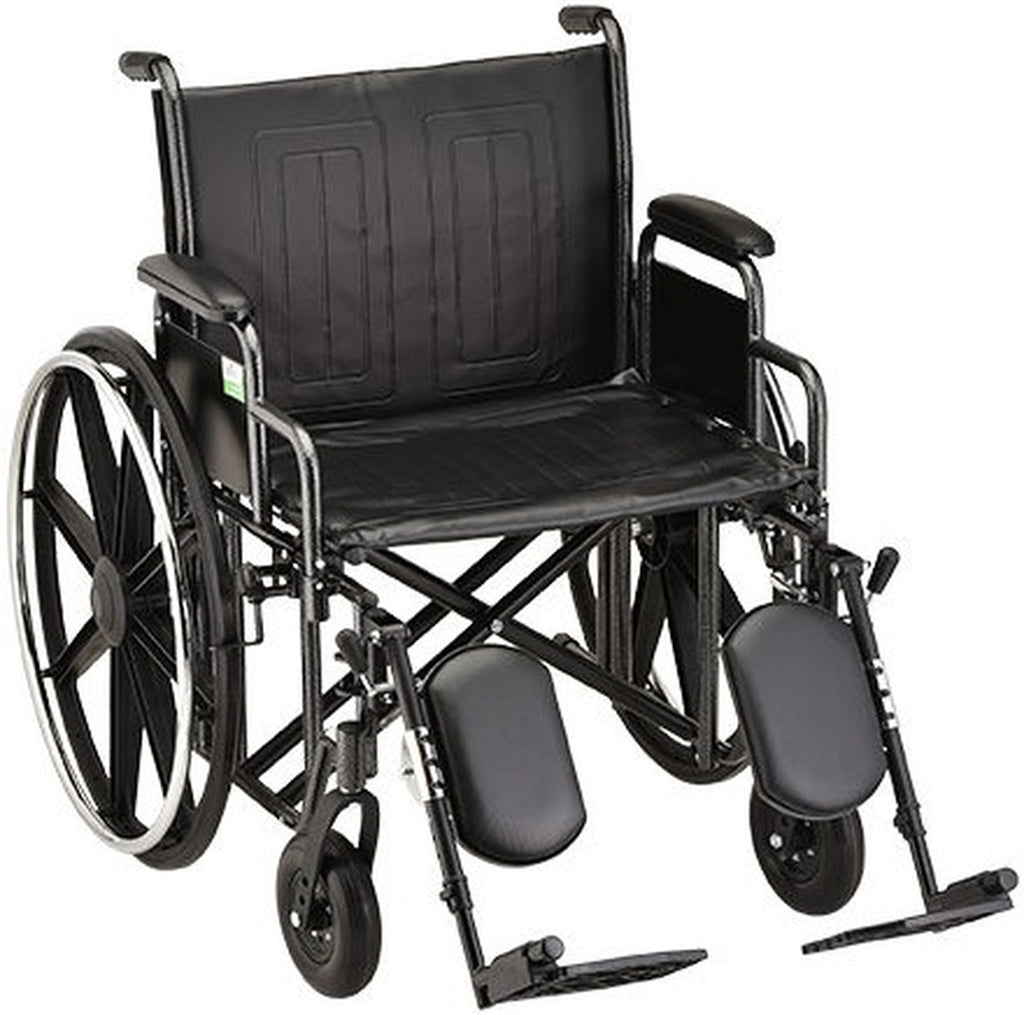

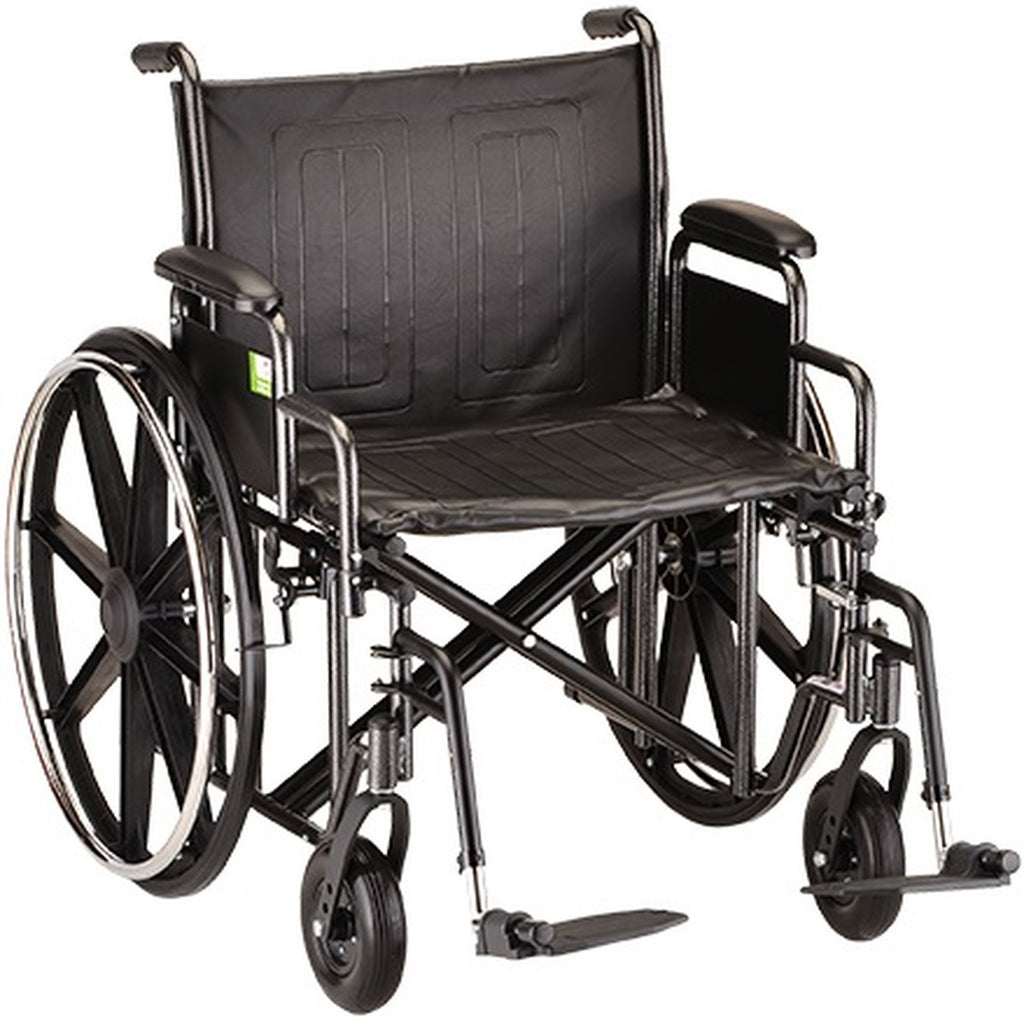

Nova Heavy Duty 22'-24" Steel Wheelchair 5220S 5240S
The Nova Heavy Duty Steel Wheelchair comes equipped with detachable, desk length or full length arms and swing away footrests or swing away elevating leg-rests. It also features dual axle positions for quick seat height conversion and flame retardant black vinyl upholstery.
There are industry compatible accessories available for this product
Features:
- 3-position front caster forks
- Heavy duty steel frame with hammertone finish
- Reinforced, double cross brace provides additional strength
- Flame retardant, black vinyl upholstery
- Removable, desk or full length padded armrests
- Dual axle positions for seat height 18" or 20" from floor
- Heavy duty, flat free 8" front casters
- Sealed wheel bearings
- Comes with push to lock wheel locks
- Seat width available in 22" or 24"
- Seat depth is 18"
- Optional swing-away, removable padded elevating legrests available
- Weighty capacity is 350 lbs. (22"W) or 425 lbs. (24"W)
- To speak with a customer service representative, call 1-866-218-0912
- Free Swing-Away Detachable Footrests!
Technical Specs
Specifications
- Overall Width: Seat Width + 9"
- Overall Depth: 35" (w/o front riggings)
- Overall Height: 36.5"
- Seat Width: 22" or 24"
- Seat Depth: 18"
- Seat to Floor: 18" or 20"
- Seat to Back: 16"
- Seat to Arm: 9"

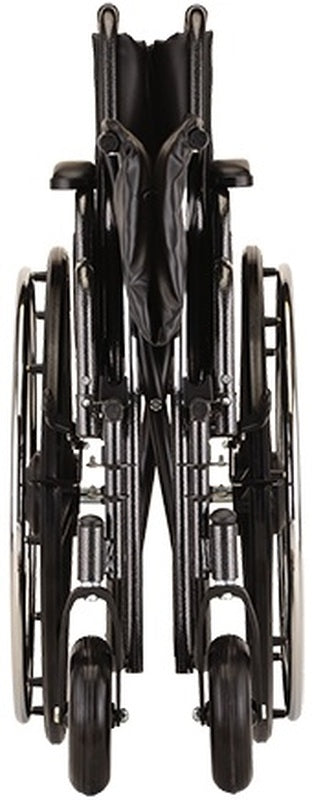

- Folded Width: 13.5"
- Front Riggings: Swingaway Footrests or
- Swingaway Padded Elevating Legrests
- Arm Type: Removable, Full or Desk Length
- Product Weight:
- 22"W Seat: 52.7 lbs.
- 24"W Seat: 53.7 lbs.
- Weight Capacity
- 22"W Seat: 350 lbs.
- 24"W Seat: 425 lbs.
- Limited Warranty
- Frame & Cross Brace: Limited Lifetime
- Parts: 1 Year
Wheelchair Measuring Guide
Wheelchair Measuring Guide
Wheelchair Measurements:
- Hip Width:
Use this to figure seat width if it is the widest point. - Widest Point:
Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style. - Chest Width:
Measure the widest point of the thorax just below the armpit. This measurement may influence system width or back width. - Heel to Knee:
Use this for legrest extensions and seat height. - SRP to Knee (Seat Reference Point to Knee):
This will determine the seat depth. - Elbow to SRP (Elbow to Seat Reference Point):
Measure this width with the arm in a 90-degree angle at the elbow and the shoulder in a neutral position. - Shoulder Height:
This will determine the height and the style of the back panel or the start for a custom back. - Head Height:
This will help determine the proper headrest height.
