Description
Nova 17" Lightweight Transport Chair with Fixed Arms
- Foldable
- Lightweight aluminum frame
- Available in blue and red colors
The 17" Nova Lightweight Transport Chair with Fixed Arms has a lightweight aluminum frame and padded upholstery. It is foldable and has a quick release fold-down back, as well as padded, fixed full-length arms for added comfort. This transport chair has locking rear wheels and is also available is blue and red colors.
Features:
- Fixed, full-length arms
- Carbon steel frame
- Quick release fold-down back
- Padded upholstery
- Padded armrests
- Locking rear wheels
- Removable aluminum footrests
- Non-skid foot plates & heel loops
- Foldable
- Includes seat belt
- 8" wheels
Specifications:
- Weight Capacity: 300 lbs
- Overall Weight: 19.5 lbs
- Width btw Arms: 14.5"
- Seat Height: 19"
- Arm Height from Seat: 10"
- Back Height from Seat: 20"
- Seat Dimensions: 16.5"w x 15.75"d
- Overall Dimensions: 20.5"w x 40.5"h
- Overall Folded Dimensions: 30"l x 11"w 26"d
Nova 17" Lightweight Transport Chair with Fixed Arms
Technical Specs
Product Specifications
| Weight Capacity | 300 lbs. |
| Product Weight | 18.7 lbs. |
| Seat Width | 16.5" |
| Seat Depth | 15.75" |
| Seat-to-Floor Height | 19.5" |
| Overall Width | 21.25" |
| Overall Length | 27" |
| Overall Height | 39.5" |

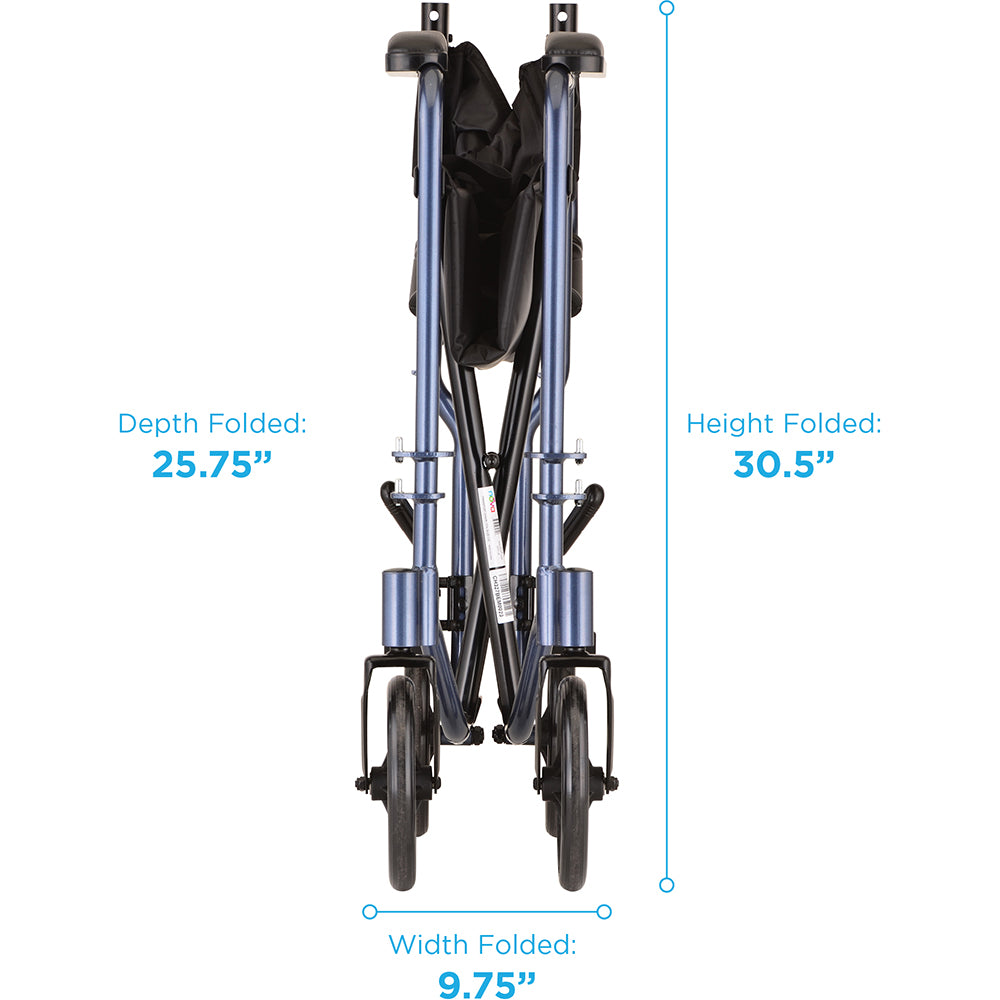

| Folded Depth | 25.75" |
| Folded Height | 30.5" |
| Folded Width | 9.75" |
| Frame Color | Blue, Red |
| Front Wheel Size | 8" |
| Rear Wheel Size | 8" |
| Axle Type | Fixed |
| Armrest | Full Length |
| Back Height | 18.5" |
| Footrests | Swingaway |
| HCPCS | E1038 |
| Warranty on Frame | Lifetime Limited |
| Warranty on Wearable Parts | One Year Limited |
Wheelchair Measuring Guide
Wheelchair Measuring Guide
Wheelchair Measurements:
- Hip Width:
Use this to figure seat width if it is the widest point. - Widest Point:
Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style. - Chest Width:
Measure the widest point of the thorax just below the armpit. This measurement may influence system width or back width. - Heel to Knee:
Use this for legrest extensions and seat height. - SRP to Knee (Seat Reference Point to Knee):
This will determine the seat depth. - Elbow to SRP (Elbow to Seat Reference Point):
Measure this width with the arm in a 90-degree angle at the elbow and the shoulder in a neutral position. - Shoulder Height:
This will determine the height and the style of the back panel or the start for a custom back. - Head Height:
This will help determine the proper headrest height.
