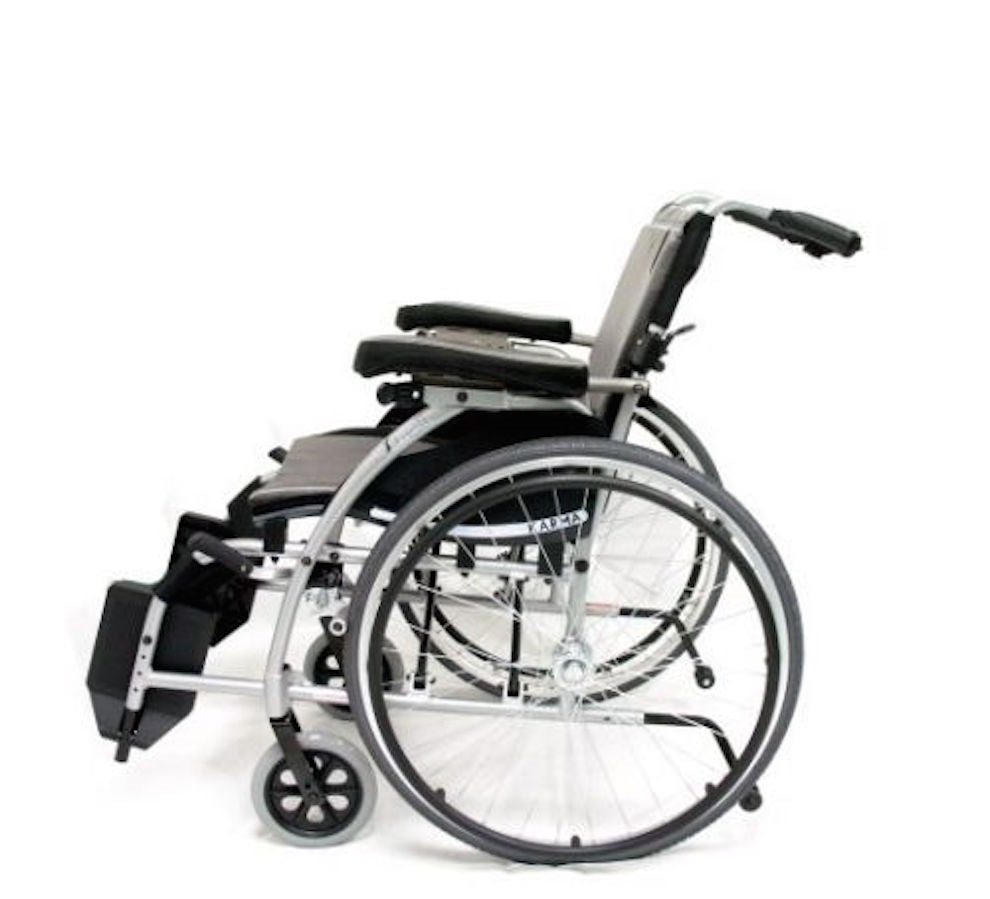

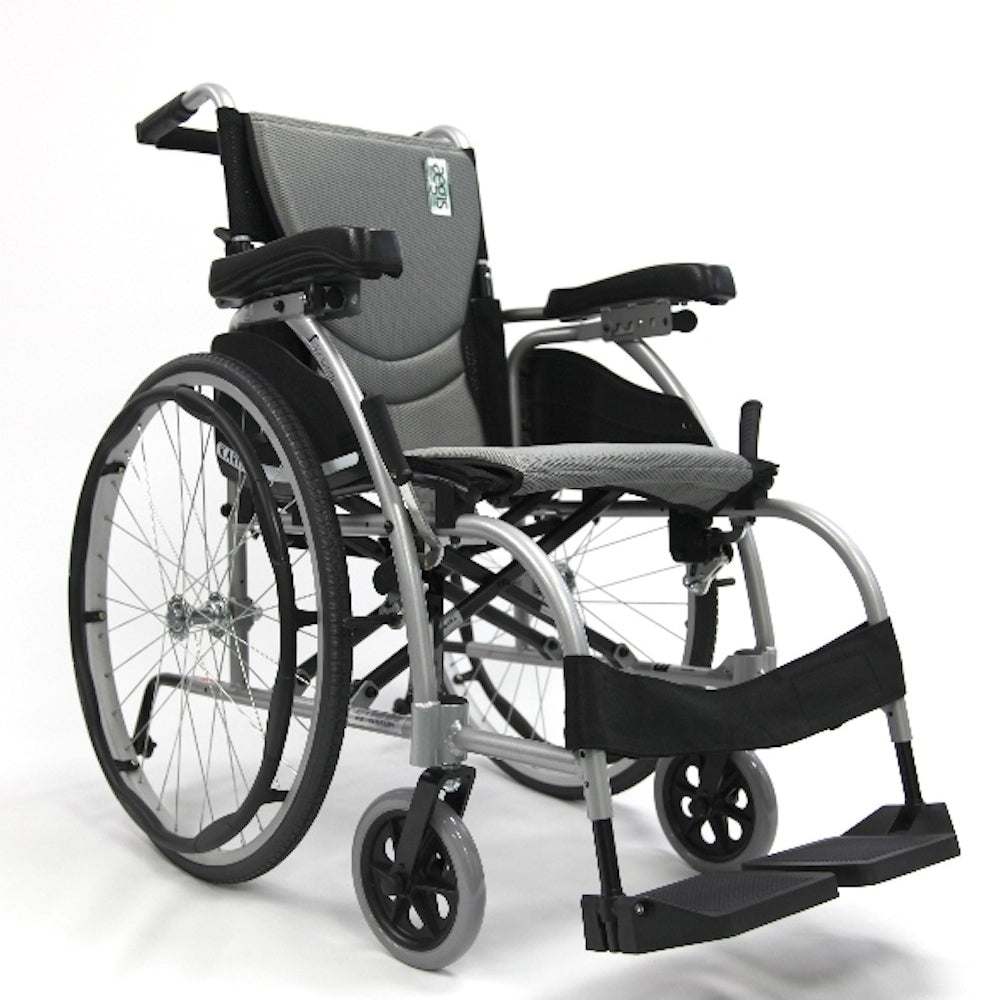

Karman S-ERGO S-106 Ultralightweight Self Recline Luxury Wheelchair

Karman S-ERGO S-106 Ultralightweight Self Recline Luxury Wheelchair

Manuals, Literature

Owners Manual


Product Brochure
  • Ergonomic seating! Not just a fancy sales term, but a functional part of this chair.
  • Enhancing the comfort of the wheelchair are fixed armrests with wider concaved armpads;

Seat Width: 16" & 18"
Weight Capacity: 250 lbs.
Weight: 27 lbs.

Product Code: S-106

$699.00
Image 1
Image 2
Description

Karman S-ERGO S-106 Ultralightweight Self Recline Luxury Wheelchair


Karman's S-106 ergonomic wheelchair features a high strength yet lightweight (27 lbs.) frame. The chair has 3 easy angle adjustments ranging from 95 ° to 105 ° to provide the user their ideal position. Wide, concaved armrests and ergonomic footrests are fixed and the folding precision backrest make it convenient to store.The upholstery is composed of AEGIS anti-bacterial fabric and is removable as well as washable.

  • Karman's S-Ergo Ultralightweight Self Recline Wheelchair adds an adjustable angle backrest to the already-excellent S-Ergo line of ultralightweight wheelchairs.


Chief among this wheelchair's attractive features is the S-style ergonomic seat and its adjustable angle backrest. With three angles to choose from (95 °, 100 ° and 105 ° for working, moving and resting respectively), this is a seat that is clearly designed to provide comfort and support no matter what the situation may be. The included "rigidifying" push-bar increases and strengthens back support, and since it is collapsible along with the chair, transport is easy.

The modern design of this seating system provides pressure relief, stabilization and anti-slippage - all important for any wheelchair user. It's also extra comfortable thanks to its ability to distribute weight evenly, as well as the 0.25" thick removable Aegis anti-bacterial cushion. The black, breathable mesh bottom upholstery protects the cushion and makes it easy to remove the cushion when necessary. Transporting the chair is easy thanks to the folding backrest and seat, and the fact that it weighs only 27 lbs. An included pouch behind the backrest is perfect for carrying small items.


Are you ready to enjoy the ride? Just contact one of our mobility advisers at 866-218-0902 about the Karman S-ERGO S-106 Ultralightweight Self Recline Luxury Wheelchair and be on your way.

Features:

  • Angle adjustable backrest: 95, 100 and 105 Degrees
  • Anti-bacterial, removable/washable upholstery
  • Folding precision backrest
  • "Tube-in-center" footplate assures side leg support
  • 24" Rear polyurethane, high-profile flat-free wheels
  • "Rigidifying" push-bar strengthens back support
  • S-Style Ergonomic Seat
  • Fixed armrest with wider concaved armpads
  • "Tube-in Center" foot-plate, assures better side leg support
  • Weight Capacity 250 lb
Karman S-ERGO S-106 Ultralightweight Self Recline Luxury Wheelchair
Technical Specs

Lightweight Ergonomic Manual Wheelchair S-shaped seating system.

Wheelchair W/ User Angle Adjustable Back

Medicare code K0004 3 easy backrest angle adjustments: "œWorking" Angle (95°),
"œMoving" Angle (100°) & "œResting" Angle (105°)
High strength, weighs only 27 lbs. (w/ footrests) Aegis Anti-Bacterial Upholstery
Fixed armrest & footrest w/anti-tippers Rigidifying push-bar, allows stability for user and companion collapsible with chair
Tube-in Center" footplate, assures better side leg support 24"™ Rear polyurethane, high tread, flat free wheels
Seat Width: 18"x17" Frame Color: Pearl Silver
S-Style Ergonomic Seat Folding backrest/folding seat for easy travel
Fixed armrests w/wider concaved armpads Extending push to lock manual breaks
Fixed footrests Pouch for carrying small items attached to upholstery behind backrest
Anti-Tippers standard on this model Upholstery: Silver ¼" Anti-Bacterial cushion AEGIS, removable, machine washable and dryable
7×1" Front Polyurethane casters Weight Capacity: 250 lbs
For full recline, please see full selection of recliners and tilt-in space available

Due to our commitment to continuous improvements, Karman Healthcare reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair.


seat seat armrest seat back overall overall folded overall weight w/ weight

width depth height height height height open width width length riggings capacity
Model No. (in.) (in.) (in.) (in.) (in.) (in.) (in.) (in.) (in.) (lb.) (lb.)
S-106F18 18 17 8 19 17 36 25 12 39 27 250
Wheelchair Measuring Guide

Wheelchair Measuring Guide

Wheelchair Measuring Guide Wheelchair Measuring Guide

Wheelchair Measurements:

  1. Hip Width:
    Use this to figure seat width if it is the widest point.
  2. Widest Point:
    Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style.
  3. Chest Width:
    Measure the widest point of the thorax just below the armpit. This measurement may influence system width or back width.
  4. Heel to Knee:
    Use this for legrest extensions and seat height.
  5. SRP to Knee (Seat Reference Point to Knee):
    This will determine the seat depth.
  6. Elbow to SRP (Elbow to Seat Reference Point):
    Measure this width with the arm in a 90-degree angle at the elbow and the shoulder in a neutral position.
  7. Shoulder Height:
    This will determine the height and the style of the back panel or the start for a custom back.
  8. Head Height:
    This will help determine the proper headrest height.
