Karman LT-770Q Lightweight Wheelchair
Product BrochureProduct Code: LT-770Q

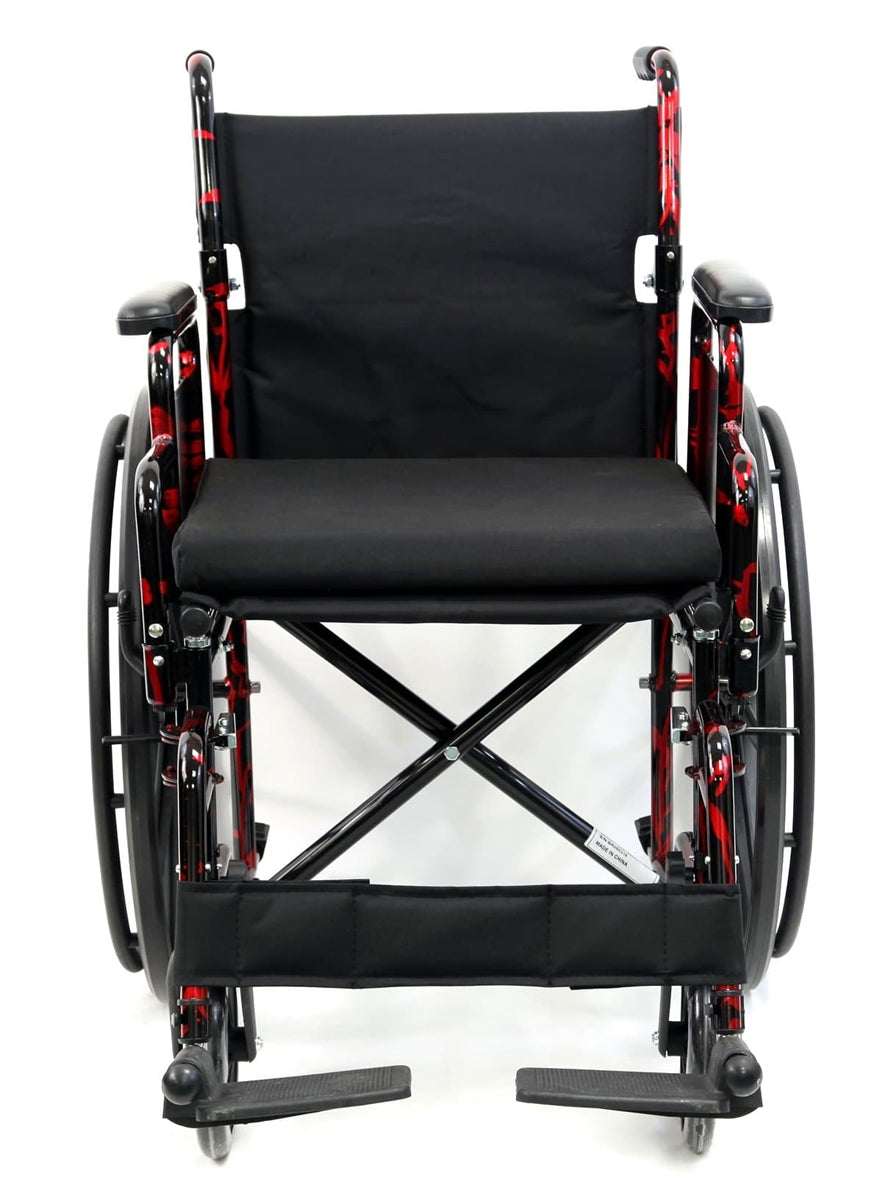

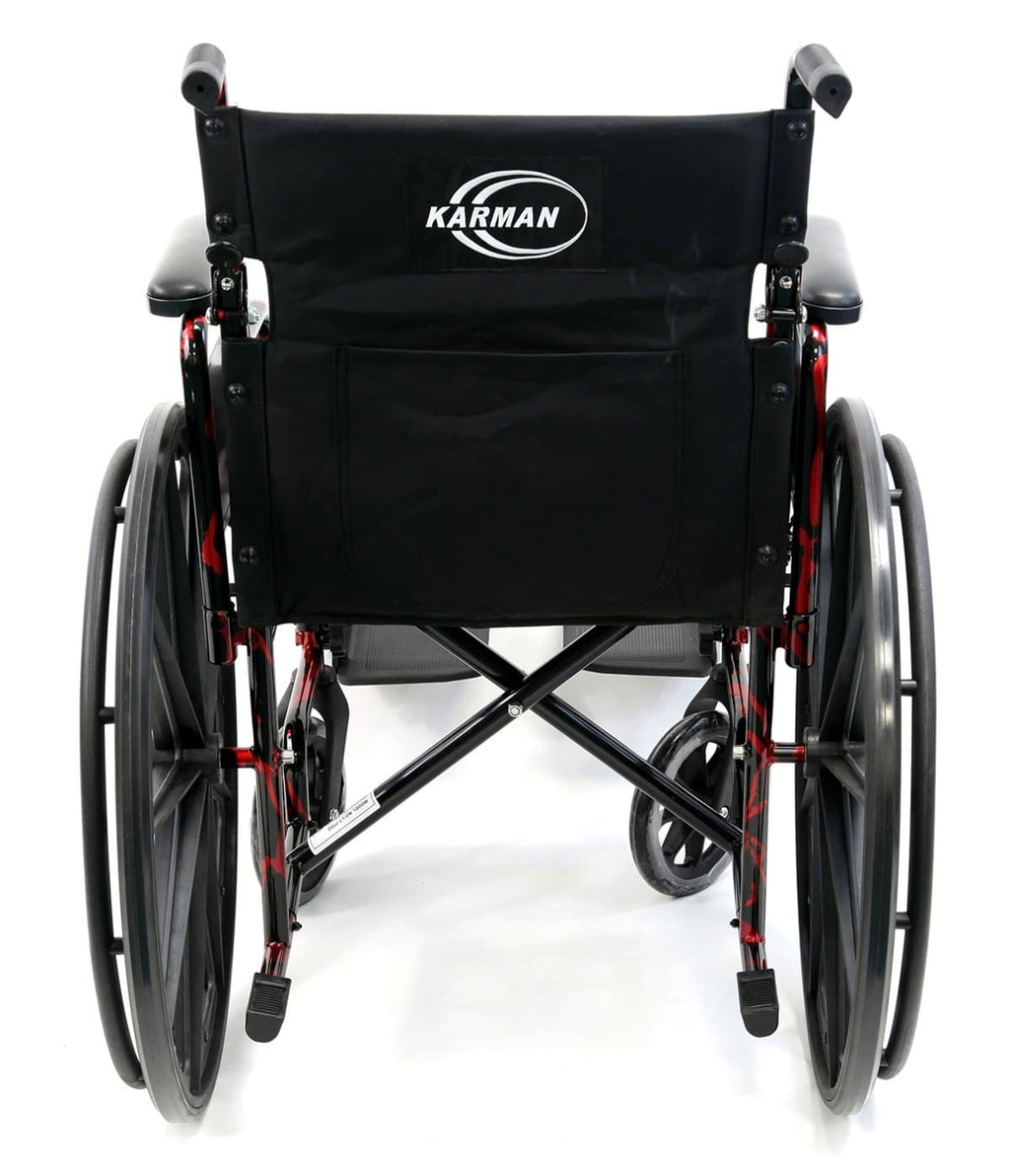

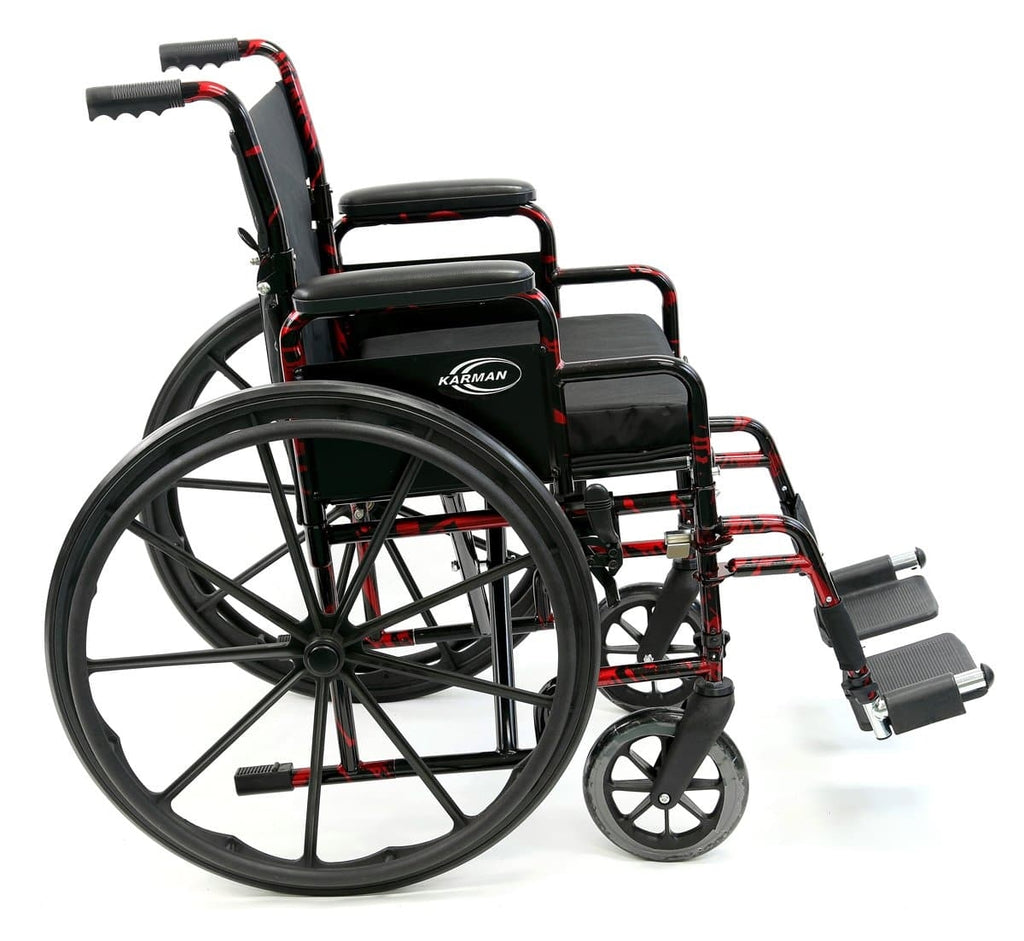

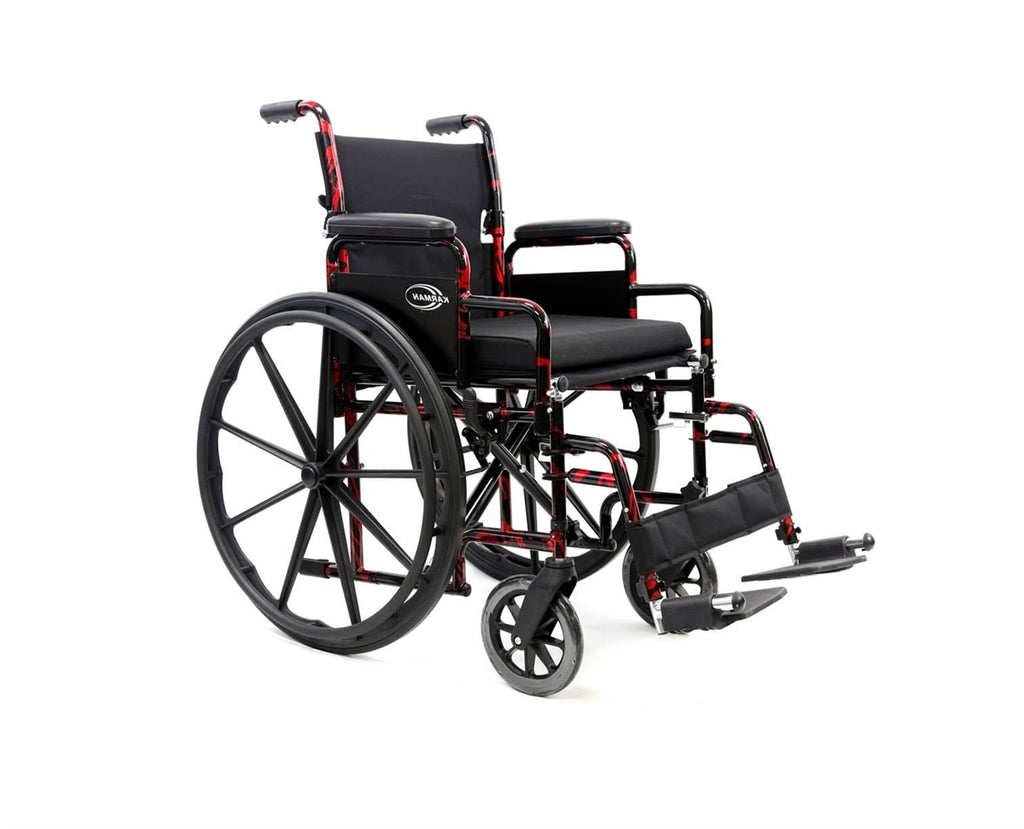

Karman LT-770Q Lightweight Wheelchair
The LT-770Q features a completely compact and 100 breakdown frame which allows users to remove the rear wheels, front caster forks, swing away footrest and removable armrest.
The folding backrest allows for a smaller height when folded. Break down and installation requires no more than 60 seconds.
LT-700 series of standard weight wheelchair supports weight loads up to 250 pounds while remaining competitively prices. Most Karman standard weight wheelchair comes with high quality built into many generations of upgrades and continuous improvements as we strive to provide value and price at the best possible availabilities to all consumers.
Are you ready to enjoy the ride? Just contact one of our mobility advisers at 866-218-0902 about the Karman LT-770Q Lightweight Wheelchair and be on your way.
Features
- Detachable/Padded desk length armrest with alloy side guard
- Swing-away/Length adjustable footrest with heel loop footplate
- Pouch on backrest allowing storage space for items
- High-grade/Padded flame retardant nylon upholstery
- Quick release rear wheels
- 24" x 1" Mag wheels with polyurethane tires
- Frame color: Red Streak
- Tool free removable 8"x1" front casters
Specifications
| Weight Capacity | 300 lbs. |
| Weight | 37 lbs. |
| Seat Width | 18" |
| Seat Depth | 16" |
| Back Height | 17" |
| Seat-to-Floor Height | 19" |
| Overall Height | 36" |
| Overall Width | 26" |
| Overall Length | NA |
| Width Between Arms | NA |
| Rear Wheel Size | 24" |
| Front Wheel Size | 8" |
| Upholstery | Nylon |
| Medicare HCPCS Code | K0003 |
| Warranty | Limited Lifetime |
Wheelchair Measuring Guide
Wheelchair Measurements:
- Hip Width:
Use this to figure seat width if it is the widest point. - Widest Point:
Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style. - Chest Width:
Measure the widest point of the thorax just below the armpit. This measurement may influence system width or back width. - Heel to Knee:
Use this for legrest extensions and seat height. - SRP to Knee (Seat Reference Point to Knee):
This will determine the seat depth. - Elbow to SRP (Elbow to Seat Reference Point):
Measure this width with the arm in a 90-degree angle at the elbow and the shoulder in a neutral position. - Shoulder Height:
This will determine the height and the style of the back panel or the start for a custom back. - Head Height:
This will help determine the proper headrest height.
