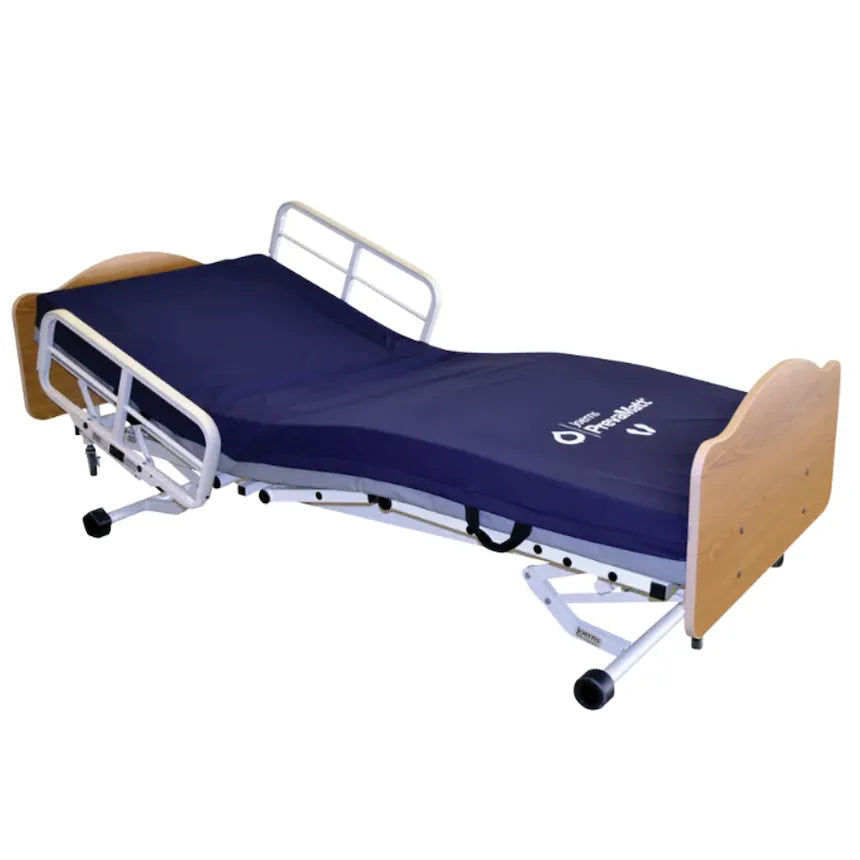

Joerns WeCare® Full-Electric Home Care Bed — 8" Ultra-Low, Split-Frame, 8-Function Pendant, 450 lb, One-Person Delivery

Institutional-grade fall prevention. Home care convenience. One-person delivery. The Joerns WeCare® Full-Electric Home Care Bed brings the functions and stability of an institutional bed frame to home care, hospice, and community care environments — in a split-frame package specifically engineered for one-person delivery and assembly without specialized equipment or a loading dock. The WeCare's defining clinical feature is its 8.0" ultra-low height — lower than any comparable home care bed — which minimizes both fall risk and fall injury severity for residents who may exit the bed unsafely during the night. A 28" high position provides ergonomic caregiver access during bathing, dressing, wound care, and transfer tasks. The 8-function ergonomic hand pendant gives residents and caregivers intuitive control of head position, foot position, overall height, and AutoContour positioning. Optional CareWide accessory expands the sleep surface to 39" or 42" width for larger patients or greater repositioning comfort. 450 lb safe working load. IEC 60601-2-52 compliant. 7-year structural warranty. Authorized Joerns dealer.

✔ 8.0" Ultra-Low Height — Industry-Leading Fall Prevention (Base Model 8.75")
✔ 8" to 28" Full Height Range — Ultra-Low to Ergonomic Caregiver Height
✔ Split-Frame Design — One-Person Delivery & Assembly
✔ 8-Function Ergonomic Hand Pendant With Integrated Hook
✔ AutoContour Positioning — Head, Knee & Foot Articulation
✔ Entrapment-Compliant Assist Device Mounting at Head & Foot
✔ 450 lb Safe Working Load (400 lb Max Patient Weight)
✔ 18" Underbed Clearance — Patient Lift Compatible
✔ Standard 35" Width — Optional CareWide to 39" (Twin XL) or 42"
✔ Standard 80" Length — Optional 4" Length Extension
✔ Therapeutic Grid Sleep Deck Surface
✔ 7-Year Structural Warranty / 1-Year Mechanical & Electrical
✔ IEC 60601-2-52 Compliant
✔ Authorized Joerns Dealer — Wheelchair Authority

---

Choosing Your WeCare Model

Model	Part Number	Height Range	Best For
Roll-in-Low	WECC-WECARE-RIL	8.0" – 28"	Maximum fall prevention priority; patients who exit bed unsafely
Roll-Any-Height	WECC-WECARE-RAH	8.0" – 28"	Same height range; alternative caster configuration for varied flooring
Base Model	WECC-WECARE-BASE	8.75" – 26"	Value option; slightly higher low position and lower high position

Not sure which model is right? Call 1-866-218-0902 — our specialists can help match the model to the patient's fall risk profile and care environment.

---

Product Specifications

Product Name	Joerns WeCare® Full-Electric Home Care Bed
Manufacturer	Joerns Healthcare
Bed Mobility	Roll-in-Low / Roll-Any-Height (model dependent)
Low Height	8.0" (RIL & RAH models) / 8.75" (Base model)
High Height	28" (RIL & RAH models) / 26" (Base model)
Standard Bed Length	80" — optional 4" length extension available (84" total)
Standard Bed Width	35" — optional CareWide accessory: 39" (Twin XL) or 42"
Safe Working Load	450 lbs total (max patient weight 400 lbs)
Underbed Clearance	18" — compatible with floor-based patient lifts
Product Weight	145 lbs (77.7 lb foot section / 67.3 lb head section)
Delivery Weight	77 lbs or less per section — one-person deliverable
Hand Pendant	8-function ergonomic hand pendant with integrated hook
Pendant Functions	Head up/down, knee up/down, height up/down, plus AutoContour
Motors	Four quality DC motors
Mattress Platform	Three-section with therapeutic grid surface and AutoContour
Casters	Four casters (two locking)
Frame Construction	Durable tubular steel — industry-leading stability
Electrical	120 VAC, 60 Hz, 4.0 Amps, Class II
Compliance	IEC 60601-2-52 — medical electrical equipment standard for hospital beds
Warranty	1 year mechanical & electrical / 7 years structure / Lifetime welds

---

Key Features

8.0" Ultra-Low Height — Industry-Leading Fall Prevention

The WeCare's 8.0" ultra-low height is the bed's central clinical differentiator. Most home care beds reach a low position of 10"–13" — still high enough that a fall from bed can result in serious injury. The WeCare's 8.0" low position brings the sleep surface closer to floor level than any comparable home care bed, so that if a patient does exit the bed unsafely or roll off, the fall distance — and therefore fall injury severity — is minimized. This is particularly important for patients with dementia, agitation, or a history of unsafe bed exits, where fall prevention through bed height management is a primary care strategy. The 28" high position then provides comfortable working height for caregivers during bathing, dressing, repositioning, and wound care.

Split-Frame Design — One-Person Delivery & Assembly

The WeCare's split-frame construction divides the bed into sections — each weighing 77 lbs or less — that can be delivered and carried into a home by a single person without specialized equipment, a second worker, or a loading dock. Each section is manageable through standard doorways, up stairs (with the optional dolly stair climber accessory), and through the typically narrow hallways and doorways of residential homes. Assembly requires no specialized tools. This split-frame deliverability is what makes the WeCare practical for home care environments where standard institutional bed delivery logistics are impossible.

8-Function Ergonomic Hand Pendant

The ergonomic hand pendant provides 8-function control — head section raise/lower, knee section raise/lower, full bed height raise/lower, and AutoContour positioning — with an integrated hook that keeps the pendant accessible to the patient without it falling to the floor. The pendant's ergonomic design is intended to be intuitive for residents who may have limited fine motor control or cognitive challenges. An optional staff control provides additional clinical functions including pendant function lockout (preventing residents from adjusting bed position unsafely) and Trendelenburg/Reverse Trendelenburg positioning for clinical needs.

AutoContour Positioning

AutoContour coordinates the three-section mattress support platform — head, seat, and knee/leg — to contour simultaneously to the patient's body rather than raising the head section in isolation. This reduces shear forces on the patient's skin as the head section rises, which is clinically important for skin integrity in patients at risk of pressure injuries. The therapeutic grid sleep deck surface complements this by providing a more supportive, comfortable base than flat metal platform designs.

Entrapment-Compliant Assist Device Mounting

The WeCare is designed to accept entrapment-compliant assist devices at both the head and foot positions — a safety requirement for beds used by patients with cognitive impairment or limited mobility who could become entrapped between a bed rail and the mattress. Multiple compatible assist device options are available including the F14 Assist Device, F025/F026/F028 Assist Handles, and F168 Assist Device (with N832AL mount). The bed is guaranteed to meet FDA bed entrapment guidelines with these devices properly installed.

Flexible Sizing — Width and Length Extensions

The optional CareWide accessory expands the sleep surface width from the standard 35" to 39" (Twin XL) or 42" — accommodating larger patients or providing additional repositioning space within the bed. An optional 4" length extension increases the bed length from 80" to 84" for taller patients. These sizing options allow a single WeCare bed frame to serve a wider range of patient body types without requiring a specialty bariatric frame.

18" Underbed Clearance — Patient Lift Compatible

The WeCare provides 18" of underbed clearance — sufficient for the base legs of standard Hoyer patient lifts (Advance, HPL450, HPL402, HML400, and others) to slide under the bed during transfers. This integration between the bed and the patient lift system is essential in home care environments where the same caregiver is using both devices for daily transfers.

---

WeCare vs. Standard Home Care Bed

Feature	Joerns WeCare	Typical Home Care Bed
Low Height	8.0" — industry lowest	10"–13" typical
High Height	28" — ergonomic caregiver access	Varies — often lower
Frame Design	Split-frame — one-person delivery	Often requires 2+ people to deliver
Pendant Functions	8-function with AutoContour	Typically 3-function
Entrapment Compliance	Guaranteed compliant — institutional standard	Varies by model and rail
Width Options	35" / 39" (Twin XL) / 42" with CareWide	Typically fixed width
Structural Warranty	7 years / lifetime welds	Typically 1–3 years

---

Who This Bed Is For

• Home care patients with a fall risk or history of unsafe bed exits — the 8.0" ultra-low height directly reduces fall injury severity
• Hospice patients requiring comfortable, adjustable positioning and dignity throughout end-of-life care
• Patients up to 400 lbs (450 lb total safe working load including bedding and equipment)
• Patients who benefit from head and knee positioning adjustments for comfort, respiratory function, or clinical needs
• Home care environments where a single caregiver needs to deliver, assemble, and adjust the bed without additional help
• Patients transitioning from hospital or skilled nursing facility who need an institutional-standard bed at home
• Larger patients benefiting from the optional CareWide 39" or 42" width extension
• Patients using Hoyer floor lifts — 18" underbed clearance accommodates standard Hoyer lift base dimensions

---

Available Options & Accessories

• CareWide Accessory — expands sleep surface width to 39" (Twin XL) or 42"
• 4" Length Extension — extends bed from 80" to 84" for taller patients
• Optional Staff Control — advanced clinical control with pendant lockout and Trendelenburg/Reverse Trendelenburg
• Assist Devices — F14, F025, F026, F028, F168 entrapment-compliant assist handles and devices
• Trapeze Patient Helper — overhead bar for resident repositioning and transfer assist
• Transport Dolly & Stair Climber — simplifies delivery up stairs and through tight spaces
• Storage & Transport Cart — for facility storage and multi-site transport
• Multiple Panel Styles and Finish Options — head and foot panel choices to match home décor

Call 1-866-218-0902 for accessory availability and to confirm which options are right for your patient's needs.

---
