Invacare Top End Schulte 7000 Series Basketball Wheelchair
We highly recommend, that you print the attached the order form below, Its loaded with relevant information. Your can Email or Fax (941-488-0011). Or use our website to place your order. Should you need assistance, our trained staff is ready to help!
Manuals, Literature Manuals, Literature
Product Brochure
Order Form
Manuals, Literature Manuals, Literature
Product Brochure Order FormProduct Code: 10002
$4,699.00
Description

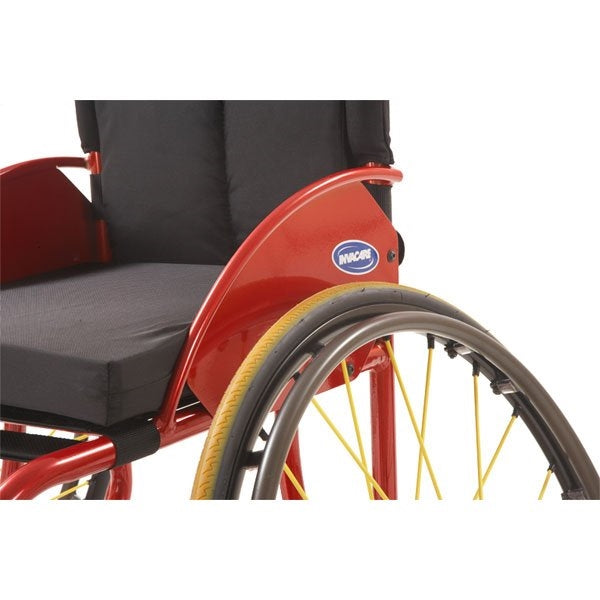

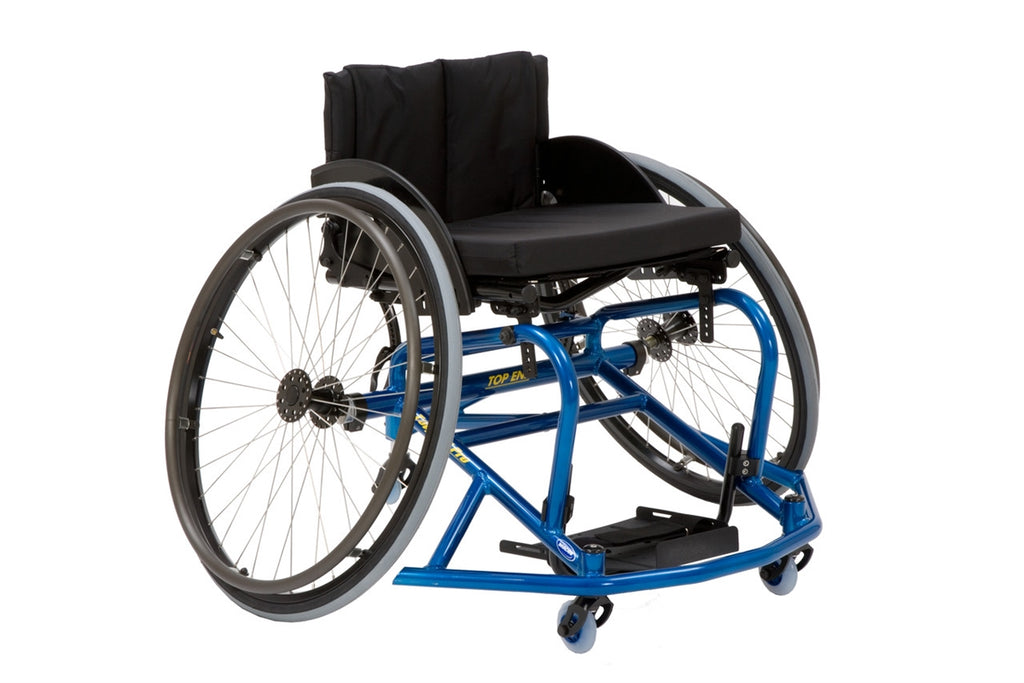

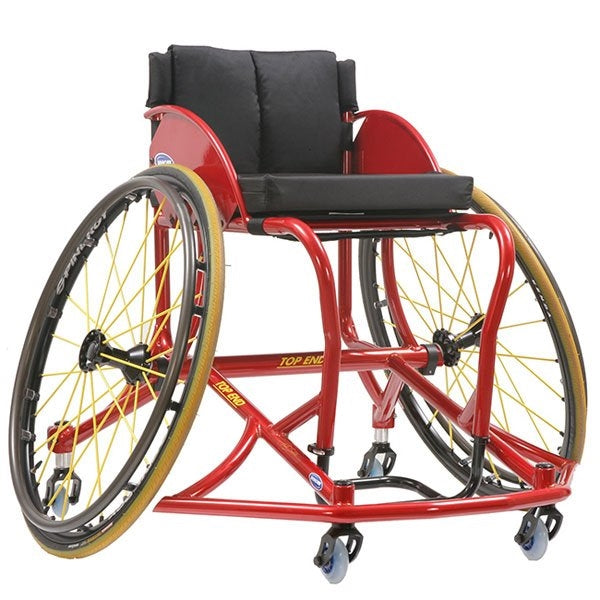

Invacare Top End Schulte 7000 Series Basketball Wheelchair
Our Invacare ® Top End ® Schulte 7000 Series Basketball Wheelchair is faster, lighter, stronger and better than its predecessor! The 7000 series aluminum material, enhanced head-tube design and an axle securing system improve performance and reduce overall weight by more than two pounds. Who doesn"t want that?Material: 7000 Aluminum reduces the overall weight of the chair by two lb., making it comparable in weight with titanium frames. The big advantage of 7000 aluminum is three-fold. One, the material is approximately 23% stronger than 6061 aluminum. Two, since the material is stronger, we are able to reduce the wall thickness of the aluminum tubes, reducing the overall weight. Best of all, the rigidity and strength of a 7000 aluminum frame is further enhanced by Invacare ® Top End ®"s sophisticated heat treating and powder coating process.
Design: The Invacare ® Top End ® design team has made improvements in multiple components on the Schulte 7000 Series Basketball Wheelchair. The head tube design includes precision components that maximize stiffness, reduces play and improves overall responsiveness of the casters, plus it is lighter in weight. Axle receivers will now be locked onto the frame using a bolt securing system. This system minimizes axle play so that a player"s rear wheels are secure and solid for a confident feel. Lastly, sleek curved frame members add a sharp look to the camber tube, anti-tips and offensive wing.
The Designer: Each Invacare ® Top End ® Schulte 7000 Series Basketball Wheelchair is custom built to each individual athlete"s specifications. This process is overseen by Paul Schulte himself, the General Manager and design engineer for Top End ®. Paul is currently a member ofthe USA National Men"s Wheelchair Basketball Team. He has played in many Paralympic Games and has held multiple MVP titles as a junior and in Men"s NWBA Division 1 and 2. He knows what he wants in a basketball chair and now offers the same performance to you!
Are you ready and looking for a serious sports wheelchair? Just contact one of our mobility advisers at 866-218-0902 about the Invacare Top End Schulte 7000 Series Basketball Wheelchair.
Features
- Works great for any court sport.
- Adjustable seat height, back height and angle adjustment allow chair to be configured for specific sports and disabilities.

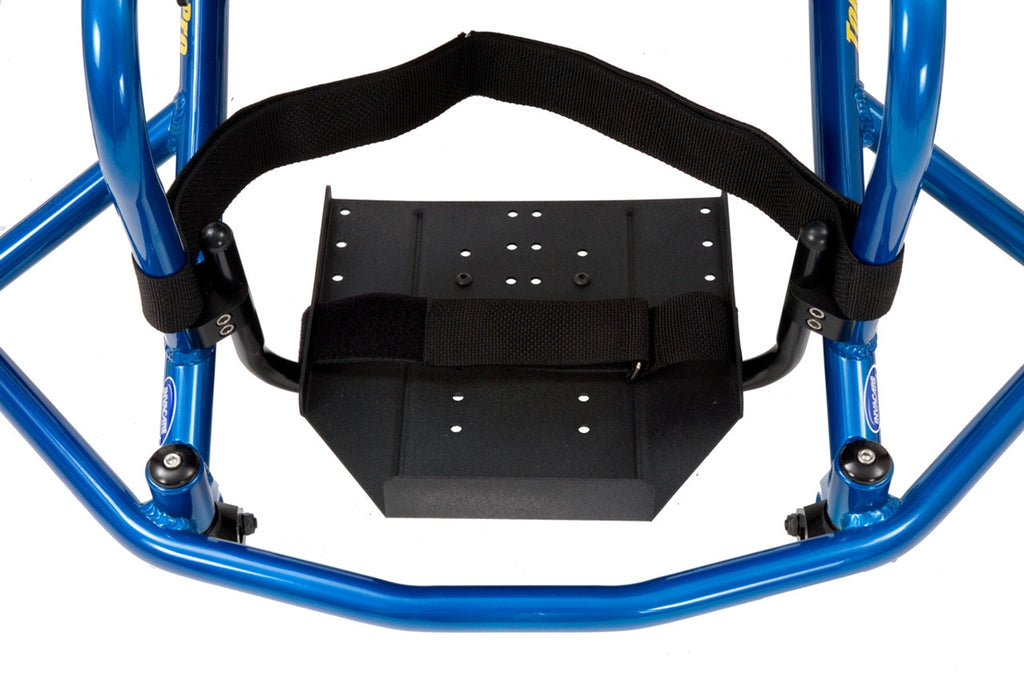

- Patented center of mass adjustment allows the athlete to adjust for optimal body positioning wihout affecting the wheelbase and stability of the chair.
- Lightweight large diameter tubing adds strength to withstand impact.
- 16 and 20 degree camber options.
- Weight capacity: 250 lbs.
- Weight: 24 lbs.
Technical Specs
Specs
| Seat Widths: |
12" 13" 14" 15" 16" 17" 18" 19" 20" 21" |
| Product Weight: | 21 lbs. |
| Legrest Options: | Fixed |
| Seat to Floor Heights: | 14.5" to 20.875" |
| Frame Type: | Rigid |
| Seat Depths: |
12" 13" 14" 15" 16" 17" 18" 19" |
| Hemi Height Option: | Yes |
| Back Height: |
8" 9" 10" 11" 12" 13" 14" 15" 16" 17" 18" |
| Angle-adjustable Back: | No |
| Fold-down back for easy transport: | No |
| Reclining Back Option: | No |
| Rear Wheel Size: |
24" 25" 26" |
| Camber Angle: | 12 ° to 20 ° |
| Pneumatic (air-filled) tire option: | Yes |
| Quick-Release Axles: | Yes |
| One-Arm Drive Option: | No |
| Upholstery Options: | Yes |
| Armrest Options: | Fixed Height |
| Removable Legrests: | No |
| Expedited Shipping Available: | Yes |
| Product Weight Range: | 15 lbs to 20 lbs |
Wheelchair Measuring Guide
Wheelchair Measuring Guide
Wheelchair Measurements:
- Hip Width:
Use this to figure seat width if it is the widest point. - Widest Point:
Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style. - Chest Width:
Measure the widest point of the thorax just below the armpit. This measurement may influence system width or back width. - Heel to Knee:
Use this for legrest extensions and seat height. - SRP to Knee (Seat Reference Point to Knee):
This will determine the seat depth. - Elbow to SRP (Elbow to Seat Reference Point):
Measure this width with the arm in a 90-degree angle at the elbow and the shoulder in a neutral position. - Shoulder Height:
This will determine the height and the style of the back panel or the start for a custom back. - Head Height:
This will help determine the proper headrest height.
