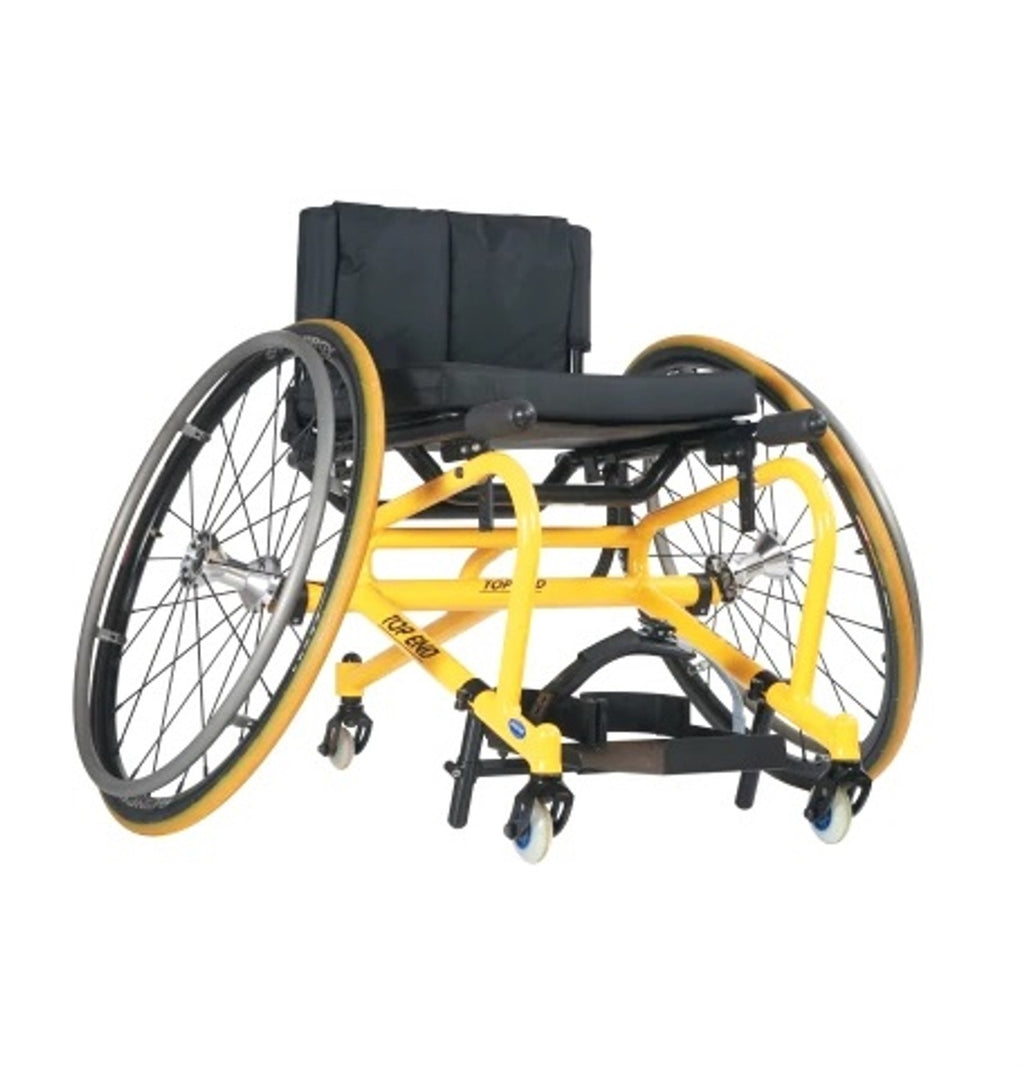

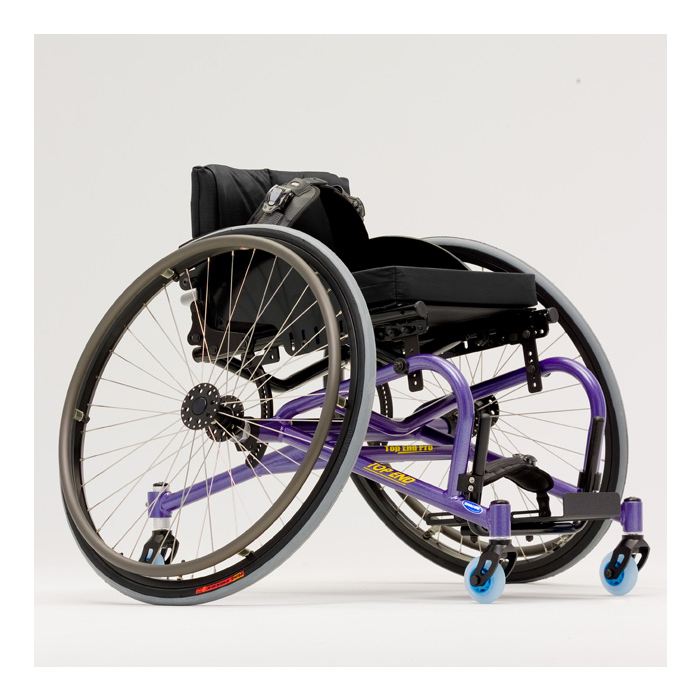

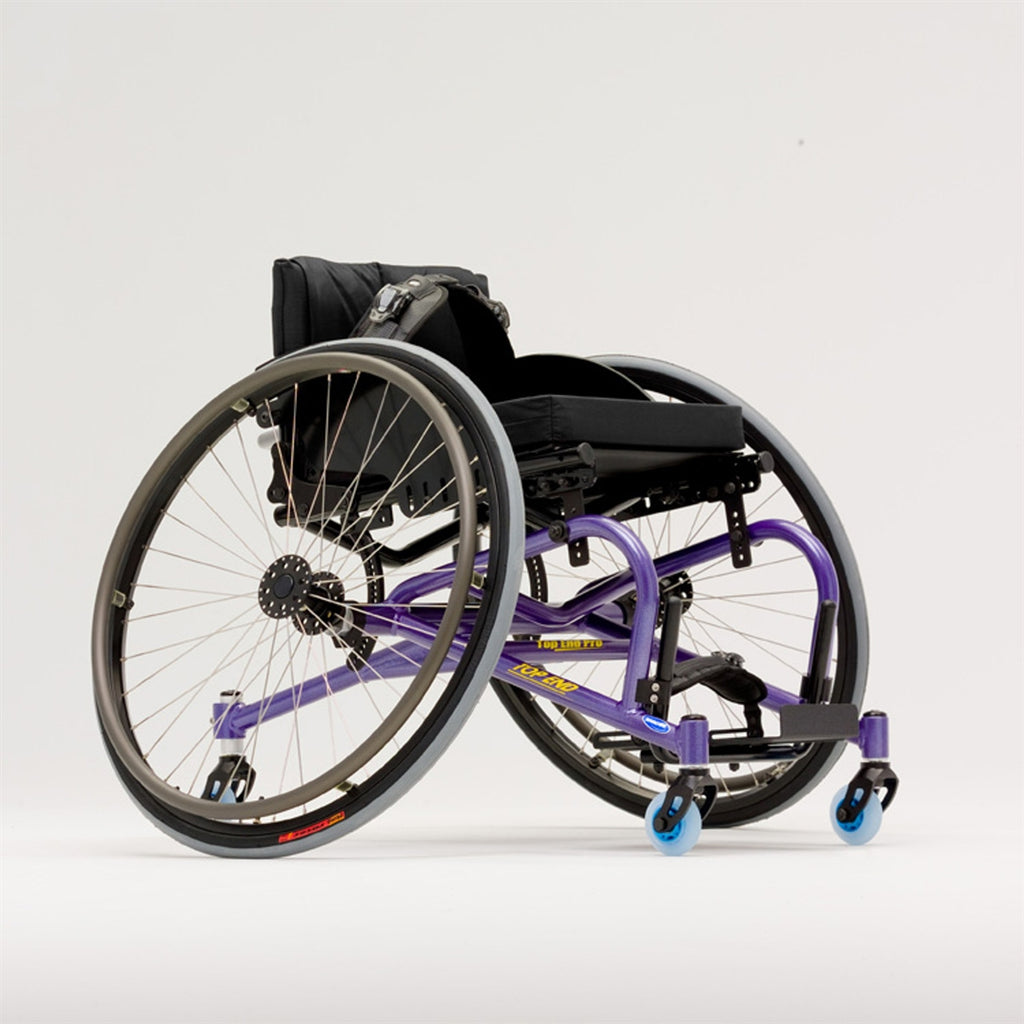

Invacare Top End Pro Tennis Wheelchair
Invacare's Top End Pro Tennis Wheelchair comes in either a tall or short frame height, allowing users the comfort of selecting the configuration that works best for them.
It's the ideal weapon for the modern-day athlete and features an array of highly-customizable options that make getting around the tennis or basketball court a snap. The chair, weighing just 21 lbs., features a fully welded aluminum base frame and a fixed camber, providing athletes with the stability and control they need during the game.
But what sets this chair apart from every other tennis chair on the market today is the super quick adjustability. With Invacare's exclusive quick release rear seat height adjustment system, users can easily change settings between matches as they see fit. Backed by a three year warranty, the chair also features a weight capacity of 250 lbs.
Features
- 6061 aluminum fully welded base frame
- Available in tall or short frame
- Variety of camber angles for maximum stability and control
- Key sport configurations are easy and quick to adjust
- High performance wheels with high pressure tires and aluminum handrims

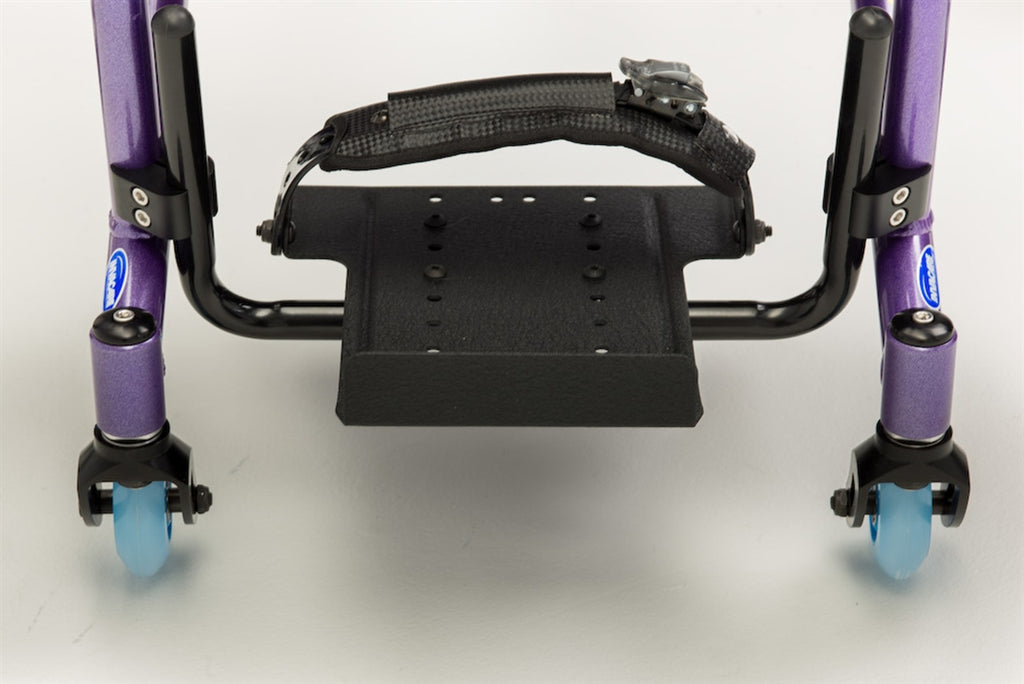

- Platform footrest that adjusts in height, angle, fore/aft
- Weight capacity of 250 lbs.
- Free shipping
Product Specifications
| Weight Capacity | 250 lbs. |
| Product Weight | 21 lbs. |
| Seat Width | 12" - 20" |
| Seat Depth | 12" - 18" |
| Seat-to-Floor Height | 15" - 21" |
| Overall Width | 20" - 28" |
| Overall Length | 40" |
| Overall Height | 30" |
| Front Wheel Size | 3" |
| Rear Wheel Size | 24" - 26" |
| Axle Type | Quick Release |
| Back Height | 9" - 18" |
| Upholstery Type | Nylon |
| Upholstery Color | Black |
| Warranty on Frame | Three Year Limited |
| Warranty on Wearable Parts | One Year Limited |
| Shipping Weight | 35 lbs. |
| Box Length | 38" |
| Box Width | 23" |
| Box Height | 23" |
| Weight | 21 lbs. |
| Front Seat Height | 17" - 21" |
| Rear Seat Height | 13" - 21" |
| Camber Angle | 15°, 18°, 20° |
| Adjustable Axle Position | 3.5" - 6" |
Wheelchair Measuring Guide
Wheelchair Measurements:
- Hip Width:
Use this to figure seat width if it is the widest point. - Widest Point:
Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style. - Chest Width:
Measure the widest point of the thorax just below the armpit. This measurement may influence system width or back width. - Heel to Knee:
Use this for legrest extensions and seat height. - SRP to Knee (Seat Reference Point to Knee):
This will determine the seat depth. - Elbow to SRP (Elbow to Seat Reference Point):
Measure this width with the arm in a 90-degree angle at the elbow and the shoulder in a neutral position. - Shoulder Height:
This will determine the height and the style of the back panel or the start for a custom back. - Head Height:
This will help determine the proper headrest height.
