Hoyer HPL700 Electric Mobile Lift with Power Adjustable Base

Hoyer HPL700 Electric Mobile Lift with Power Adjustable Base

Manuals, Literature

Product Brochure
  • Holds a safe working load of 850 lbs
  • Intuitive Push Pad assists with initiating movement
  • Swan neck style legs allow the Calibre to get closer to the resident

Product Code: HPL700

$4,626.00
Image 1
Image 2
Description

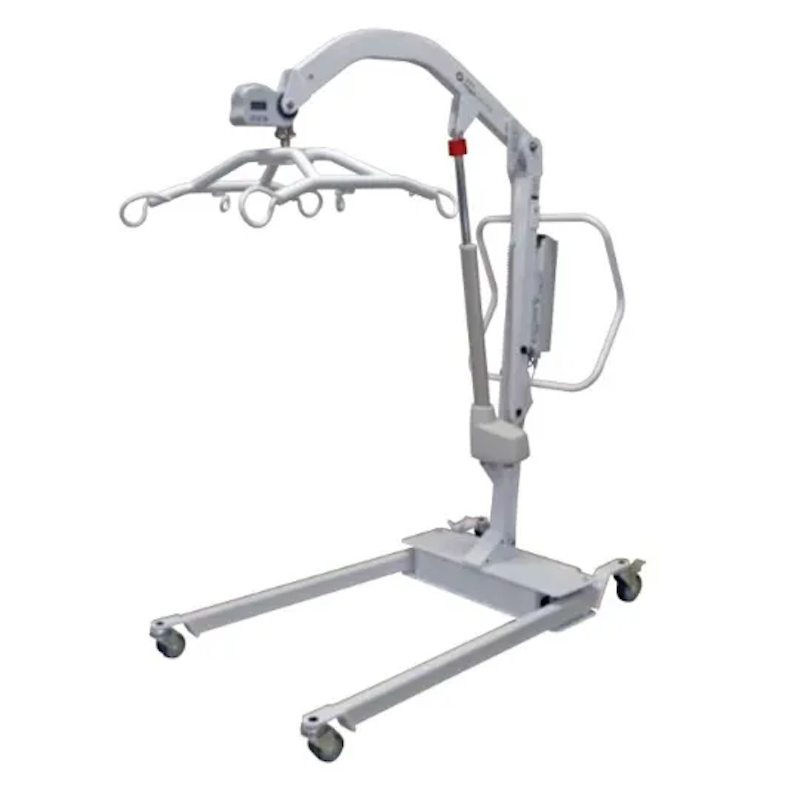

Hoyer HPL700 Electric Mobile Lift with Power Adjustable Base


Versatility designed for use with patients of all sizes, this lift features a 700-pound weight capacity and is compatible with a wide cradle and a variety of slings to optimally accommodate bariatric patient populations just as easily.

  • Includes four low friction casters for smooth mobility.
  • Oversized handles enable better control to easily move the lift.
  • Sturdy and robust design includes a convenient power-operated base.
  • Features a wide loop-syle cradle design for patients of any size.
  • Interchangeable spreader bars provide versatility.

The Bariatric Hoyer Power Lifter with Power Base is an innovative electronic lift designed for bariatric use. With a large, open cradle design, the patient can be comfortably transferred without feeling pinched or squeezed. A powered base permits the legs to open and close, allowing easy access around armchairs, wheelchairs, or other objects. For quick accessibility and charging, the Bariatric Hoyer Power Lifter with Power Base includes two batteries and a charging station.

Technical Specs

Product Specifications / Dimensions

Safe Working Load 700 lbs
Lifting Range 23.3 to 69 in
Legs Open Inside Dimensions 42.3 in
Legs Closed Outside Dimensions 27.5 in
Overall Height of Legs 4.5 in
Battery Includes two 24 VDC rechargeable sealed lead acid type
Battery Capacity 3.2A Ah
Charger Rated Input 100-240 Vac 50/60 Hz
Shipping Dimensions 63 x 30 x 30
Shipping Weight 218 lbs
Charger Rated Output 27.4 VDC @ 0.8 A
Wheelchair Measuring Guide
