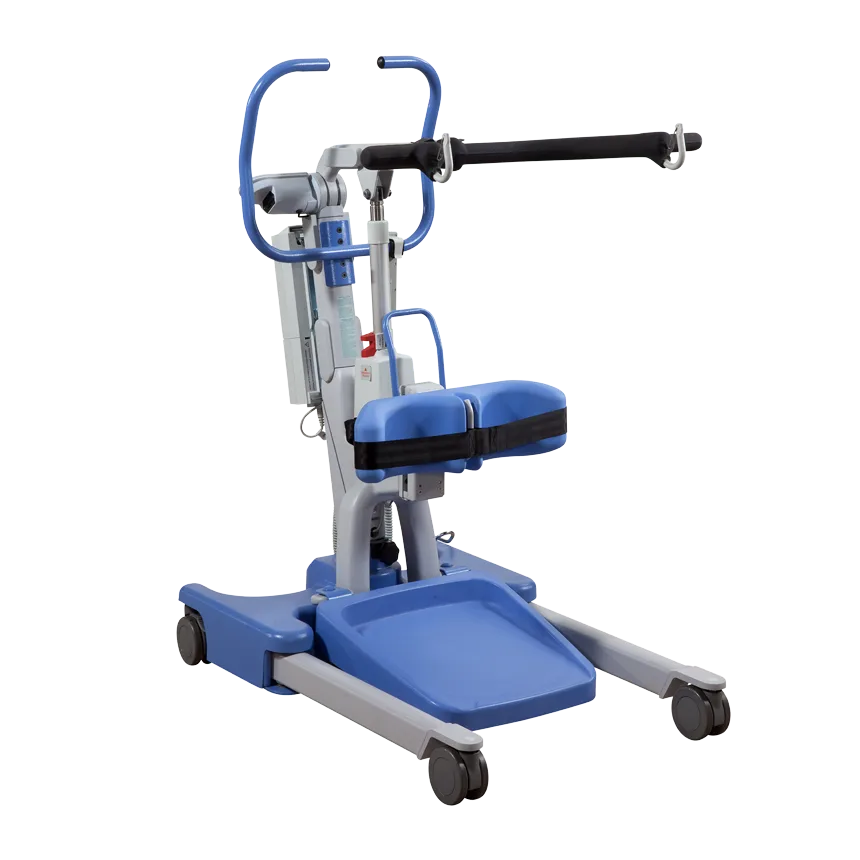

Hoyer Elevate® Stand-Up Patient Lift — 440 lb, Smart Monitor, One-Hand Kneepad, Removable Foot Tray & Optional Scale

State-of-the-art active lift. Engineered for both the caregiver and the patient. The Hoyer Elevate® is an active sit-to-stand lift designed from the ground up to improve the lifting experience for both the caregiver and the patient. Like the Hoyer Up stand aid, it is designed for patients who retain some weight-bearing ability and can actively participate in their transfers — but the Elevate adds a higher-specification feature set built for institutional environments where reliability, compliance monitoring, and versatility across patient sizes are priorities. Smart Monitor technology tracks actual lift cycles and sends service reminders that drive caregiver compliance and keep the Elevate performing at its best. The one-hand adjustable kneepad with infinite height settings accommodates a wide range of patient leg lengths in seconds, the angled removable foot tray provides secure foot positioning during transfers, and the compact 43.3" maximum length navigates tight spaces with a 48.2" turning radius. 440 lb safe working load. Optional integrated scale. EN ISO 10535 compliant. Authorized Hoyer dealer.

✔ Smart Monitor Technology — Lift Cycle Counter & Service Reminder
✔ 440 lb Safe Working Load
✔ One-Hand Adjustable Kneepad — Infinite Height Settings
✔ Angled, Removable Foot Tray
✔ Attachment Point Range: 39.2" to 64.7"
✔ Compact 43.3" Maximum Length — 48.2" Turning Radius
✔ Intuitive Push Pad — Reduces Force Needed to Initiate Movement
✔ Optional Integrated Scale With Digital Display
✔ Active Lift — Designed for Patients Who Can Participate in Transfers
✔ EN ISO 10535 Compliant — Global Patient Lift Safety Standard
✔ Authorized Hoyer Dealer — Wheelchair Authority

Product Specifications

Key Features

Smart Monitor Technology

The Hoyer Smart Monitor tracks the actual number of lift cycles performed and sends service reminders when recommended maintenance is due — the same compliance-driving technology found on the Hoyer Presence floor lift. In institutional environments where the Elevate may be used by multiple caregivers across multiple shifts, the Smart Monitor ensures service schedules are followed, extending the lift's service life and maintaining consistent safe performance. The actual lift count data also supports documentation and quality assurance workflows.

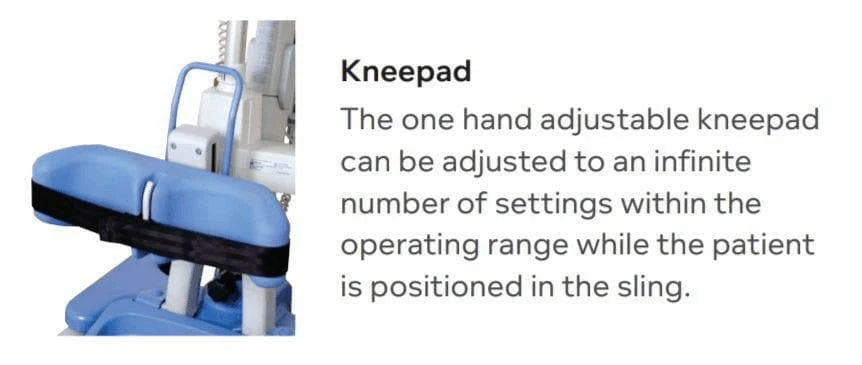

One-Hand Adjustable Kneepad — Infinite Settings

The kneepad height is adjusted with a spring-loaded lever that operates with one hand and locks at any point in its travel range — infinite settings rather than fixed notches. This means the kneepad can be set to the exact height needed for each individual patient's leg length without approximation, and the caregiver keeps one hand free during adjustment. Precise kneepad positioning is essential for safe stand-assist transfers — correct height ensures the patient's knees are properly stabilized without creating pressure points.

Angled Removable Foot Tray

The angled foot tray positions the patient's feet correctly for the sit-to-stand movement, providing a stable platform that supports proper weight transfer during the lift. The removable design allows the tray to be detached when it is not needed — for example, when the lift is used for gait therapy or when a patient's foot positioning requires a different configuration.

Compact Footprint & Tight-Space Maneuverability

At 43.3" maximum length and a 48.2" turning radius, the Elevate is built for the space constraints of real care environments — small bathrooms, narrow hallways between furniture, and tight spaces around beds and chairs. The intuitive rubber push pad at the base reduces the force required to initiate movement when maneuvering the lift with a patient in position.

Optional Integrated Scale

The Elevate is designed to be configured with or without a weigh scale. The optional scale is seamlessly integrated with a digital display and user-friendly controls, providing patient weight monitoring during transfers without requiring a separate weighing device or transfer to a scale platform.

Elevate vs. Hoyer Up — Choosing the Right Active Lift

Not sure which active lift is right for your patient or environment? Call 1-866-218-0902 — our specialists can help match the right device to the patient's mobility level and care setting.

Who This Lift Is For

• Patients who retain some weight-bearing ability and can actively participate in sit-to-stand transfers
• Rehabilitation patients recovering from surgery, stroke, or injury who benefit from structured assisted standing
• Patients in long-term care who need assisted standing for toileting, dressing, and daily activity transfers
• Facilities needing compliance monitoring — Smart Monitor lift cycle tracking and service reminders are essential in high-frequency institutional use
• Care environments requiring flexibility across a wide range of patient leg lengths — infinite kneepad adjustment accommodates this without separate inserts or adapters
• Facilities wanting optional patient weighing integrated into the stand-assist lift without a separate scale
• Environments with tight spaces — 43.3" maximum length and 48.2" turning radius designed for real-world room constraints
