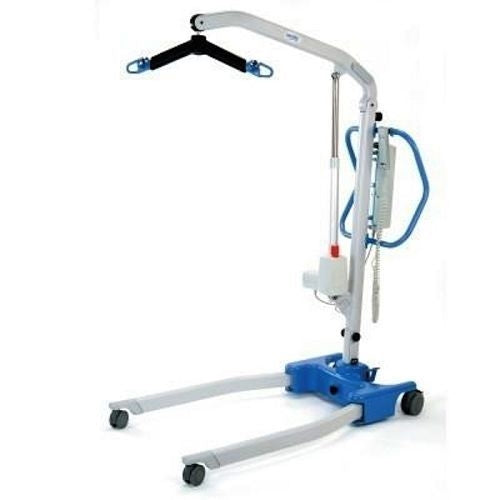

Hoyer Advance Electric Compact Folding Mobile Patient Lift

Built for easy transport and storage with a lightweight foldable design, this lift is designed with unique tapered legs to get closer to users in wide chairs or wheelchairs. Intuitive push pad aids in starting motion.

• Made with a lightweight aluminum construction

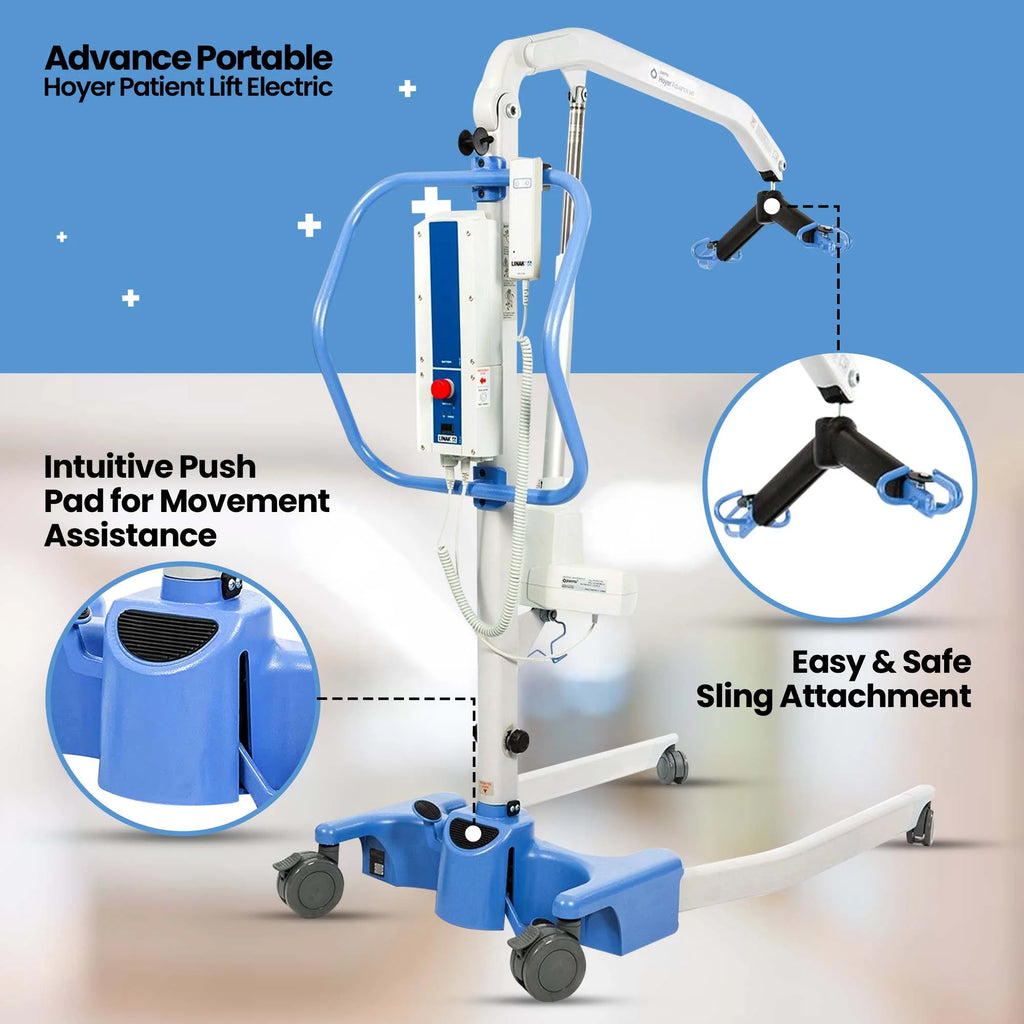

• Intuitive Push Pad assists with initiating movement
• No-tools folding design allows for compact storage
• Choose from a Hydraulic or Battery Operated model
• Swan neck style legs allow the Advance to get closer to the resident

Hoyer Advance Patient Lifts are designed with the latest technology and styles to provide a modern and efficient lift system, making life easier for both patients and caregivers. This portable system provides a wonderful alternative to permanently installed lifts, with its compact size and tool-free folding design that makes transport a breeze

For versatile fitting, this Hoyer lift has extra wide, adjustable legs to allow it to fit around most furniture for easier patient transfers. Choose from the hydraulic lift or electric battery-operated lift.

The convenient tool-free folding design and compact size make Hoyer Advance Patient Lifts a valuable asset for home or institutional use. They can easily be moved from room to room for transferring patients in and out of beds, chairs, or on and off commodes. The swan neck leg design with adjustable width allows the Hoyer Advance Patient Lift to accommodate even large furniture for safer and easier patient transfer.

The legs can be adjusted with a pedal at the rear of the base which can be operated by foot - simply push down to open the legs, or lift up to close them. They can even be adjusted while the lift is in use and moving. A minimum height of 13.7 inches allows these lifts to transfer patients from the floor to a bed or chair easily. Both lifts are constructed of aluminum.

Exceptionally Versatile

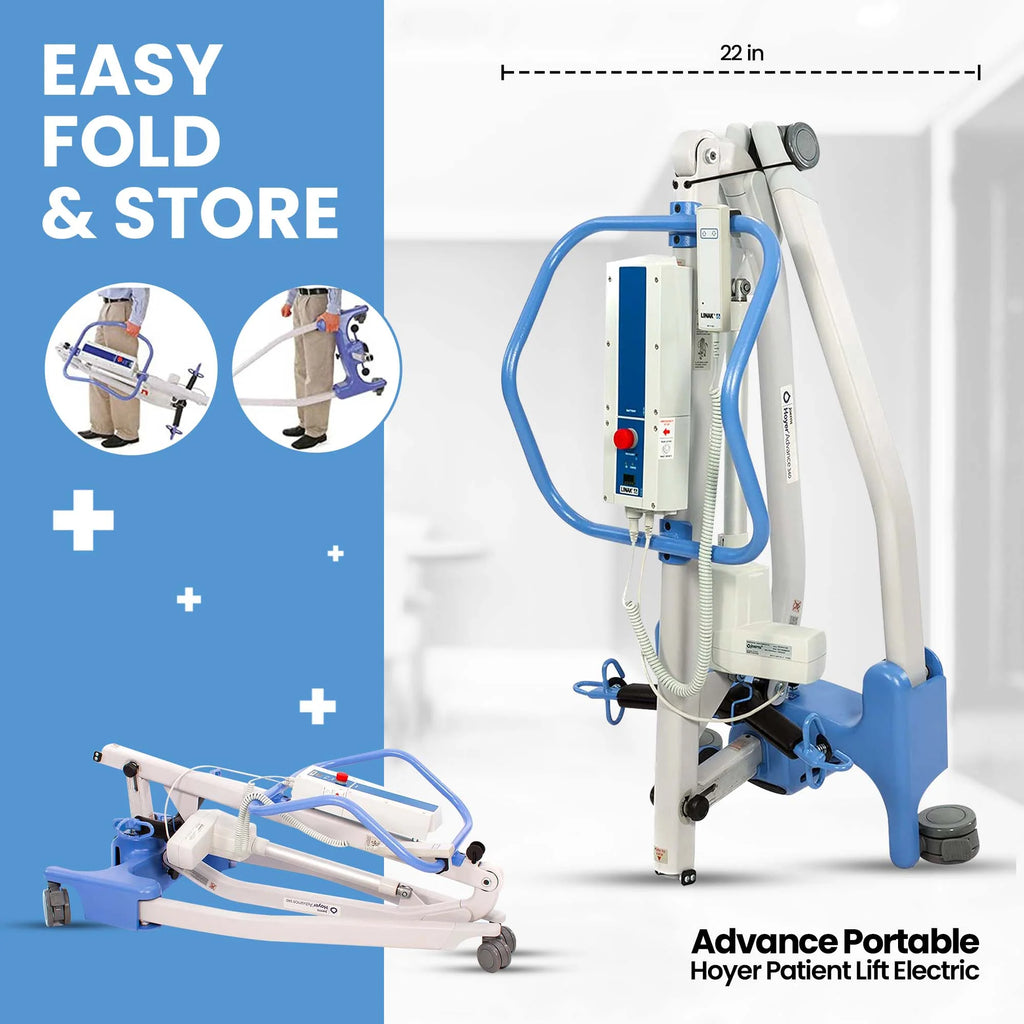

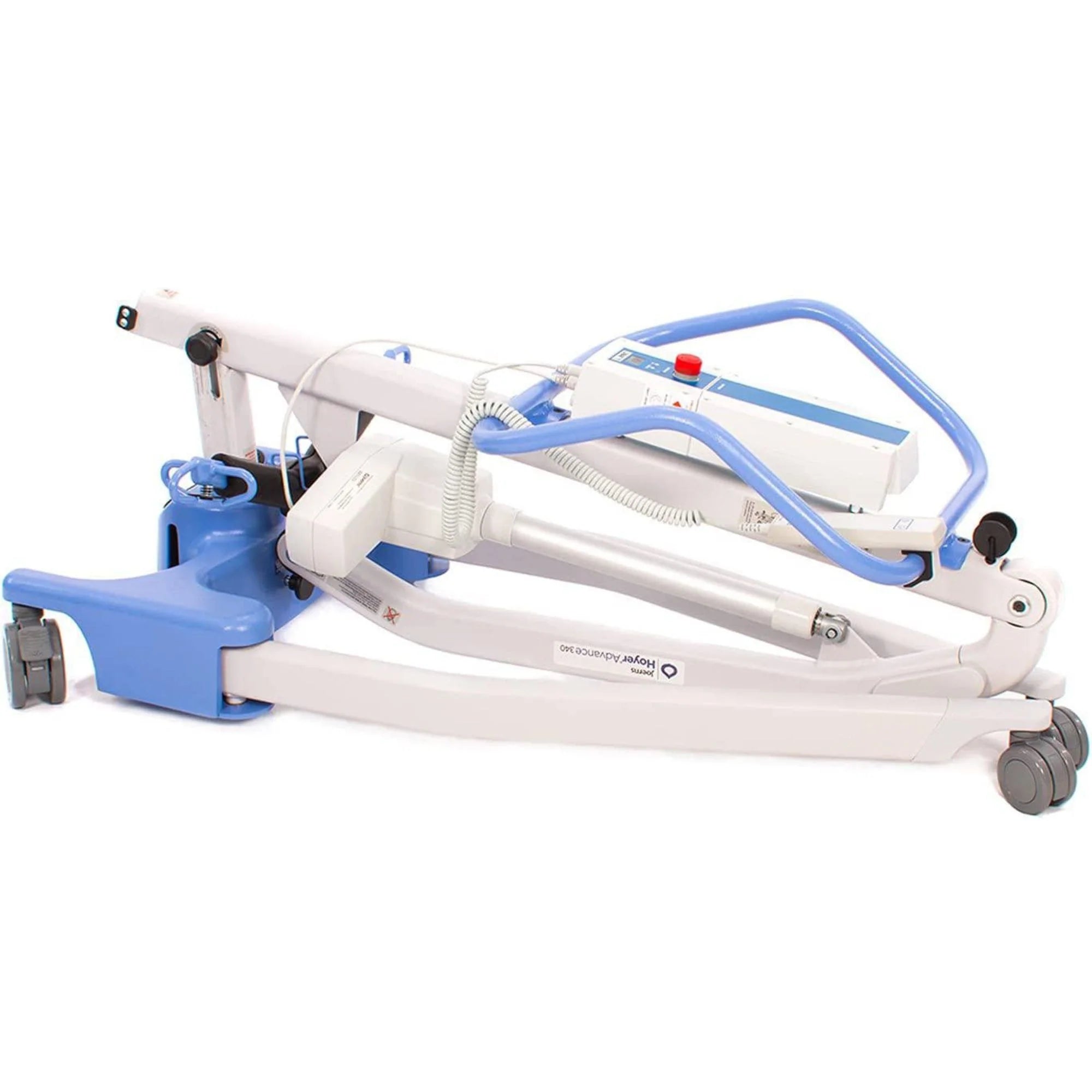

No-tools folding design allows for compact storage. In the folded position, the Advance will stand in a stable position.

Design

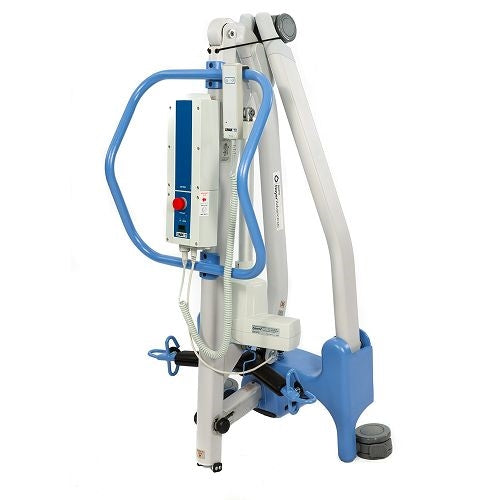

The triangular fold design ensures two very important functions. 1.) The lift stands unaided when being stored or transported. 2.) The lift can be safely left with the knowledge that it will not become unstable while not in use.

Oversized Handles
The oversized handle provides a large surface area from which the caregiver can maneuver the lift before use.

Footpad
The push footpad has been designed to reduce the force needed to initiate movement when maneuvering the stationary lift in a forward direction.

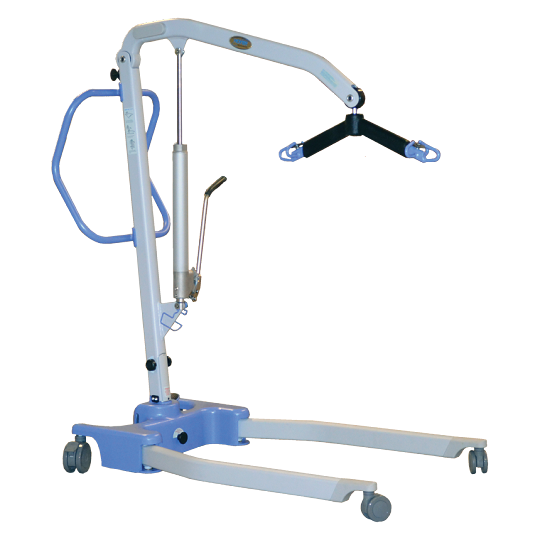

Hydraulic Lift:
The push footpad on this lift reduces the force needed to operate it. It can be rotated from either side, and it has a progressive release valve and oversized handle for a smooth, controlled descent. The valve can be opened to a slow speed to allow caregivers a hands-free option, so they can assist patients as they are being lowered.

Battery-operated Lift:

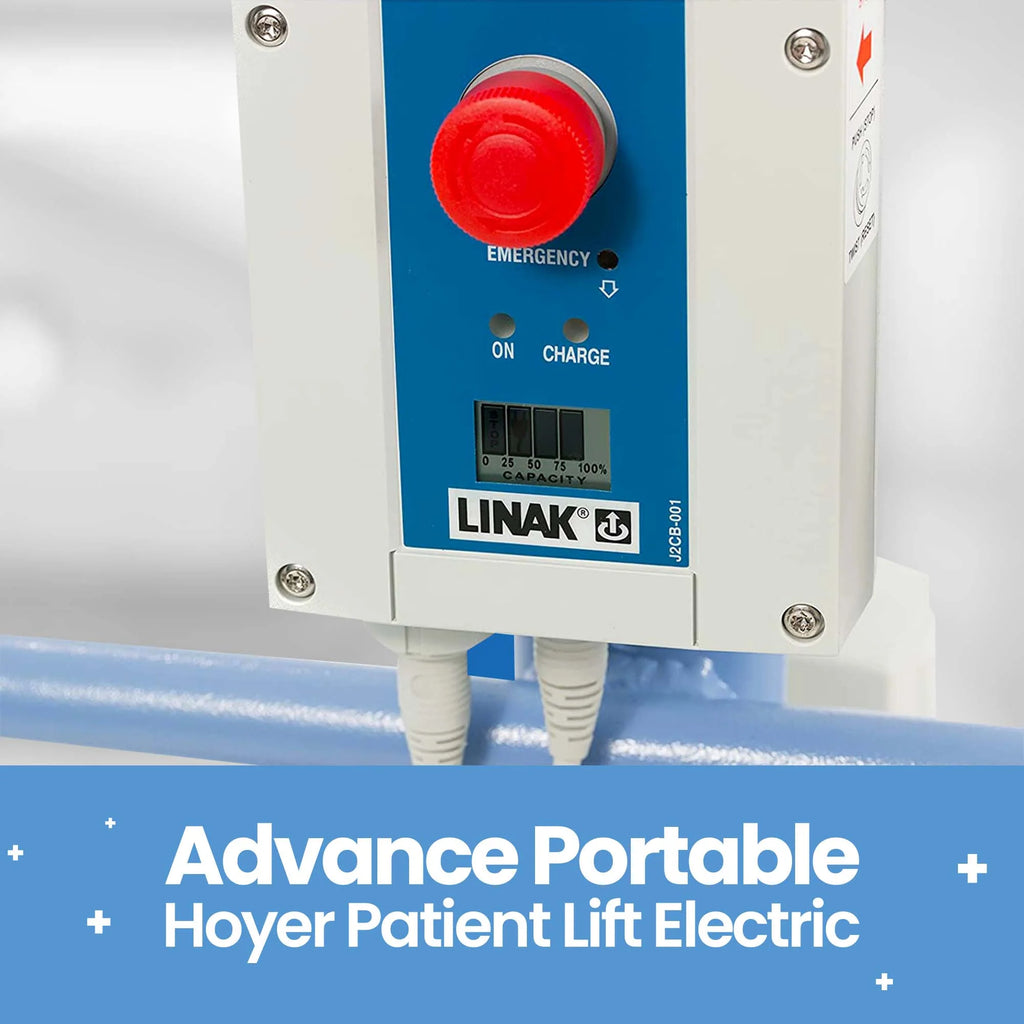

This lift includes a rechargeable battery and is operated with a corded hand-held remote. The battery can be charged in 4 hours.

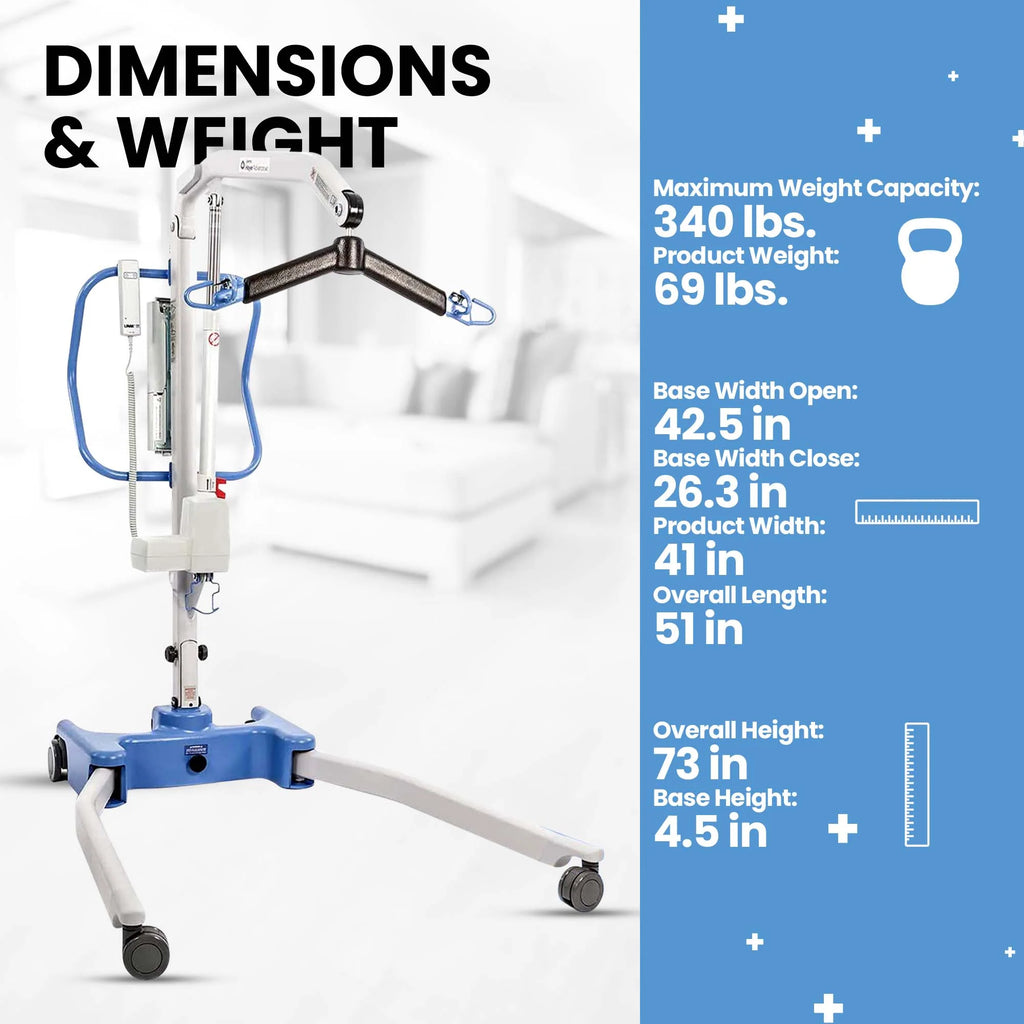

Technical Specifications:
Operated Lifting Range	Hydraulic: 15.4" - 64.6" Battery: 15.3" - 66.5"
Product Components Weight	Mast Base & Boom Assembly 64 lbs. Power Pack 5 lbs. Base Assembly (not incl. battery) 33lbs. Boom (not incl.battery) 31 lbs.
Product Length/Depth	maximum 4' 3" minimum 4' 1"
Product Height	maximum 5' 11" minimum 4' 5.5"
Maximum Height to Attachment Point	66.5"
Product Weight Capacity	340 lbs.
Product Weight	Hydraulic Unit: 64 lbs Power Unit: 69 lbs
Shipping Weight:	Hydraulic Unit: 86 lbs Power Unit: 92 lbs
Folded Dimensions	Height 17.7" Depth 46.5" Width 21.6"
Batteries (power only)	2 x 12 volt rechargeable sealed lead acid type
Battery Capacity (power only)	3.2 ampere hours
Charger Rated Input (power only)	230Vac 50/60Hz
Charger Rated Output (power only)	27.4/29.0 VDC@0.8A
Electrical Shock Protection - (power only)	Charger - Class II Lift - Internal Power Source
Degree of Shock Protection - (power only)	Charger - Type B Lift - Type B
Spreader Bar Dimensions	Max. Height 5' 4.5" Min Usable Height 1' 3" Height @ Max Reach 3' 9" Reach @ Max Height 2' 4" Reach @ Min Height 1' 7" Max. Reach 2' 9" Turning Radius 3' 5"
Leg Dimensions	Open External Width 42.5" Open Internal Width 39.5" Closed External Width 25" Closed Internal Width 22" Overall Height of Legs 4.5"
Front Twin Casters	3.3"
Rear Braked Casters	4"
Sling Use Type	Hoyer Grey Looped

Hoyer Guaranteed with a 2-year limited warranty on the frame and all other components excluding normal wear and tear items.
