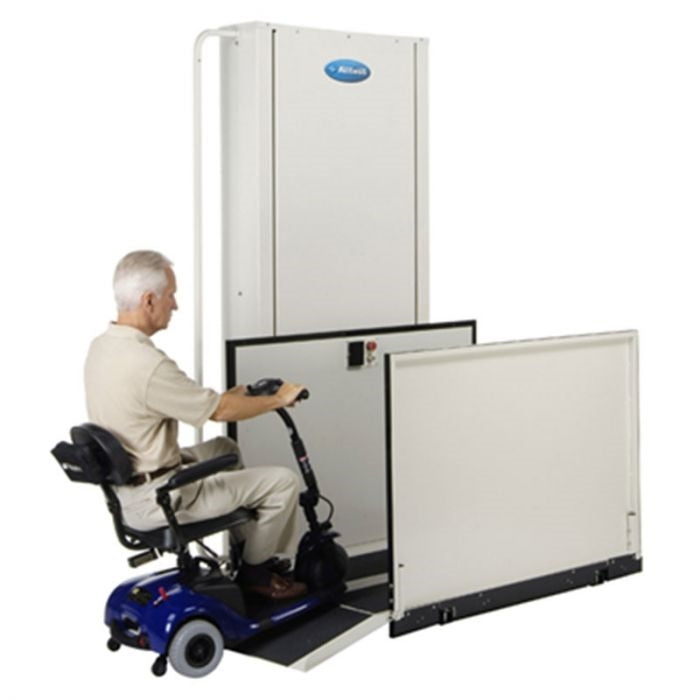

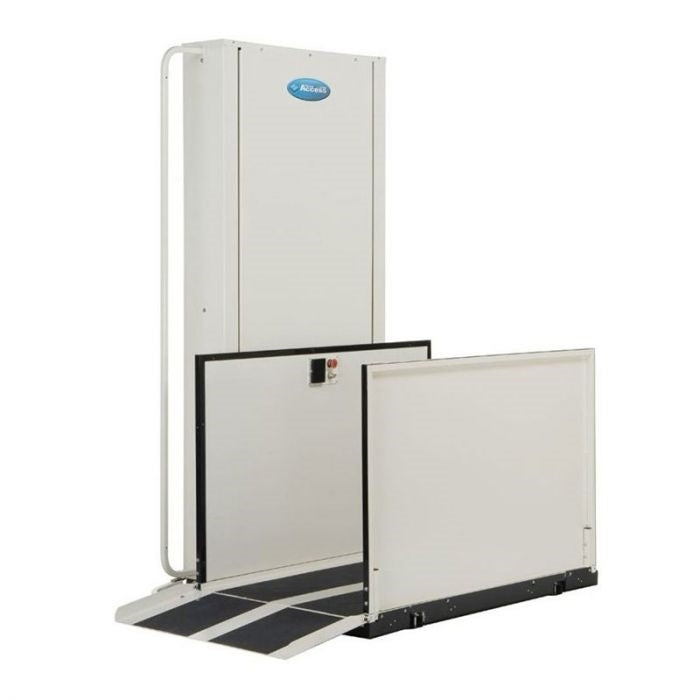

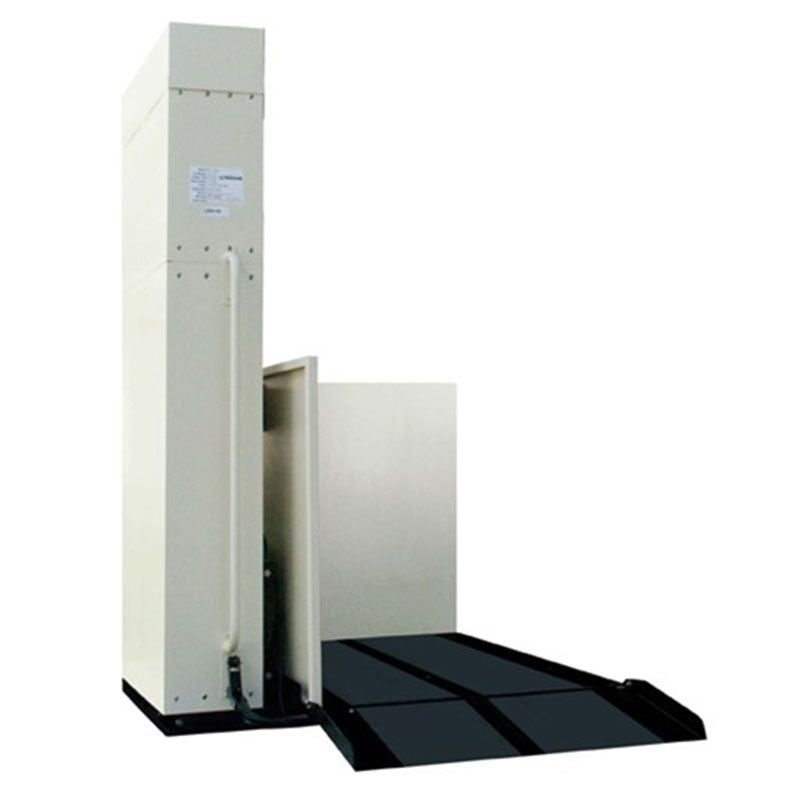

Harmar Highlander VPL Vertical Platform Lift

Harmar's Residential Vertical Platform Lift (RPL) is a safe, smooth and economical solution to the barriers porches, staircases, decks and other elevation changes can create in and around a home.

Designed from the ground up to be as cost-efficient as possible, the RPL is priced to be competitive with shorter units but built to accommodate most residential applications with ease.
Available in heights from 4 to 6 feet and for use indoors and out.
Features

• Automatic, folding access ramp
• Available in AC and DC models
• Solid platform with non-skid surface for added safety
• Solid 36" high guard panels
• Weather-resistant design for indoor and outdoor use
• Constant pressure, paddle switch controls with emergency stop button
• Sensitive safety pan on bottom of platform stops the lift if it meets an obstruction

Specifications

• Lifting height4'-6' (53" to 77")
• Rated load600lbs (272 kg)
• Drive Belt driven Acme screw / 90 VDC 1/3 hp motor. Optional 24 VDC battery powered unit
• Power supply115 VAC "“ 20 Amp grounded circuit
• Control circuit24 VAC (Low Voltage Controls)
• Platform: 36" x 48" with 36" high solid guard panels and automatic folding ramp
• Footprint: 50" x 70"
• Speed: 10 fpm
• Controls: Rocker switch w/emergency stop (key switch optional)
• Manual lowering: Provided
• Safety design standards: ASME A18.1, Section 5 "“ Private Residence Vertical Platform Lifts
• Safety Design: CSA B44.1 / ASME 17.5 "“ Elevator and Escalator Equipment
• Safety features: Safety Pan, Final limit, Acme safety nut with monitor, Non-skid surface
• Warranty1-Year parts/ with Premium Protect Package* see details on warranty certificate
