Harmar AL500HD Platform Power Wheelchair Lift
In order to insure a proper fit, as a Harmar authorized dealer we review each and every vehicle lift purchase, to make sure the lift will work with your vehicle and mobility product. Please supply a active phone number or call us at 866-218-0902, so we can double-check compatibility before your order is shipped.
Unsure, Just place your order and we will follow-up with you after your order is placed to confirm the information.
Manuals, Literature
Product Brochure
Unsure, Just place your order and we will follow-up with you after your order is placed to confirm the information.
Manuals, Literature
Product BrochureProduct Code: AL500HD
$2,925.00
Description

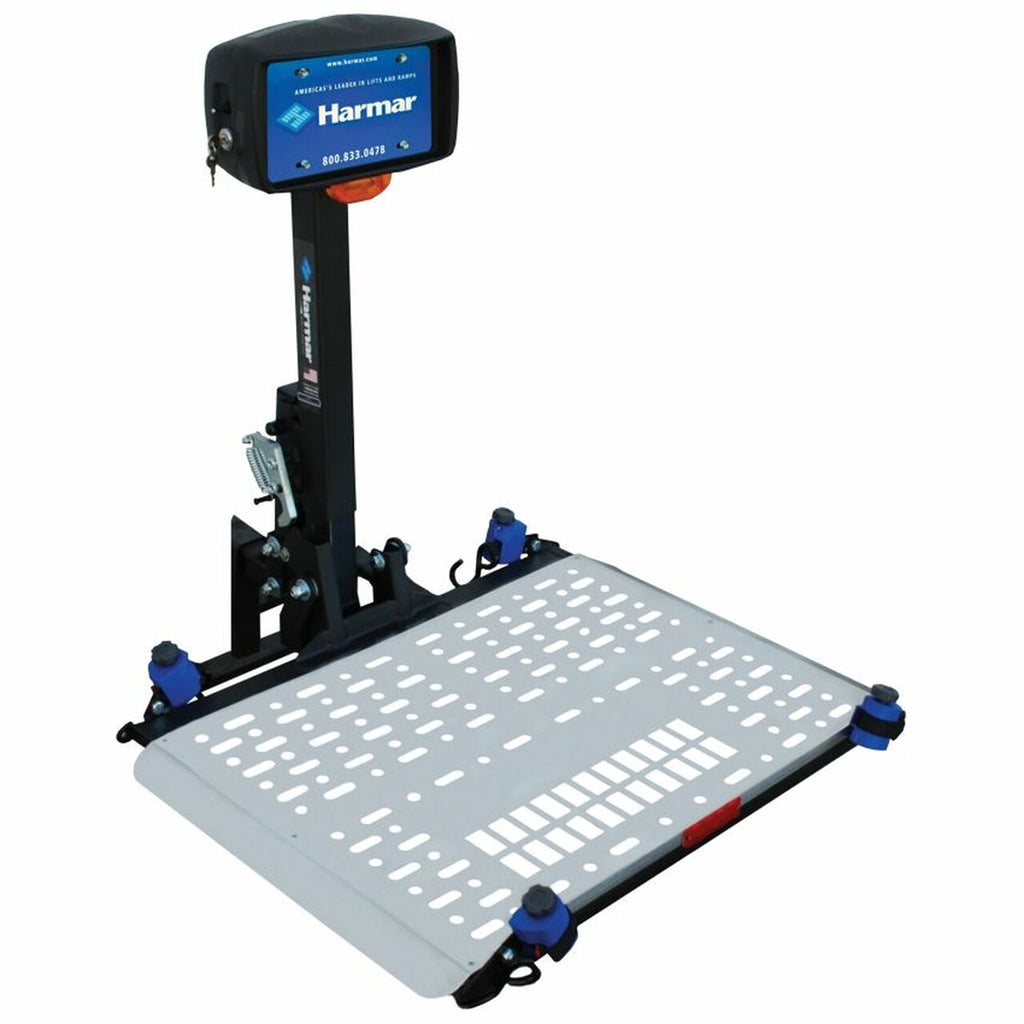

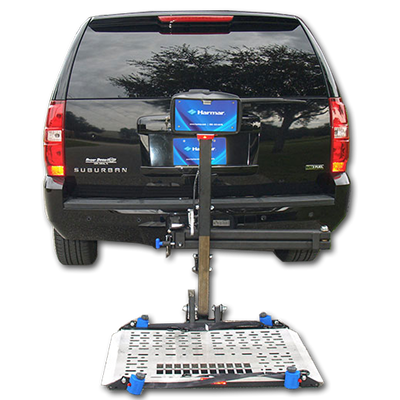

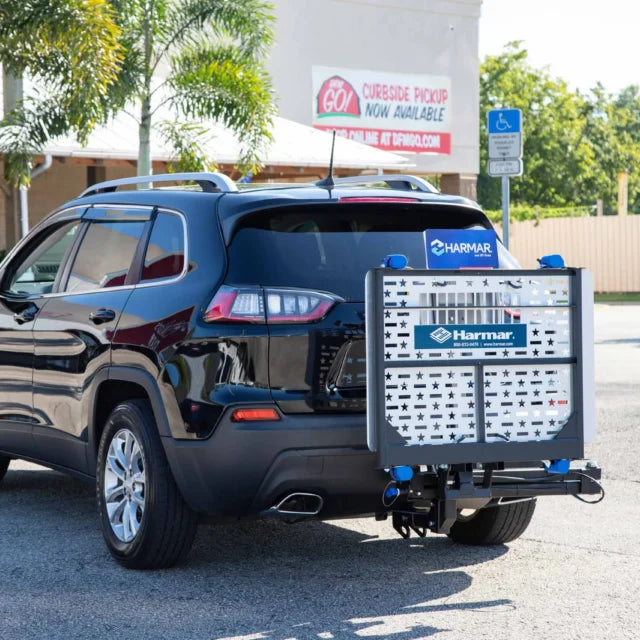

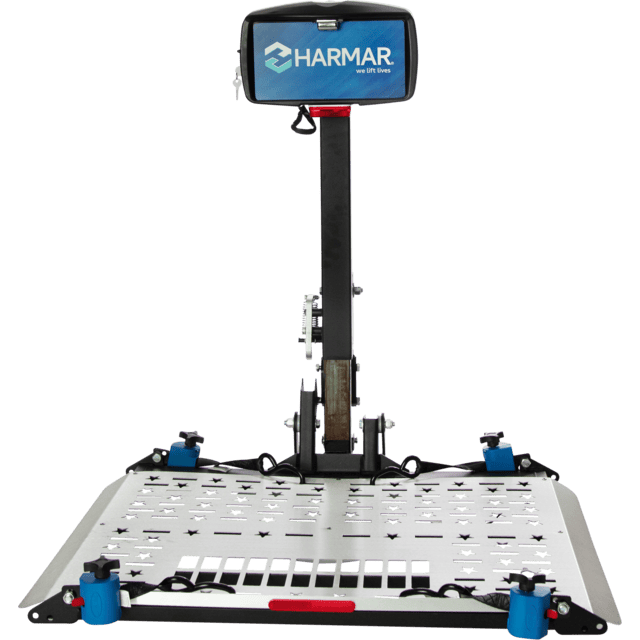

Harmar AL500HD Platform Power Wheelchair Lift
Harmar AL500HD Heavy Duty Universal Power Chair Lift has all the features and benefits of the Harmar AL500 but with the capacity to lift up to 400 pounds!
The AL500HD is Harmar"²s premium universal outside chair lift and one of the few available for a Class II hitch-equipped vehicle. Designed using universal tensions rigorously used in public transportation, the AL500HD is one of the safest and most universal outside lifts available. There is no chair modifications, cumbersome attachments or extra equipment to store with the AL500.
Features:
- Automatic Tension Hold Down System
- Compatible with virtually any Power Chair on the market
- Manual Crank Backup
- Integrated License Plate Holder

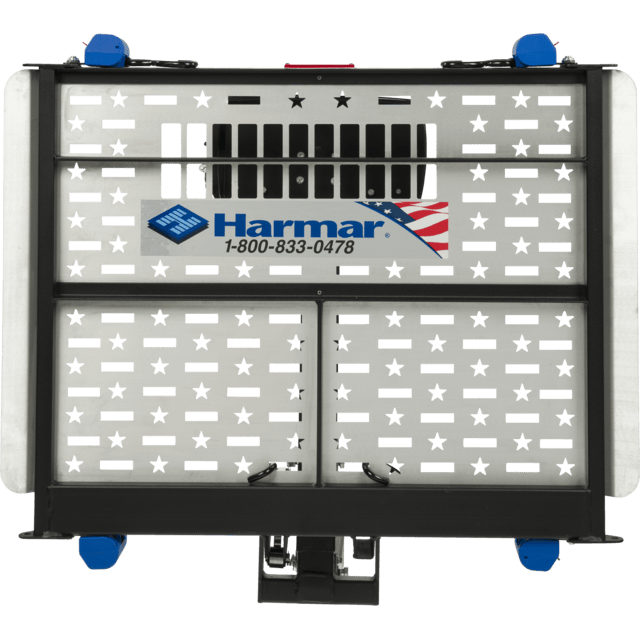

- Large Aluminum Deck that Automatically Folds when Empty
- No Chair Modification required
- Integrated Drop Bracket for Truck and SUV applications
- 350 lb. Lift Capacity
Technical Specs
Specifications for the AL500 Platform Power Wheelchair
| AL500 | AL500HD | |
| Hitch Height: | 5" to 18" | 5" to 18" |
| Power Source: |
Battery Hardwired |
Battery Hardwired |
| Works With Hitch Size: |
Class II Hitch Class III Hitch |
Class II Hitch Class III Hitch |
| Professional Install Available: | Yes | Yes |
| Service Contract Available: | No | No |
| Operation: | Power | Power |
| Lifting Capacity: | 350 lbs. | 400 lbs. |
| Recommended For: | Power Wheelchairs | Power Wheelchairs |
| Platform Size - Length: | 39 in. | 39 in. |
| Platform Size - Width: | 27.5 in. | 27.5 in. |
| Installed Product Weight: | 75 lbs. | 77 lbs. |
| Type of Lift: | Outside Lift | Outside Lift |
| Warranty: | 3 Year Limited Warranty | 3 Year Limited Warranty |
| Warranty - Transferable Warranty: | Yes | Yes |
Wheelchair Measuring Guide
