Harmar AL215 Axis I Inside Wheelchair and Scooter Lift
In order to insure a proper fit, as a Harmar authorized dealer we review each and every vehicle lift purchase, to make sure the lift will work with your vehicle and mobility product. Please supply a active phone number or call us at 866-218-0902, so we can double-check compatibility before your order is shipped.
Unsure, Just place your order and we will follow-up with you after your order is placed to confirm the information.
Manuals, Literature
Product Brochure
Unsure, Just place your order and we will follow-up with you after your order is placed to confirm the information.
Manuals, Literature
Product BrochureProduct Code: AL215
$1,725.00
Description

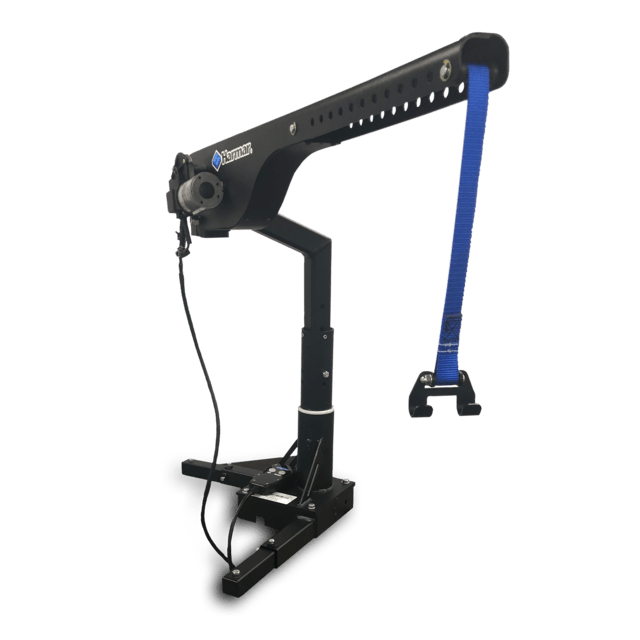

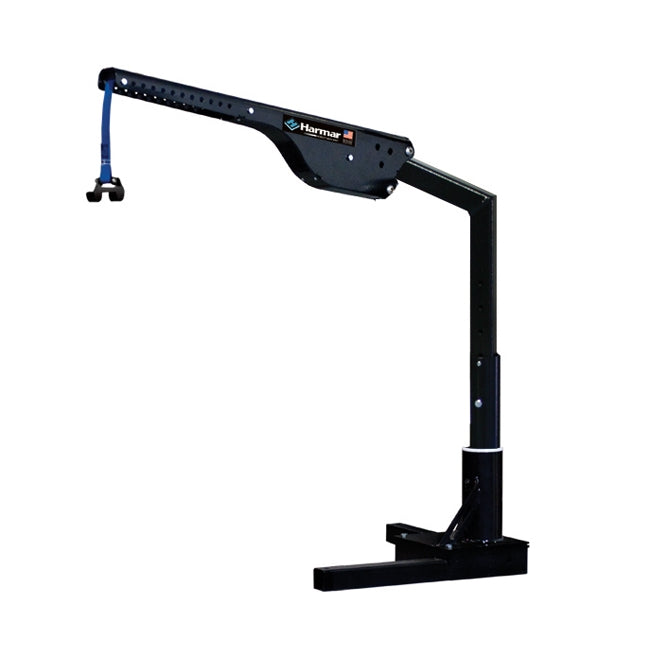

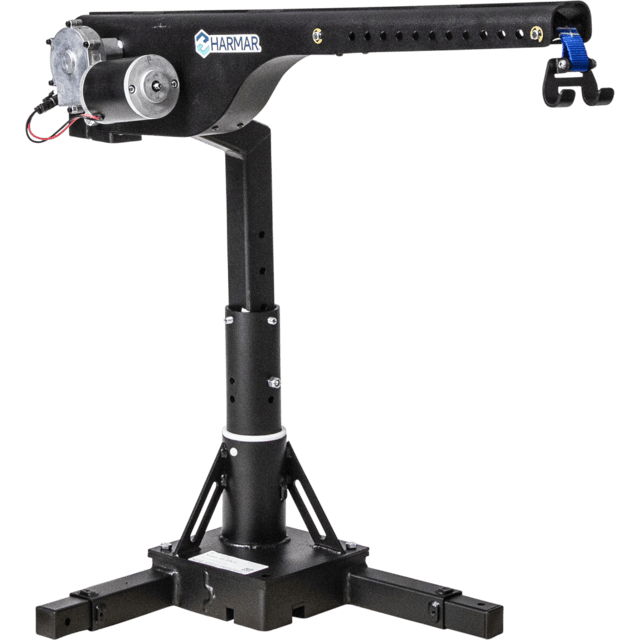

AL215 Axis I Inside Wheelchair and Scooter Lift
Harmar's AL215 is an efficient and economical solution for transporting smaller, lighter power chairs and scooters.
Powered lifting and manual rotation helps load the mobility device. An offset post allows the mobility device to be safely unloaded to the side of the vehicle. Other convenient features include adjustable base and arm height with boom arm strap. Includes weather-resistant hand control.
Smaller vehicle space? New EZ-Detach Seatback accessory converts power chairs to a lower profile to fit more easily into small cargo areas. Includes easy-turn handles, weight-distributing handle bar for easy removal and replacement.
Features
- Interchangeable sub bases to fit most vehicles
- Weather resistant remote control
- Transports most scooters and smaller power chairs
- Weight capacity: 250 lbs.
- Weight: 68 lbs.
Technical Specs
Specifications for the AL215 Axis I
| Adjustable Boom Height: | 30" to 40" |
| Adjustable Boom Length: | 21.25" to 32.25" |
| Power Source: | Hardwired |
| Professional Install Available: | No |
| Service Contract Available: | No |
| Operation: | Semi-Power (Some Manual Labor Involved) |
| Lifting Capacity: | 250 lbs. |
| Recommended For: | Travel Scooters |
| Installed Product Weight: | 68 lbs. |
| Type of Lift: | Inside Lift |
| Warranty: | 3 Year Limited Warranty |
| Warranty - Transferable Warranty: | Yes |
Wheelchair Measuring Guide
