Harmar AL003 Tilt-N-Tote
In order to insure a proper fit, as a Harmar authorized dealer we review each and every vehicle lift purchase, to make sure the lift will work with your vehicle and mobility product. Please supply a active phone number or call us at 866-218-0902, so we can double-check compatibility before your order is shipped.
Unsure, Just place your order and we will follow-up with you after your order is placed to confirm the information.
Manuals, Literature
Product Brochure
Unsure, Just place your order and we will follow-up with you after your order is placed to confirm the information.
Manuals, Literature
Product BrochureProduct Code: AL003
$1,085.00
Description

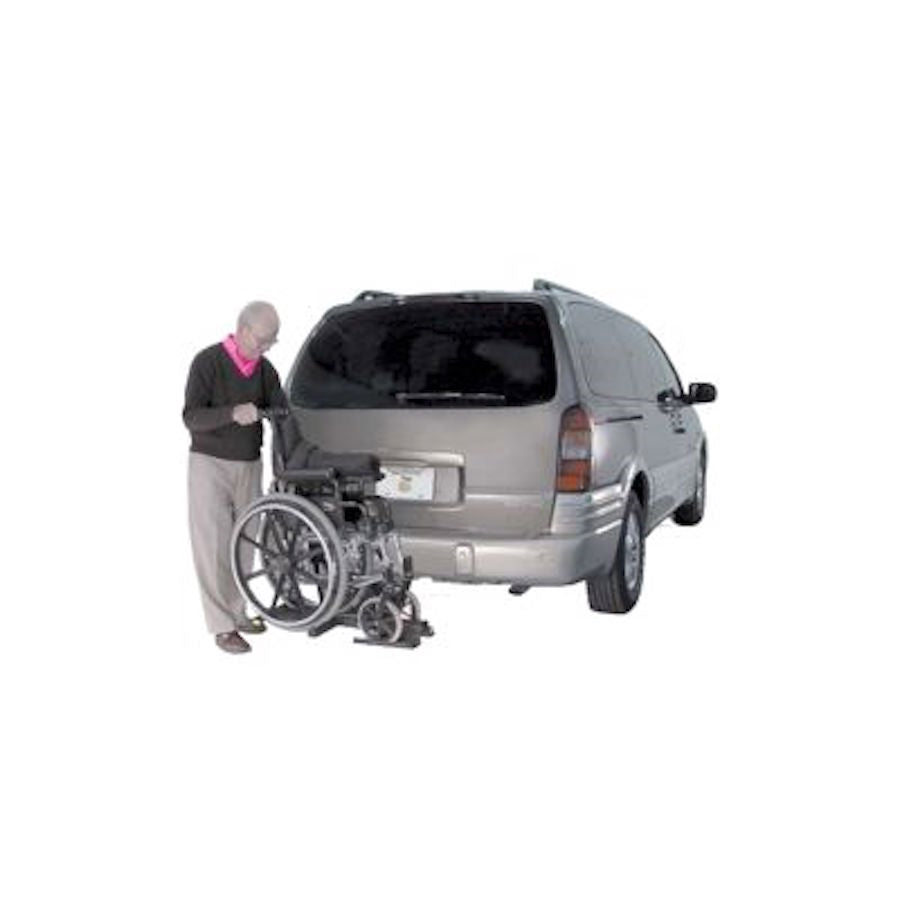

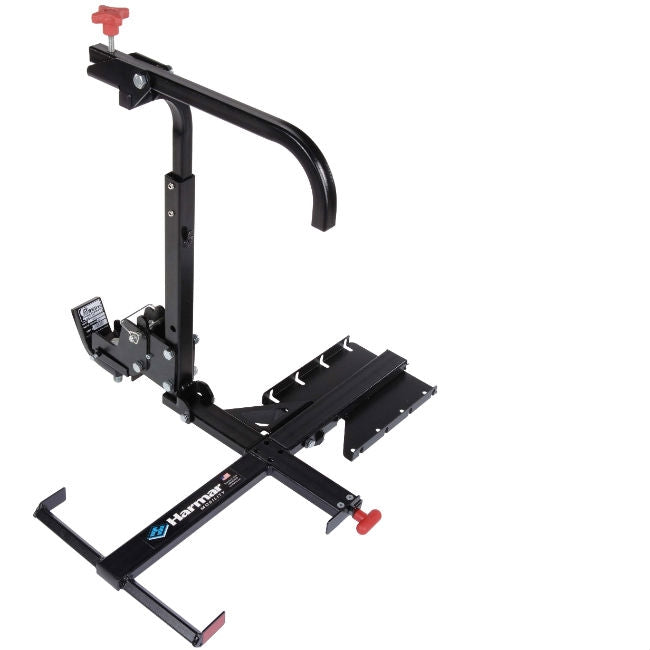

Harmar AL003 Tilt-N-Tote
Compact design folds down for tail gate / lift gate access and folds up when not needed.
Harmar's AL003 Tilt'n Tote utilizes a unique hold-down arm to secure almost any standard folding manual wheelchair. One handle releases the lift for nearly effortless loading and unloading of manual wheelchairs weighing up to 100 pounds. The AL003 features a tilting joint for easy roll-on and off use and no modifications to the chair are required.
A Class I hitch adapter and stabilizer are standard and it works with a ball mount hitch.
Features
- Tilting joint for roll-on ease
- Adjustable hold-down arm
- Folds to access tail gate / lift gate; folds up when not in use
- No chair modifications required
- Ball mount standard; upgrades available
- No hitch post needed with ball mount
Technical Specs
Specifications for the AL003 Tilt n Tote
| Hitch Height: | 5" to 19" |
| Works With Hitch Size: |
Class I Hitch Class II Hitch Class III Hitch Ball Mount |
| Professional Install Available: | No |
| Service Contract Available: | No |
| Operation: | Manual |
| Lifting Capacity: | 100 lbs. |
| Recommended For: | Manual Wheelchairs |
| Installed Product Weight: | 32 lbs. |
| Type of Lift: | Outside Lift |
| Warranty: | 3 Year Limited Warranty |
| Warranty - Transferable Warranty: | Yes |
Wheelchair Measuring Guide
