Golden LiteRider 3 Wheel Scooter
Manuals, Literature
Product BrochureProduct Code: GL111D

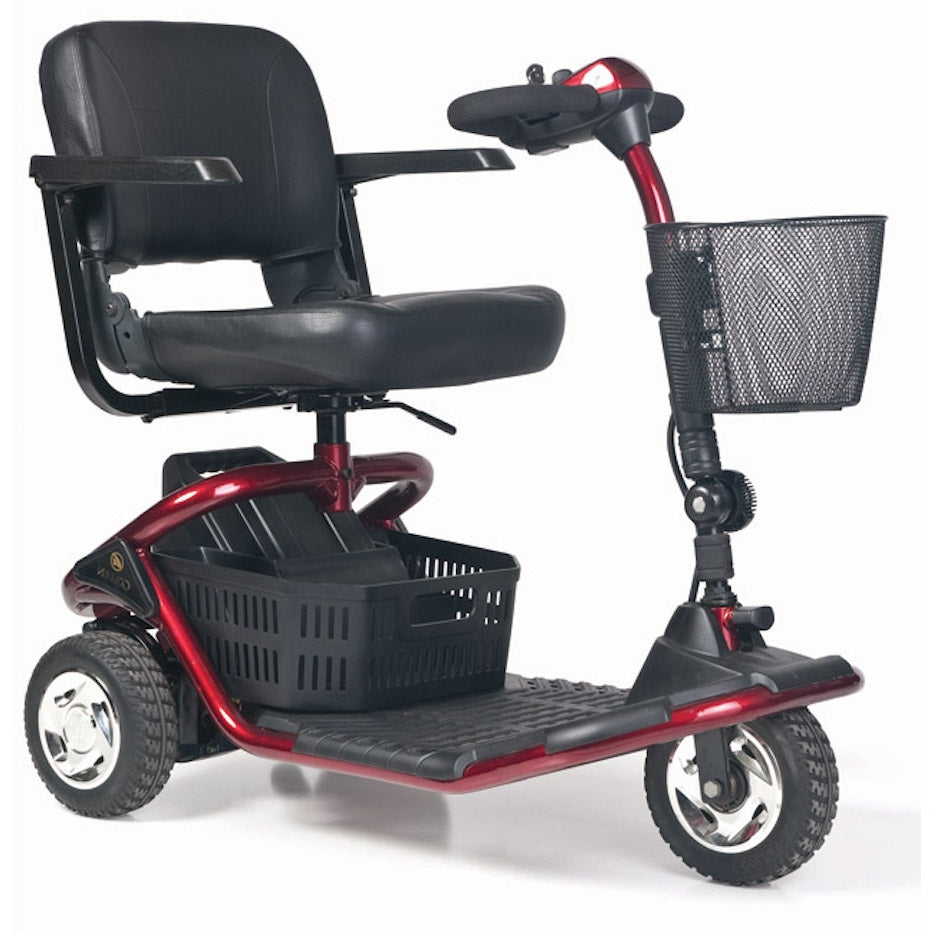

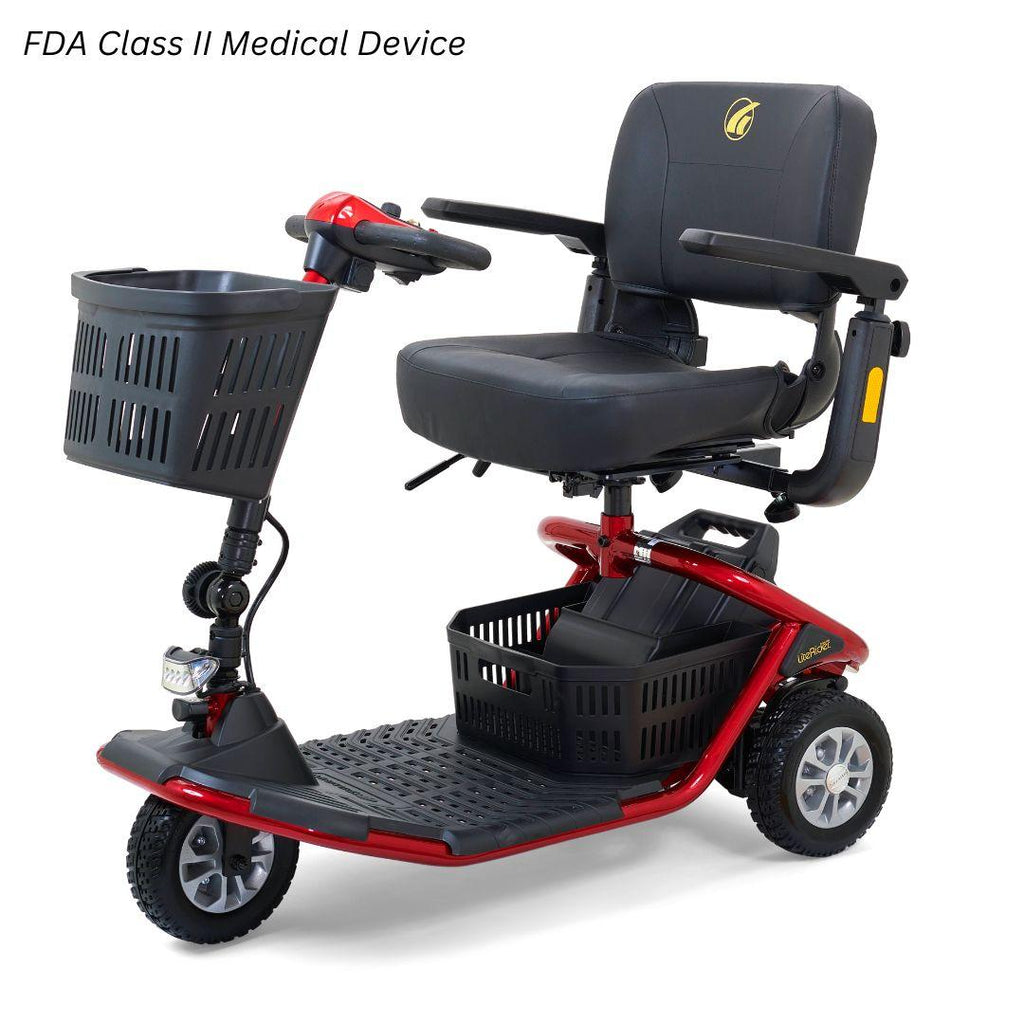

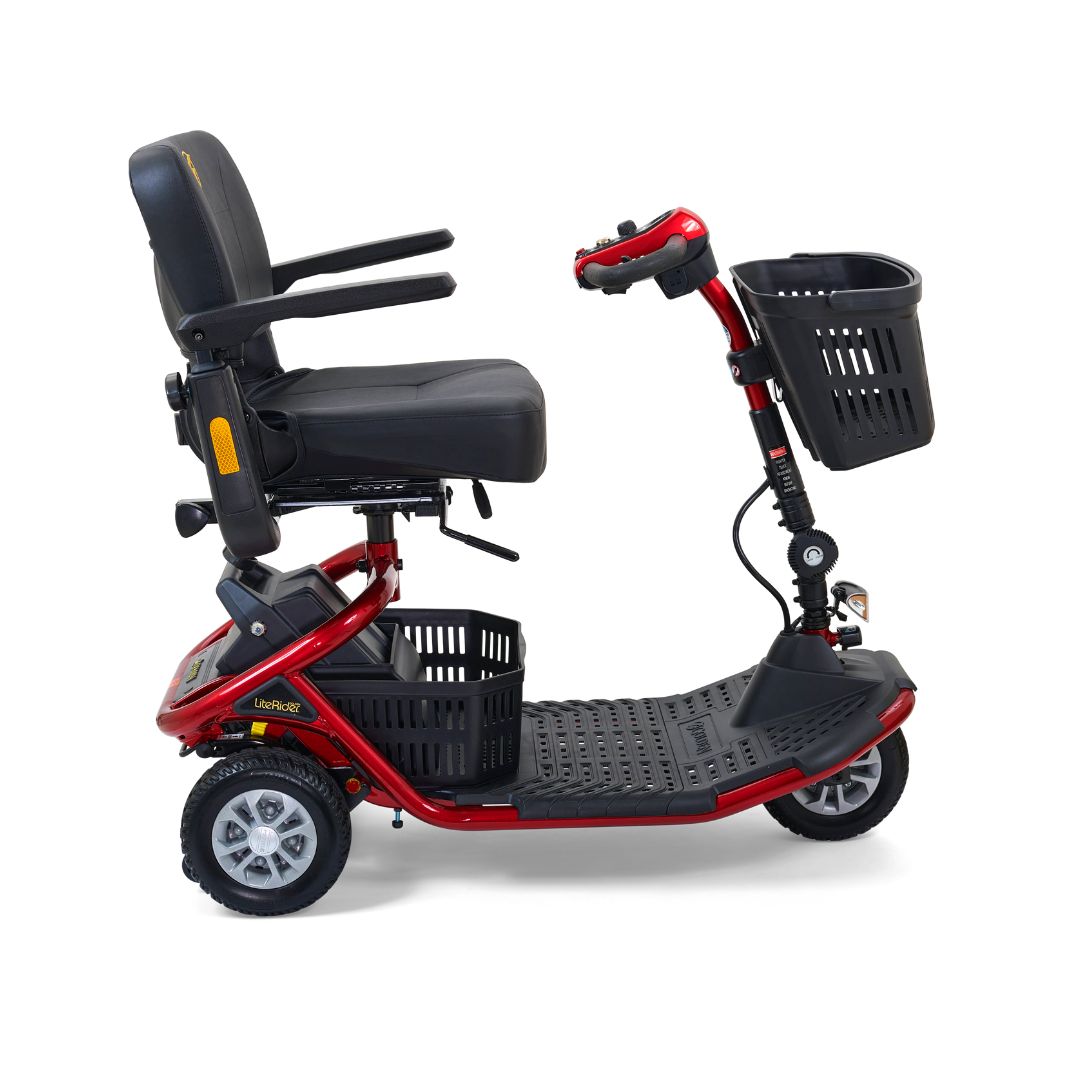

Golden LiteRider 3 Wheel Scooter
The 3 wheel Golden LiteRider scooter features a Delta with more attractive styling and colors painted onto the heavy duty tubular frame steel frame make this a real looker with great strength and durability that easily supports 300 lbs.

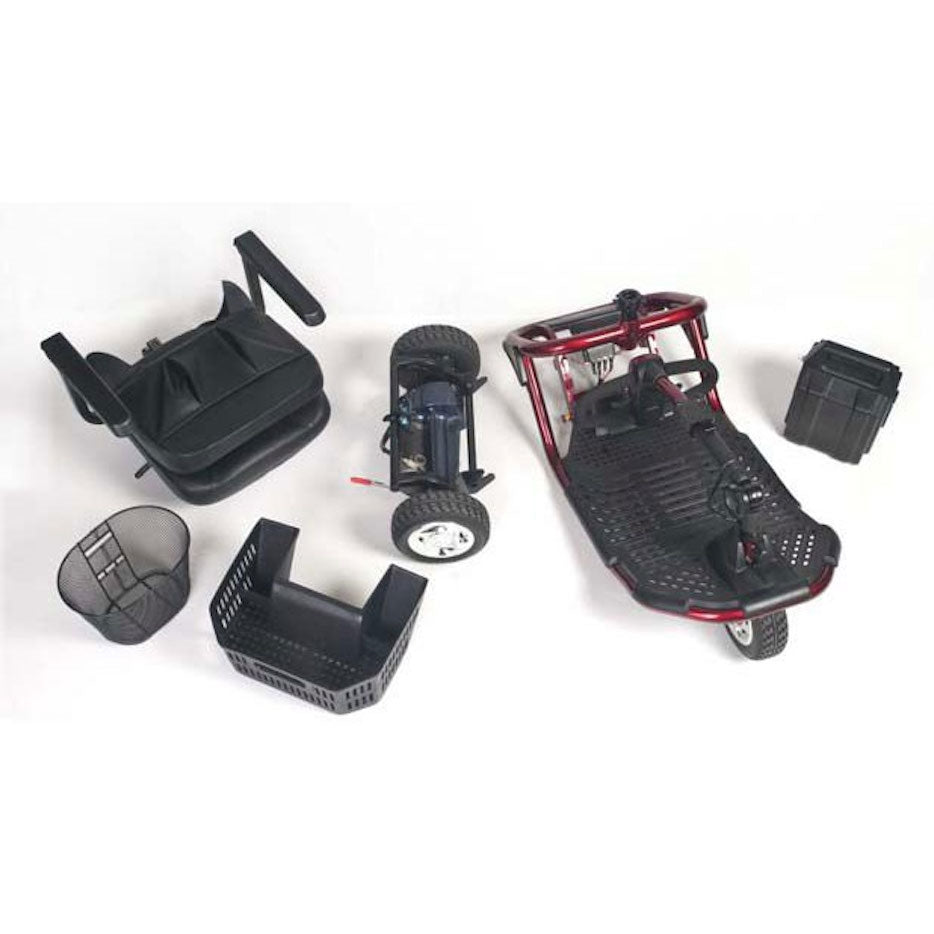

- With all Golden Travel Scooters, the wireless disassembly makes transporting a breeze.
A Delta tiller, stadium seat and adjustable armrests are standard on the LiteRider as well as a front basket and underseat basket.

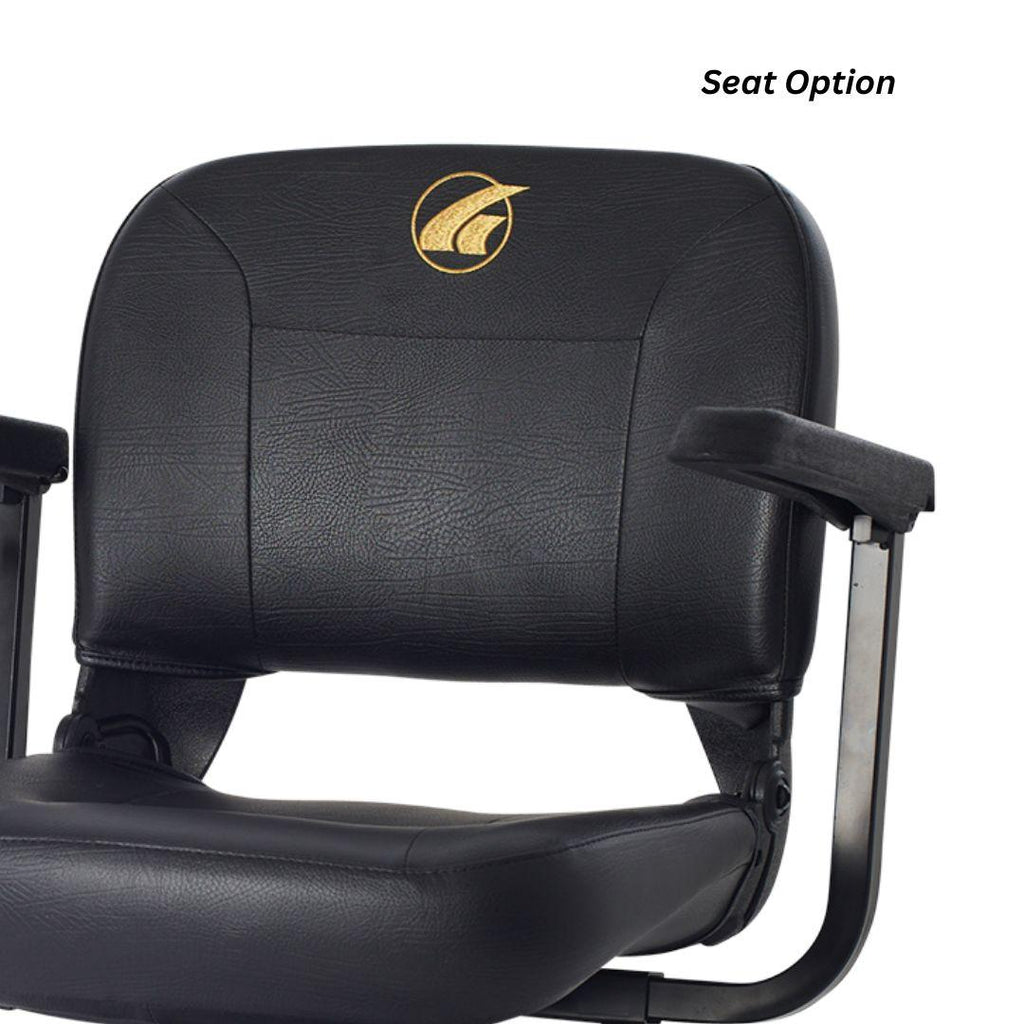

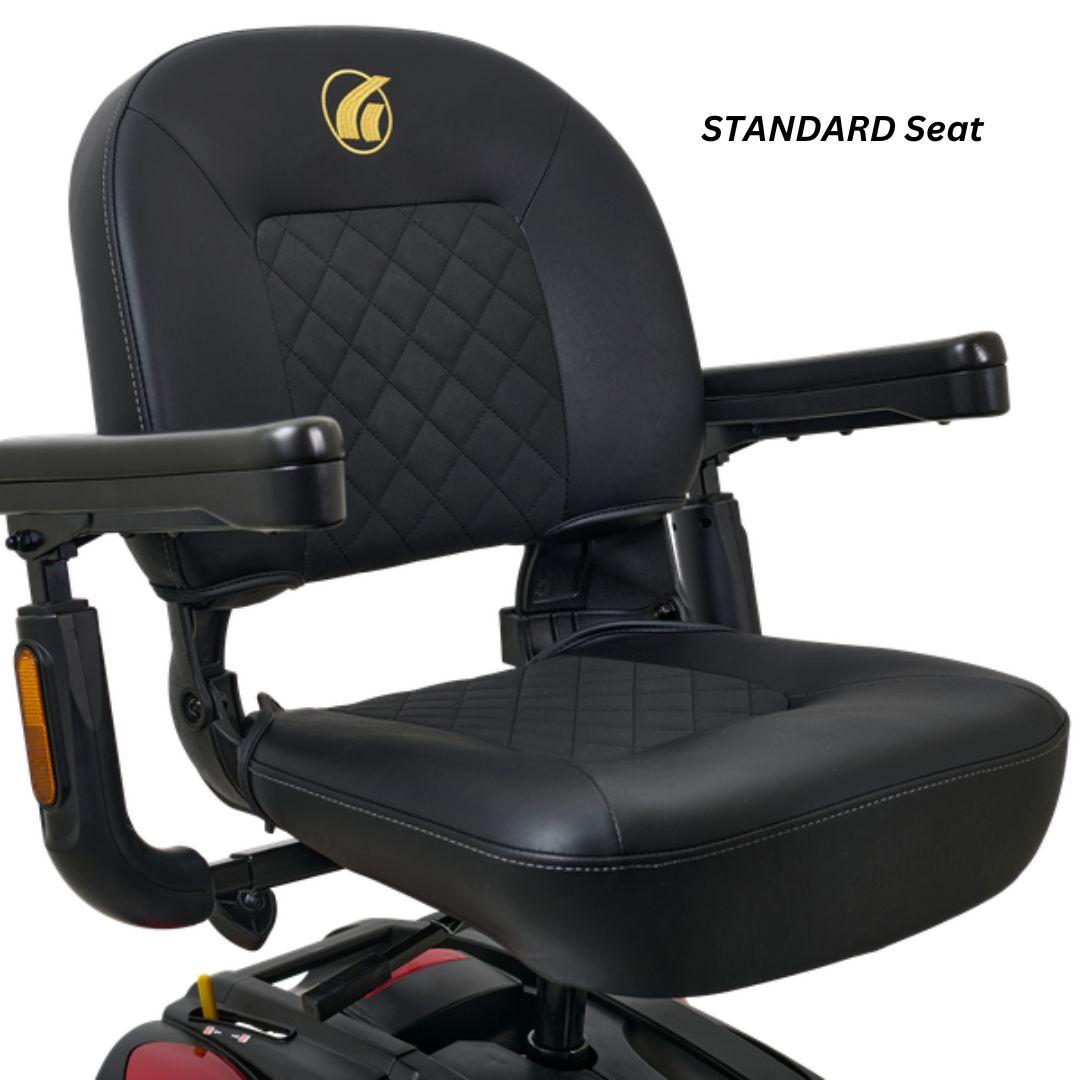

The seat swivels and is height adjustable and the LiteRider has 2 12V 18AH batteries for a 9.5 mile operating range. Add to it the size of a full size scooter but portability of a travel one and a 300 lb. weight capacity.
Are you ready to enjoy the ride? Just contact one of our mobility advisers at 866-218-0902 about the Golden LiteRider 3 Wheel Scooter, and get on your way.
Features
- Standard Delta Tiller
- Two Storage Baskets, Front and Under seat
- Extended Deck for maximum foot room
- Larger rear tires - 9" x 3" Front an Rear
- Large 17" x 16" seat
- Top Speed: 5.00 mph
- Drive Range: 9.50 miles
- Heaviest Piece: 44 lbs.
- Weight capacity: 300 lbs
Specifications for the LiteRider
| Top Speed: | 5.00 mph |
| Turning Radius: | 39" |
| Drive Range: | 9.50 miles |
| Heaviest Piece: | 44 lbs. |
| Ground Clearance: | 2.50" |
| Max Incline Rating: | 6 ° |
| Disassembles: | Yes |
| Delta Tiller: | Yes |
| Seat Width: | 17" |
| Back Height: | 16" |
| Max Seat to Ground Height: | 25.5" |
| Max Seat to Deck Height: | 20" |
| Multiple Seating Options: | No |
| Power Elevating Seat: | No |
| Height Adjustable Seat: | Yes |
| High-Back Seat: | No |
| Flip-Back Armrests: | Yes |
| Wheel Type: | Three Wheeled |
| Front Wheel Size: | 9" |
| Rear Wheel Size: | 9" |
| Air-Filled (Pneumatic) Tires: | No |
| Overall Width: | 23.25" |
| Overall Length: | 41.5" |
| Transportable/Collapsible: | Yes |
| Foldable: | No |
| Battery Type: | 18AH |
| Batteries Included: | Yes |
| Battery Charger Type: | Off Board |
| Larger Battery Option: | No |
| Drive Type: | Rear-Wheel Drive |
| Suspension: | No |
| One-Hand Operation: | Yes |
| Basket Included: | Yes |
| Headlight: | No |
| Extended Base: | No |
| Weight Without Batteries: | 121.00 lbs. |
| Battery Pack Weight: | 25.00 lbs. |
| Expedited Shipping Available: | No |
Wheelchair Measuring Guide
Wheelchair Measurements:
- Hip Width:
Use this to figure seat width if it is the widest point. - Widest Point:
Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style. - Chest Width:
Measure the widest point of the thorax just below the armpit. This measurement may influence system width or back width. - Heel to Knee:
Use this for legrest extensions and seat height. - SRP to Knee (Seat Reference Point to Knee):
This will determine the seat depth. - Elbow to SRP (Elbow to Seat Reference Point):
Measure this width with the arm in a 90-degree angle at the elbow and the shoulder in a neutral position. - Shoulder Height:
This will determine the height and the style of the back panel or the start for a custom back. - Head Height:
This will help determine the proper headrest height.
