Golden Compass Sport Power Chair
Manuals, Literature
Product BrochureProduct Code: GP605

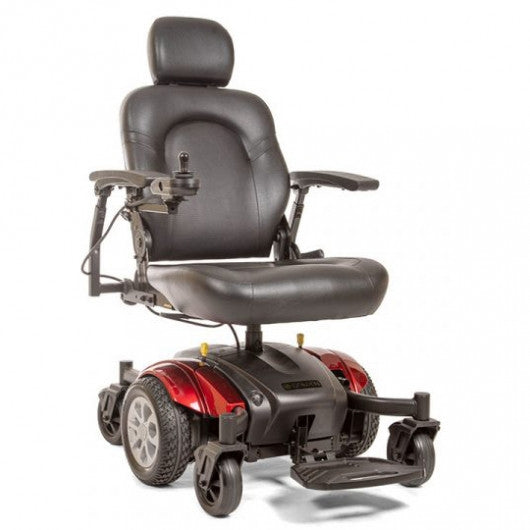

Golden Compass Sport Power Chair
Golden Tech's Compass Sport has a comfortable sleek design built for optimal obstacle climbing and maneuverability. With six wheels on the ground at all times, you can ensure your ride will be safe, smooth and stable wherever you go!
The Compass Sport is available in 16", 18" and 20" standard seat widths, and an upgraded 22" wide seat. It is the only chair in its price range available with such a range of seat sizes. Not only is it available in four different seat widths, but all standard seats are high-back Captain's seats with a headrest.
With a weight capacity of 300 lbs., the chair is engineered to last over 11 miles on a single charge, guaranteeing all-day reliability and efficiency. It comes standard with a Dynamic Shark 60 amp controller as well as a set of desk-length flip-up armrests. Also featured are a comfortable set of footrests, which are adjustable from 3" to 7" off the ground, at an angle of 0 to 35 degrees.
Backed by a lifetime warranty, the Compass Sport has a maximum speed of 4 mph and is available with either a Captain's Highback or Captain's Van/Pan seat.
Features:
- Desk-length flip-up armrests
- Center-wheel drive
- Fold-flat seat hinge for a compact fold

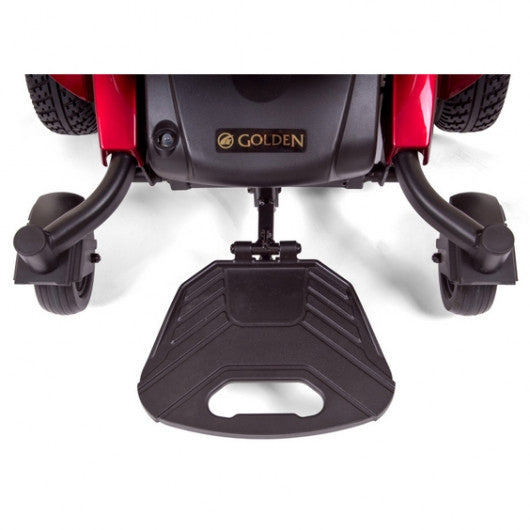

- Height and angle adjustable footrests
- Dynamic Shark 60 amp controller comes standard
- Two U-1 batteries

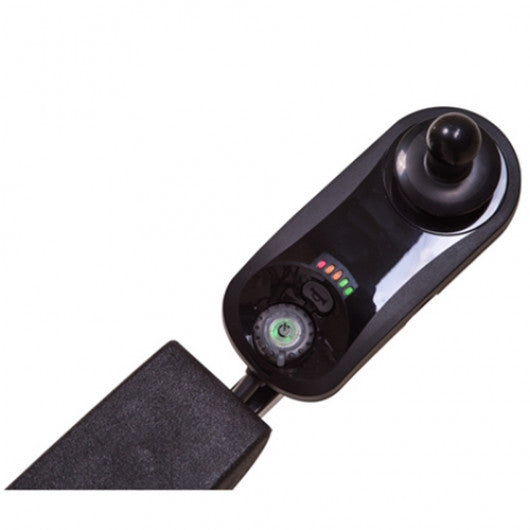

- Electronic speed control as well as electro-mechanical brakes
- Made in the U.S.
- Turning Radius: 19.50"
- Heaviest Piece: 92 lbs.
- Battery Charge Distance: 15.00 miles
- Weight capacity: 300 lbs.
Wheelchair Measuring Guide
Wheelchair Measurements:
- Hip Width:
Use this to figure seat width if it is the widest point. - Widest Point:
Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style. - Chest Width:
Measure the widest point of the thorax just below the armpit. This measurement may influence system width or back width. - Heel to Knee:
Use this for legrest extensions and seat height. - SRP to Knee (Seat Reference Point to Knee):
This will determine the seat depth. - Elbow to SRP (Elbow to Seat Reference Point):
Measure this width with the arm in a 90-degree angle at the elbow and the shoulder in a neutral position. - Shoulder Height:
This will determine the height and the style of the back panel or the start for a custom back. - Head Height:
This will help determine the proper headrest height.
