Golden Avenger Heavy Duty 4 wheel Scooter
Golden Avenger Heavy Duty 4 wheel Scooter
Product Code: GA541

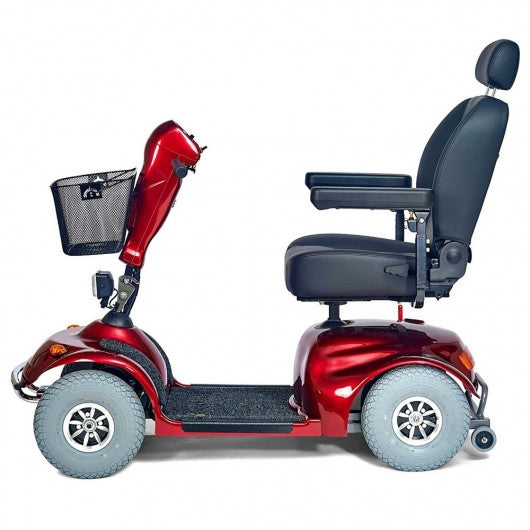

The Golden Technologies Avenger GA541 is a heavy-duty four-wheel scooter built for larger riders and rougher ground — and, unusually for a 500 lb-capacity scooter, it breaks down into five pieces for transport. Large 13" pneumatic tires, a 140-amp controller, and 4" of ground clearance handle outdoor paths and uneven terrain at up to 7 mph, and two NF22 batteries deliver up to 29.5 miles per charge. A roomy 20" captain's seat with adjustable headrest and four height positions keeps you comfortable all day. 500 lb capacity · 67" turning radius · heaviest piece just 68 lbs · electro-mechanical brakes · full lighting package · front basket · rear anti-tippers · 5-year frame warranty · FDA Class II Medical Device. Available in Red and Silver.
What Defines This Scooter
Size & Fit
One size with four seat-height positions. Measure your doorways, storage space, and vehicle before ordering.
| Measurement | Avenger GA541 |
| Weight Capacity | 500 lbs |
| Seat Size (W × D) | 20" × 17" |
| Seat Back Height | 21" (27.5"–31.5" with headrest) |
| Ground to Top of Seat | 25"–28" (4 positions, 1" increments) |
| Deck to Top of Seat | 18.75"–21.75" |
| Deck Height | 6.5" |
| Overall Length | 57.5" |
| Overall Width | 24.5" |
| Overall Height | 42.5"–45.5" to seat back · 50"–56" to headrest |
| Wheelbase | 38.5" |
| Turning Radius | 67" |
| Ground Clearance | 4" |
Full Specifications
| Manufacturer | Golden Technologies |
| Model | Avenger Heavy Duty 4-Wheel |
| Model Number | GA541 |
| FDA Classification | Class II Medical Device |
| Weight Capacity | 500 lbs |
| Maximum Speed | 7 mph |
| Range Per Charge | Up to 29.5 miles |
| Drive | Rear-wheel drive |
| Controller | 140A |
| Batteries | Two NF22 sealed lead-acid · 37 lbs each |
| Charger | Off-board |
| Brakes | Electro-mechanical |
| Speed Control | Electronic |
| Freewheel Mode | Yes |
| Tires | 13" pneumatic front and rear |

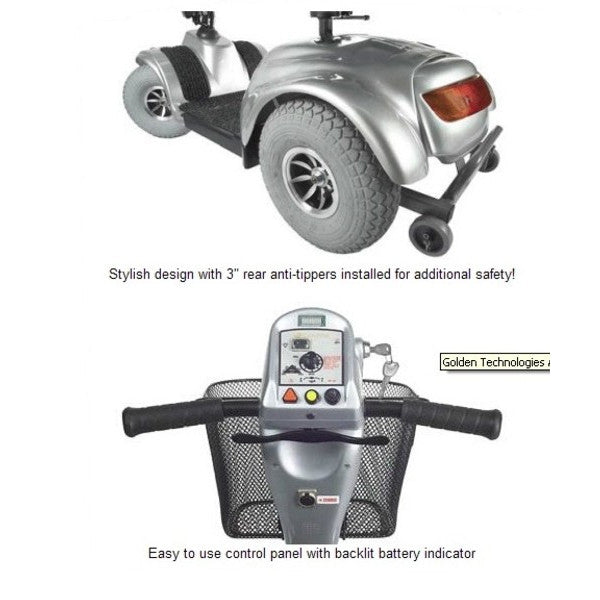

| Anti-Tippers | 3" rear |
| Seat | Captain's seat · black vinyl · 20" × 17" · adjustable headrest · 4 height positions |
| Lighting | Full lighting package |
| Storage | Front basket — standard |
| Total Weight (Assembled) | 265 lbs |
| Disassembled Piece Weights | Front half 68 lbs · rear half 68 lbs · seat with arms 55 lbs · batteries 37 lbs each |
| Dimensions | 57.5" L × 24.5" W |
| Wheelbase | 38.5" |
| Turning Radius | 67" |
| Ground Clearance | 4" |
| Colors | Red (standard) · Silver |
| Warranty | Frame 5 years · drive train 2 years · electronics 13 months · batteries 1 year |
Where the Avenger Belongs
Built for Larger Riders
A 500 lb capacity, a wide captain's seat with headrest, and adjustable seat height give larger riders a scooter that fits — without giving up the option to take it apart for transport.
Outdoor Paths & Uneven Ground
13" pneumatic tires and 4" of ground clearance make the Avenger comfortable on park paths, grass, cracked sidewalks, and community trails.
Going Places
Because it breaks down into five pieces, the Avenger can travel to family visits, appointments, and outings in a van or SUV — a rare option at this weight capacity.
Frequently Asked Questions
Yes. It disassembles into a front half (68 lbs), rear half (68 lbs), seat with arms (55 lbs), and two batteries (37 lbs each). The heaviest piece is 68 lbs.
Up to 29.5 miles, depending on rider weight, terrain, temperature, and speed.
Paved paths, cracked sidewalks, grass, and park trails. Its 13" pneumatic tires and 4" ground clearance handle uneven ground well. Avoid deep mud, soft sand, and steep side slopes.
Yes — four positions in 1" increments, from 25" to 28" off the ground. The headrest also adjusts, for a back height of 27.5" to 31.5".
Two NF22 sealed lead-acid batteries, about 37 lbs each. They charge with the included off-board charger.
Both carry 500 lbs. The Avenger is faster (7 vs. 5.8 mph), goes farther (29.5 vs. 19.5 miles), has pneumatic tires and more ground clearance, and disassembles for transport. The Maxima has a wider 22" seat, a tighter 53" turning radius, flat-free tires, and an optional power elevating seat.
5 years on the frame, 2 years on the drive train, 13 months on electronics, and 1 year on batteries. Call us with warranty questions: 1-866-218-0902.
Compare 500 lb Capacity Scooters
Have Questions? We'll Help You Choose.
The Golden Avenger is for larger riders who want outdoor capability and the freedom to take their scooter with them. Our advisers can confirm fit, walk you through disassembly and transport, and compare it with other 500 lb scooters in one call.
📞 1-866-218-0902 · Mon–Fri 9AM–5PM · Sat 9AM–3PM EST
*Golden Technologies FDA Class II Medical Device. Range and speed are maximums and vary with rider weight, terrain, temperature, and battery condition. Verify dimensions and piece weights for your home, storage space, and vehicle before ordering.
