Go-Go LX with CTS Suspension 4 Wheel Scooter
Manuals, Literature
Product Brochure
Product BrochureProduct Code: SC54LX
$1,464.00
Description

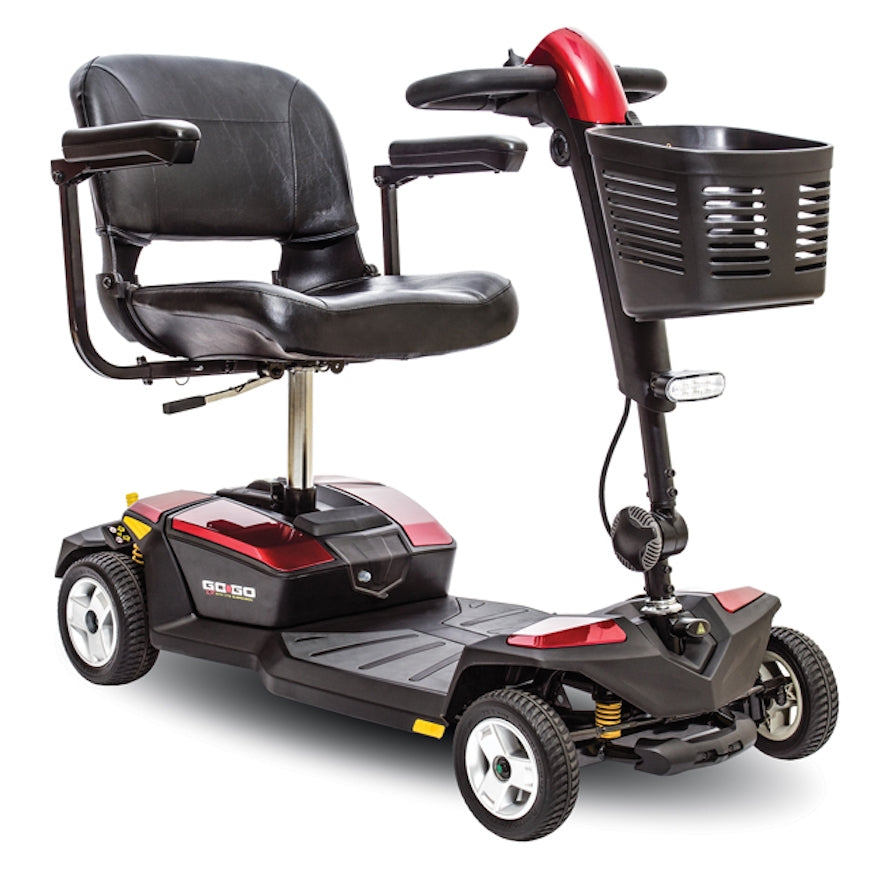

Go-Go LX with CTS Suspension 4 Wheel Scooter
The Go-Go LX with CTS Suspension from Pride Mobility is one of the most advanced travel mobility devices on the market today.The Go-Go ® LX with CTS (Comfort-Trac Suspension) brings a new level of performance features and value to travel mobility. Featuring CTS independent front and rear suspension, sleek style, feather-touch dis assembly and standard lighting.
The Go-Go LX with CTS Suspension is the most advanced travel product available.

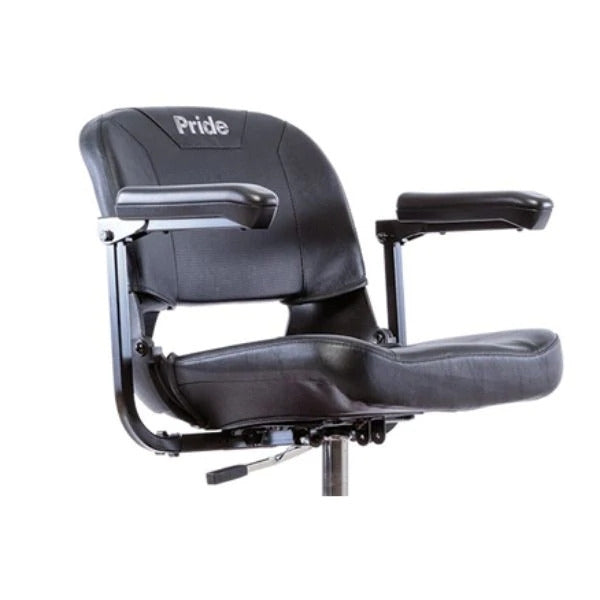

An all new frame design easily disassembles into five different pieces for storage and transportation. Match your mood with two sets of interchangeable colored panels that allows you to change the look of your Go-Go from red to blue. With a foldable, compact seat, a front basket, standard lighting and non-scuff tires, the Go Go offers the features and performance that you are looking for in your travel scooter.
Are you ready to enjoy the ride? Just contact one of our mobility advisers at 866-218-0902 about the Go-Go LX with CTS Suspension 4 Wheel Scooter, and get on your way!
Features:

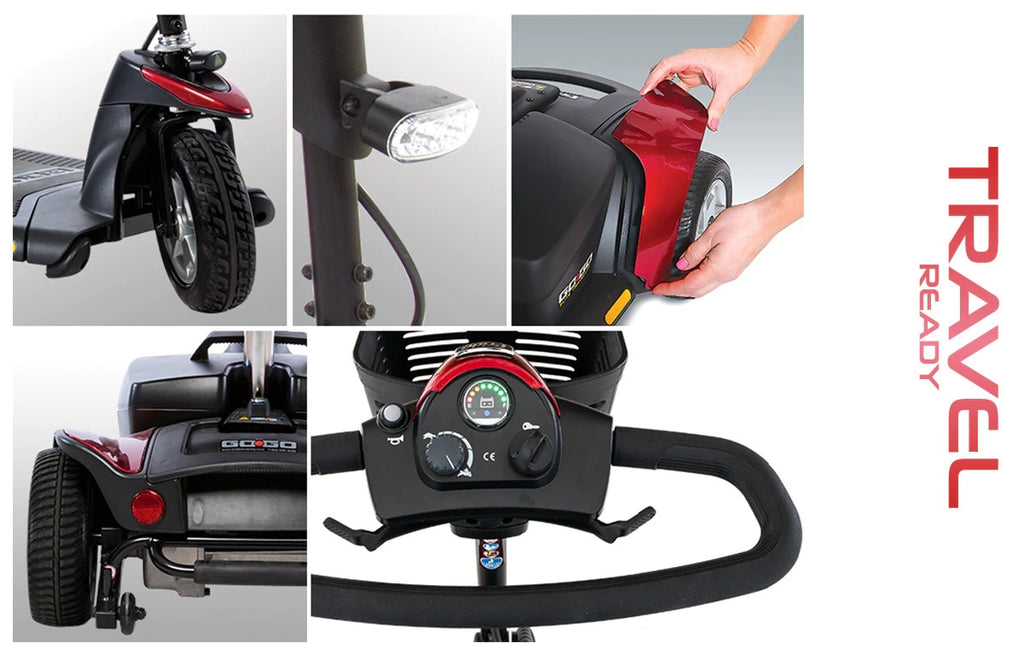

- CTS (Comfort-Trac front and rear independent suspension)
- Standard LED lighting
- Feather-touch disassembly permits simple frame separation with only one hand
- Auto-connecting front-to-rear cable

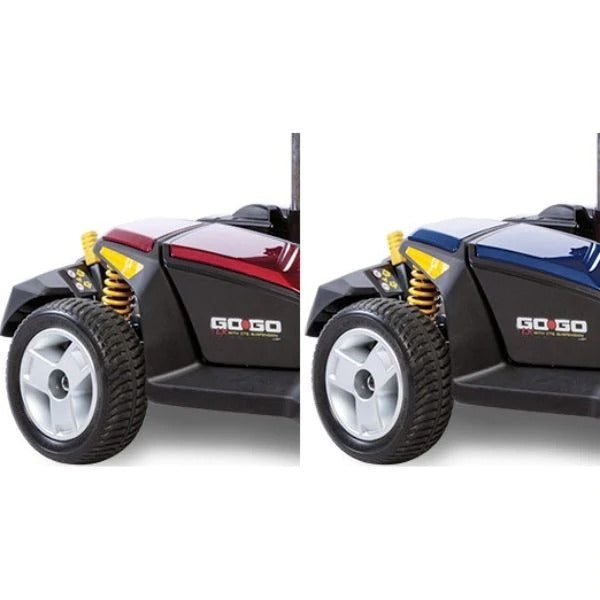

- Includes two sets of easily changeable colored panels in Red and Blue
- All-new frame design easily disassembles into five super lightweight pieces for convenient transport and storage
- Top Speed: 4.00 mph
- Drive Range: 10.50 miles
- Heaviest Piece: 36 lbs.
- Weight capacity: 300 lbs.
Technical Specs
Specifications for the Go-Go LX 4-Wheel with CTS Suspension
| Top Speed: | 4.00 mph |
| Turning Radius: | 44.75" |
| Drive Range: | 10.50 miles |
| Heaviest Piece: | 36.6 lbs. |
| Ground Clearance: | 1.50" |
| Max Incline Rating: | 6 ° |
| Disassembles: | Yes |
| Delta Tiller: | Yes |
| Seat Width: | 18" |
| Max Seat to Ground Height: | 21" |
| Multiple Seating Options: | No |
| Power Elevating Seat: | No |
| Flip-Back Armrests: | Yes |
| Wheel Type: | Four Wheeled |
| Front Wheel Size: | 7" |
| Rear Wheel Size: | 8" |
| Air-Filled (Pneumatic) Tires: | No |
| Overall Width: | 20.5" |
| Overall Length: | 41" |
| Transportable/Collapsible: | Yes |
| Foldable: | No |
| Battery Type: | 12V |
| Batteries Included: | Yes |
| Battery Charger Type: | Off Board |
| Motor Size: | 24-Volt DC Motor |
| Drive Type: | Rear-Wheel Drive |
| Suspension: | Yes |
| One-Hand Operation: | Yes |
| Braking System: | Regenerative and electromechanial |
| Basket Included: | Yes |
| Headlight: | Yes |
| Weight Without Batteries: | 87.40 lbs. |
| Battery Pack Weight: | 39.20 lbs. |
