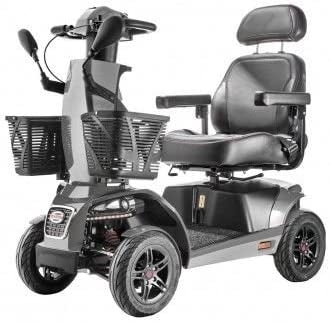

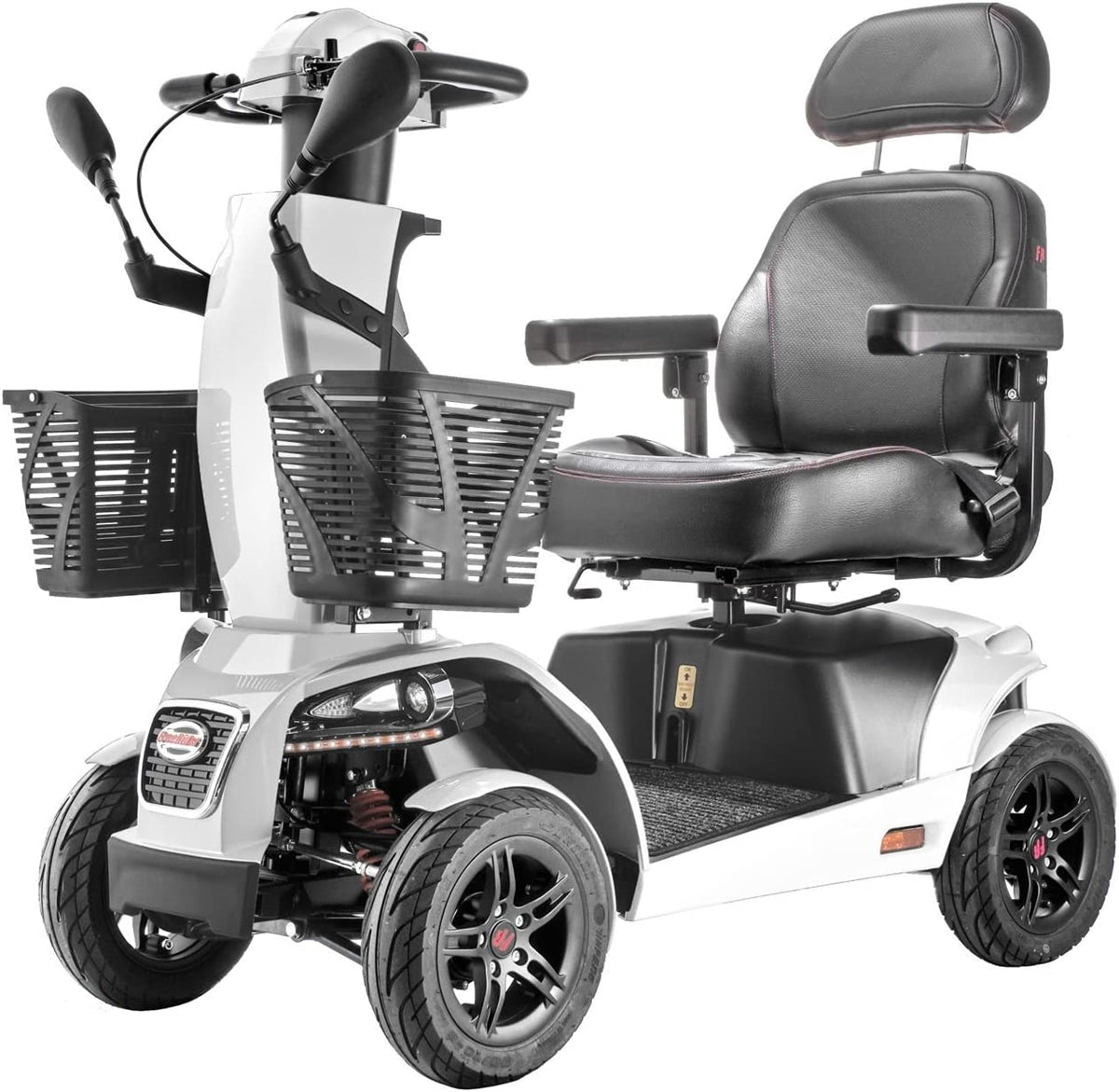

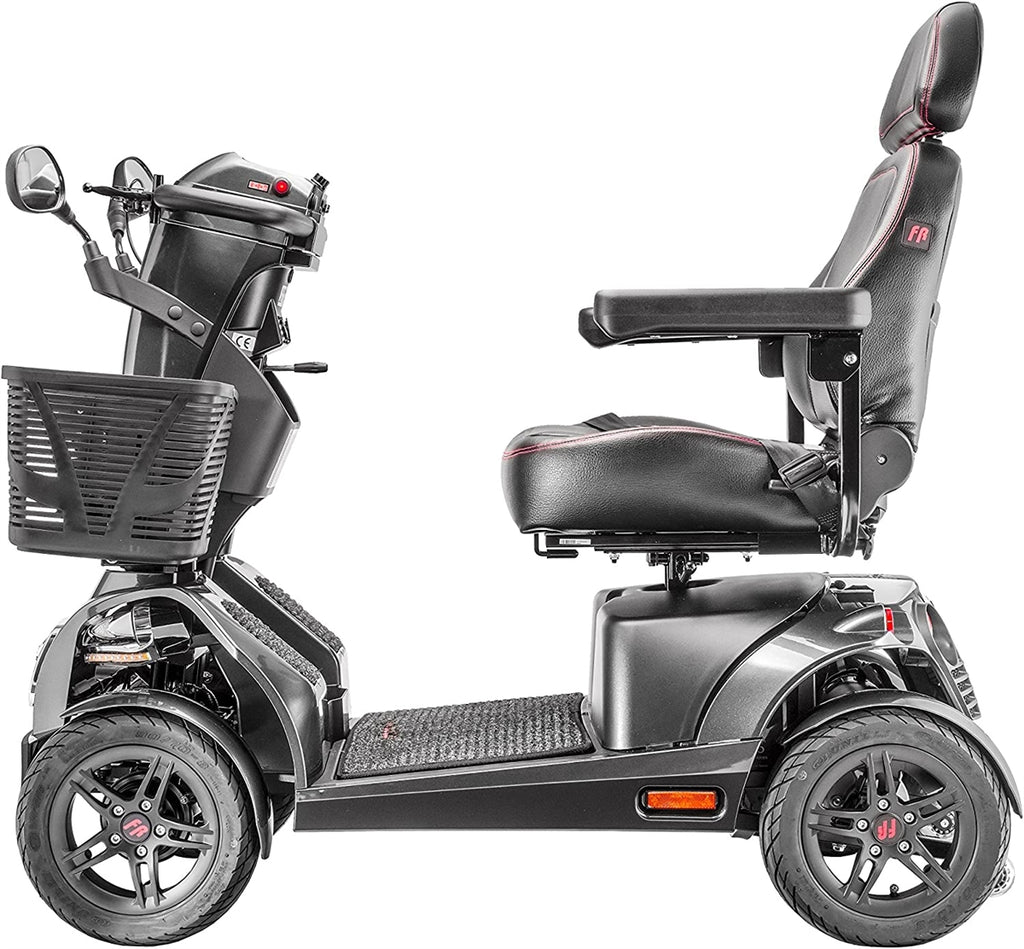

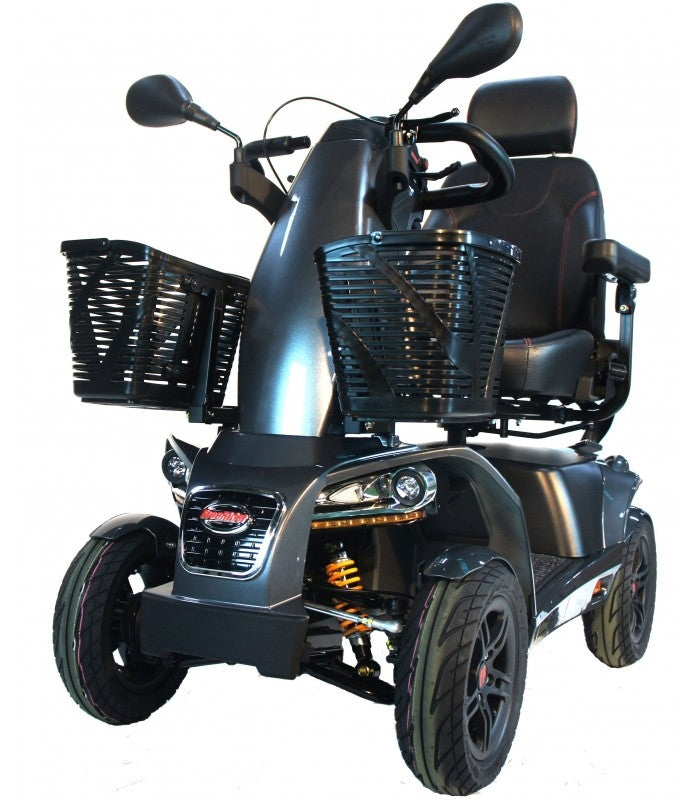

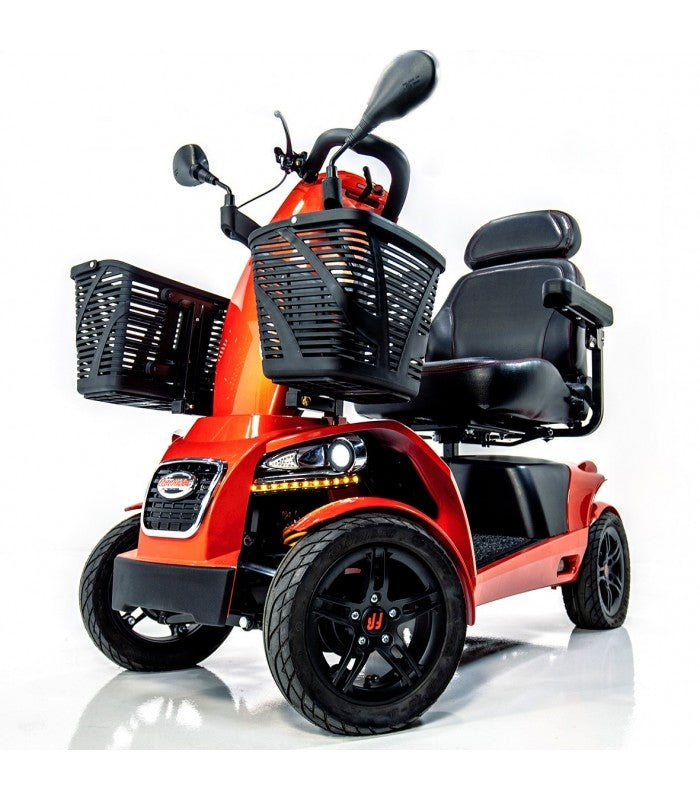

Freerider FR1-4 Rugged Large Mobility Scooter

The FreeRider FR1 Terrain is a full-sized, heavy-duty 4-wheel mobility scooter engineered for users who demand real performance. A 400 lb weight capacity, 9.4 mph top speed, and up to 40-mile range per charge put it in a class above standard mobility scooters — and the double wishbone suspension system with 13" pneumatic tires handles outdoor terrain with the kind of stability and comfort most scooters can't match. Fully adjustable captain seat, full lighting package, dual storage baskets, and USB charging port all standard. Available in Arctic White, Spirit Red, and Iron Grey. 3-year structural frame warranty.

FreeRider FR1 Terrain Heavy Duty 4-Wheel Mobility Scooter

The FR1 Terrain isn't built to the spec of a typical mobility scooter — it's built to the spec of a user who actually goes places. With a 400 lb bariatric weight capacity, 9.4 mph top speed, up to 40 miles of range on a single charge, and a full double wishbone suspension system, the FR1 Terrain is designed for daily outdoor use, longer trips, and terrain that stops lighter scooters in their tracks.

The double wishbone A-arm suspension — the same architecture used in performance vehicles — sets the FR1 Terrain apart technically. Longer A-arms keep the tires in better contact with the ground during turns and over uneven surfaces, reducing body roll, improving traction, and dramatically smoothing out the ride compared to simpler suspension designs. At 6.4" of ground clearance with 13" pneumatic tires on alloy wheels, the FR1 handles curb cuts, cracks, grass, gentle gravel paths, and slight inclines without hesitation.

The fully adjustable captain seat (with height, angle, and fore/aft slider adjustment) and car-like tiller steering make this one of the most comfortable and intuitive scooters to operate at this capacity. Storage is well thought out — dual removable side baskets, an under-seat compartment, and under-handlebar storage — plus a USB port for device charging on the go.

Key Features

• 400 lb bariatric weight capacity
• Top speed: 9.4 mph
• Range: Up to 40 miles per charge (79AH battery) / up to 36 miles (standard 75AH)

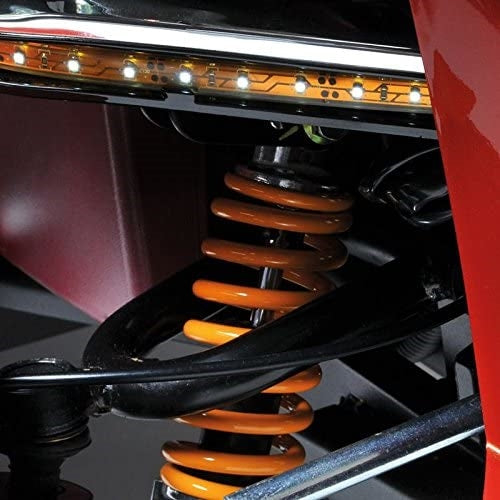

• Double wishbone A-arm front suspension + rear spring suspension — superior stability and ride comfort
• 6.4" ground clearance — handles curb cuts, mild terrain, and uneven surfaces
• 13" pneumatic tires with sporty alloy wheels — front and rear
• Fully adjustable captain seat — height, angle, and fore/aft slider adjustment
• Ergonomic tiller with car-like steering — adjusts for height and reach
• Dual removable storage baskets (side-by-side upgrade available)
• Under-seat storage compartment
• Under-handlebar storage
• USB charging port for mobile devices
• Full lighting package — front lights, rear lights, turn indicators, automatic brake light
• Battery: 50AH AGM standard | Optional 79AH AGM upgrade
• Scooter weight: 354 lbs
• Available in Arctic White, Spirit Red, Iron Grey
• 3-Year Limited Warranty (structural frame)
• 1-Year Warranty (motor, transaxle, brake assembly, electrical components)
• 30-Day Warranty (plastic parts)

FR1 Terrain vs. FR1 City — Which Is Right?

Who Is the FR1 Terrain Best For?

• Bariatric users up to 400 lbs who need a powerful, stable outdoor scooter
• Active users who travel longer distances and need up to 40 miles per charge
• Anyone navigating mixed terrain — pavement, grass, gravel paths, ramps, and uneven surfaces
• Users who want the comfort and control of a premium captain seat and car-style steering
• Those who need strong lighting for early morning or evening use

Mobility Scooter Sizing & Selection Guide

1. Confirm Weight Capacity

   The FR1 Terrain supports up to 400 lbs. This should be evaluated with the user's actual body weight — not an estimated or target weight. The scooter must be rated at or above the user's weight for safe operation, stability, and warranty validity.

2. Assess Your Terrain

   The FR1 Terrain is designed for mixed surfaces — paved paths, grass, gravel, gentle slopes, and curb cuts. Its 6.4" ground clearance and 13" pneumatic tires handle these comfortably. If your use is primarily indoors or on smooth pavement, the FR1 City's 10" solid tires and smaller turning radius may be more practical. If your use involves significant outdoor adventure or truly rough terrain, discuss with our team.

3. Evaluate Your Range Needs

   The FR1 Terrain offers up to 40 miles per charge with the optional 79AH battery, or up to 36 miles with the standard 75AH. Consider your typical daily use: a shopping trip and errands might require 5–10 miles; a full day out could require 15–25 miles. Always plan for return range and battery reserve. If maximum range is critical, order the 79AH battery upgrade at time of purchase.

4. Check Your Storage and Transport Logistics

   The FR1 Terrain weighs 354 lbs — it is not a disassemble-and-travel scooter. It requires a vehicle lift, trailer, or dedicated transport solution. Measure your garage, storage area, and primary entrance clearance before ordering. The turning radius is 76" — factor this into indoor navigation planning. If portability and vehicle transport are priorities, a lighter travel scooter is a better fit.

5. Seat Fit

   The captain seat is 17" wide and fully adjustable for height, angle, and fore/aft position. Users should be able to sit with hips fully back in the seat, feet comfortably on the foot platform, and arms resting naturally on the armrests. The FR1's seat adjustability accommodates a wide range of body proportions.

Frequently Asked Questions

What is a double wishbone suspension and why does it matter on a mobility scooter?

A double wishbone suspension uses two A-shaped arms (upper and lower) to connect the wheel to the frame. Unlike simpler suspension designs, the dual-arm system keeps the tire more upright and in better contact with the ground during turns, acceleration, and braking. The practical result for a mobility scooter user: less body roll when cornering, a smoother ride over bumps and uneven surfaces, better traction on varied terrain, and reduced vibration transmitted to the seat. It is the same suspension architecture used in performance vehicles — applied here for superior ride quality at bariatric capacity.

What is the difference between the 50AH and 79AH battery?

The standard 50AH AGM battery provides approximately 36 miles of range per charge. The optional 79AH AGM upgrade extends that range to approximately 40 miles. If your typical usage involves long outings, full-day trips, or you prefer maximum reserve range, the 79AH upgrade is recommended and should be selected at time of purchase. Range varies based on user weight, terrain type, incline, and temperature — these figures represent optimal conditions.

Are the 13" pneumatic tires maintenance-intensive?

Pneumatic (air-filled) tires provide superior ride comfort and terrain performance compared to solid tires, but they require periodic pressure checks and can puncture. Check tire pressure monthly (consult the owner's manual for recommended PSI). Puncture sealant can be added as a preventive measure. If you need zero-maintenance tires, the FR1 City's 10" solid tires are an alternative — though they sacrifice ride comfort and ground clearance.

Can the FR1 Terrain be used indoors?

The FR1 Terrain can be used in large indoor spaces — big box stores, airports, event venues, or open showrooms — but its 76" turning radius and 354 lb weight make it impractical for typical residential interiors, standard doorways (usually 32"–36"), or small retail spaces. It is primarily an outdoor and large-space scooter. For indoor-primary use, consider a compact 3-wheel or 4-wheel travel scooter.

How does the car-style tiller steering work?

The FR1 Terrain uses a universal joint steering system similar to automotive steering — the tiller connects to the front wheels via joints that allow turning without mechanical slack or vibration. The tiller adjusts for both height and reach (forward/backward position) to accommodate different arm lengths and seated postures. The result is precise, intuitive steering that responds consistently without the vague feel of simpler scooter tiller designs.

Does the FR1 Terrain qualify for Medicare or insurance coverage?

Mobility scooters may qualify for Medicare Part B coverage as Power Operated Vehicles (POVs) when a physician documents that the patient has a mobility-limiting condition, cannot safely walk, and requires a scooter for indoor mobility. Coverage eligibility depends on the specific HCPCS billing code assigned, payer criteria, and documentation of medical necessity. Contact our team or your insurance provider to begin the verification process before purchasing if insurance coverage is a factor in your decision.

What does the 3-year frame warranty cover?

FreeRider's 3-year structural frame warranty covers defects in materials and workmanship in the frame for 36 months from the original purchase date. The motor, transaxle, brake assembly, and electrical components are covered for 1 year. Plastic parts and chassis hooks carry a 30-day warranty. Normal wear and tear, damage from misuse, modifications, and shipping damage are not covered. Keep your serial number (located on the front frame under the chassis cover) for all warranty claims.
