EZ-Acess GATEWAY 3G Ramp with Vertical Picket Handrails

EZ-Acess GATEWAY 3G Ramp with Vertical Picket Handrails

Manuals, Literature

Ramp Incline Chart
  • Available in 3-, 4-, 5-, 6-, 7-, 8-, 9-, & 10-foot lengths with a standard width of 36 inches.
  • Ramp and handrails made of lightweight yet heavy-duty welded aluminum

Product Code: GATEWAYPICK

$920.99
Image 1
Image 2
Description

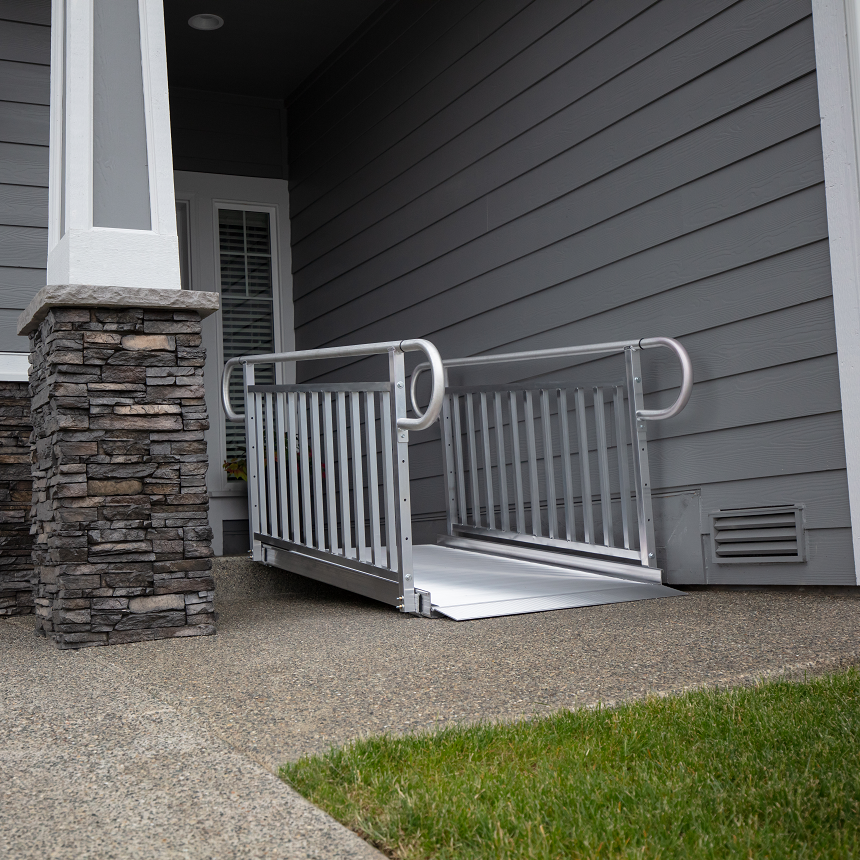

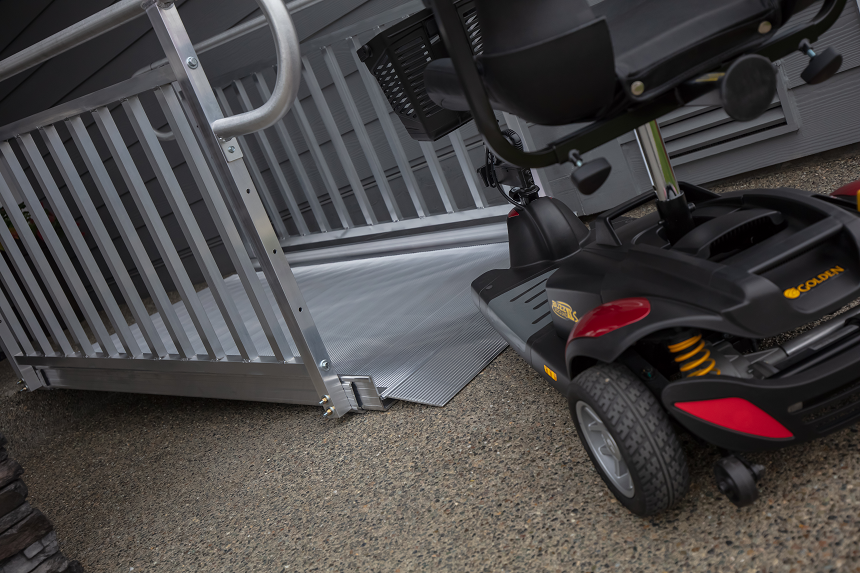

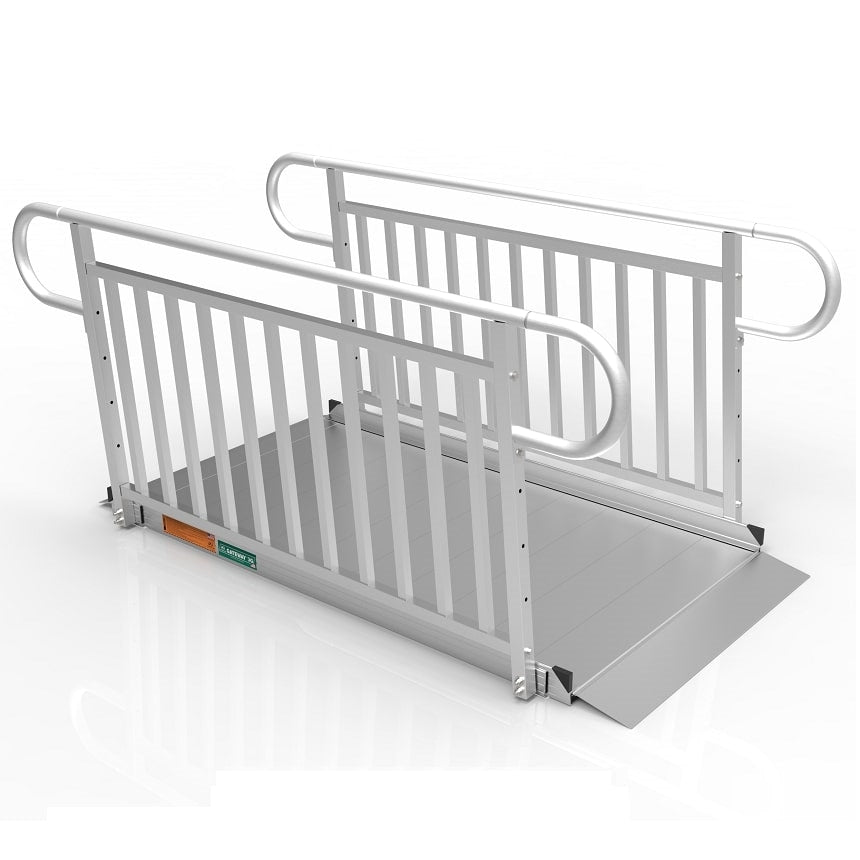

EZ-Acess GATEWAY 3G Ramp with Vertical Picket Handrails

Ez-Access Gateway 3G Solid Surface Ramps is a solid surface portable wheelchair ramp. It features a seamless, slip-resistant surface. These Portable Ramps are available with or without handrails, which is an ideal solution for mobility needs, beyond the scope of a conventional portable ramp. Perfect for temporary or semi-permanent home access, the Gateway 3G can be easily moved or relocated as needs change. Designed for the rigors of repeated, everyday use in all weather conditions and is ideal for scooters, wheelchairs, and walkers.

Gateway 3G Solid Surface Ramps Highlights

  • Lightweight, Heavy-duty Aluminum
  • Quick and Easy Setup
  • Self-adjusting Ground Transition Plate
  • Made in the USA
  • Gateway 3G Solid Surface Ramps Features

A safe ramp solution designed to provide home access. Available with or without handrails.
Can be used for semi-permanent applications and can easily be moved or relocated as needs change.
With lengths up to 10", the GATEWAY 3G can accommodate a series of entryway steps.

Features a formed top transition for secure placement, and an adjustable bottom transition that allows smooth ramp-to-ground conversion.

Designed for the rigors of repeated, everyday use in all outdoor weather conditions but can also be used indoors.
Durable construction for years of maintenance-free use. Will, not rust, rot or deteriorate.

  • The solid, seam-free surface features permanent (extruded) tread for slip-resistance and superb traction.
  • Raised side rails, also known as curbs, help to prevent mobility devices from driving off the edge of the ramp.
  • Made of lightweight, heavy-duty aluminum and features a 1,000 lb. weight capacity.
  • Available in 3-, 4-, 5-, 6-, 7-, 8-, 9-, & 10-foot lengths with a standard width of 36 inches.
Technical Specs

Specification

Without Handrails

Gateway3G 3

Gateway3G 4

Gateway3G 5

Gateway3G 6

Gateway3G 7

Gateway3G 8

Gateway3G 9

Gateway3G 10

Usable Size (L x W x H):

3 feet x 36"4 feet x 36"5 feet x 36"6 feet x 36"7 feet x 36"8 feet x 36"9 feet x 36"10 feet x 36"

Overall Size (L x W x H):

3 feet x 37" x 3.5"4 feet x 37" x 3.5"5 feet x 37" x 3.5"6 feet x 37" x 3.5"7 feet x 37" x 3.5"8 feet x 37" x 3.5"9 feet x 37" x 5.5"10 feet x 37" x 5.5"
Ramp Weight:2430364250546872

Weight Capacity:

1000 lbs1000 lbs1000 lbs1000 lbs1000 lbs1000 lbs1000 lbs1000 lbs

Heights Upto:

4"6"7"9"10"12"13"15"

Two Line Handrails

Gateway 3TLGateway 4TLGateway 5TLGateway 6TLGateway 7TLGateway 8TLGateway 9TLGateway 10TL

Usable Size (L x W x H):

3 feet x 36" x 34.5"4 feet x 36" x 34.5"5 feet x 36" x 34.5"6 feet x 36" x 34.5"7 feet x 36" x 34.5"8 feet x 36" x 34.5"9 feet x 36" x 34.5"10 feet x 36" x 34.5"

Overall Size (L x W x H):

3 feet x 41.75" x 36"4 feet x 41.75" x 36"5 feet x 41.75" x 36"6 feet x 41.75" x 36"7 feet x 41.75" x 36"8 feet x 41.75" x 36"9 feet x 41.75" x 36"10 feet x 41.75" x 36"
Ramp Weight:44526068748296

106

Weight Capacity:

1000 lbs1000 lbs1000 lbs1000 lbs1000 lbs1000 lbs1000 lbs1000 lbs

Heights Upto:

4"6"7"9"10"12"13"15"

Vertical Picket Handrails

Gateway 3VPGateway 4VPGateway 5VPGateway 6VPGateway 7VPGateway 8VPGateway 9VPGateway 10VP

Usable Size (L x W x H):

3 feet x 36" x 34.5"4 feet x 36" x 34.5"5 feet x 36" x 34.5"6 feet x 36" x 34.5"7 feet x 36" x 34.5"8 feet x 36" x 34.5"9 feet x 36" x 34.5"10 feet x 36" x 34.5"

Overall Size (L x W x H):

3 feet x 41.75" x 36"4 feet x 41.75" x 36"5 feet x 41.75" x 36"6 feet x 41.75" x 36"7 feet x 41.75" x 36"8 feet x 41.75" x 36"9 feet x 41.75" x 36"10 feet x 41.75" x 36"
Ramp Weight:465868789098118

128

Weight Capacity:

1000 lbs1000 lbs1000 lbs1000 lbs1000 lbs1000 lbs1000 lbs1000 lbs

Heights Upto:

4"6"7"9"10"12"13"15"
