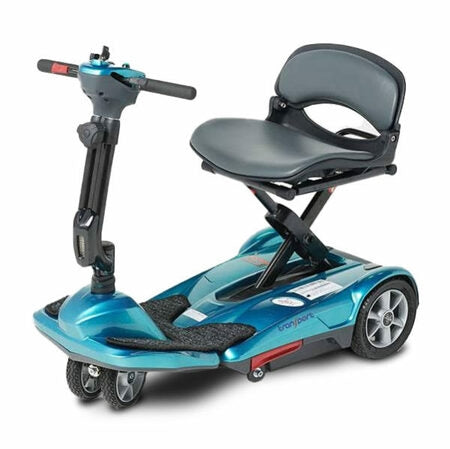

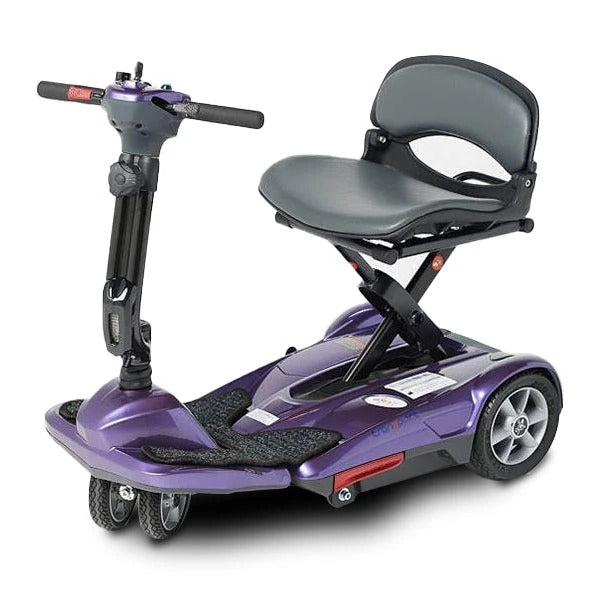

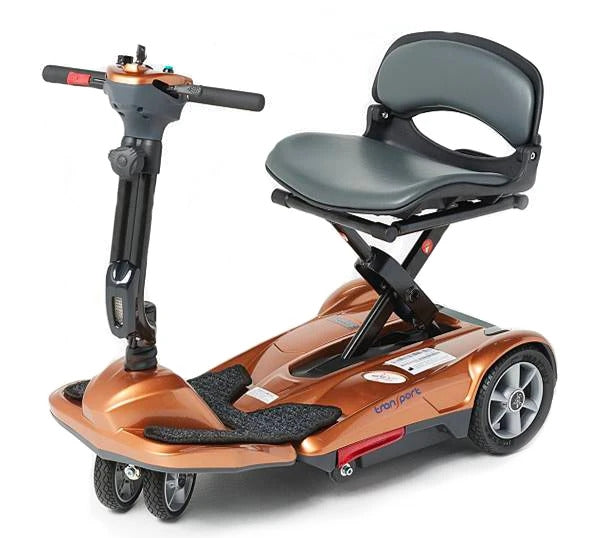

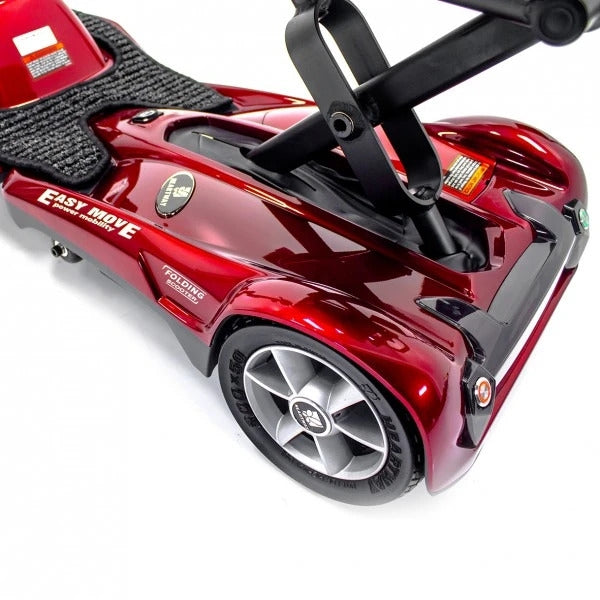

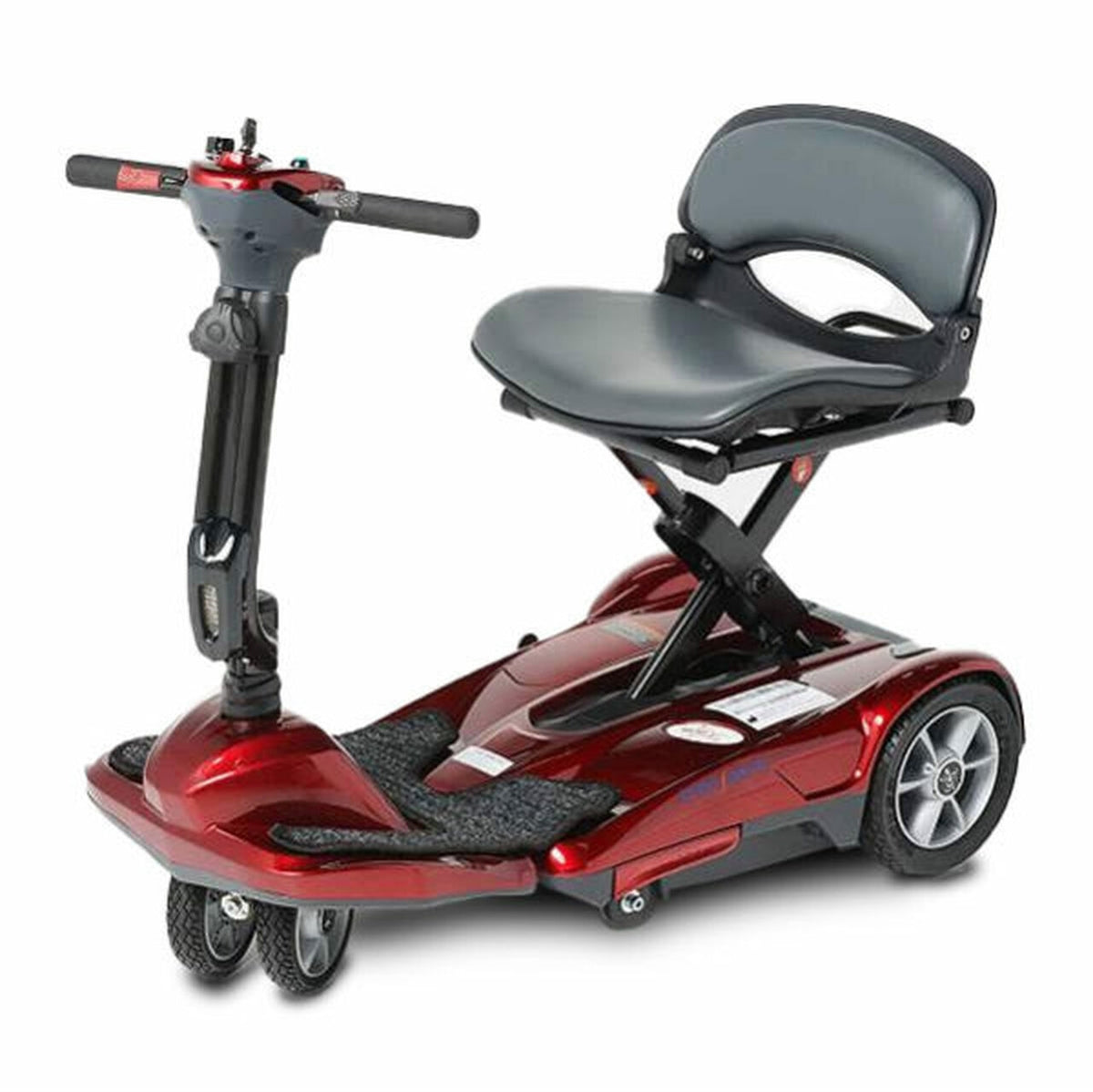

Ev Rider Transport M Easy Move Folding Mobility Scooterr
Ev Rider Transport M Easy Move Folding Mobility Scooterr
Product Code: S19M
$1,895.00
Description
Ev Rider Transport M Easy Move Folding Mobility Scooter
The EV Rider TranSport M Easy Move scooter folds up easily! Approved for airline travel, the S19M is equipped with an 11.3Ah lithium battery and weighs just 44 lbs making it perfect for travel on planes, trains, and cruise ships.Due to its ultra-tight turning radius, this compact scooter offers great maneuverability in narrow spaces. It features a height-adjustable tiller, LED headlight, and dual hand two-way throttle control.
It can be stored virtually anywhere and easily fits in the trunk of most automobiles.
FEATURES & BENEFITS:
- Easy Manual Fold
- Powered by 12Ah Lithium Battery, Ultra Lightweight
- Lightweight: 44 lbs
- Max Speed 3.8 MPH
- Max User Weight: 250 lbs
- 10 Mile Range
- 3 Year Limited Warranty On Frame
- 1 Year Limited Warranty Electronics
Ev Rider Transport M
Technical Specs
SPECIFICATIONS:
- WEIGHT CAPACITY: 250 lbs
- DRIVE WHEEL: 8" x 2", Solid Tire, Flat Free
- FRONT WHEEL: 7" x 1.6", Solid Tire, Flat Free
- REAR CASTER(ANTI-TIPPER): yes, standard
- MAX SPEED: up to 3.8 mph
- BATTERY SPECIFICATIONS: 24V 8.7Ah Lithium Battery x1 (included)
- MAXIMUM TRAVEL RANGE: up to 10 miles
- CHARGER TYPE: 2 Amp 24 VDC, input: 110/240 Vac,
- CONTROLLER TYPE: Dynamic R"Series 50A
- MOTOR TYPE: 180 watt 24 volt
- LENGTH: 33.8"
- WIDTH: 16.5"
- OVERALL HEIGHT: 32.8"
- WEIGHT: 44 lbs
- SUSPENSION: none
- TURNING RADIUS: 31"
- SEAT HEIGHT: 20"
- WHEELBASE: 25"
- GROUND CLEARANCE: 1.4"
- OVERALL DIMENSIONS: 33.8" x 16.5" x 32.8"
- FOLDED DIMENSIONS: 28.7" x 17.3" x 16.5"
- SKU: S19M
Warranty:
- 3 Year Limited Warranty - All structural frame components - platform, seat post and frame
- 1 Year Limited Warranty - Electrical component of scooter or Charger. It will be replaced without charge. Labor is not included.
- 6 month Limited Warranty - All Spare parts
Wheelchair Measuring Guide
Wheelchair Measuring Guide
Wheelchair Measurements:
- Hip Width:
Use this to figure seat width if it is the widest point. - Widest Point:
Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style. - Chest Width:
Measure the widest point of the thorax just below the armpit. This measurement may influence system width or back width. - Heel to Knee:
Use this for legrest extensions and seat height. - SRP to Knee (Seat Reference Point to Knee):
This will determine the seat depth. - Elbow to SRP (Elbow to Seat Reference Point):
Measure this width with the arm in a 90-degree angle at the elbow and the shoulder in a neutral position. - Shoulder Height:
This will determine the height and the style of the back panel or the start for a custom back. - Head Height:
This will help determine the proper headrest height.
