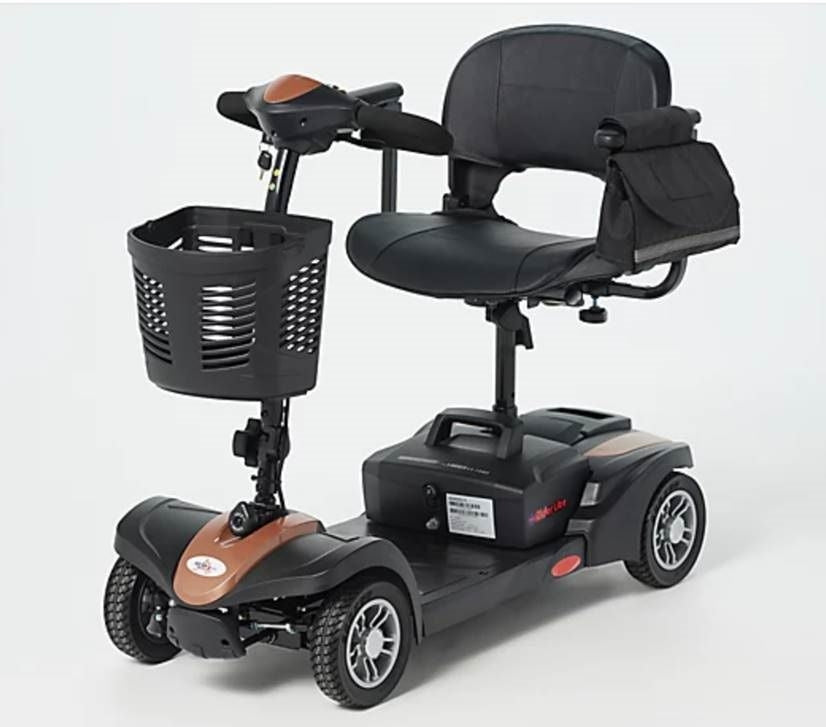

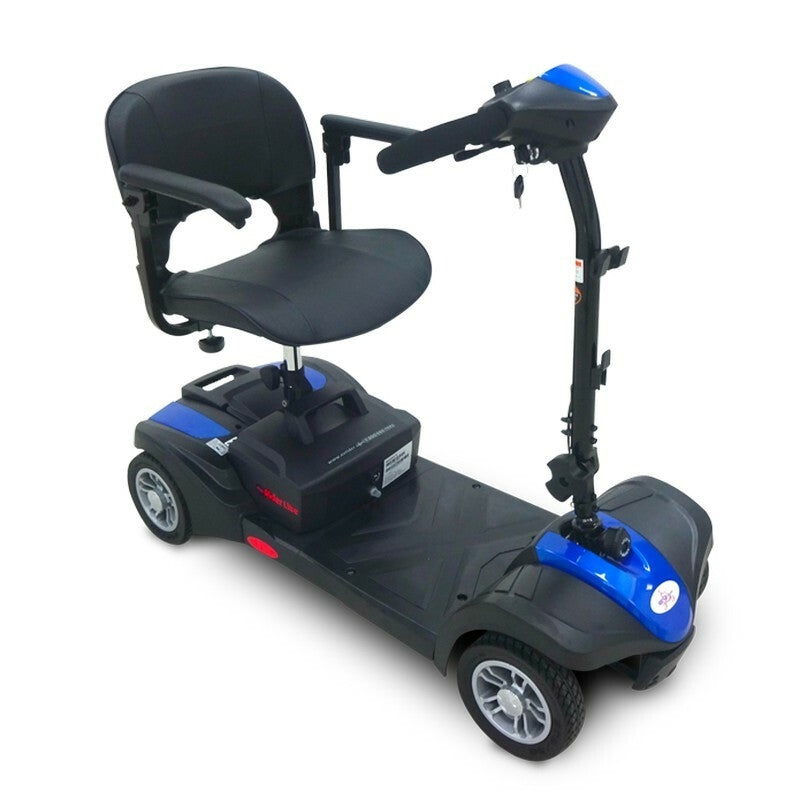

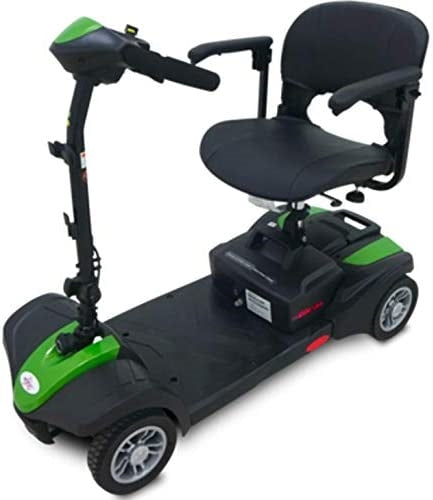

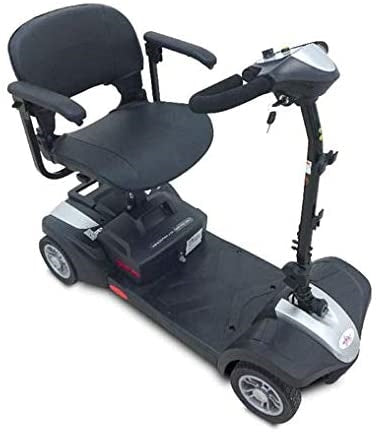

EV Rider MiniRider Lite 4 Wheel Travel Scooter
Product Code: EVMINI
EV Rider MiniRider Lite 4 Wheel Travel Scooter
The MiniRider Lite is a transportable scooter with the stability of a 4-wheel scooter and the turning radius of a 3-wheeler, providing the customer greater maneuverability. With a 280 lb load capacity and 4 wheels, the MiniRider Lite can transport higher-weighted individuals with stability not usually found in portable scooters.The folding mobility seat has comfortable cushions and armrests that flip up and/or can be adjusted laterally.
EV Rider MiniRider 4-Wheel Travel Scooter
- Adjustable 360-degrees deluxe seat with armrests

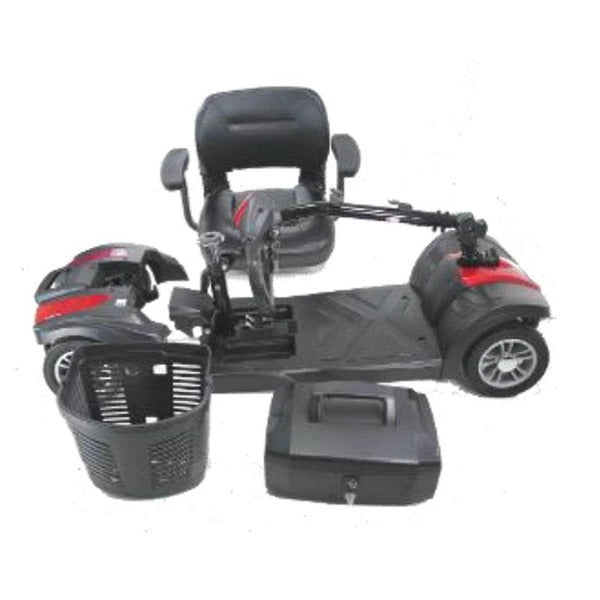

- Portable and disassemble 4 wheel handicap scooter
- Load capacity 275 lbs / 125 kg
- Equipped with 400 watt motor
- Runs up to 15 miles/ 24 km on a single charge
- Solid flat free tires
- Includes 22ah batteries
- Takes 6-8 hours to charge completely
- Anti tip wheels
- Dimensions of the seat: 18"W x 15.5"D x 13.5"H
- Ideal for disabled, handicapped adults and elderly
Specifications
Overall Length - 36"
Overall Width- 24"
Overall Height (at maximum tiller height) - 37.½"
Overall Height (at minimum tiller height) - 31"
Legroom (floorboard length x width) - 19" x 13"
Deck Height (Floorboard to Floor) - 6.5"
Wheelbase for Lifts - 27.3"
Ground Clearance - 2.4"
Turning Radius - 32.3"
Folded overall length - 31"
Folded overall width - 19"
Folded overall height - 18"
Weight with Std. 12V12Ah Batteries - 70 lb.
Weight with Opt. 112V11.5Ah Li Ion Batteries - 60 lb.
Weight without Batteries - 53 lb.
Seat type - Folding backrest, ABS plastic with high desity foam cushion
Seat - Width & Depth & Height - 16" x 13½" x 13½"
Seat - Cushion Thickness - 1"
Seat Height - Cushion to Deck - 14"
Seat Height - Cushion to Floor - 20.5"
Tire Type - Solid rubber front and rear
Rim Type Rear - Cast Aluminum
Rim Type Front - ABS plastic
OEM Spec Rear - 200 x 50
Outside Diameter Rear - 8"
Tire Width Rear - 2"
OEM Spec Front - 180/40
Outside Diameter Front - 7"
Tire Width Front - 1.6"
Battery Type & Power - Std. Two 12V12Ah SLA - Optional 24V11.5Ah Li Ion Battery Pack
Brake System - Electromagnetic Brake
Climbing Angle (Maximum Recommended) - 6 degrees
Charger Type
2 Amp, 110/240 Volt SLA Charger - 2.5Amp,110/240 Volt,Li-ION Charger
Charging Time - 4 - 6 hours
*Driving Range - 10 - 15 miles
Controller - S-Druive 45 Amp
*Speed - Maximum - 4 mph
Colors - Metallic Paradise Blue with Metallic Silver Accents
Tiller Type - Height Adjustable
Throttle Control Type -Digital wig-wag
Anti-Tipper Wheels-Rear - Standard
Wheelchair Measuring Guide
Wheelchair Measurements:
- Hip Width:
Use this to figure seat width if it is the widest point. - Widest Point:
Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style. - Chest Width:
Measure the widest point of the thorax just below the armpit. This measurement may influence system width or back width. - Heel to Knee:
Use this for legrest extensions and seat height. - SRP to Knee (Seat Reference Point to Knee):
This will determine the seat depth. - Elbow to SRP (Elbow to Seat Reference Point):
Measure this width with the arm in a 90-degree angle at the elbow and the shoulder in a neutral position. - Shoulder Height:
This will determine the height and the style of the back panel or the start for a custom back. - Head Height:
This will help determine the proper headrest height.
