EV Rider Gypsy Q2 Folding Mobility Scooter
Product Code: Gypsy

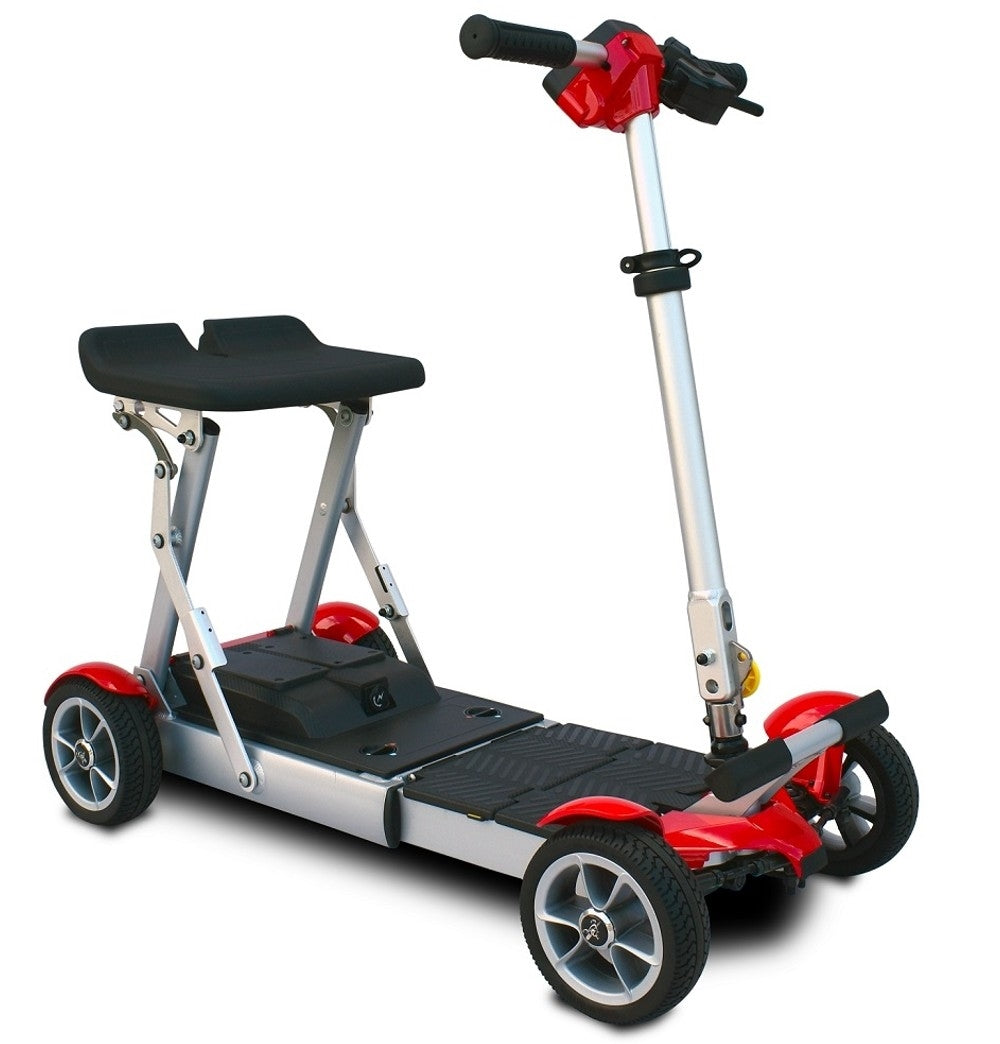

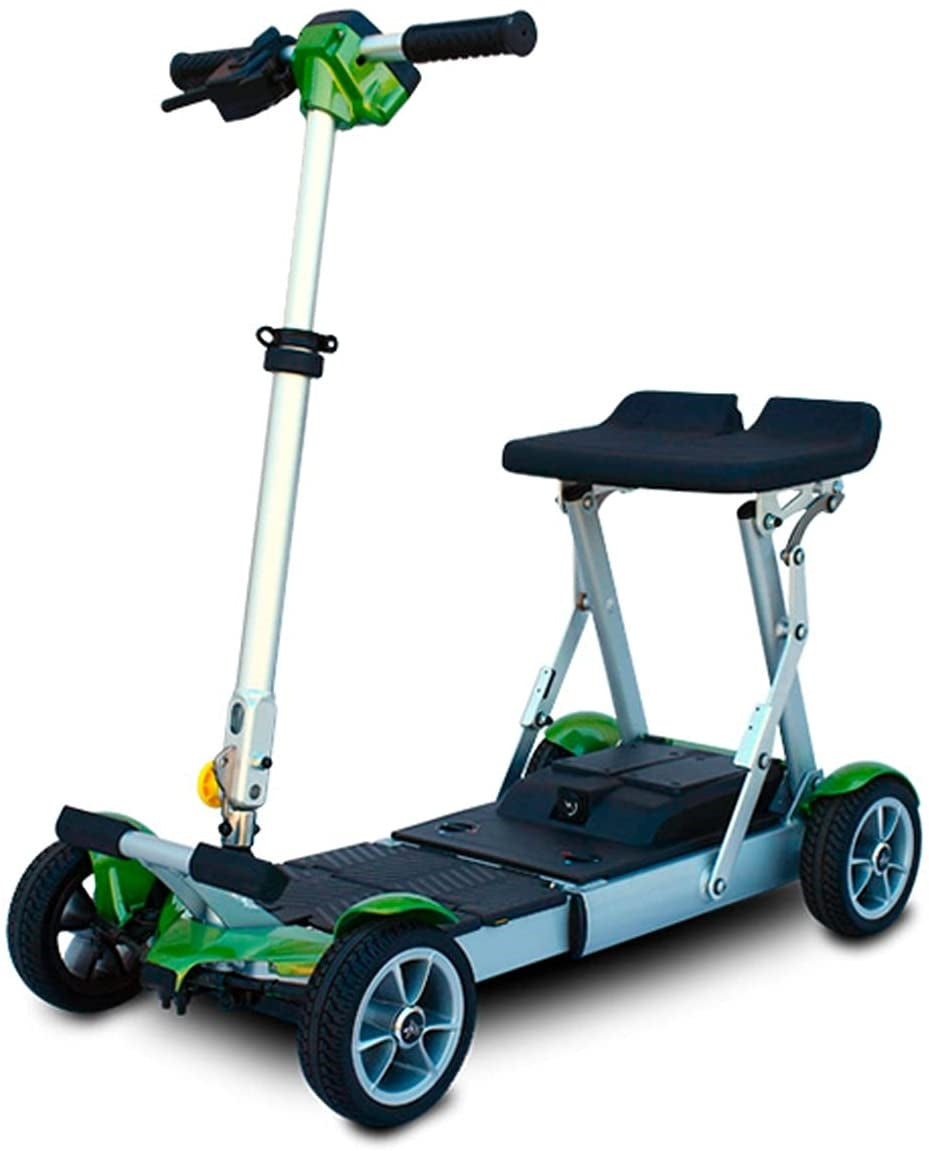

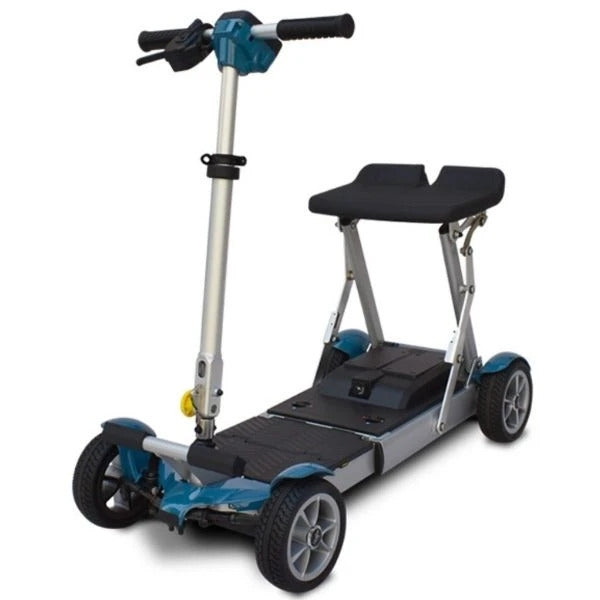

EV Rider Gypsy Q2 Folding Mobility Scooter
The EV Rider Gypsy Scooter is a compact and powerful mobility scooter. Perfect for anyone looking for a convenient, travel-friendly scooter, the Gypsy is both easy to operate and easy to store. With a total weight of 37 pounds, and only 33 pounds without the battery pack, this is one of the lightest 4-wheel scooters on the market!

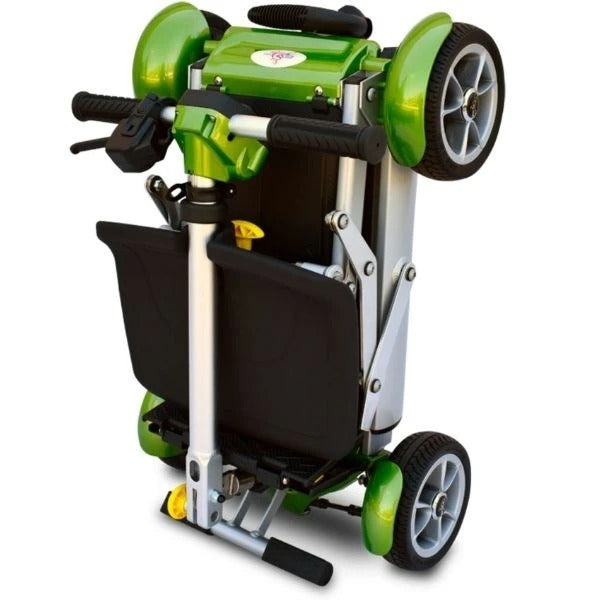

When folded, the Gypsy measures only 25" x 16.5" x 11", about the size of a carry-on bag. EV Rider's Gypsy Scooter is an incredible option for vacations, shopping trips, and everyday use. Travel at speeds of up to 4 miles per hour for a range of 7 to 10 miles on the Gypsy's sturdy and comfortable seat. Despite it's compact, lightweight design, the Gypsy can support a weight capacity of up to 250 pounds and will provide you with the maneuverability of a full size 4-wheel scooter, indoors or out.
Features
- To assemble the scooter, fold up and secure the tiller and seat and you're ready to go! To store, simply fold the tiller and seat back down and lock into place.
- Assembly and storage can be accomplished by one person in seconds, with zero tools necessary!
- The Gypsy's user-friendly luggage handle even lets you roll the scooter for easy transport when folded. This model comes in three stylish color options and is airline approved - so it's perfect for your next vacation! Maintain your mobility and take the Gypsy with you wherever you go.
| Overall Length | 33.7" / 855mm |
| Overall Width | 16.5" / 420mm |
| Overall Height (at Maximum Tiller Height) | 35" / 900mm |
| Overall Height - at Minimum Tiller Height | 28" / 711mm |
| Legroom - Floorboard Length x Width | 9.6" X 10 " / 245 X 252mm |
| Deck Height - Floorboard to Floor | 6" / 150mm |
| Ground Clearance | 1.7" / 45mm |
| Turning Radius | 57" / 1450mm |
| Folded Overall Length | 25" / 640mm |
| Folded Overall Width | 16.5" / 420mm |
| Folded Overall Height | 11" / 290mm |
| Weight with Std. | 37 lbs / 16.7 Kg |
| Weight with Opt. 12V11.5Ah Li Ion Batteries | 4 lbs / 1.85 Kg |
| Weight without Batteries | 33 lbs / 14.96 Kg |

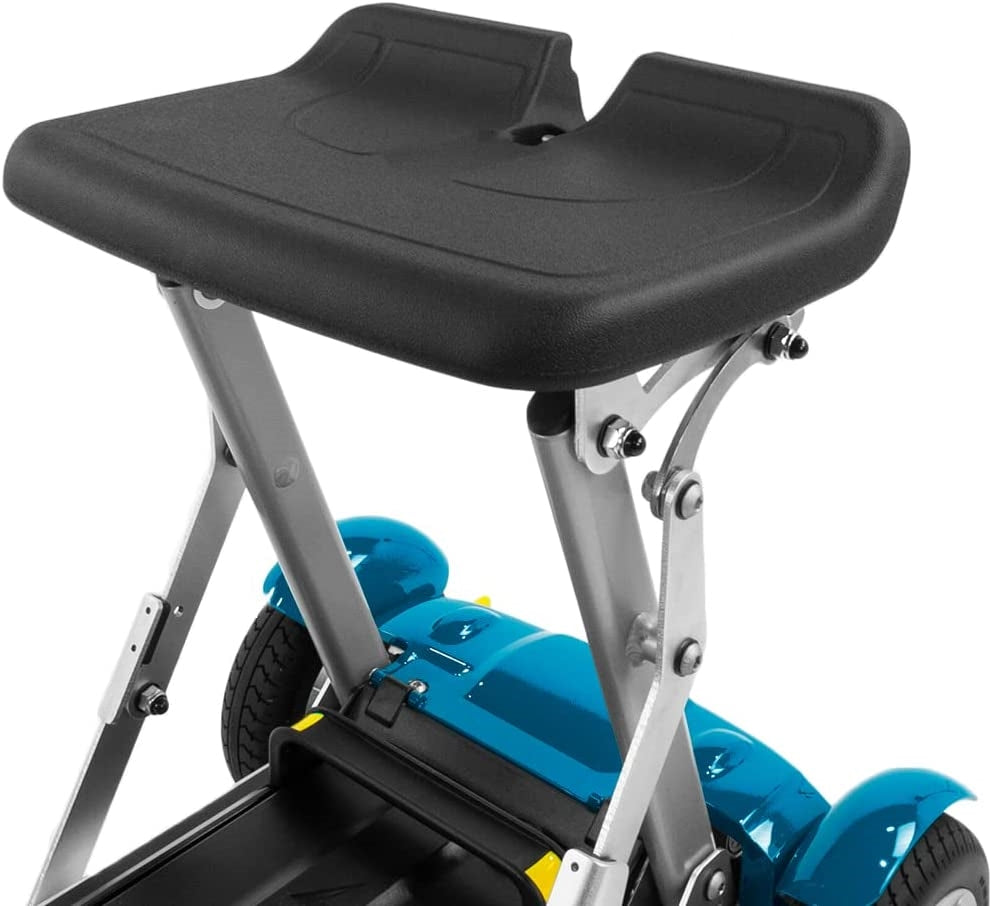

| Seat Type | PU |
| Seat - Width & Depth & Height | 13" X 9" / 330mm X 230mm |
| Seat - Cushion Thickness | 1.2" / 30mm |
| Seat Height - Cushion to Deck | 13.4" / 340mm |
| Seat Height - Cushion to Floor | 19.3" / 490mm |

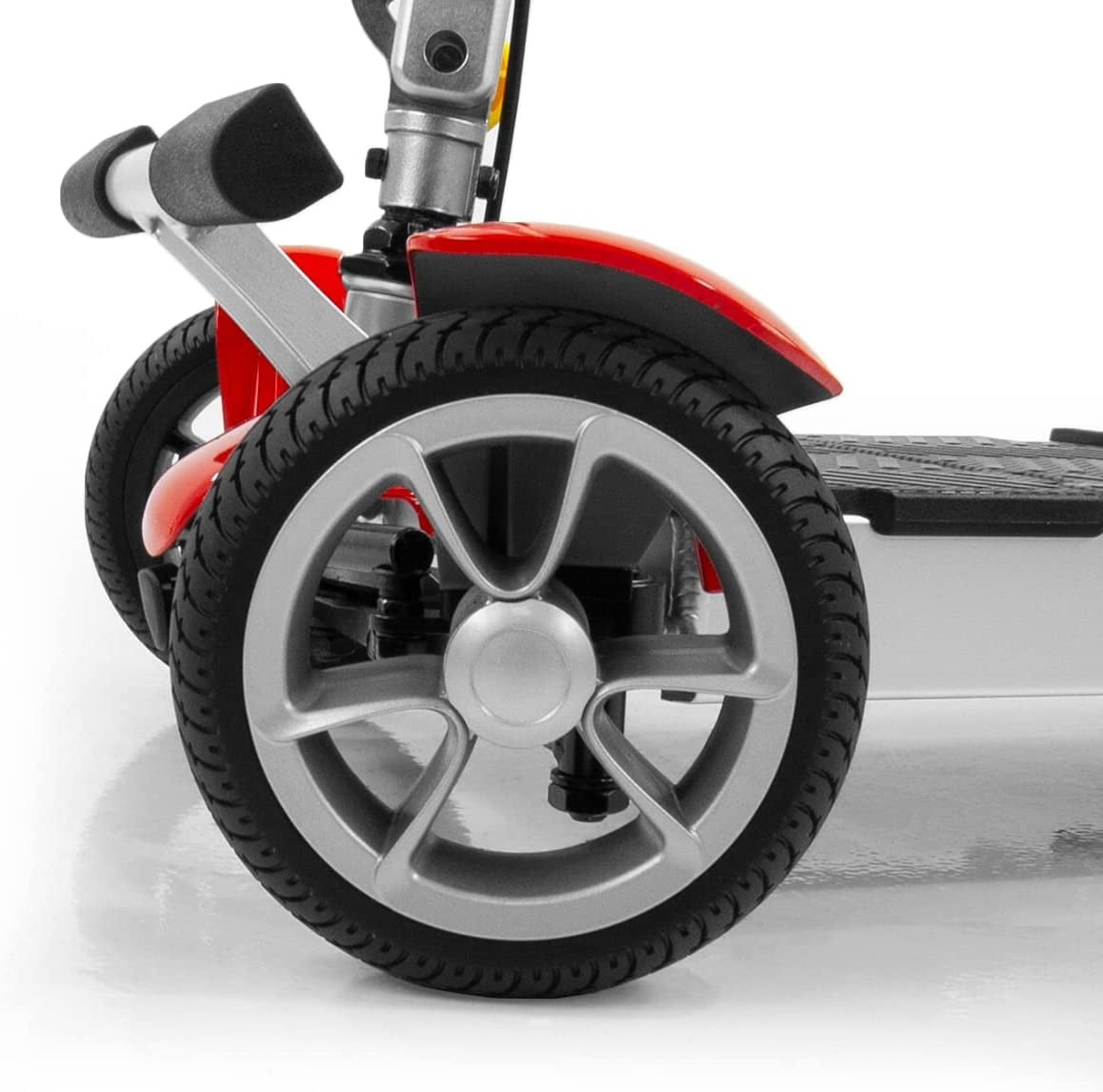

| Tire Type | PU Solid |
| Rim Type Rear | 5" / 124mm |
| Rim Type Front | 5" / 124mm |
| Outside Diameter Rear | 6.5" |
| Tire Width Rear | 2" / 50mm |
| Outside Diameter Front | 6.5" |
| Tire Width Front | 2" / 50mm |
| Battery Type & Power | Lithium Ion 25.2V / 274.4WH |
| Brake System | Electromagnetic brake |
| Climbing Angle - Maximum Recommended | 3 degree |
| Charger Type | 2A off board |
| Charging Time | 8 hr |
| Controller | Dynamic 50A |
| Driving Range | 10 miles STD |
| Load Capacity | 250 Lbs. / 115kgs |
| Motor & Drive Location | Frame |
| Speed - Maximum | 4 mph / 6.4 Km/h |
| Colors | Gypsy Red, Pearl Green, Ocean Blue |

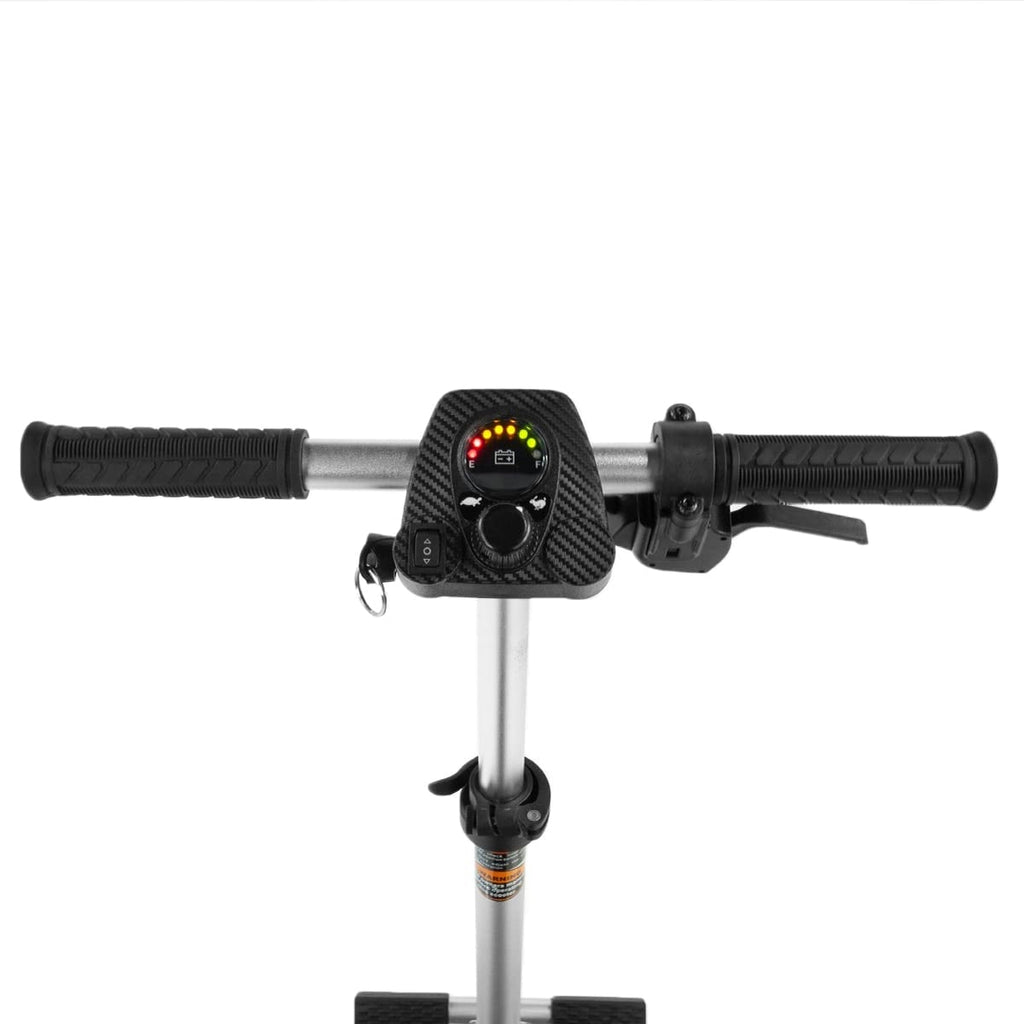

| Tiller Type | T-Bar |
| Throttle Control Type | Lever |
| Anti-Tipper Wheels-Rear | N/A |
Wheelchair Measuring Guide
Wheelchair Measurements:
- Hip Width:
Use this to figure seat width if it is the widest point. - Widest Point:
Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style. - Chest Width:
Measure the widest point of the thorax just below the armpit. This measurement may influence system width or back width. - Heel to Knee:
Use this for legrest extensions and seat height. - SRP to Knee (Seat Reference Point to Knee):
This will determine the seat depth. - Elbow to SRP (Elbow to Seat Reference Point):
Measure this width with the arm in a 90-degree angle at the elbow and the shoulder in a neutral position. - Shoulder Height:
This will determine the height and the style of the back panel or the start for a custom back. - Head Height:
This will help determine the proper headrest height.
