Description

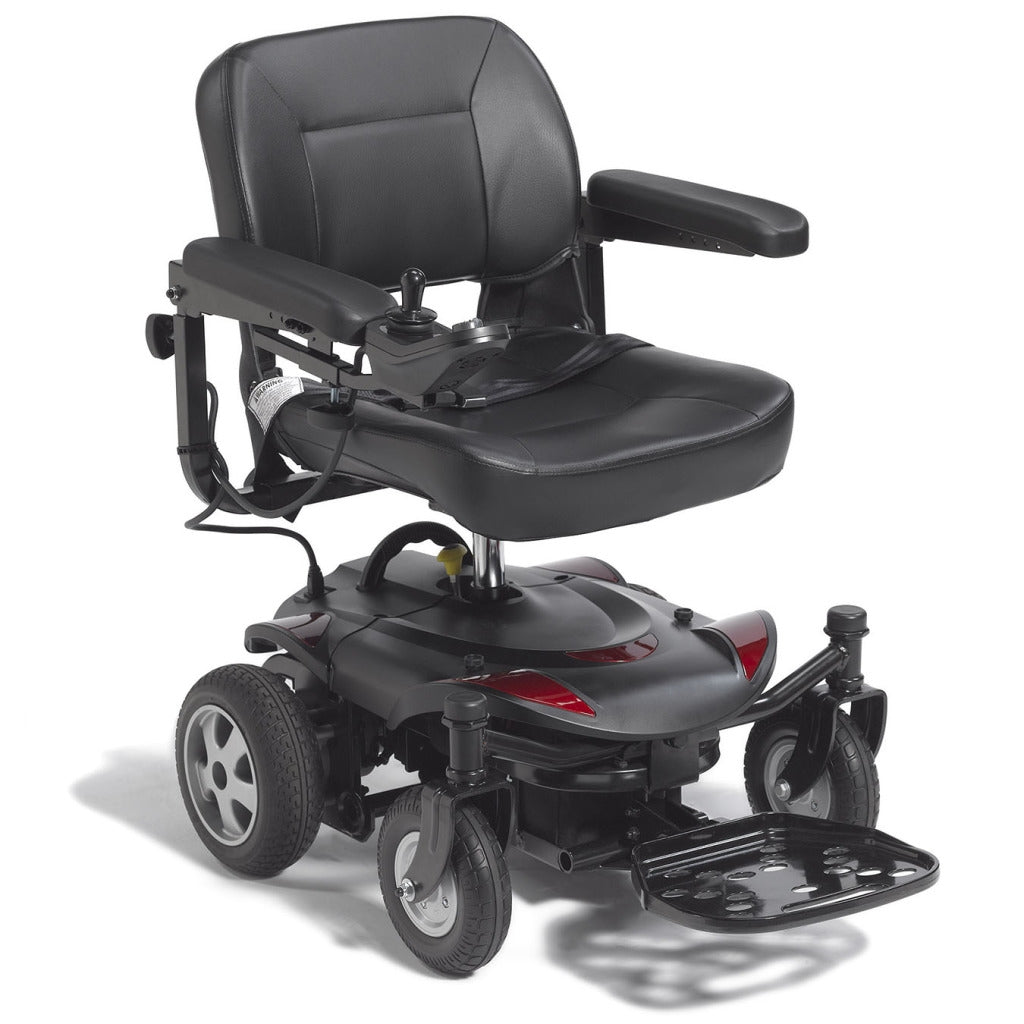

Drive Titan LTE Power Wheelchair
Drive's new Titan LTE is super easy to transport, plus advanced Bluetooth diagnostics are built-in.The Titan LTE is the brand new travel power wheelchair from Drive Medical. This quick, lightweight model will allow you to get around in tight spaces and still give you the freedom of a take apart power wheelchair capable of keeping up with your on the go lifestyle.
At a top speed of 4.2 mph, the Titan LTE is one quick little chair. A pair of 12 volt 20 amp batteries give the chair an 8 mile charge range. Two 9" rear drive wheels and two 6" front caster wheels help to give the Titan LTE a comfortable 2.5" ground clearance helping you to clear thresholds and uneven surfaces around the home and on paved surfaces. A rear receiver behind the seat allows you to attach either a rear basket, oxygen tank holder, or cane holder. Premium Bluetooth electronics are a great innovation for the Titan LTE. The Bluetooth diagnostics allow you to diagnose and troubleshoot should a problem arise.
You can also customize your Titan with the included two sets of interchangeable color panels.
Features
- Weight Capacity: 300 lbs.
- Comes with interchangeable Red & Blue color panels
- Flat-free, non-marking tires
- Bluetooth electronics for diagnostics
- Drive Range: 8.00 miles
- Max Speed: 4.20 mph
- Heaviest Piece: 39 lbs.
- Turning Radius: 27.00"
- Weight capacity: 300 lbs.
- Weight: 122 lbs
Technical Specs
Specifications for the Titan LTE
| Drive Range: | 8.00 miles |
| Max Speed: | 4.20 mph |
| Disassembles: | Yes |
| Heaviest Piece: | 39 lbs. |
| Turning Radius: | 27.00" |
| Ground Clearance: | 2.50" |
| Tire Type: | Solid |
| Maximum Incline Rating: | 6 º |
| Drive Type: | Rear Wheel Drive |
| Foldable: | No |
| Armrest Options: |
Height Adjustable Flip-Back |
| Legrest Options: | Footplate |
| Seat Options: | Stadium Seat |
| Seat Widths: | 18" |
| Seat Depths: | 18" |
| Back Height: | 18" |
| Seat Height: | 20" to 22" |
| Seat to Floor Height: | 20.00 |
| Maximum Seat to Floor Height: | 22.00" |
| Overall Width: | 25.75" |
| Overall Length: | 34.00" |
| Frame Type: | Transportable |
| Battery Type: | 12V x 20AH |
| Batteries Included: | Yes |
| Drive Wheel Size: | 9" |
| Caster Type: | Solid |
| Base Weight: | 92.00 lbs. |
| Standard Seat Weight: | 30.00 lbs. |
| Battery Pack Weight: | 22.00 lbs. |
| Weight Without Batteries: | 70.00 lbs. |
| Controller Type: | Swing-Away Joystick |
| Suspension: | No |
Wheelchair Measuring Guide
Wheelchair Measuring Guide
Wheelchair Measurements:
- Hip Width:
Use this to figure seat width if it is the widest point. - Widest Point:
Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style. - Chest Width:
Measure the widest point of the thorax just below the armpit. This measurement may influence system width or back width. - Heel to Knee:
Use this for legrest extensions and seat height. - SRP to Knee (Seat Reference Point to Knee):
This will determine the seat depth. - Elbow to SRP (Elbow to Seat Reference Point):
Measure this width with the arm in a 90-degree angle at the elbow and the shoulder in a neutral position. - Shoulder Height:
This will determine the height and the style of the back panel or the start for a custom back. - Head Height:
This will help determine the proper headrest height.
