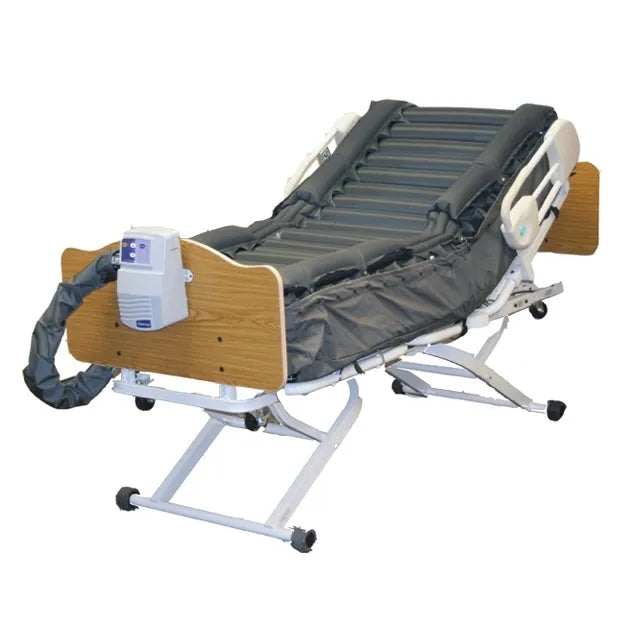

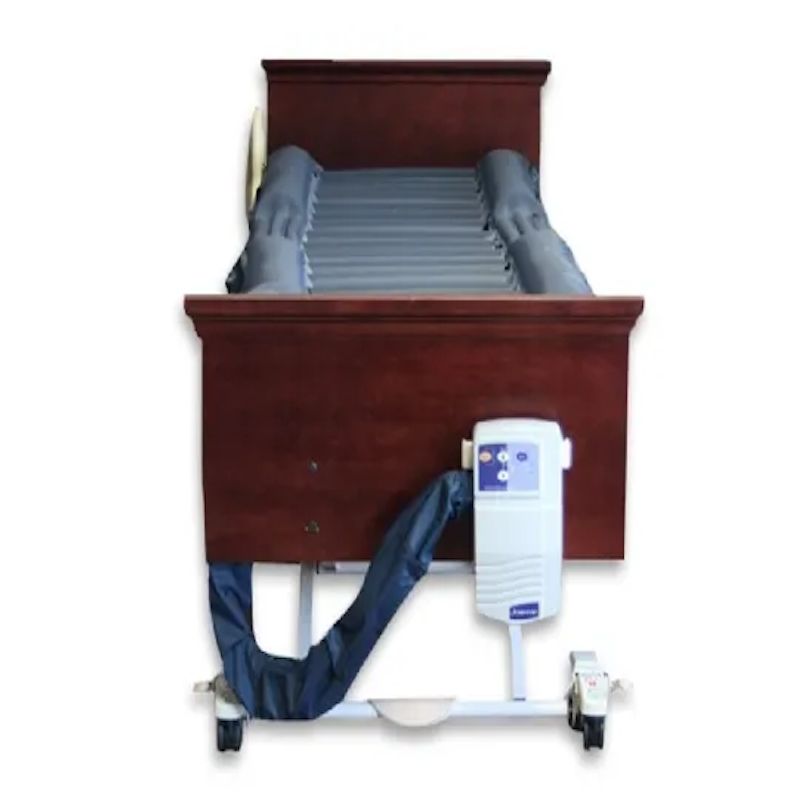

Joerns DermaFloat® LAL Low Air Loss Mattress System — 20 Therapy Cells, CairRail Bolsters, Pulsation Therapy, 500 lb, 36" & 42" Widths

True low air loss. Pulsation therapy. Two mechanisms working together for advanced wound healing. The Joerns DermaFloat® LAL is a combination therapy mattress system that addresses the two primary skin breakdown mechanisms simultaneously — pressure and moisture. True low air loss technology continuously moves air through the mattress surface, wicking moisture away from the patient's skin and eliminating the humid microclimate that accelerates skin breakdown. Twenty individual horizontal therapy cells distribute the patient's weight evenly across three zones, providing consistent pressure redistribution across the full body surface. And optional pulsation therapy adds rhythmic cell inflation/deflation cycles that further reduce sustained pressure at any single contact point. CairRail side air bolsters provide risk management support against resident movement toward the bed edges. A 2" lower safety cell maintains mattress inflation for up to 12 hours during a power outage, preventing the patient from bottoming out on the bed frame. The antibacterial, antifungal, fluid-proof, moisture vapor permeable cover creates the optimal skin environment at every surface contact point. Three control modes (Autofirm, Therapy, Pulsate) with 8 comfort/therapy settings. 500 lb capacity. Available in 36" and 42" widths. Authorized Joerns dealer.

✔ True Low Air Loss — Continuously Wicks Moisture Away From Skin Surface
✔ Pulsation Therapy — Rhythmic Cell Cycles Reduce Sustained Pressure Points
✔ 20 Individual Horizontal Therapy Cells — Even Weight Distribution Across 3 Zones
✔ CairRail Side Air Bolsters — Risk Management Against Resident Movement
✔ 2" Lower Safety Cell — Maintains Inflation Up to 12 Hours During Power Outage
✔ Antibacterial & Antifungal Cover — Fluid-Proof & Moisture Vapor Permeable
✔ 3 Operation Modes: Autofirm, Therapy & Pulsate
✔ 8 Comfort/Therapy Settings
✔ CPR Quick Deflation for Emergency Access
✔ 500 lb Weight Capacity
✔ Available in 36" Width (Standard) and 42" Width
✔ 80" Length, 10" Total Depth (8" Therapy Cells + 2" Safety Cell)
✔ Authorized Joerns Dealer — Wheelchair Authority

---

Size & SKU Guide

Width	Length	Depth	SKU	Best For
36"	80"	10"	DFLAL3680NZ	Standard hospital bed width; patients up to approximately 250–300 lbs
42"	80"	10"	DFLAL-4280NZ	Wider beds (CareWide 42" frame); larger patients requiring wider sleep surface

Note: Select the width that matches your bed frame's sleep surface. The 42" mattress is designed for use on 42" wide bed frames — it will not fit correctly on a standard 35" or 36" frame. Call 1-866-218-0902 if you need help confirming the right size for your bed.

---

Product Specifications

Product Name	Joerns DermaFloat® LAL Low Air Loss Mattress System with CairRail Bed Bolsters
Manufacturer	Joerns Healthcare
Therapy Type	True low air loss with optional pulsation — combination therapy
Weight Capacity	500 lbs
Mattress Dimensions (36" width)	36"W × 80"L × 10"D
Mattress Dimensions (42" width)	42"W × 80"L × 10"D
Number of Therapy Cells	20 individual horizontal cells
Number of Zones	3
Therapy Cell Depth	8"
Lower Safety Cell Depth	2" — maintains inflation up to 12 hours during power outage
Side Bolsters	CairRail air bolsters — risk management against resident movement
Cover	Antibacterial, antifungal, fluid-proof, moisture vapor permeable; low shear and low friction therapy pad
Operation Modes	Autofirm, Therapy, Pulsate
Comfort/Therapy Settings	8
CPR Deflation	Quick deflation — emergency access
Control Unit Dimensions	7.5"W × 12.25"H × 5.5"D

---

Understanding the Therapy — Why LAL + Pulsation Works

True Low Air Loss — Moisture Management

Pressure injury development is not caused by pressure alone — moisture plays an equally important role. When a patient lies on a standard foam or static air mattress, body heat and perspiration create a warm, humid microclimate at the skin-mattress interface. This moisture softens and weakens the skin, making it far more susceptible to breakdown under sustained pressure. True low air loss mattresses address this by continuously flowing air through the mattress surface at a low volume, removing heat and moisture from the skin contact area and maintaining a drier, cooler skin microclimate. The DermaFloat LAL designation means this is a genuine low air loss system — not an alternating pressure mattress with low air loss marketed loosely, but a system designed primarily around low air loss therapy as the primary treatment mechanism.

20 Horizontal Therapy Cells — Pressure Redistribution

The 20 horizontal therapy cells distribute the patient's weight across the full mattress length, conforming to the body's contours to spread pressure over the largest possible surface area and reduce peak pressure at high-risk bony prominences — sacrum, heels, ischial tuberosities, and occiput. The horizontal cell orientation allows the cells to deform vertically under body weight without creating the lateral shifting or instability that vertical tube designs can produce. Three zones allow different pressure settings across head, body, and leg areas to match the patient's clinical needs at each body region.

Pulsation Therapy — Additional Pressure Relief

In Pulsate mode, the therapy cells cycle through rhythmic inflation and deflation patterns that repeatedly shift the pressure points across the mattress surface — similar in principle to alternating pressure therapy but combined with the continuous moisture management of low air loss. For patients with active pressure injuries or at very high skin breakdown risk, pulsation adds a dynamic therapy layer that cannot be achieved with static surfaces or low air loss alone.

Three Operation Modes

The control unit provides three distinct modes that match therapy intensity to the patient's current needs. Autofirm automatically firms the mattress to a safe transfer surface when the caregiver needs to reposition or transfer the patient — preventing the sinking that can make mattress-based transfers difficult and unsafe. Therapy mode delivers continuous low air loss pressure redistribution for ongoing skin protection. Pulsate mode adds the rhythmic pressure cycling for maximum therapeutic effect in high-risk patients or those with existing wounds. Eight comfort/therapy settings within these modes allow fine-tuning for individual patient comfort and clinical requirements.

CairRail Side Air Bolsters

CairRail bolsters are integrated side air chambers that run along both edges of the mattress. They provide a firm, raised perimeter that reduces the risk of patients rolling toward or off the edge of the mattress — a particular safety concern for confused or agitated patients, or those with limited trunk control. Unlike rigid foam perimeter rails that can create pressure points at the mattress edge, the air bolsters provide a cushioned, responsive boundary that protects the patient without creating new pressure injury risk at the mattress periphery.

12-Hour Safety Cell — Power Outage Protection

A dedicated 2" lower safety cell is permanently inflated and maintains its inflation for up to 12 hours without power — providing a base layer of support that prevents the patient from bottoming out on the bed frame deck in the event of a power failure, pump malfunction, or accidental disconnection. This safety layer is critically important in home care and non-institutional environments where emergency backup power may not be available and where a power interruption could otherwise leave a patient directly resting on the metal or plastic bed frame surface.

Antibacterial, Antifungal, Fluid-Proof Cover

The mattress cover is treated with antibacterial and antifungal agents to inhibit microbial growth at the cover surface — an important infection control feature in care environments where incontinence, wound drainage, or perspiration may contaminate the mattress surface. The fluid-proof construction prevents liquids from penetrating to the therapy cells below, while moisture vapor permeability allows the low air loss airflow to continue wicking moisture vapor through the cover from the patient's skin. The low shear, low friction therapy pad surface reduces the mechanical forces on the skin during repositioning that contribute to pressure injury development.

CPR Quick Deflation

A CPR quick deflation valve allows the mattress to be rapidly deflated to a firm, flat surface in emergency situations requiring cardiopulmonary resuscitation — ensuring the caregiver can perform effective chest compressions on a solid surface without delay.

---

Who This Mattress Is For

• Patients with Stage 1–4 pressure injuries requiring active low air loss wound healing therapy
• Patients at high risk of pressure injury development — Braden Scale score ≤12 or equivalent high-risk assessment
• Patients with incontinence or heavy perspiration where moisture management at the skin surface is a clinical priority
• Immobile or minimally mobile patients who cannot reposition themselves independently
• Patients up to 500 lbs in standard (36") or wide (42") bed configurations
• Home care or hospice patients requiring therapeutic pressure redistribution outside an institutional setting
• Long-term care residents with complex skin integrity needs where standard foam mattresses are clinically insufficient
• Care environments where power continuity is uncertain — 12-hour safety cell provides protection during outages

---
