CityRider Full-Size Mobility Scooter
Manuals, Literature
Owners Manual
Product Brochure
Owners Manual Product BrochureFDA Class II Medical Device*
*Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairment
Product Code: M4JP6
$2,050.00
Description

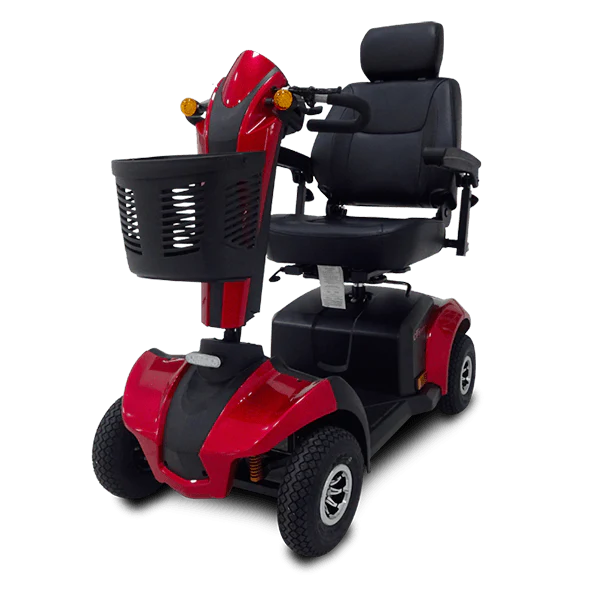

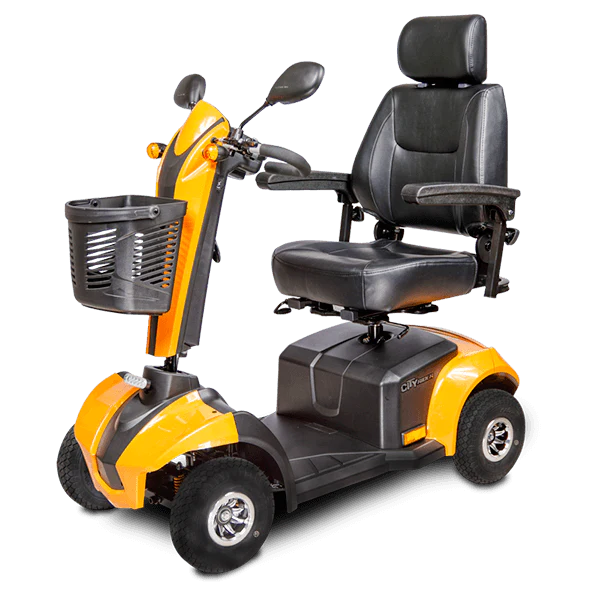

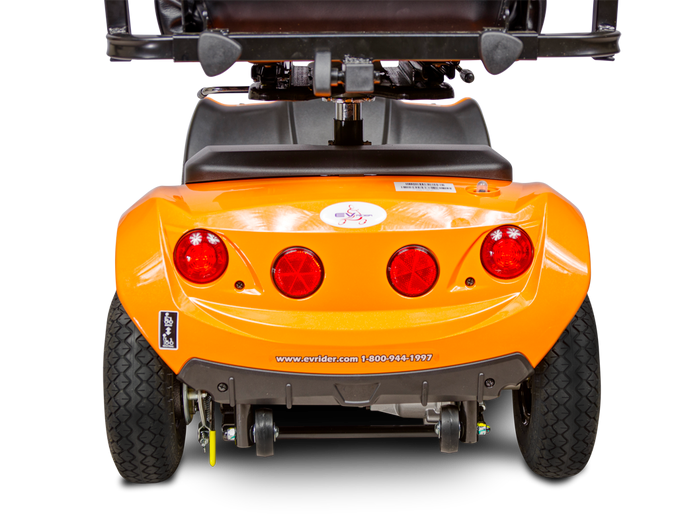

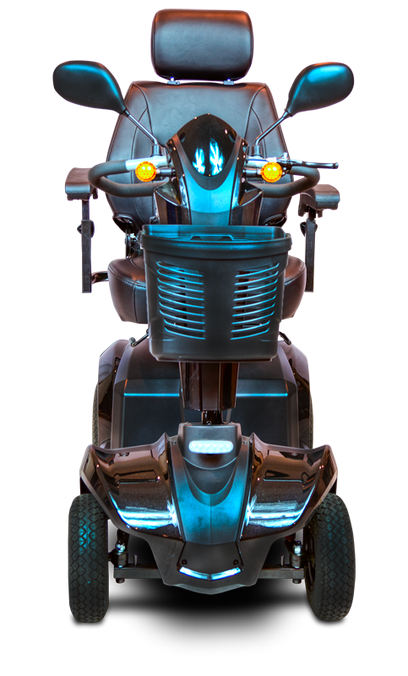

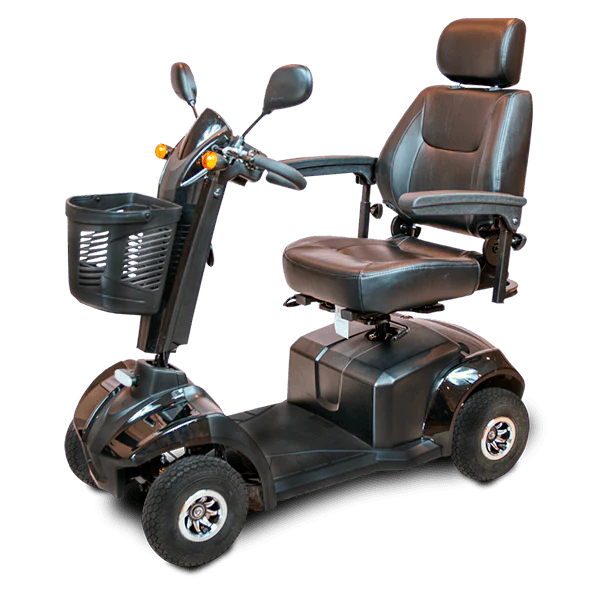

Ev Rider CityRider Full-Size Mobility Scooter
This stylish addition, the CityRider, incorporates excellent features for an impressive mobility scooter. The CityRider ensures reliability and smooth, effortless control with its ingenious design.The CityRider gives you a relaxing ride wherever you travel thanks to an all-round suspension system fitted as standard. Coupled with a well-upholstered captain's chair and an adjustable tiller, the CityRider lets you find the perfect position for driving in comfort.
For your on-road safety, the CityRider is fitted with a full lighting system front and rear, as well as a rearview mirror and a separate cable brake for peace of mind.
Product Highlights
- Compact size requires less clearance for more maneuverability in tight quarters
- Padded captain's chair on adjustable tiller for optimal comfort
- All-around suspension and large, durable wheels for smooth, relaxing ride
- Front and rear lighting as well as a separate cable brake for maximum safety
- Three color options to choose from for aesthetically pleasing style!
Technical Specs
| Overall Length: | 46.4"/ 118 cm |
| Overall Width: | 23.2" / 59 cm |
| Overall Height (at Maximum Tiller Height): | 48.8" / 124 cm |
| Overall Height at Minimum Tiller Height: | 48.8" / 124 cm |
| Legroom Floorboard Length x Width: | 12" x 19" |
| Deck Height Floorboard to Floor: | 5.5" |
| Ground Clearance: | 2.5" / 75 mm |
| Turning Radius: | 56.3"/143 cm |
| Folded Overall Length: | NA |
| Folded Overall Width: | NA |
| Folded Overall Height: | NA |
| Weight with Std.: | 206.4lbs/93.8kg |
| Weight with Batteries: | 206.4lbs/93.8kg |
| Weight without Batteries: | 154 lbs/70kg |
| Seat Type: | Captain seat |
| Seat Width & Depth & Height: | 19" x 17" x 26" |
| Seat Cushion Thickness: | 2.5"~ 3" |
| Seat Height Cushion to Deck: | 18" |
| Seat Height Cushion to Floor: | 20.5" |
| Tire Type: | Air |
| Rim Type Rear: | Aluminum |
| Rim Type Front: | 4" |
| Outside Diameter Rear: | 300-4×2(10") |
| Tire Width Rear: | 3" |
| Outside Diameter Front: | 300-4×2(10") |
| Tire Width Front: | 3" |
| Battery Type & Power: | 35AH SLA Batteries |
| Brake System: | Electromagnetic Brake |
| Climbing Angle Maximum Recommended: | 8° |
| Charger Type: | 4A Off-Board |
| Charging Time: | >8hr |
| Controller: | PG70A |
| *Driving Range: | 17 miles / 27.3 km |
| Load Capacity: | 350 lbs / 160 kg |
| Motor & Drive Location: | 470W 5300RPM |
| *Speed Maximum: | 6 MPH |
| Colors: | Red, Black, Sunset Orange |
| Tiller Type: | DELTA |
| Throttle Control Type: | Wigwag |
| Anti-Tipper Wheels-Rear: | Yes |
Wheelchair Measuring Guide
Wheelchair Measuring Guide
Wheelchair Measurements:
- Hip Width:
Use this to figure seat width if it is the widest point. - Widest Point:
Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style. - Chest Width:
Measure the widest point of the thorax just below the armpit. This measurement may influence system width or back width. - Heel to Knee:
Use this for legrest extensions and seat height. - SRP to Knee (Seat Reference Point to Knee):
This will determine the seat depth. - Elbow to SRP (Elbow to Seat Reference Point):
Measure this width with the arm in a 90-degree angle at the elbow and the shoulder in a neutral position. - Shoulder Height:
This will determine the height and the style of the back panel or the start for a custom back. - Head Height:
This will help determine the proper headrest height.
