Aquatec Ergo VIP Tilt-in-Space Shower Chair
Manuals, Literature
Product Brochure
Product BrochureProduct Code: A1642029
$1,630.00
Description

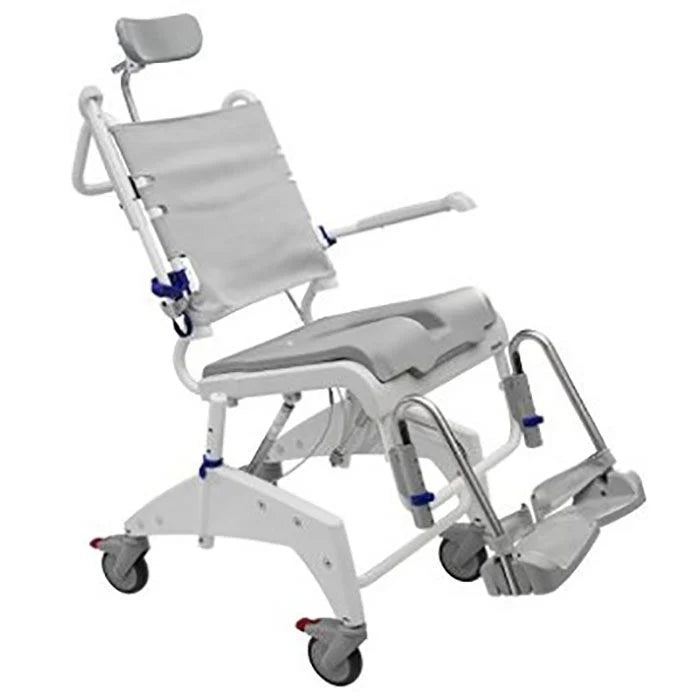

Aquatec Ergo VIP Tilt-in-Space Shower Chair
Overview
- Compact and easy to handle
- -5 °-40 ° Backrest Recline
- Contoured, ergonomic seat
- Includes headrest, footrest, pan, hyg.standard seat overlay
Description
The Aquatec Ergo VIP is a modular tilt in space shower chair commodes designed with a -5 ° to 40 ° seat tilt angle. The chair features a new pivot and slide mechanism; the chair now moves downwards and forwards which keeps the user's center of gravity close to that of the chair. Its contoured, ergonomic seat plate encourages a more upright seating position for enhanced independence and comfort. Optimized wheelbase makes it easier to maneuver in small spaces.
Features
- Ergonomic tilt with weight shifting abilities
- Includes headrest, footrest, pan, hyg.standard seat overlay
- Extremely stable
- Stainless steel corrosion free frame
- Optimized wheel base
- Extremely stable even at maximum tilt
- Machine washable tension adjustable back with quick-release buckles
- Easy disassembly for transportation and storage
- Adjustable armrest height, footrest height and seat height
- With a smart weight shift mechanism
- Height adjustable, swing away and detachable footrests
- Angle adjustable, flip-up and textured footplates with heel loops
Technical Specs
Product Specifications
| Weight Capacity | 330 lbs. |
| Product Weight | 51.8 lbs. |
| Seat Width | 18.7" |
| Seat Depth | 18.7" |
| Seat-to-Floor Height | 18.5" - 23.4" |
| Overall Width | 22" |
| Overall Length | 41" |
| Overall Height | 46.8" |
| Frame Color | White |
| Axle Type | Fixed |
| Armrest | Full Length, Flip Back |
| Upholstery Type | Nylon |
| Footrests | Swingaway |
| Is Latex Free | Yes |
| Shipping Weight | 83 lbs. |
| Box Length | 28" |
| Box Width | 24" |
| Box Height | 25" |
| Seat to floor height | 18.5"-23.4" |
| Overall width | 22" |
| Overall depth | 39" |
| Width between armrests | 17.75" |
| Tilt angle seat | -5° - 40° |
Wheelchair Measuring Guide
Wheelchair Measuring Guide
Wheelchair Measurements:
- Hip Width:
Use this to figure seat width if it is the widest point. - Widest Point:
Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style. - Chest Width:
Measure the widest point of the thorax just below the armpit. This measurement may influence system width or back width. - Heel to Knee:
Use this for legrest extensions and seat height. - SRP to Knee (Seat Reference Point to Knee):
This will determine the seat depth. - Elbow to SRP (Elbow to Seat Reference Point):
Measure this width with the arm in a 90-degree angle at the elbow and the shoulder in a neutral position. - Shoulder Height:
This will determine the height and the style of the back panel or the start for a custom back. - Head Height:
This will help determine the proper headrest height.
