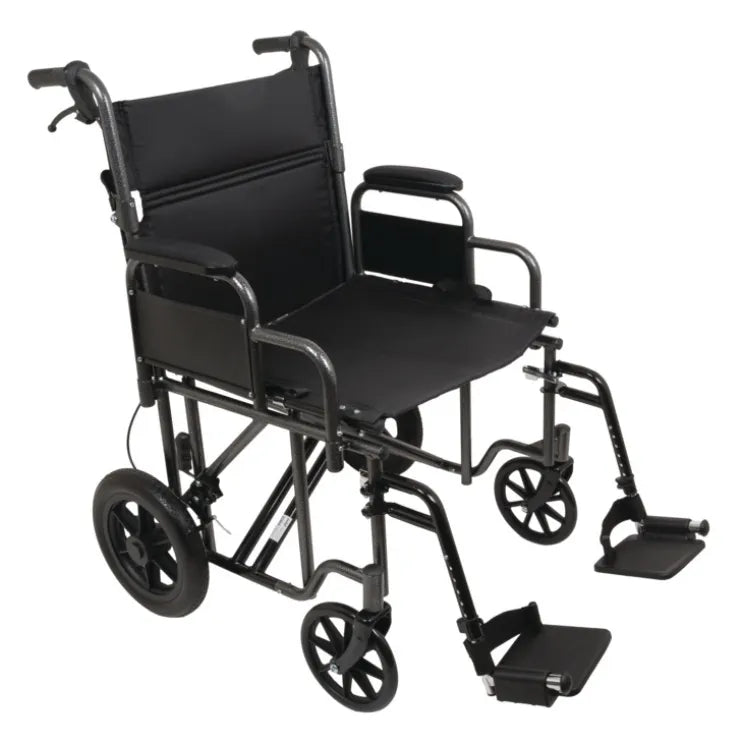

ProBasics Heavy Duty Transport Wheelchair

The ProBasics Heavy-Duty Transport Wheelchair is a reinforced steel bariatric chair built to support users up to 450 lbs. The dual cross-brace steel frame provides exceptional structural rigidity, the 22"×18" seat is among the widest and deepest in the transport chair category, and 12" flat-free rear wheels require zero maintenance while handling outdoor terrain smoothly. Removable padded desk-length arms enable full side-access transfers. Companion hand brakes, swing-away footrests with heel loops, and easy-clean vinyl upholstery round out a complete bariatric transport solution. Folds to just 11" wide. HCPCS E1039. SKU: TCS221612SV.

ProBasics Heavy-Duty Transport Wheelchair — 450 lb Capacity, 22"×18" Seat, Dual Cross-Brace Steel

The ProBasics Heavy-Duty Transport Wheelchair is purpose-built for bariatric users who need a transport chair that goes beyond standard heavy-duty specs. At 450 lb capacity with a reinforced dual cross-brace steel frame, it is one of the most structurally robust transport chairs available. The 22"×18" seat is exceptionally wide and deep — 2" deeper than most bariatric transport chairs — making it well-suited for users who need both extra width and extra thigh support.

The 12" flat-free rear wheels are maintenance-free — no air to pump, no punctures — and provide smooth outdoor performance. Companion hand brakes on the push handles allow the caregiver to actively control speed and stop on inclines. The removable desk-length arms flip out for side transfers, allowing caregivers to slide users laterally without lifting over a fixed armrest. Vinyl upholstery cleans easily with a wipe — important for heavy daily use in home or clinical settings.

Key Features

• 450 lb weight capacity — bariatric rated
• Reinforced steel frame with dual cross braces — maximum structural rigidity
• 22" × 18" seat — extra wide and extra deep for larger users
• 12" flat-free rear wheels — no inflation, no punctures, smooth outdoor performance
• Companion hand brakes — caregiver-activated for active speed control and incline safety
• Removable padded desk-length armrests — enables side-access lateral sliding transfers
• Swing-away footrests with heel loops — prevents feet from slipping off footrests
• Easy-clean vinyl upholstery — wipes clean, ideal for clinical and heavy home use
• Fold-down back via back hinge — compact storage and transport
• Folds to just 11" wide — compact for a 450 lb bariatric chair
• Seat belt included for user safety
• Product weight: 41 lbs
• HCPCS E1039 — heavy-duty transport chair billing code
• SKU: TCS221612SV

Order by Part Number

ProBasics vs. Drive BTR — Bariatric Transport Chair Comparison

Who Is the ProBasics Heavy-Duty Best For?

• Bariatric users requiring 450 lb weight capacity in a transport chair
• Users who need both a wide (22") and deep (18") seat for full thigh support
• Caregivers who need hand brakes for active control on inclines and slopes
• Clinical or home settings where vinyl upholstery is preferred for easy cleaning
• Patients whose insurance covers HCPCS E1039 heavy-duty transport chairs

How to Size the ProBasics Heavy-Duty Transport Chair

1. Confirm Weight Capacity

   The ProBasics supports up to 450 lbs — one of the highest-rated transport chairs available. Verify the user's actual weight before ordering. For users between 300–400 lbs, the Nova 332 HD (400 lb, lighter aluminum frame with hand brakes) may be a better match. For users up to 450 lbs, the ProBasics or Drive BTR are the appropriate choices.

2. Measure Hip Width and Thigh Length

   The ProBasics has a 22" wide and 18" deep seat — exceptional dimensions for bariatric users. Measure hip width (add 1"–2" clearance) and thigh length (back of buttocks to behind the knee). The 18" depth provides full thigh support for users with longer thighs, reducing pressure on the back of the knee that occurs with shallower seats.

3. Assess Transfer Requirements

   The removable desk-length arms allow full side-access lateral sliding transfers — the safest transfer method for heavier users. Confirm with the primary caregiver how transfers will be performed and ensure the arm can be fully removed on the transfer-side before the user attempts to stand or slide.

4. Check Doorway Clearance

   The ProBasics open width is 27" — wider than standard transport chairs due to the 22" seat and steel frame. Measure all doorways, hallways, and vehicle entry points. Standard exterior doorways (32"–36") provide adequate clearance, but older homes with narrower interior doorways may be tight. The folded width of 11" is very compact for storage.

5. Plan for Two-Person or Assisted Vehicle Loading

   At 41 lbs, solo vehicle loading by one caregiver is not recommended. A vehicle ramp, lift, or two-person loading is required. If the primary caregiver must load the chair solo, the Nova 332 HD at 27 lbs may be more manageable despite the lower 400 lb capacity.

Frequently Asked Questions

Why does this chair have a deeper 18" seat depth vs. the standard 16"?

Most transport chairs use a 16" seat depth — adequate for average users. Bariatric users often have longer thigh measurements that require more seat depth to provide full thigh support without the seat edge cutting into the back of the knee. The ProBasics 18" seat depth accommodates users with thigh measurements up to approximately 16" comfortably (with 2" clearance at the knee). For users transitioning from a standard 16" seat who experience pressure behind the knee, the extra 2" of depth makes a meaningful clinical difference.

What makes dual cross braces different from a standard single crossbrace?

Standard folding transport chairs use a single X-shaped crossbrace in the frame. The ProBasics uses dual reinforced cross braces — two X-brace systems that work together to distribute load and prevent lateral flex under heavy use. At 450 lb capacity, this additional bracing prevents the frame racking (twisting sideways) that can occur with a single crossbrace under higher loads, maintaining alignment and structural integrity over time.

How do the companion hand brakes work and is there a separate parking lock?

The companion hand brakes are caregiver-activated levers on the push handles that engage the rear wheels to slow and stop the chair during movement. They also serve as the stationary wheel lock for transfers — squeeze the brake and maintain grip to hold the chair still. This chair uses the hand brakes as its primary braking and locking system. If a separate parking brake is critical, confirm before purchase — the ProBasics companion brakes function as both active and parking brakes.

What is HCPCS E1039 and how does it apply to this chair?

E1039 is the HCPCS billing code for heavy-duty transport wheelchairs with a patient weight capacity exceeding 300 lbs. The ProBasics TCS221612SV qualifies under E1039. Medicare Part B, Medicaid, and most private insurers use this code to process coverage claims for medically necessary bariatric transport chairs. A physician prescription and documentation of medical necessity are required for insurance billing. FSA and HSA funds can be used for direct purchase without a prescription.

How does vinyl upholstery compare to nylon for clinical use?

Vinyl upholstery can be wiped clean with standard disinfectant wipes — an advantage in clinical settings or homes where the chair is used by multiple users or requires frequent cleaning. Nylon upholstery is softer and slightly more breathable but absorbs moisture and is harder to fully disinfect. For bariatric users in long-duration seated positions, a seat cushion placed over the vinyl is recommended for improved comfort and pressure distribution.

Can this chair be transported in a standard vehicle?

Yes, with planning. The 11" folded width is compact, but at 41 lbs and 37.75" tall when folded, loading into a standard car trunk requires two people or a vehicle ramp. SUVs and minivans with larger cargo areas are more practical than sedans. For frequent solo vehicle transport, consider a lighter bariatric alternative or a powered vehicle lift system.
