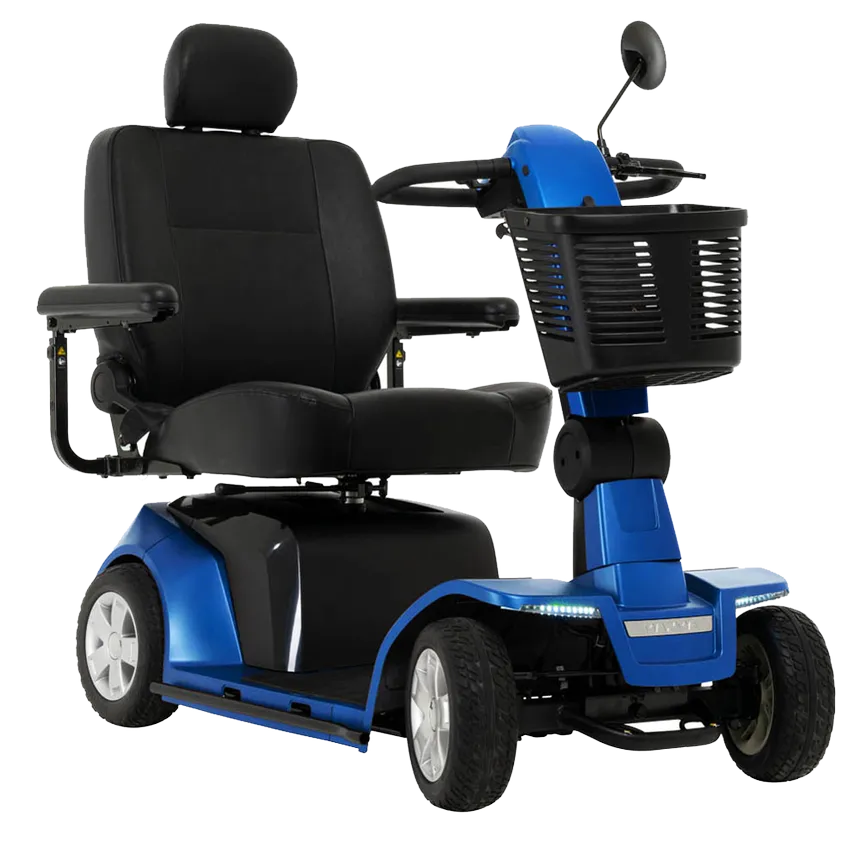

Pride Maxima 4-Wheel Heavy-Duty Scooter SC941
Pride Maxima 4-Wheel Heavy-Duty Scooter SC941
Owners Manual Product BrochureFDA Class II Medical Device*
*Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairment
Product Code: SC941
The Pride Maxima 4-Wheel (SC941) is a very heavy-duty, high-weight-capacity scooter rated for riders up to 500 lbs. Built on a durable one-piece frame with an ultra heavy-duty, whisper-quiet drivetrain, it reaches up to 5.8 mph and travels up to 19.5 miles per charge — a range tested at full 500 lb capacity. A 22"-wide high-back seat with depth adjustment, limited recline, and an adjustable headrest gives larger riders real room, and flat-free tires mean no punctures. 500 lb capacity · 53" turning radius · delta tiller with wraparound handles · full LED lighting with turn signals · USB port · front basket · optional power elevating seat (SC941-PES) · lifetime limited frame warranty · made in the USA. Available in Garnet Red and Ocean Blue.
What Defines This Scooter
Size & Fit
Standard seat or power elevating seat. Measure doorways and your vehicle lift's weight rating before ordering.
| Measurement | Standard (SC941) | Power Elevating Seat (SC941-PES) |
| Weight Capacity | 500 lbs | 500 lbs |
| Seat Size | 22" W × 18"–20" D | 22" W × 18"–20" D |
| Seat-to-Ground Height | 22.1"–24.1" | 22.32"–28.56" |
| Seat-to-Deck Height | 17.13"–19.13" | 17.36"–23.61" |
| Overall Length | 47.5" | 47.5" |
| Width (Base) | 27" | 27" |
| Turning Radius | 53" | 53" |
| Ground Clearance | 2.25" (at motor) | 2.25" (at motor) |
Full Specifications
| Manufacturer | Pride Mobility |
| Model | Maxima 4-Wheel |
| Model Numbers | SC941 (standard seat) · SC941-PES (power elevating seat) |
| HCPCS Code | K0808 — Group 2 Very Heavy Duty |
| FDA Classification | Class II Medical Device |
| Manufacturing | Made in the USA |
| Weight Capacity | 500 lbs |
| Maximum Speed | Up to 5.8 mph |
| Range Per Charge | Up to 19.5 miles (tested at maximum weight capacity) |
| Motor | 24V DC · ultra heavy-duty, whisper-quiet drivetrain |
| Batteries | Two 58Ah NF-22 gel (deep-cycle AGM or gel recommended) · 36.5 lbs each |
| Charger | 5A off-board · XLR charging port on tiller |
| Weight Without Batteries | 196.8 lbs (with standard seat) |
| Disassembly | Does not disassemble |
| Tires | Solid, flat-free, non-scuffing · 3.6" × 10" front · 3.6" × 10.75" rear |
| Suspension | None |

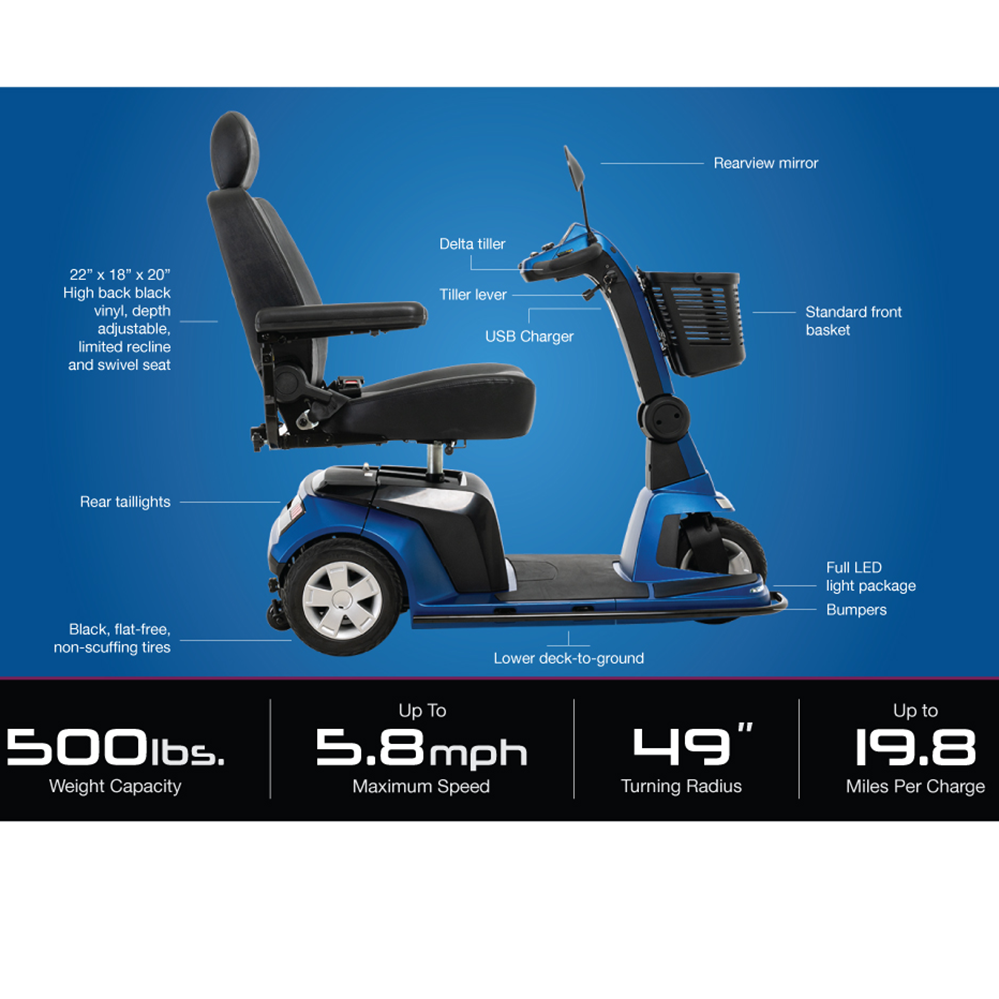

| Seat | High-back black vinyl · 22" W × 18"–20" D (depth adjustable) · limited recline · 4-point swivel · 7" headrest with 3" adjustment · flip-up armrests |
| Power Elevating Seat | Optional (SC941-PES) · adds 6.25" of seat height |

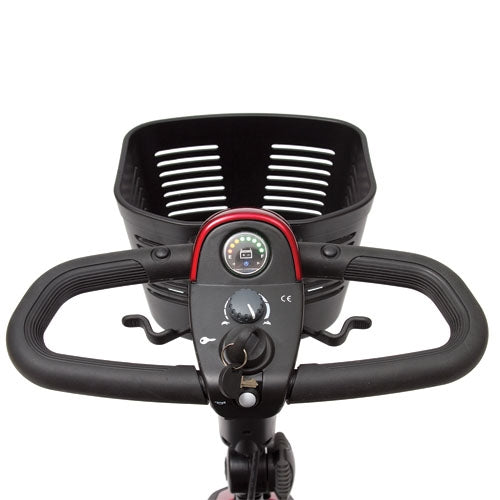

| Tiller | Delta tiller · ergonomic wraparound handles · one-hand operation · infinite-position tiller lever |

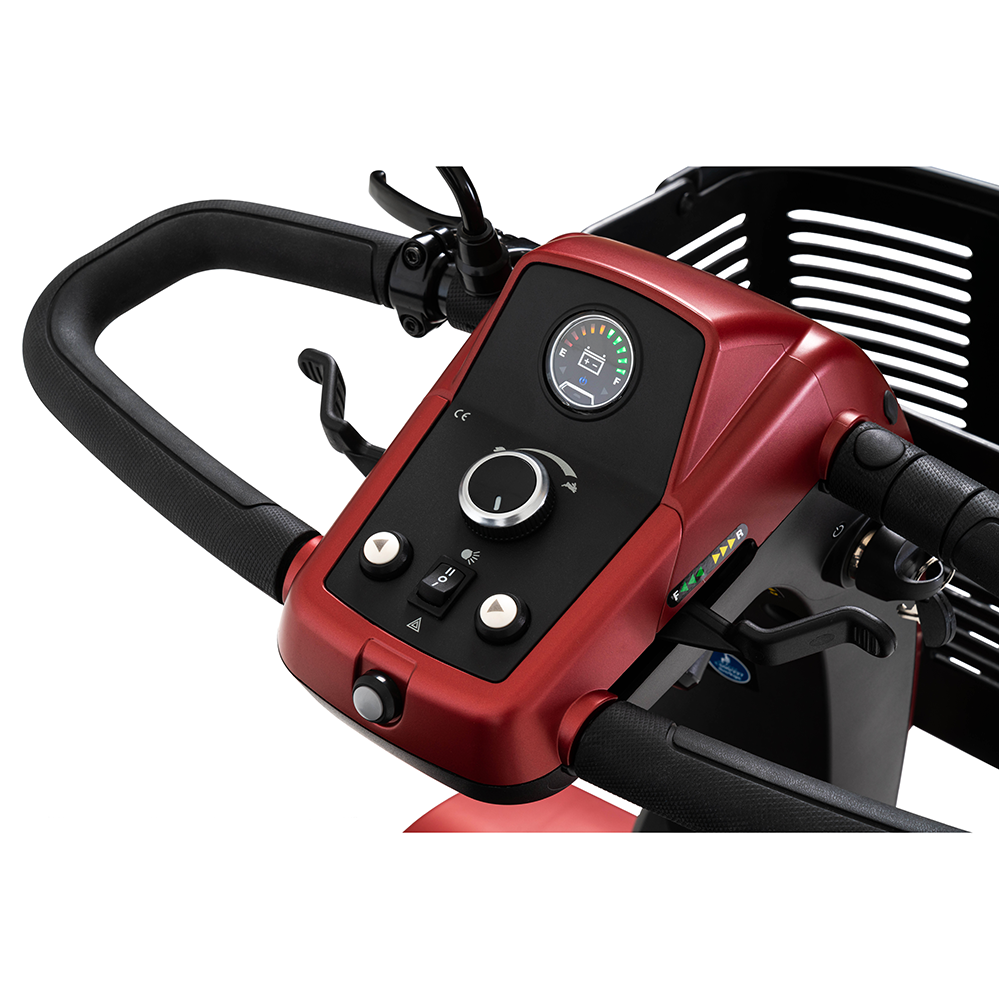

| Console | Ambient voltmeter · horn · light switch · key switch · speed control · turn signal button |
| USB Charging | Built into tiller |
| Lighting | Full LED · headlights · turn signals · taillights |
| Safety | Rearview mirror · seatbelt · side bumpers |
| Storage | Front basket — standard |
| Dimensions | 47.5" L × 27" W (base) |
| Turning Radius | 53" |
| Ground Clearance | 2.25" at motor |

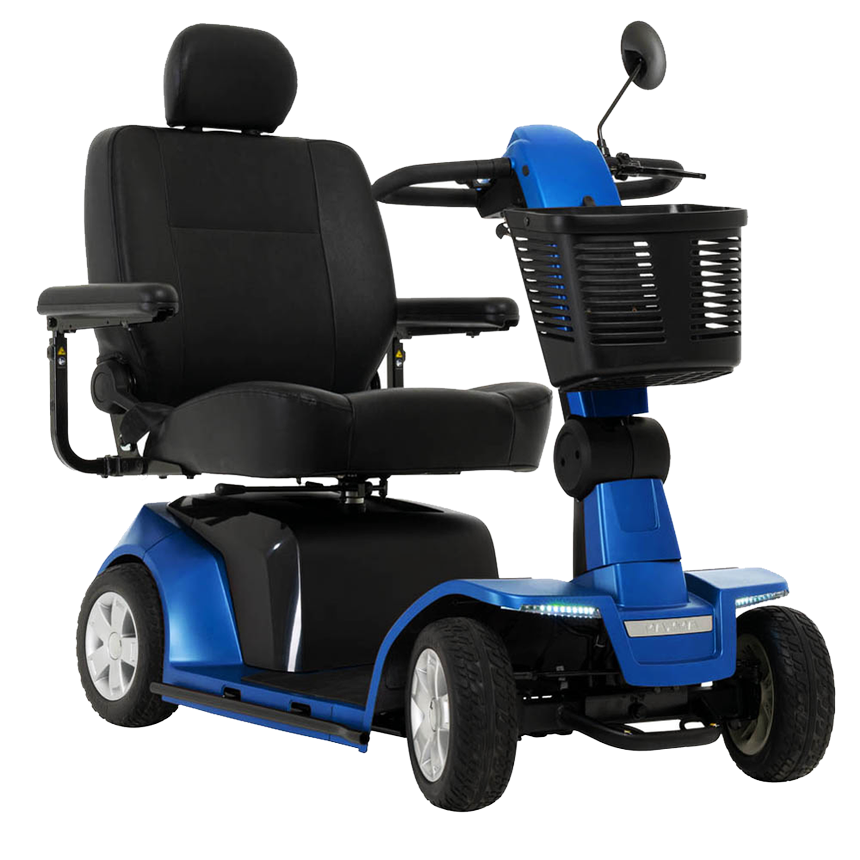

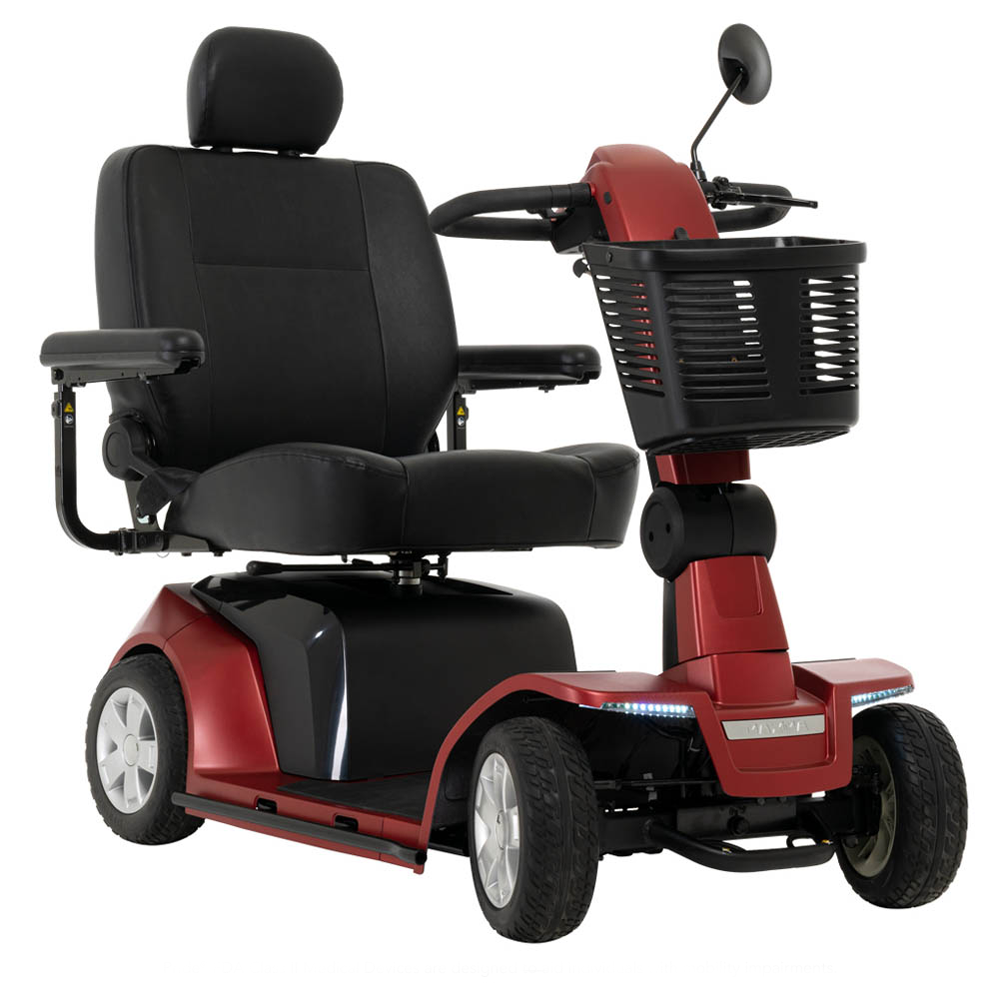

| Colors | Garnet Red (matte) · Ocean Blue (matte) |
| Warranty | Frame: lifetime limited · Electronics: 2 years limited · Drivetrain: 2 years limited · Batteries: 6 months limited |
Where the Maxima Belongs
Built for Larger Riders
Many scooters rated for 400–500 lbs lose speed and range at their upper limit. Pride tests the Maxima's 19.5-mile range at the full 500 lbs, and pairs it with a 22"-wide high-back seat and a one-piece frame, so larger riders get a scooter built around them.
Errands & Community Trips
Sidewalks, shopping centers, malls, medical appointments, and community events — the Maxima's 53" turning radius and non-scuffing tires handle store aisles and indoor public spaces, and the front basket carries the essentials.
Reaching Higher
The optional power elevating seat lifts you 6.25" at the push of a button, putting countertops, shelves, and eye-level conversation within reach — and making it easier to stand from the seat.
Frequently Asked Questions
Yes — Pride tests the range at maximum weight capacity. Actual range still varies with terrain, temperature, battery condition, and speed, and Pride notes top speed may vary ±10%.
The SC941-PES adds a power elevating seat that raises the seat up to 6.25". Seat-to-ground height becomes 22.32"–28.56" (vs. 22.1"–24.1" on the standard model). Everything else is the same.
No. The Maxima does not disassemble. It weighs about 197 lbs without batteries (two 36.5 lb batteries), so you'll need a vehicle lift rated for its weight or a ramp-equipped van. Call us to plan transport: 1-866-218-0902.
It's designed for outdoor and community use. Its size and 53" turning radius make it a tight fit in most homes and assisted living apartments, though it handles stores and malls well.
K0808 — Power Operated Vehicle, Group 2 Very Heavy Duty. Call us if you have coverage or documentation questions: 1-866-218-0902.
Two 58Ah NF-22 batteries. Pride recommends deep-cycle AGM or gel batteries. Each weighs about 36.5 lbs.
Lifetime limited on the frame, 2 years limited on electronics and drivetrain, and 6 months limited on batteries. Call us with warranty questions: 1-866-218-0902.
Compare High-Capacity Scooters
Have Questions? We'll Help You Choose.
The Pride Maxima 4-Wheel is for larger riders who want a dependable, made-in-USA scooter with a seat that truly fits. Our advisers can confirm sizing, help you decide on the power elevating seat, and walk you through HCPCS and transport questions in one call.
📞 1-866-218-0902 · Mon–Fri 9AM–5PM · Sat 9AM–3PM EST
*Pride Mobility FDA Class II Medical Device. Speed may vary ±10% and range varies with user weight, terrain, battery charge and condition, and tire condition. Range tested at maximum weight capacity. Verify dimensions for your home, storage space, and vehicle lift before ordering.
Wheelchair Measuring Guide
Wheelchair Measurements:
- Hip Width:
Use this to figure seat width if it is the widest point. - Widest Point:
Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style. - Chest Width:
Measure the widest point of the thorax just below the armpit. This measurement may influence system width or back width. - Heel to Knee:
Use this for legrest extensions and seat height. - SRP to Knee (Seat Reference Point to Knee):
This will determine the seat depth. - Elbow to SRP (Elbow to Seat Reference Point):
Measure this width with the arm in a 90-degree angle at the elbow and the shoulder in a neutral position. - Shoulder Height:
This will determine the height and the style of the back panel or the start for a custom back. - Head Height:
This will help determine the proper headrest height.
