Pride Jazzy Chair Elite 14 Powerchair
Manuals, Literature
Product Brochure
Owner Manual
Product Brochure Owner ManualFDA Class II Medical Device*
*Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairment
Product Code: J-14
$3,844.00
Description

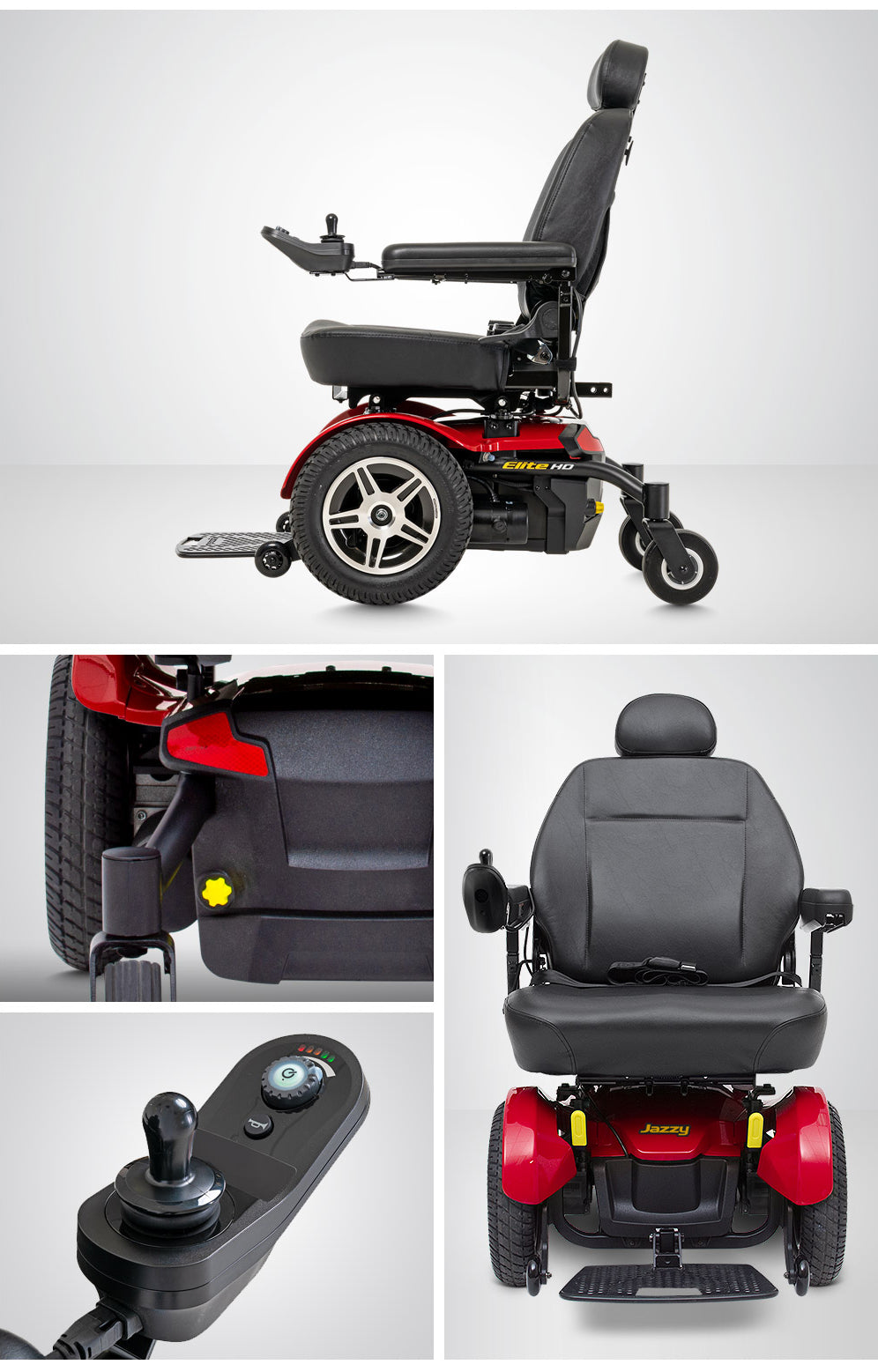

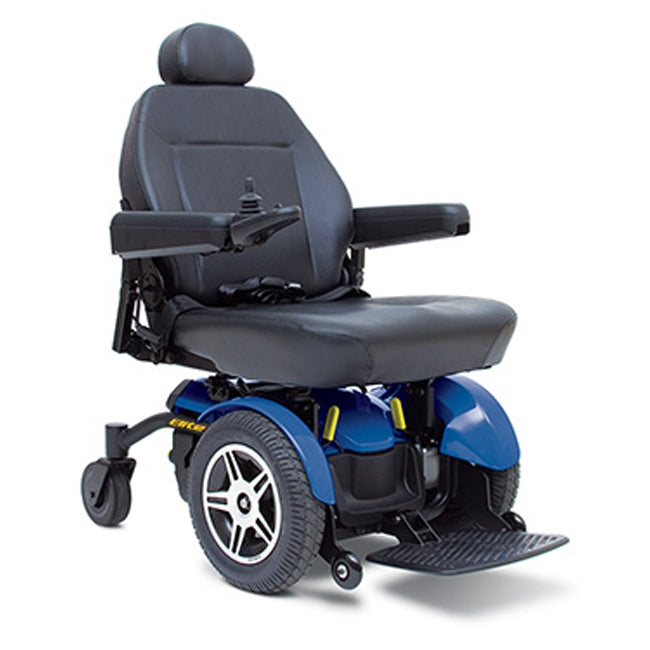

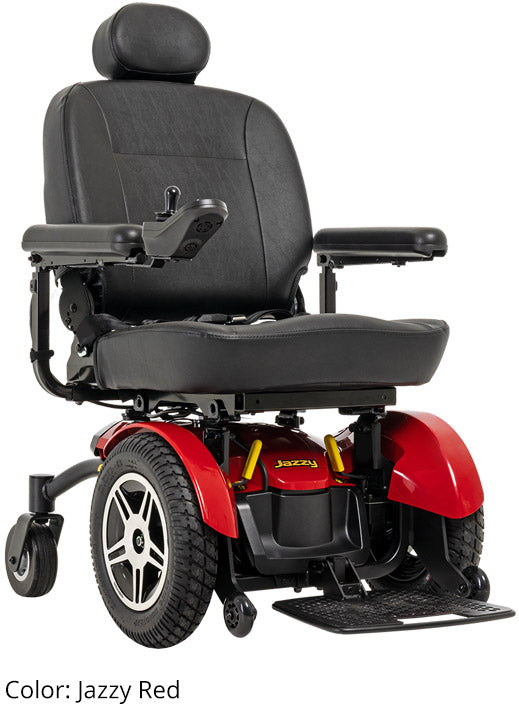

Pride Jazzy Chair Elite 14 Powerchair
The Jazzy Elite 14 offers a 300 lbs. weight capacity and excellent performance in a stylish, highly maneuverable package.The Jazzy Elite 14 is a premium, indoor/outdoor power chair for those wanting independence coupled with excellent performance.
The user will appreciate the patented mid-wheel design and two-motor front wheel drive that promotes easy maneuverability. With a 300 lb capacity, this power chair can travel up to a speed of 4 mph. The Jazzy Elite 14 combines safety, styling, and comfort in one great package! The low profile and state-of-the-art power controls provide the convenience and access one expects during daily activities.
The overall width of the sporty looking Jazzy is less than 25" and the tight turn radius of 24" expand the places you can comfortably go. We like the off-board 50 amp charger and the 14" knobby tires to assure optimal weight distribution and traction.
Features:
- Two-motor, front-wheel drive
- 14 inch knobby tires and optimum weight distribution provide superior traction
- NF-22 batteries for maximum range
- 5 amp, off-board charger
- Top Speed: 4.20 mph
- Turning Radius: 24.00"
- Heaviest Piece: 89 lbs.
- Battery Charge Distance: 9.80 miles
- Weight capacity: 300 lbs.
- Weight: 224 lbs.
Technical Specs
Specifications for the Jazzy Elite 14
| Drive Range: | 9.80 miles |
| Top Speed: | 4.00 mph |
| Disassembles: | No |
| Heaviest Piece: | 99 lbs. |
| Turning Radius: | 24.00" |
| Ground Clearance: | 3.00" |
| Tire Type: | Solid |
| Maximum Incline Rating: | 6 º |
| Drive Type: | Front Wheel Drive |
| Foldable: | Yes |
| Armrest Options: |
Height Adjustable Flip-Back |
| Legrest Options: |
Footplate Elevating Legrests Swing-Away Legrests |
| Seat Options: |
Reclining Back High-Back Seat Captain's Seat |
| Power Chair Seat Width: |
18" 20" 22" |
| Seat Depths: |
18" 19" 20" 21" 22" |
| Seat to Floor Height: | 20.00 |
| Maximum Seat to Floor Height: | 22.00" |
| Overall Width: | 24.25" |
| Overall Length: | 35.50" |
| Joystick Options: |
Right Left Swing-Away |
| Adjustable Hanger Brackets: | Yes |
| Adjustable Angle Footplates: | Yes |
| Dampening Adjustment: | Yes |
| Battery Type: | 22NF |
| Batteries Included: | Yes |
| Battery Charger Type: | Off Board |
| Drive Wheel Size: | 14" |
| Anti-Tip Size: | 3" |
| Caster Size: | 6" |
| Rear Caster Size: | 6" |
| Caster Type: | Solid |
| Base Weight: | 99.00 lbs. |
| Standard Seat Weight: | 52.00 lbs. |
| Battery Pack Weight: | 74.00 lbs. |
| Weight Without Batteries: | 161.00 lbs. |
| Controller Type: | Standard electronic |
| Seat Width Ranges: |
18" - 19" 20" - 21" 22" - 23" |
Wheelchair Measuring Guide
Wheelchair Measuring Guide
Wheelchair Measurements:
- Hip Width:
Use this to figure seat width if it is the widest point. - Widest Point:
Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style. - Chest Width:
Measure the widest point of the thorax just below the armpit. This measurement may influence system width or back width. - Heel to Knee:
Use this for legrest extensions and seat height. - SRP to Knee (Seat Reference Point to Knee):
This will determine the seat depth. - Elbow to SRP (Elbow to Seat Reference Point):
Measure this width with the arm in a 90-degree angle at the elbow and the shoulder in a neutral position. - Shoulder Height:
This will determine the height and the style of the back panel or the start for a custom back. - Head Height:
This will help determine the proper headrest height.
