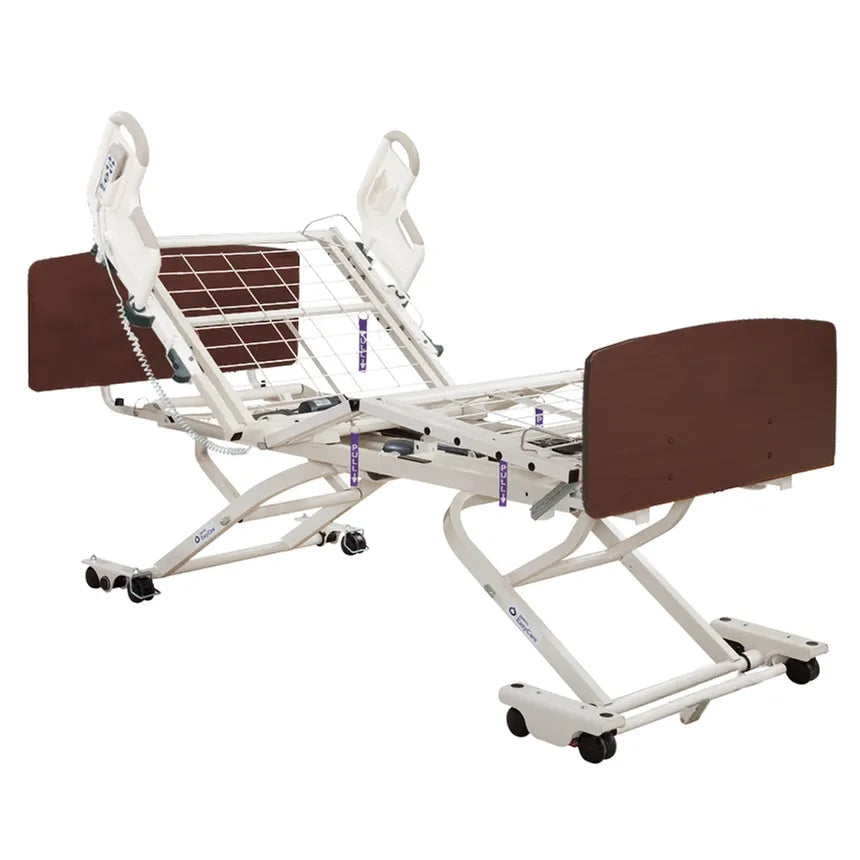

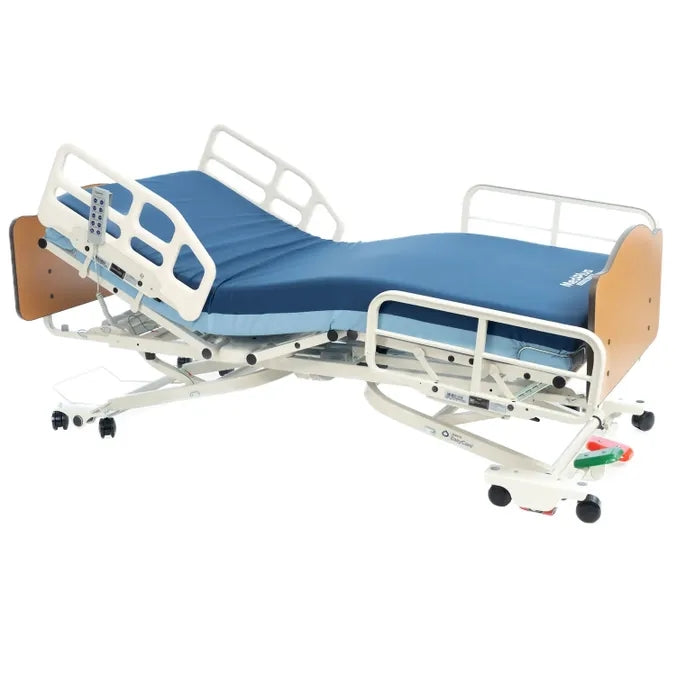

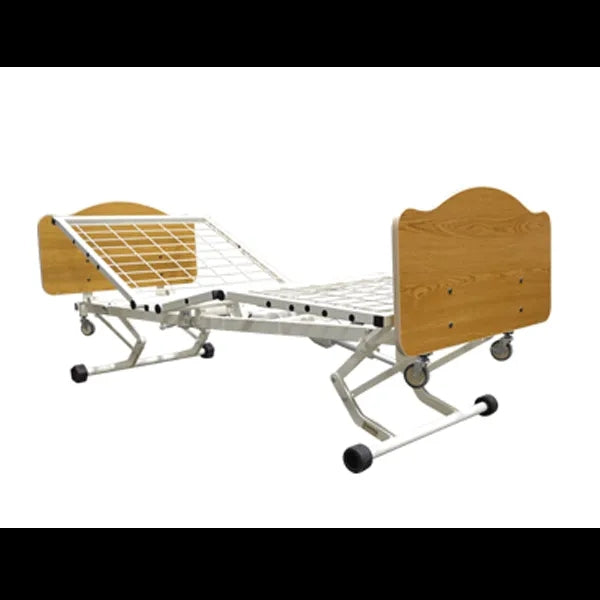

Joerns EasyCare® Home Care Bed — 600 lb, Patented Arched Leg, AdvanceCare Positioning, 7"–30" Height Range, Connexio-Ready

The industry standard. Configurable for any budget. Built to outlast the competition. The Joerns EasyCare® is the top-selling, industry-standard long-term care bed frame — fully configurable to meet a wide range of resident and caregiver needs at price points for budgets of any size. A 600 lb safe working load and a 7" to 30" height range cover the full spectrum of care needs, from ultra-low fall-mitigation positioning to ergonomic caregiver working height. The EasyCare's patented arched leg design is what enables that industry-leading low height — a structural innovation most competing bed frames cannot match. AdvanceCare positioning, included standard, delivers 30°/45° back angle comfort pauses and a one-touch AutoTransfer function that personalizes the bed height to each resident's specific mobility needs, improving both sleep, circulation, and respiratory therapy adherence while increasing caregiver efficiency. The toroidal steel sleep deck structure is engineered up to 30 times stronger than the channel and angle iron frames used in competing beds. Width expands to 39" or 42" and length extends from the standard 84.25" up to 92.25" — accommodating a wide range of resident body types in a single configurable frame. Optional LED SafeLight, staff control, battery backup, and Connexio® smart network connectivity for facility-wide asset and care management. 15-year frame warranty, lifetime welds. Authorized Joerns dealer.

✔ 600 lb Safe Working Load
✔ 7" to 30" Height Range — Fall Mitigation to Ergonomic Caregiver Height
✔ Patented Arched Leg Design — Industry-Leading Low Bed Height
✔ AdvanceCare Positioning Standard — 30°/45° Comfort Pauses & One-Touch AutoTransfer
✔ Toroidal Steel Sleep Deck — Up to 30x Stronger Than Competitor Channel/Angle Iron Frames
✔ Width Expansion: 35" Standard, 39" or 42" Optional
✔ Length Extension: 84.25" Standard, up to 92.25" With Extensions
✔ Hand Pendant With Back-Lit Tactile Buttons — Visible in Dark Rooms
✔ Sleep Mode — Saves 80% More Power When Bed Is Not in Use
✔ Optional LED SafeLight — 3 Intensity Levels for Nighttime Floor Visibility
✔ Optional Staff Control — Function Lockout, Trendelenburg/Reverse Trendelenburg, Gravity Assist
✔ Optional Battery Backup — Built-In Onboard Charging
✔ Connexio®-Ready — Real-Time Asset, Staff & Resident Visibility
✔ HBSW Entrapment Compliant
✔ 15-Year Frame Warranty / Lifetime Welds / 4-Year Electrical
✔ Authorized Joerns Dealer — Wheelchair Authority

---

Product Specifications

Product Name	Joerns EasyCare® Home Care Bed
Manufacturer	Joerns Healthcare
Frame Mobility	Roll-in-Low (RIL) or Roll-any-Height (RAH)
Mobility Lock Mechanism	RIL: large high-grip rubber feet + locking casters / RAH: CareLock dual foot pedals
Safe Working Load	600 lbs
Height from Floor	7" – 30"
Sleep Deck Dimensions (Standard)	35" × 80"
Width Expansion Options	Integrated: 35", 39", 42" / Fixed Width Accessory: 42"
Length Extension Options	4" or 8" — overall bed length 84.25" / 88.25" / 92.25"
Back Angle Range	0° – 65°
Knee Angle Range	0° – 35°
Product Weight	RIL: 220 lbs / RAH: 230–279 lbs
Sleep Deck Style	Toroidal steel therapeutic grid — up to 30x stronger than channel/angle iron frames
Actuators	4-actuator system
Casters	Heavy-duty 3" diameter
Horizontal Movement	Less than 1" during height adjustment
Underbed Clearance	23¾"
Power Saving Standby	0.5W at idle; Sleep Mode saves 80% more power when not in use
Circuit Protection	Auto-reset current sensor
Backup Battery Option	Onboard charging — sold separately
Standard Pendant Functions	Hi-Low, Back, Knee, One-Touch Comfort Chair, One-Touch AutoTransfer; back-lit tactile buttons
Comfort Pauses	30° and 45° standard with backlit control
Staff Control Functions (Optional)	Function lockout, programmable AutoTransfer height, programmable Gravity Assist, Trendelenburg/Reverse Trendelenburg, SafeLight control (3-level programmable)
Compliance	HBSW entrapment compliant; conforms to IEC 60601-1, 60601-1-2, 60601-2-52; UL60601-1; CAN/CSA C22.2 No. 601.1 & 601.2.38
Warranty	4 years electrical components / 15 years bed frame / Lifetime welds

---

Key Features

Patented Arched Leg — Industry-Leading Low Height

The EasyCare's patented arched leg design (US Patent 6473922) is the structural innovation that allows the bed to reach a 7" minimum floor height — among the lowest available in a fully configurable institutional bed frame. Most competing bed frames use straight leg designs that cannot achieve comparable low heights without compromising structural stability or weight capacity. The arched leg geometry maintains the EasyCare's 600 lb safe working load at all height positions while achieving a height range that significantly reduces fall injury severity for residents at risk of unsafe bed exit.

AdvanceCare Positioning — Standard, Not Optional

Unlike many competing beds where advanced positioning is a costly add-on, AdvanceCare positioning comes standard on every EasyCare bed. The 30° and 45° back angle comfort pauses give residents pre-set, repeatable positions that improve sleep quality, circulation, and adherence to respiratory therapy protocols that often specify a target head elevation. The one-touch AutoTransfer function automatically moves the bed to the optimal height and position for safe resident transfer — reducing the multiple manual pendant adjustments caregivers would otherwise need to make before every transfer, and standardizing the transfer position across different caregivers and shifts.

Toroidal Steel Sleep Deck — 30x Stronger

The EasyCare's sleep deck uses a toroidal steel structure — a ring-based geometric design that distributes structural loads far more efficiently than the flat channel and angle iron construction used in many competing bed frames. Joerns rates this construction as up to 30 times stronger than competitor designs, translating directly into the bed's 600 lb safe working load and its long-term structural reliability, reflected in the 15-year frame warranty and lifetime weld warranty.

Configurable Width & Length

The EasyCare's sleep surface expands from a standard 35" width to 39" or 42" via integrated width expansion or a fixed-width accessory — and from a standard 84.25" overall length to 88.25" or 92.25" with 4" or 8" length extensions. This configurability allows a single bed frame platform to serve residents across a wide range of body sizes without requiring separate specialty bed purchases, simplifying facility equipment inventory and procurement.

Hand Pendant With Back-Lit Tactile Buttons

The standard hand pendant uses back-lit tactile buttons designed specifically for visibility and usability in dark rooms — important for residents adjusting bed position at night without needing to turn on room lighting. Pendant functions include Hi-Low height, Back angle, Knee angle, one-touch Comfort Chair positioning, and one-touch AutoTransfer.

Sleep Mode — 80% Power Savings

Sleep Mode reduces the bed's power draw by up to 80% when not in active use, dropping standby consumption to just 0.5W at idle. For facilities operating dozens or hundreds of beds simultaneously, this power efficiency feature provides a measurable reduction in facility-wide electrical costs over the bed's service life.

LED SafeLight (Optional)

The optional LED SafeLight provides under-bed floor illumination in three soft intensity settings, helping residents safely navigate to the floor at night without needing to turn on full room lighting — a meaningful fall prevention feature for residents who get up during the night for toileting or other needs. With staff control, the SafeLight intensity is programmable across three levels to match facility lighting protocols.

Optional Staff Control & Connexio® Smart Network

The optional staff control adds clinical-grade functions beyond standard resident controls: function lockout to prevent residents from making unsafe adjustments, programmable Gravity Assist and Trendelenburg/Reverse Trendelenburg positioning for clinical needs, and personalized AutoTransfer height calibrated to each individual resident. For facilities managing larger bed fleets, the EasyCare is Connexio®-ready — Joerns' smart network platform that provides real-time visibility into bed status, asset location, staff activity, and resident positioning data across the facility, supporting both operational efficiency and care quality initiatives.

---

EasyCare vs. WeCare — Choosing the Right Joerns Bed

Feature	Joerns EasyCare	Joerns WeCare
Safe Working Load	600 lbs	450 lbs
Height Range	7" – 30"	8" – 28"
Delivery	Standard institutional delivery	One-person split-frame delivery
Positioning	AdvanceCare standard — comfort pauses, AutoTransfer	AutoContour standard
Width Options	35" / 39" / 42"	35" / 39" / 42" (CareWide)
Smart Connectivity	Connexio-ready	Not specified
Frame Warranty	15 years	7 years
Best For	Long-term care facilities; higher capacity; full institutional feature set	Home care with delivery logistics constraints; budget-conscious deployments

Not sure which bed is right for your facility or home care setting? Call 1-866-218-0902 — our specialists can help match the bed to your delivery logistics, patient weight, and budget.

---

Who This Bed Is For

• Long-term care facilities seeking the industry-standard bed frame with proven reliability and a 15-year structural warranty
• Patients up to 600 lbs requiring a higher-capacity bed than standard home care frames provide
• Facilities prioritizing fall prevention through bed height management — the 7" minimum height is among the industry's lowest
• Care environments needing standardized, repeatable resident positioning — AdvanceCare's comfort pauses and AutoTransfer support consistent care across shifts
• Facilities managing large bed fleets that benefit from Connexio smart network connectivity for asset and care visibility
• Residents requiring respiratory therapy or circulation management where precise, repeatable back angle positioning matters clinically
• Budget-conscious purchasers who want a fully configurable platform that scales from basic to advanced feature sets as needs and budget allow

---

Available Accessories

• Width Expansion — 42" integrated or fixed-width accessory
• Length Extension — 4" or 8" options
• Staff Control — function lockout, Trendelenburg/Reverse Trendelenburg, Gravity Assist, SafeLight control
• LED SafeLight — under-bed nighttime illumination, 3-level programmable
• Built-In Battery Backup — onboard charging
• Assist Devices — F14, F025 Assist Handle, F026 Pivoting Assist Handle, F028 Deluxe Assist Handle, F18 SoftCare Deluxe Assist Device
• Trapeze Patient Helper — overhead bar for resident repositioning and transfer assist
• Multiple Panel Style and Finish Options — head and foot panel choices
• Connexio® Smart Network — facility-wide asset and care management connectivity

Call 1-866-218-0902 for accessory availability and configuration guidance.

---
