Invacare Tracer EX2 Deluxe Wheelchair
Manuals, Literature
Product Brochure
Product BrochureProduct Code: EX2
$312.00
Description

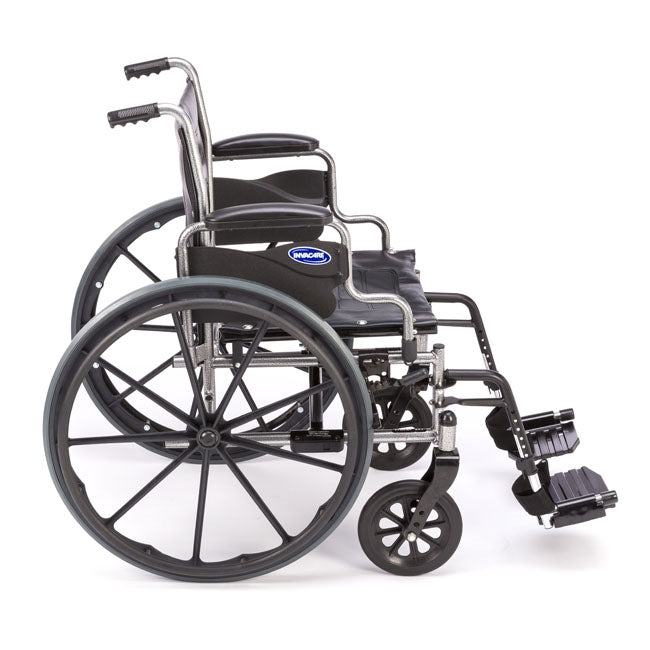

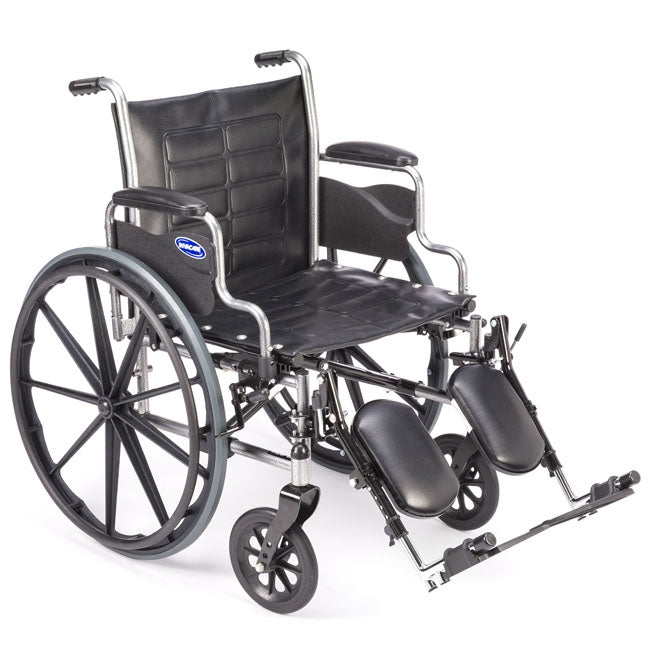

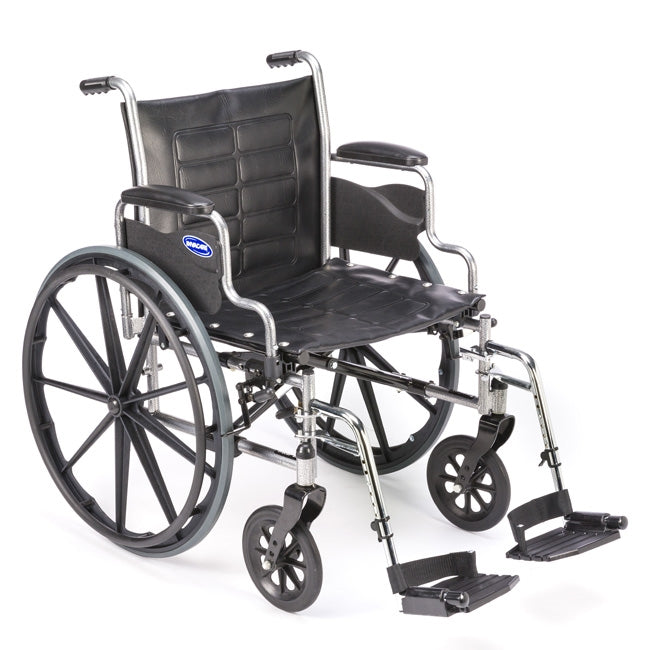

Invacare Tracer EX2 Deluxe Wheelchair
The Invacare Tracer EX2 Deluxe wheelchair is a high quality standard wheelchair that offers options not available on any other standard weight chair that we carry, including a hemi seat-to-floor height, for those users who propel with their feet. Choose from desk length or full length arm rests and a full range of accessories. Standard features include 8" solid rubber casters, composite handrims, black vinyl upholstery, padded armpads and wheel locks. The frame is warranted for a lifetime.Features
- Removable armrests and swing-away footrests standard
- 16", 18" and 20" widths at no extra charge
- Solid urethane rear tires and 24" composite wheels
- Full range of options including oxygen tank holders and multiple legrests
- Weight capacity: 250 lbs.
- Weight: 36 lbs.
Technical Specs
Specifications for the Tracer EX2 Deluxe
| Frame Type: | Folding |
| Seat Widths: |
16" 18" 20" |
| Seat Depths: | 16" |
| Overall Width: | 24.5" to 28.5" |
| Overall Width Open - Add to Seat Width: | 8.50" |
| Seat to Floor Height: | 19.50" |
| Hemi Height Option: | No |
| Back Height: | 16" |
| Angle-adjustable Back: | No |
| Fold-down back for easy transport: | No |
| Reclining Back Option: | No |
| Rear Wheel Size: | 24" |
| Pneumatic (air-filled) tire option: | No |
| Quick-Release Axles: | No |
| One-Arm Drive Option: | No |
| Armrest Options: |
Fixed Height Removable |
| Legrest Options: |
Swing Away Elevating |
| Removable Legrests: | Yes |
| Expedited Shipping Available: | Yes |
| Product Weight: | 36 |
Wheelchair Measuring Guide
Wheelchair Measuring Guide
Wheelchair Measurements:
- Hip Width:
Use this to figure seat width if it is the widest point. - Widest Point:
Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style. - Chest Width:
Measure the widest point of the thorax just below the armpit. This measurement may influence system width or back width. - Heel to Knee:
Use this for legrest extensions and seat height. - SRP to Knee (Seat Reference Point to Knee):
This will determine the seat depth. - Elbow to SRP (Elbow to Seat Reference Point):
Measure this width with the arm in a 90-degree angle at the elbow and the shoulder in a neutral position. - Shoulder Height:
This will determine the height and the style of the back panel or the start for a custom back. - Head Height:
This will help determine the proper headrest height.
