Colours Eclipse Ultralight Wheelchair
We highly recommend, that you print the attached the order form below, Its loaded with relevant information. Your can Email or Fax (941-488-0011). Or use our website to place your order. Should you need assistance, our trained staff is ready to help!
Manuals, Literature Manuals, Literature
Owners Manual
Order Form
Frame Colors
Manuals, Literature Manuals, Literature
Owners Manual Order Form Frame ColorsProduct Code: ECLIPSE
$1,970.00
Description

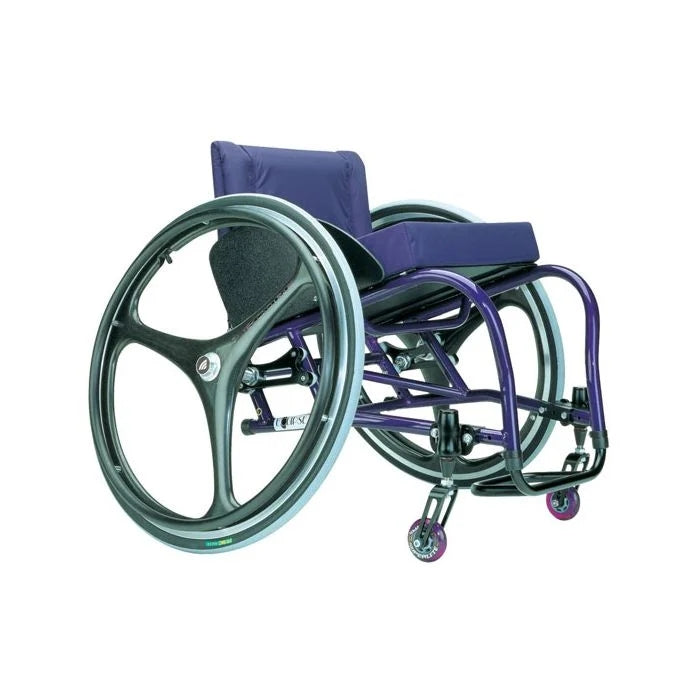

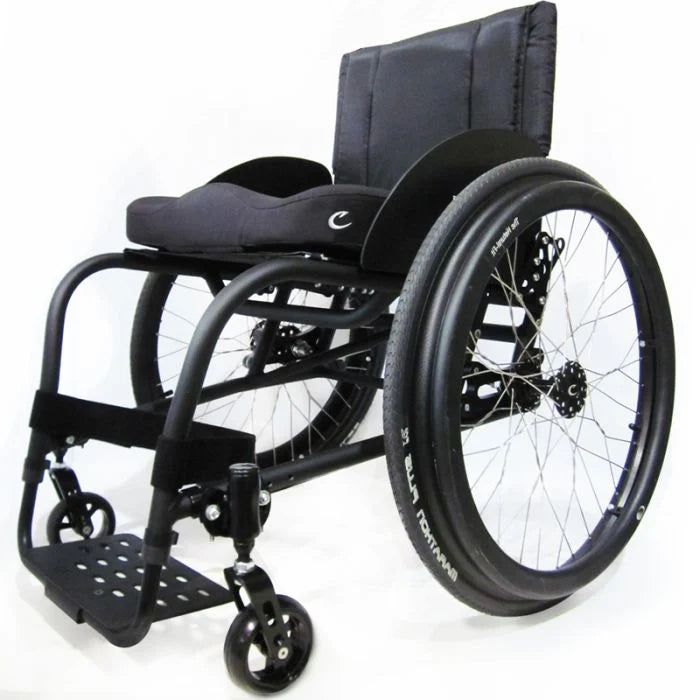

Eclipse Ultralight Wheelchair by Colours
The Eclipse everyday wheelchair helps you overcome the insecurities in life and allows you to concentrate on the many features that the Eclipse has to offer. By not having to worry about your wheelchair, you can get on with the business of living and fulfilling your potential.Active and Rehab Usage The Eclipse comes standard with a no-camber, tapered leg frame. A no-taper frame is also available and to decrease overall width by 3 full inches, choose the optional inside-mount axle plates. The Eclipse offers total adjustability and flexibility in setups that few chairs can match.
Compactability The Eclipse offers not only a design to fit your bodily curves; it was made for convenience and easy compact handling. The versatile inside mount axle plates enables the Eclipse to get through even the narrowest bathroom doorways. Quick release front and rear axle pins options are available on the entire line of the Colours 'N Motion wheelchairs. All of these features combined with dual camber settings available from 2 to 6 degrees will provide you with the compact versatility that you need for daily activities.

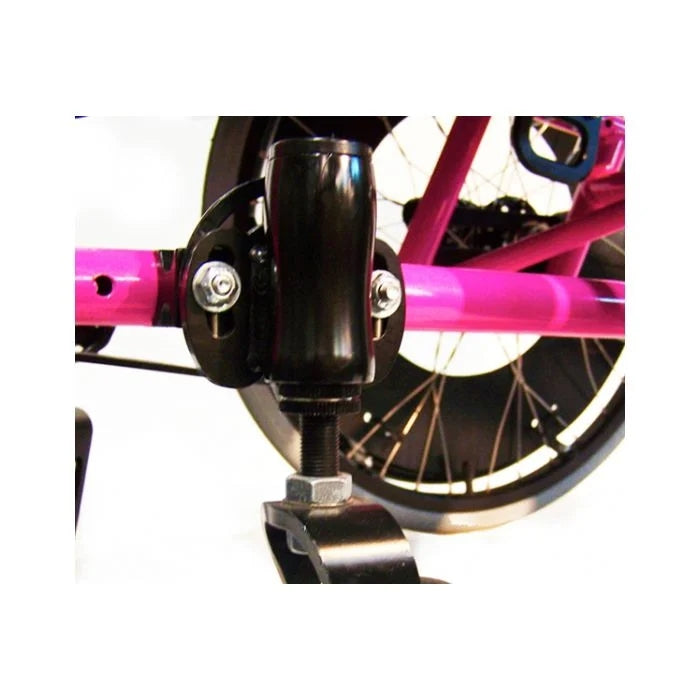

Caster Assembly Our front caster assemblies come standard with either three or five inch caster wheels and an option of front quick release axle pins. Often times changing your front seat height is crucial for finding your optimal positioning. With the Eclipse the adjustability is endless within your front caster assembly. You can even add springs to your casters to help absorb some of uneven terrain that you may face during your daily activities.
Features
- Fully Customizable
- One Slot Reversible Axle Plate

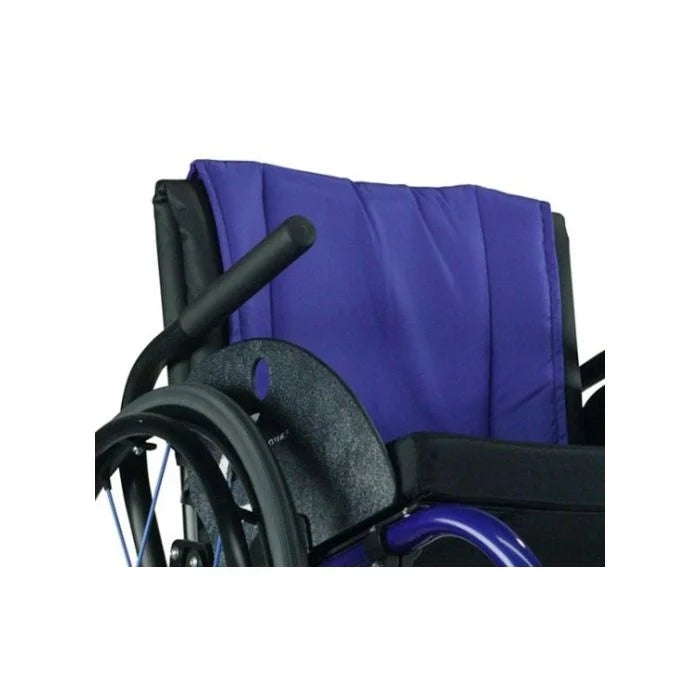

- Standard Folding Adjustable Angle Backrest
- Anodized Black Handrims
- 24" Radial Spoked Wheels
- Black Wall High-Pressure Tires
- Rear Quick-Release Axle
- 3", 4", or 5" Casters
- 20 Custom Colors to Choose From
- Black Nylon Upholstery
- 1 in. tubing (A7003) Rigid Alum. Frame
- 2, 4, 6, Degrees Camber Angle
- Top, Bottom or No Taper Frame
- Adjustable Center Of Gravity
Technical Specs
Product Specifications
| Weight Capacity | 250 lbs. |
| Product Weight | 17 lbs. |
| Seat Width | 14" - 18" |
| Seat Depth | 13" - 20" |
| Seat-to-Floor Height | 14.5" - 19.5" |
| Overall Width | 21" - 27" |
| Overall Length | 26" - 32" |
| Overall Height | 28" - 34" |
| Front Wheel Size | 3" - 5" |
| Rear Wheel Size | 24" |
| Axle Type | Quick Release |
| Armrest | Desk Length, Flip Back |
| Back Height | 8" - 18" |
| Upholstery Type | Nylon |
| Upholstery Color | Black - Red |
| HCPCS | K0005 |
| Warranty on Frame | Lifetime Limited |
| Shipping Weight | 30 lbs. |
| Box Length | 30" |
| Box Width | 24" |
| Box Height | 36" |
| Weight | 17.5 lbs. |
| Backrest Height | 8" - 20" |
| Upholstery | Nylon |
| Frame Type | Rigid |
| Camber | 0 - 14 |
| Warranty | Colours in Motion warrants all rigid hardware for thelifetime of its registered owner |
Wheelchair Measuring Guide
Wheelchair Measuring Guide
Wheelchair Measurements:
- Hip Width:
Use this to figure seat width if it is the widest point. - Widest Point:
Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style. - Chest Width:
Measure the widest point of the thorax just below the armpit. This measurement may influence system width or back width. - Heel to Knee:
Use this for legrest extensions and seat height. - SRP to Knee (Seat Reference Point to Knee):
This will determine the seat depth. - Elbow to SRP (Elbow to Seat Reference Point):
Measure this width with the arm in a 90-degree angle at the elbow and the shoulder in a neutral position. - Shoulder Height:
This will determine the height and the style of the back panel or the start for a custom back. - Head Height:
This will help determine the proper headrest height.
