Afikim Afiscooter S 4-Wheel Recreational Scooter — 500 lb, 1400W
Afikim Afiscooter S 4-Wheel Recreational Scooter — 500 lb, 1400W
Product Code: FTS

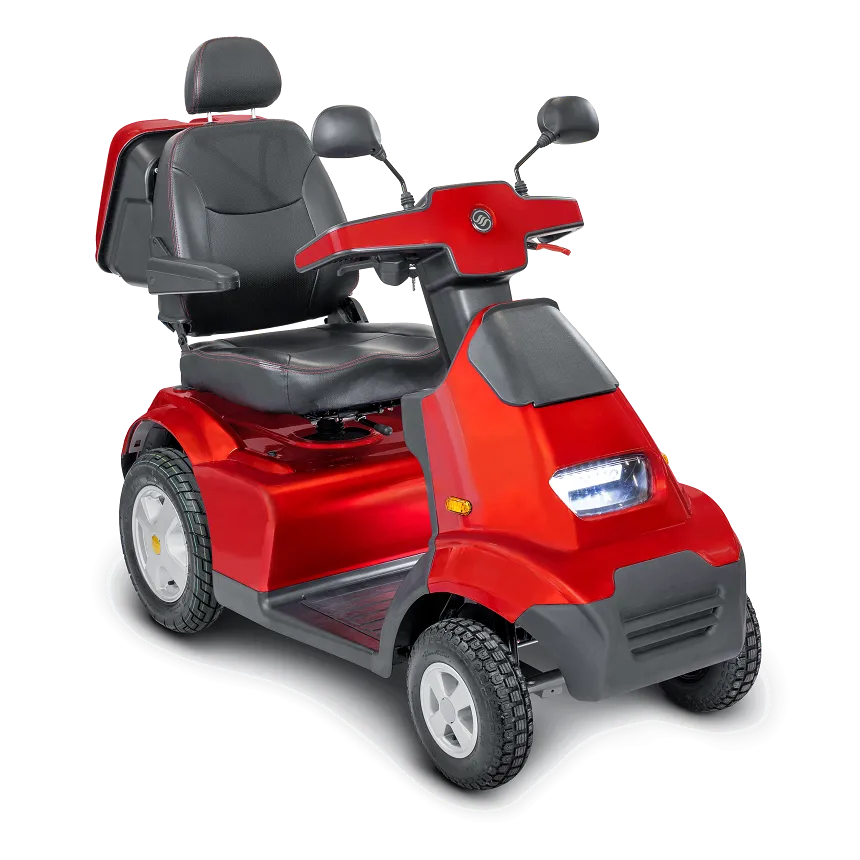

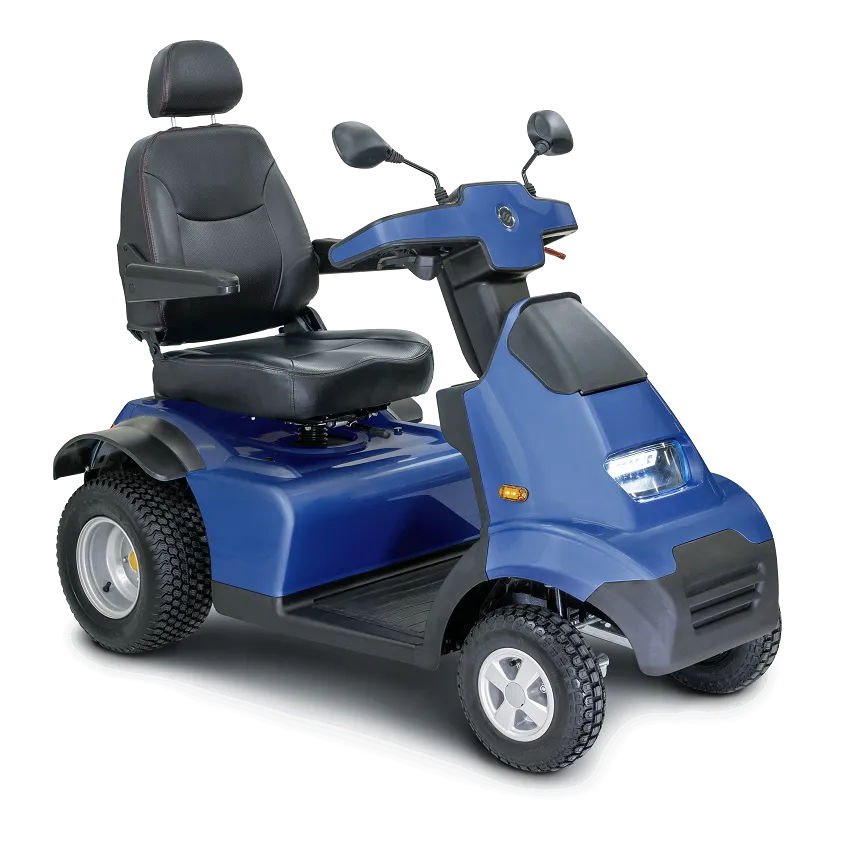

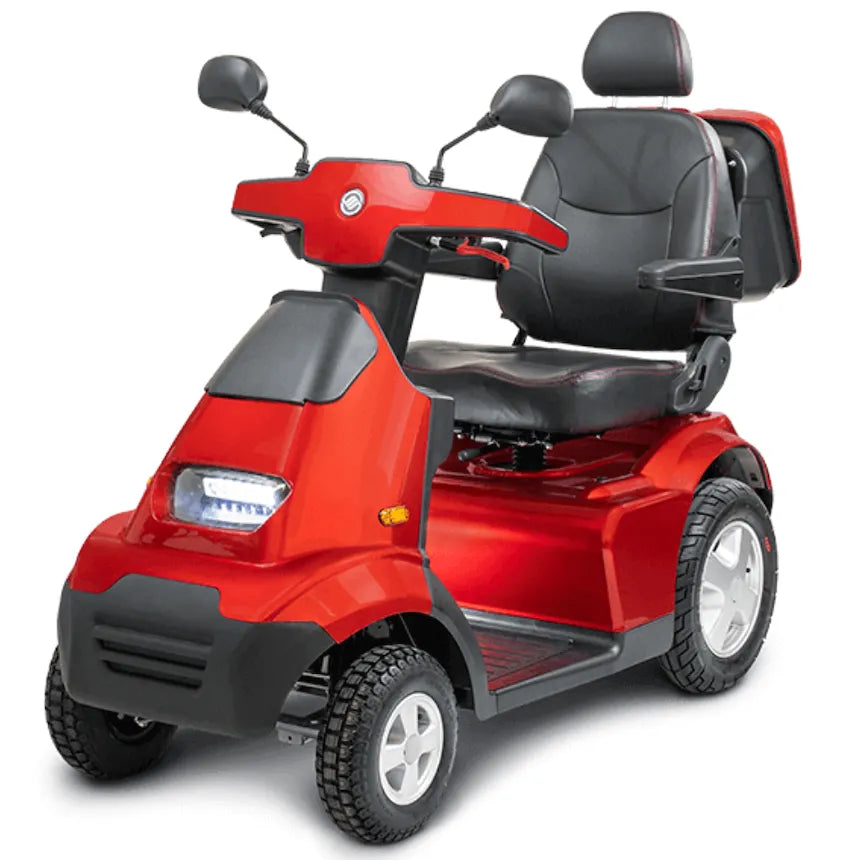

The Afikim Afiscooter S 4-Wheel (Afiscooter S4) is Afikim's flagship full-size recreational scooter — built for riders who want the most power, range, and capacity in the Afiscooter line. A 1,400-watt rear-wheel drive motor reaches 9.3 mph and climbs up to 11° grades, 10" rear and 6" front pneumatic tires on alloy wheels ride over rough pavement and grass, and full front and rear suspension with 5" of ground clearance keeps the ride smooth. 500 lb capacity · up to 36–38 miles per charge · 20" orthopedic captain's seat with adjustable back, headrest, and armrests (22", 24", and two-seat options) · lockable front and rear storage · 2 USB ports · full LED lighting · dual mirrors. Available in Red, Blue, Silver, and Dark Grey.
What Defines This Scooter
Size & Fit
Choose single or two-person seating. Measure your garage, gate, and any doorways or ramps the scooter will use.
| Measurement | Single Seat | Two-Person Seat |
| Weight Capacity | 500 lbs | 500 lbs |
| Seat Width | 20" std (22" / 24" optional) | 33" |
| Overall Length | 65" | 65" |
| Overall Width | 27" (35" with golf tires) | 37" |
| Overall Height | 49" (65" with canopy) | 49" (65" with canopy) |
| Weight With Batteries | 342 lbs | 364 lbs |
| Weight Without Batteries | 238 lbs | 260 lbs |
| Turning Radius | 90" | 90" |
| Ground Clearance | 5" | 5" |
Full Specifications
| Manufacturer | Afikim Electric Vehicles |
| Model | Afiscooter S 4-Wheel (S4) |
| Model Number | FTS4 |
| Scooter Type | 4-wheel full-size recreational / outdoor scooter |
| Weight Capacity | 500 lbs (250 kg), including driver |
| Weight With Batteries | 342 lbs (single seat) · 364 lbs (two-person seat) |
| Weight Without Batteries | 238 lbs (single seat) · 260 lbs (two-person seat) |
| Option Weights | Canopy +33 lbs · wide wheels +26 lbs |
| Maximum Speed | 6.2–9.3 mph (10–15 km/h) |
| Range Per Charge | Up to 36–38 miles |
| Climbing Angle | 8° (15%) at 9.3 mph · 11° (20%) at 7.5 mph |
| Motor | 24V DC · 1,400W · rear-wheel drive |
| Controller | SD 140A |
| Batteries | Two 12V · supports up to 105Ah · included and installed |
| Charger | 8A off-board · charging port on tiller · included |
| Suspension | Full front and rear with shock absorbers |
| Tires | Pneumatic on alloy wheels · 4.10/3.50-6" front · 3.50-10" rear · golf tires optional |
| Seat | 20" orthopedic captain's seat · swivels · adjustable backrest, headrest & armrests · 22", 24", and two-person options |
| Tiller | Adjustable delta tiller |

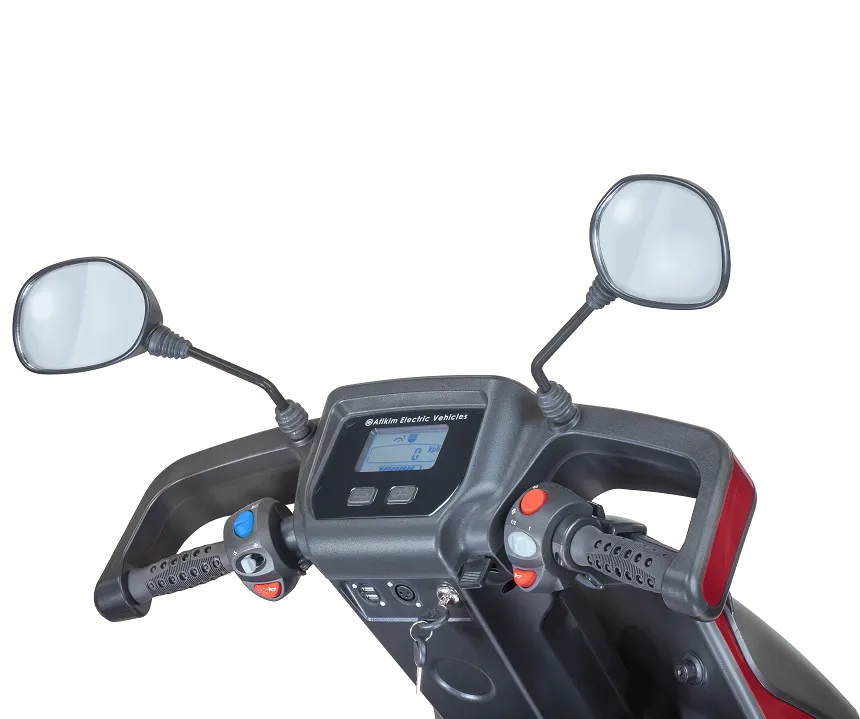

| Control Panel | Fully lit · displays speed and miles traveled |
| Safety | Panic sensor (shuts off if throttle is over-squeezed) · PU shock-absorbing front bumper · protective shrouds |
| Lighting | Full LED package · lights dim when stopped |
| Mirrors | Dual — standard |
| Storage | Lockable front and rear storage boxes · built-in cup holder |
| USB Charging | Two USB ports |
| Disassembles | No — not compatible with standard vehicle scooter lifts |
| Use | Outdoor only |

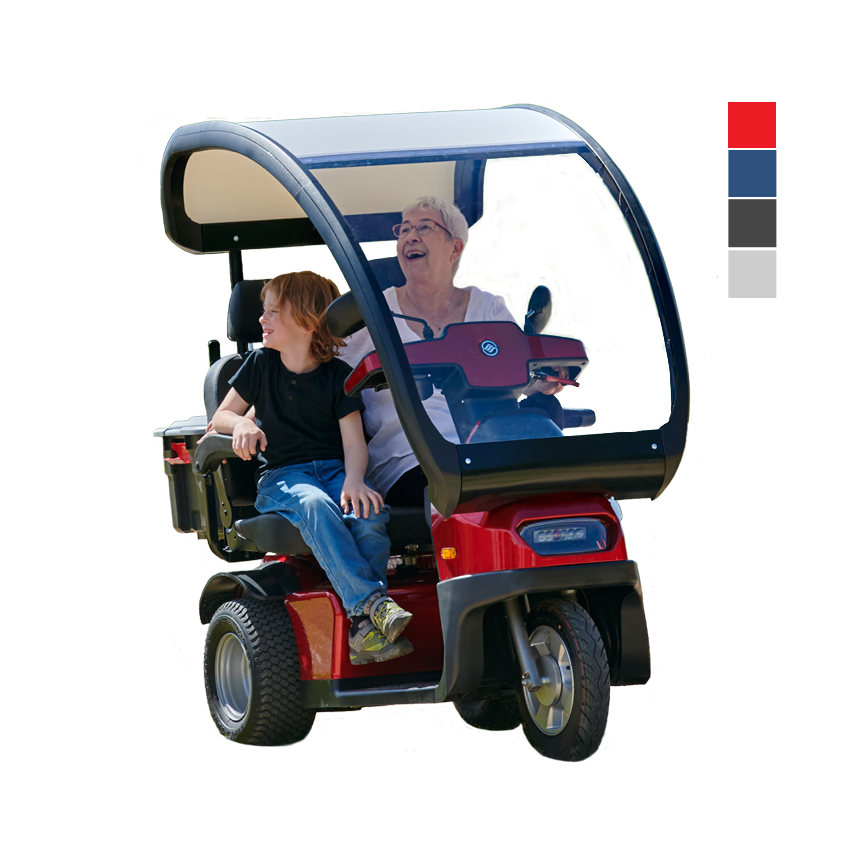

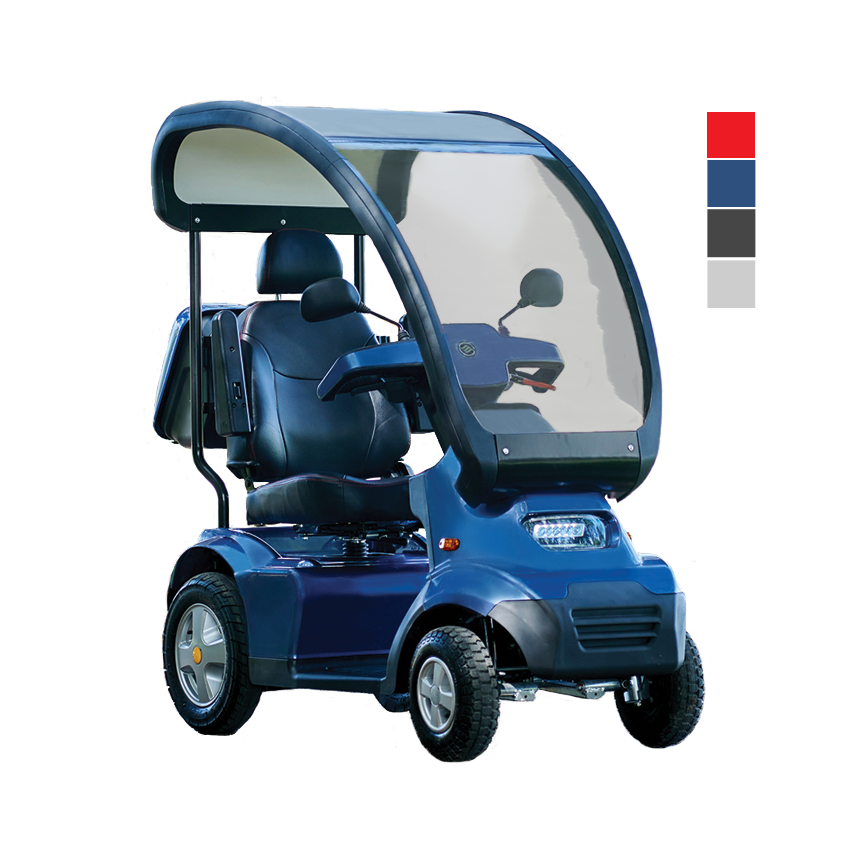

| Colors | Red · Blue · Silver · Dark Grey |
| Options | Single or double canopy · golf bag holder · golf tires · wide wheels · 22"/24" wide seat · two-person seat · cane holder · safety belt · foot pedal throttle |
| Warranty | Manufacturer limited warranty — call for current coverage details |
Where the Afiscooter S4 Belongs
Communities, Parks & Long Rides
The S4 is a personal vehicle for life outdoors — 55+ communities, neighborhood loops, waterfront paths, park trails, and trips to nearby shops. With 36–38 miles of range and a 1,400-watt motor, you can ride all day and still make it home up the hill.
On the Golf Course

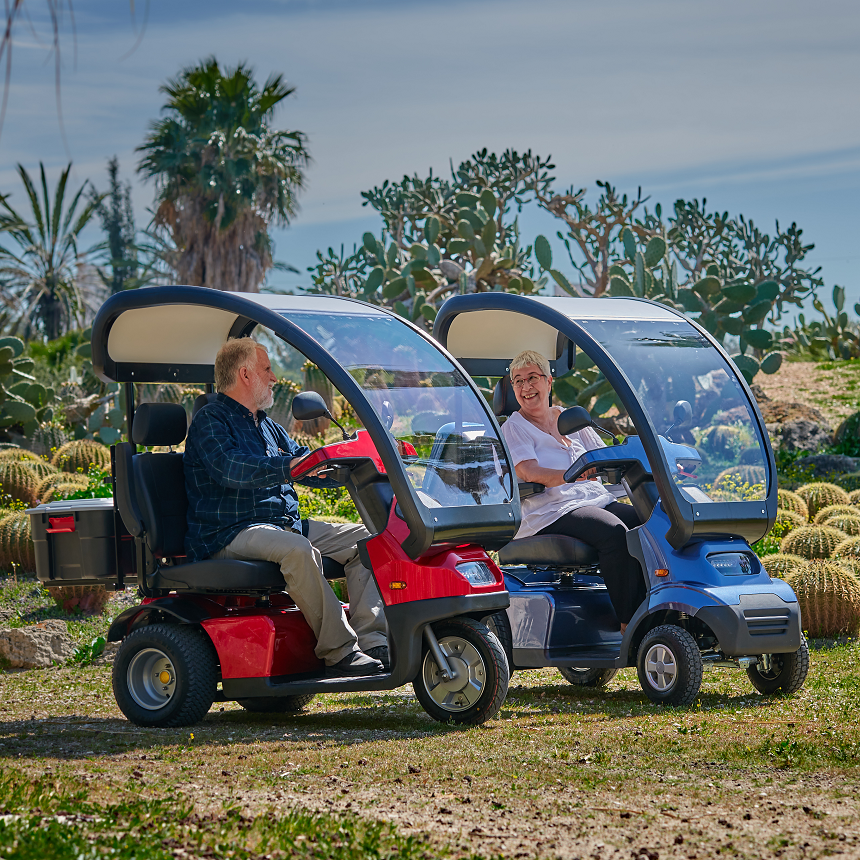

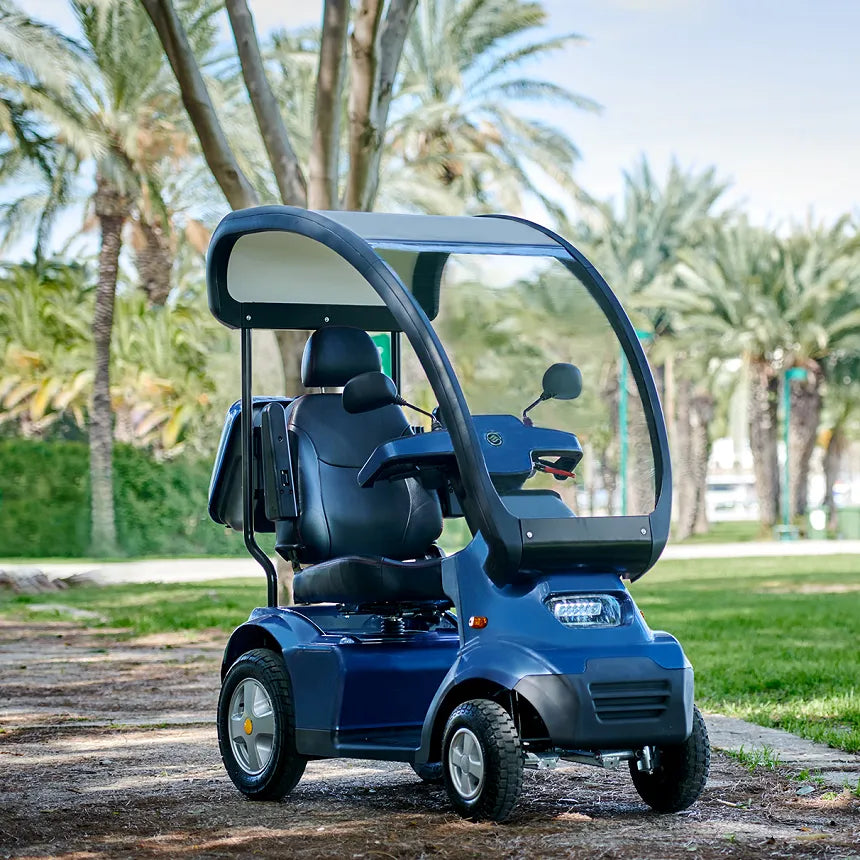

Add golf tires, the golf bag holder, and a canopy and the S4 doubles as a personal golf cart. Golf tires widen the scooter to 35", so confirm your course's cart and mobility-device rules before you play.

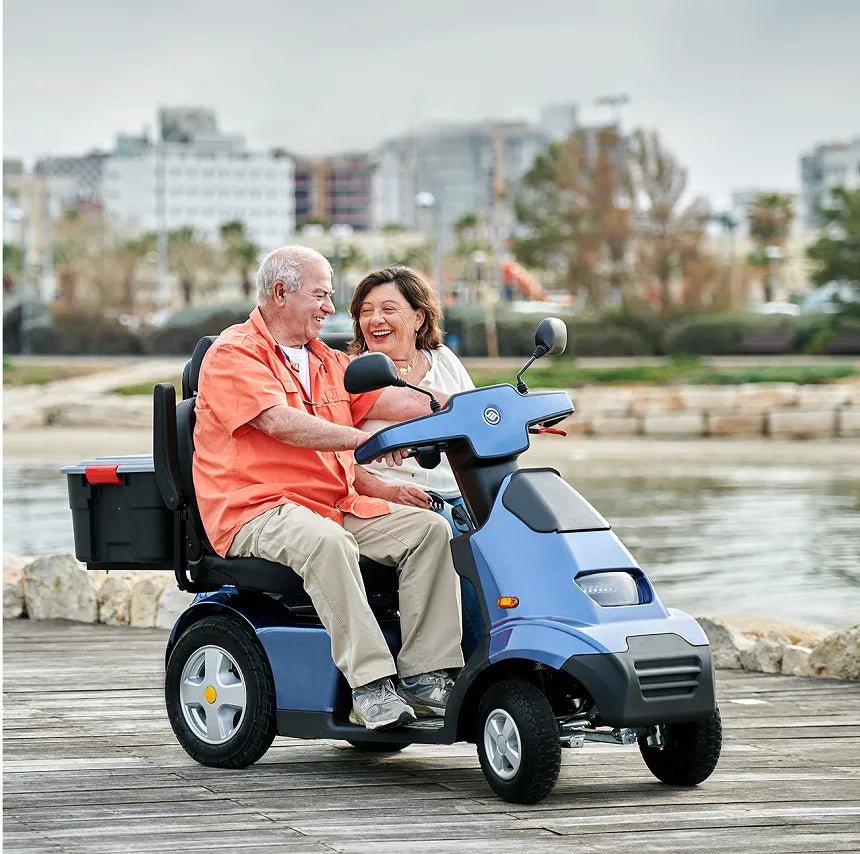

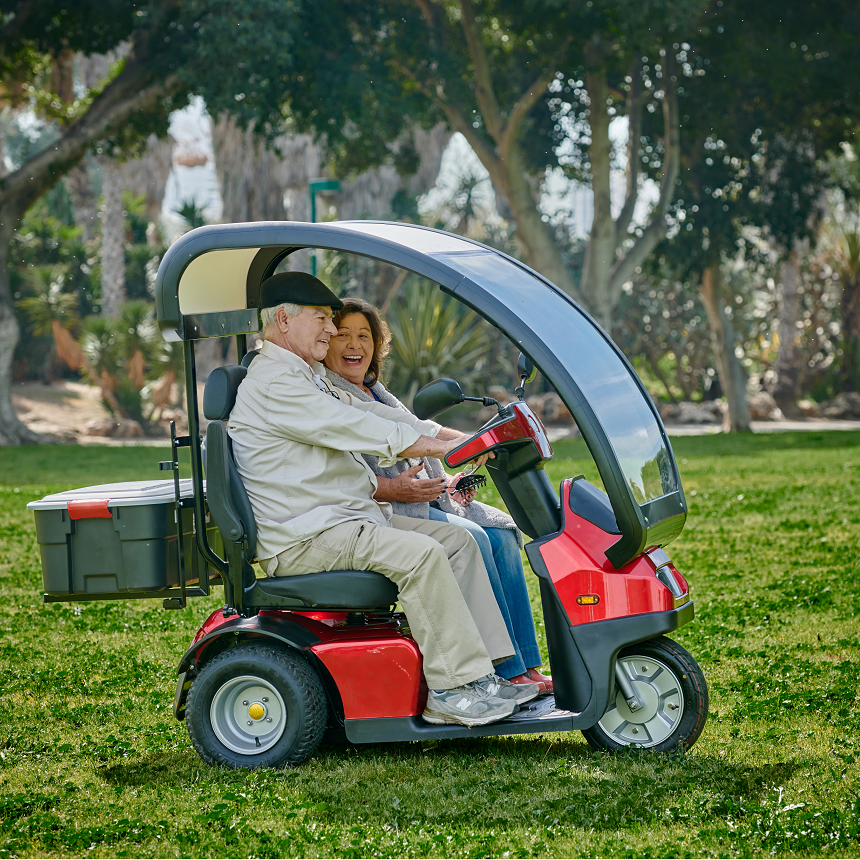

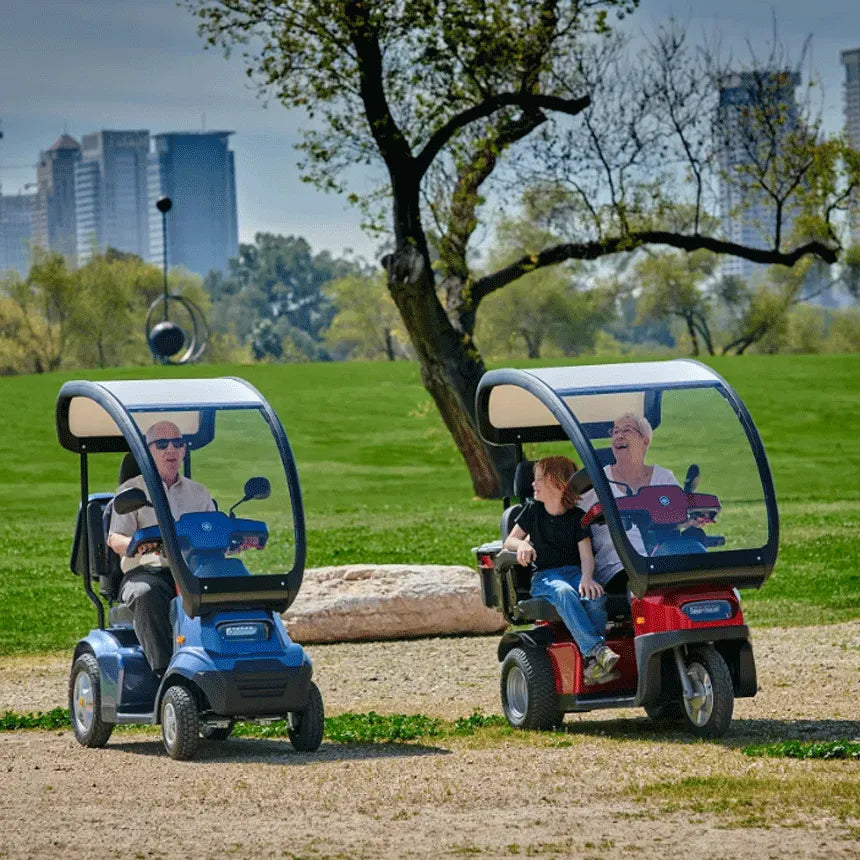

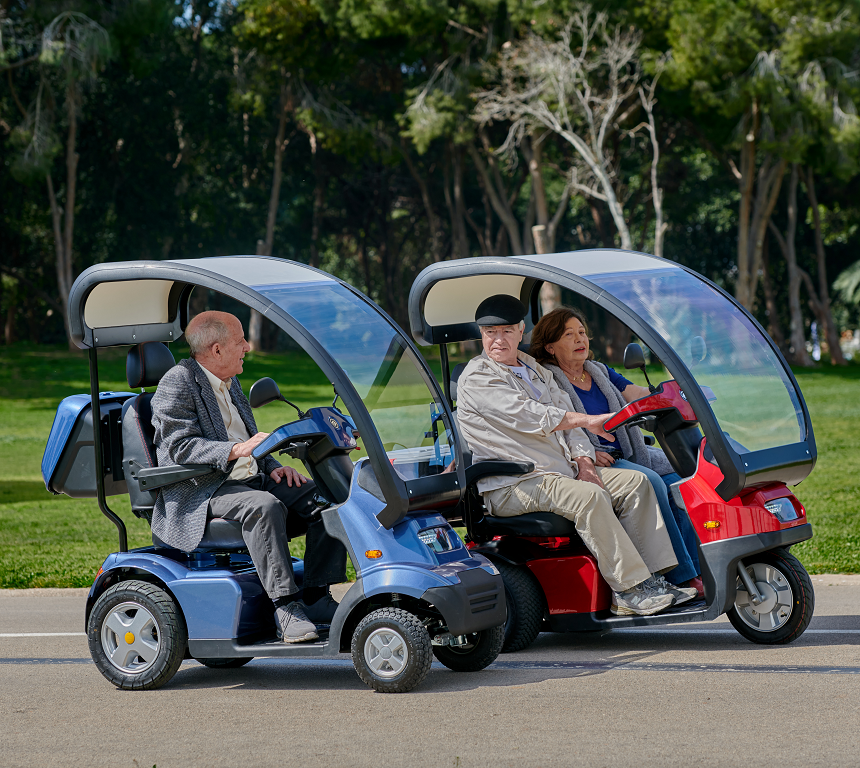

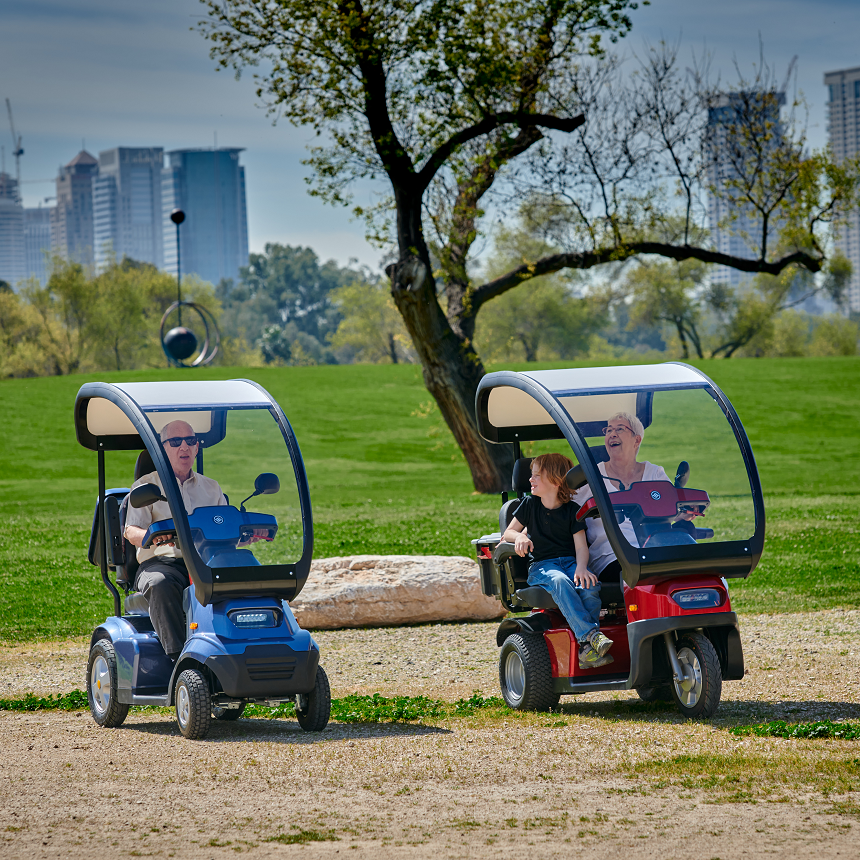

Riding Two-Up

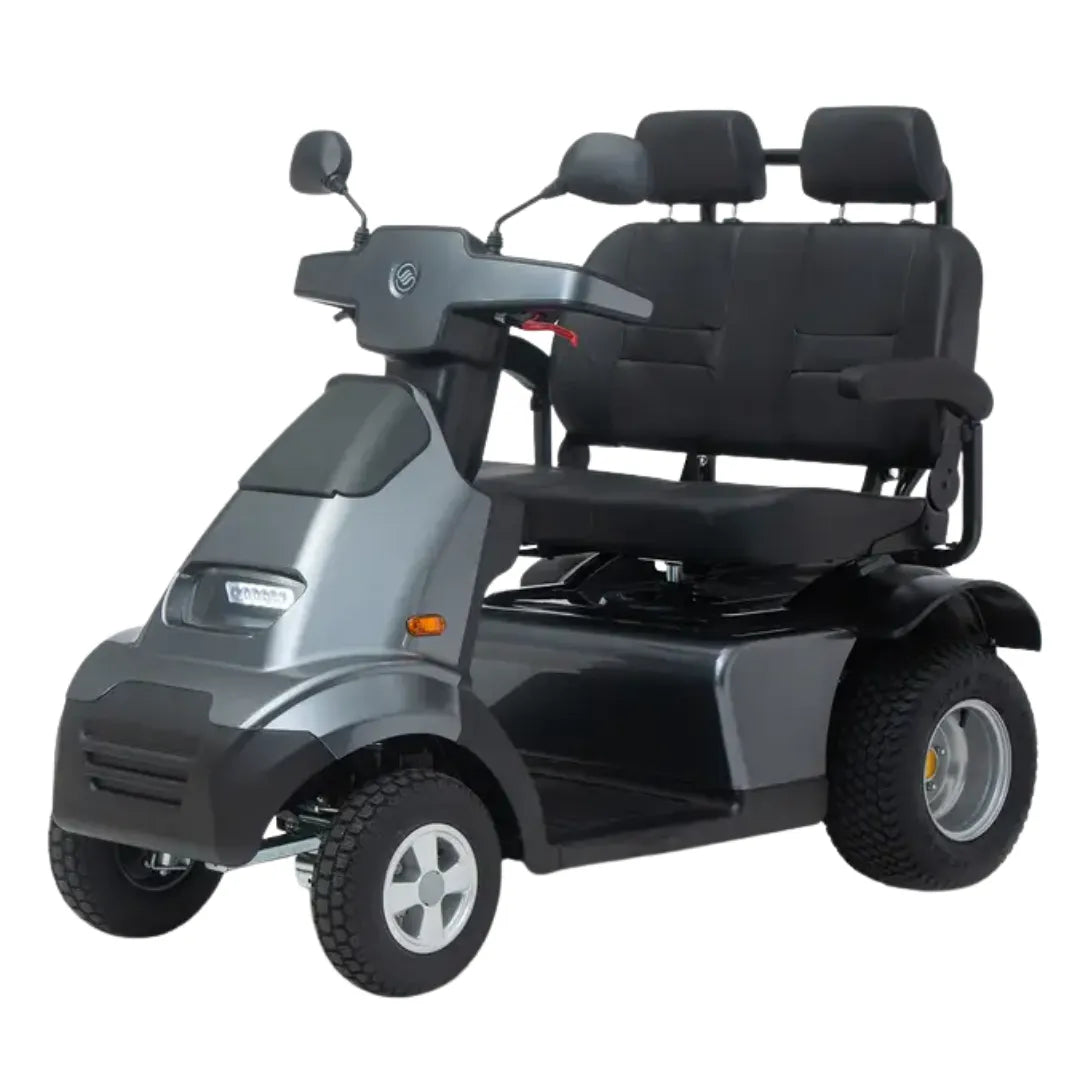

The two-person seat option (33" wide) lets a companion ride along within the 500 lb total capacity. It widens the scooter to 37" and adds about 22 lbs.
Frequently Asked Questions
It's too large and heavy (342 lbs with batteries) for standard vehicle scooter lifts and does not disassemble. Most owners keep it at home in a garage, or transport it with a utility trailer or a van with a ramp. Call us and we'll help you plan: 1-866-218-0902.
No. The S4 is designed for outdoor use only. Its 90" turning radius and 27"–37" width are built for sidewalks, paths, and open spaces, not hallways or store aisles.
Up to 8° (15%) at full speed and up to 11° (20%) at reduced speed. Take slopes straight on rather than across them, and slow down on descents.
If the throttle is squeezed too hard — as can happen if a rider is startled — the S4 shuts off as a safety measure. Simply turn it back on to continue.
Yes, with the optional two-person seat. Combined rider weight must stay within the 500 lb capacity. The double seat widens the scooter to 37".
Yes. Optional golf tires, a golf bag holder, and a canopy make it course-ready. Check your course's rules on personal carts and mobility devices first.
Choose the S4 for maximum capacity (500 lbs), range (36–38 miles), climbing power, ground clearance, and seat options. Choose the Afiscooter C if you need something smaller and lighter that fits a vehicle scooter lift, with a tighter turning radius (50"–67") and 25–28 miles of range.
Compare Afiscooter Models
Have Questions? We'll Help You Choose.
The Afiscooter S4 is for riders who want the most capable scooter Afikim makes — 500 lb capacity, 1,400 watts, and up to 38 miles of range — and have a plan for storing and transporting it. Our advisers can help you choose seat size, tires, and canopy, and compare it with the Afiscooter C in one call.
📞 1-866-218-0902 · Mon–Fri 9AM–5PM · Sat 9AM–3PM EST
*Range, speed, and climbing ability are maximums and vary with rider weight, terrain, temperature, battery type, and tire pressure. Weight capacity includes all riders. Canopy, golf tires, wide wheels, and two-person seat change overall weight and width. Outdoor use only. Not compatible with standard vehicle scooter lifts. Verify dimensions for your storage space and transport method before ordering.
-
Specifications for the Afiscooter S
3-Wheel 4-Wheel Max Speed: 9.30 mph 9.30 mph Scooter Drive Range: 28.00 miles 28.00 miles Suspension: Yes Yes Scooter Seat Width: 20"
22"
24"
33"20"
22"
24"
33"Delta Tiller: Yes Yes Turning Radius: 56" 90" Ground Clearance: 5.00" 5.00" Max Incline Rating: 11.3 ° 11.3 ° Adjustable Tiller: Yes Yes Max Seat to Ground Height: 26" 26" Max Seat to Deck Height: 20" 20" Multiple Seating Options: Yes Yes Height Adjustable Seat: Yes Yes High-Back Seat: Yes Yes Armrest Options: Flip-Back Flip-Back Flip-Back Armrests: Yes Yes Front Wheel Size: 10" 6" Rear Wheel Size: 10" 10" Air-Filled (Pneumatic) Tires: Yes Yes Overall Width: 27" 27" Overall Length: 61" 65" Transportable/Collapsible: No No Foldable: No No Battery Type: 105 AMP 105 AMP Batteries Included: Yes Yes Battery Charger Type: Off Board Off Board Larger Battery Option: No No Drive Type: Rear-Wheel Drive Rear-Wheel Drive One-Hand Operation: Yes Yes Basket Included: No No Headlight: Yes Yes Extended Base: No No Weight Without Batteries: 234.00 lbs. 238.00 lbs. Battery Pack Weight: 103.00 lbs. 104.00 lbs. Expedited Shipping Available: Yes Yes Charging Port Location: Tiller Tiller Weight Capacity: 450 lbs 450 lbs Wheel Type: Three Wheeled Four Wheeled
