Description

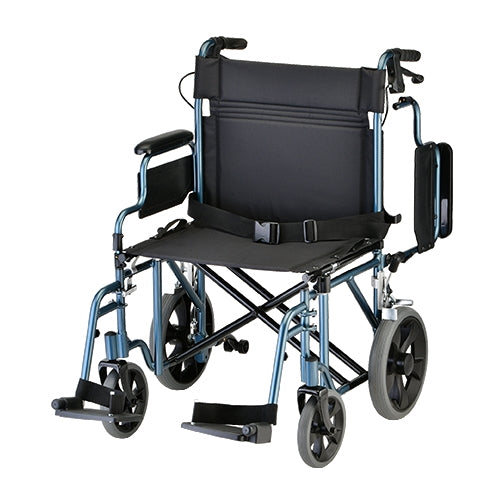

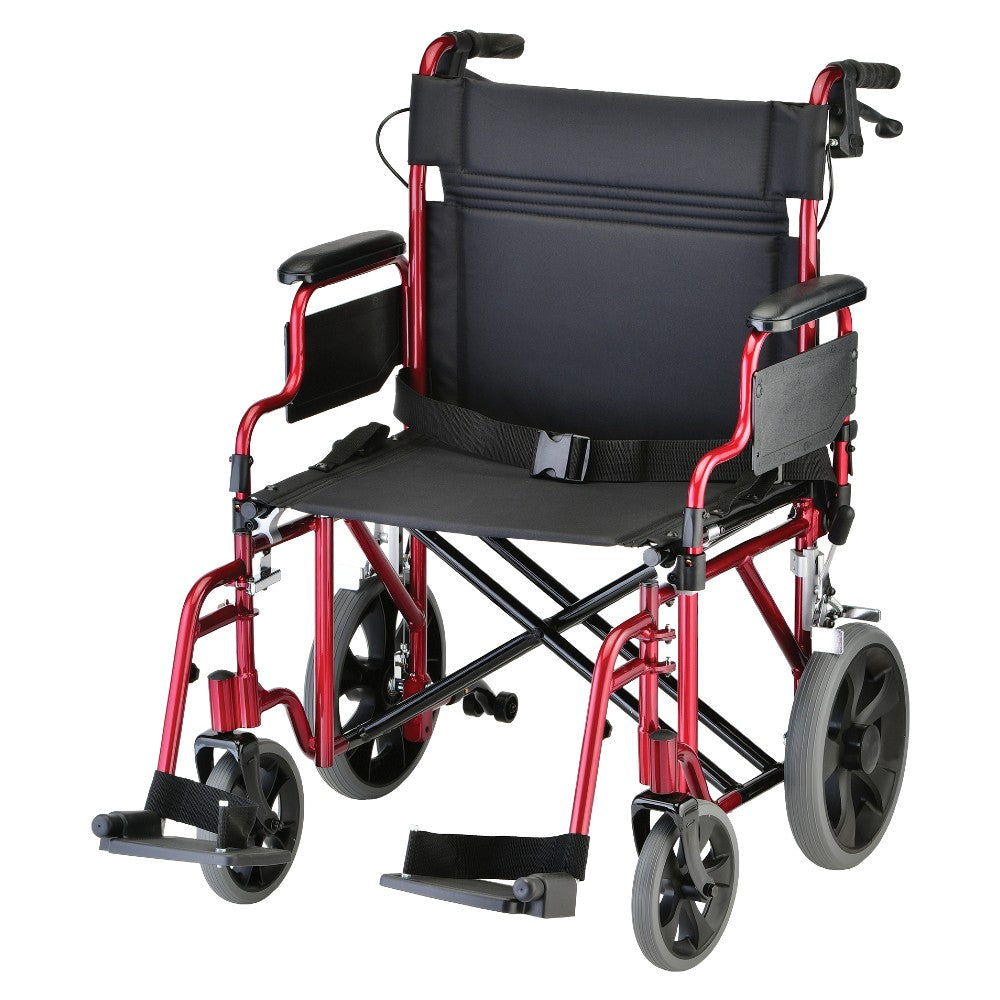

Nova Medical 22 Inches Heavy Duty Transport Chair, 12" Rear Wheels
Nova Medical 22 Inches Transport Chair is designed to provide easy, patient transport. The lightweight aluminum frame allows the chair to fit compactly into small areas. The comfortable padded upholstery and arm pads are reinforced to prevent stretching or ripping. It is foldable and has padded, detachable or reversible desk arms for added convenience.
Nova Medical 22 Inches Transport Chair Features
- With hand brakes and swing away footrests
- Lightweight aluminum frame
- Flip-up desk arms
- Non-skid foot plates and heel loops
- Seat belt
- Foldable
- 20" Seat height
- Back height from seat: 17.5"
- 8" Front wheels and 12" Rear wheels
- Anti-Tippers
- 400lb Capacity

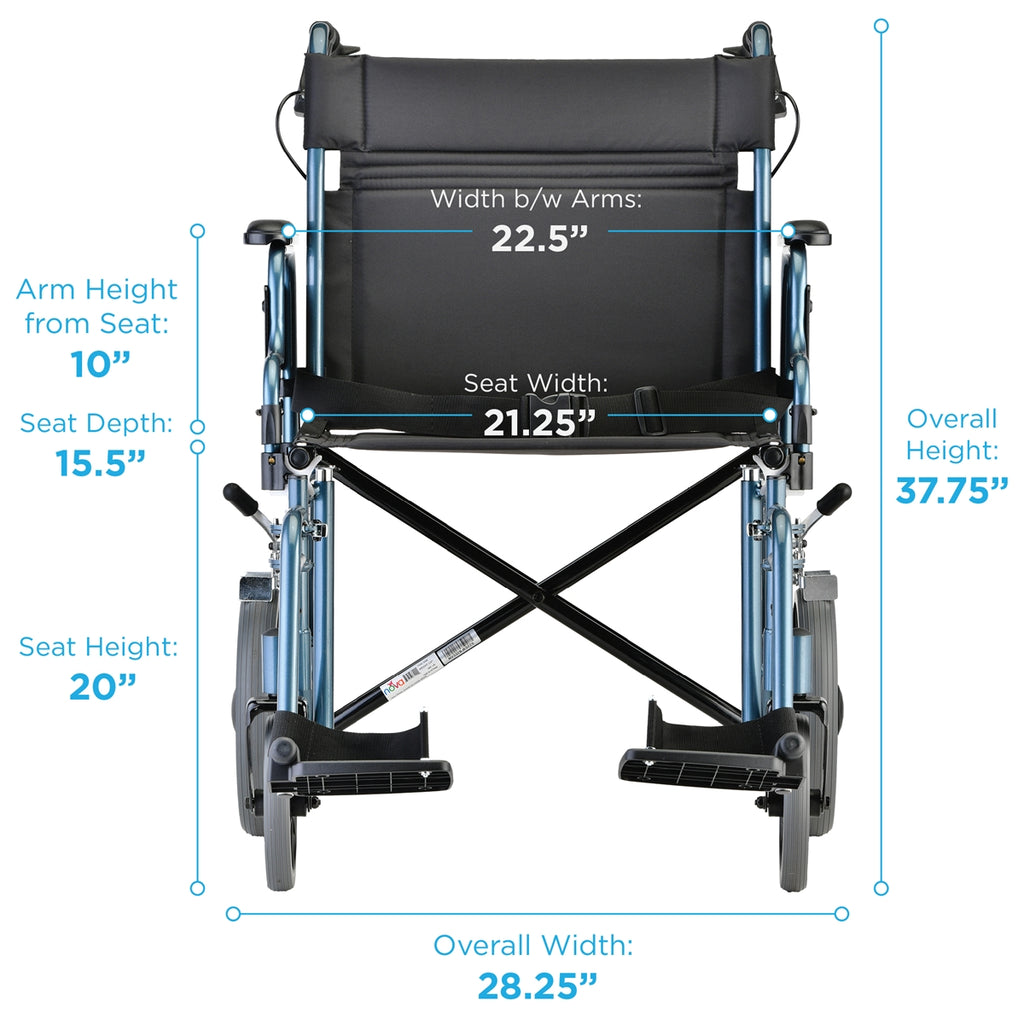

Specifications:
- Weight Capacity: 400 lbs
- Overall Weight: 27 lbs
- Width btw Arms: 22.5"
- Arm Height from Seat: 10"
- Seat to floor height: 20"
- Back Height from Seat: 17.5"
- Seat Dimensions: 21.5"w x 15.5"d
- Overall Dimensions: 28.5"w x 38"h
- Overall Folded Dimensions: 38"l x 11.5"w 28.5"d
Nova Medical 22 Inches Heavy Duty Transport Chair, 12" Rear Wheels
Technical Specs
Weight Capacity / Wt Cap: 400 lb
Case Qty: 1
Sales Um: Each
Msrp: 399.95
Weight/ Each Weight: 27.6 lb
Overall Height Open: 37.75"
Overall Width Open: 28.25"
Overall Depth Open: 31"
Overall Height Folded: 37.5"
HCPCS Code: E1039
Overall Width Folded: 11"
Overall Depth Folded: 31"
Seat Height: 19.5"
Seat Width: 21.5"
Seat Dimension: 21.25"w x 15.5"d
Seat Width Between Arms: 22.5"
Handle Height: 37.75"
Arm Height From Floor: 29.25"
Arm Height From Seat: 10"
Back Dimension: 17.5"
Back Pocket Dimension: 9"w x 6.25"h
Back Height From Seat: 17.5"
Footplate Height From Floor: 5" 9"
Front Wheel Size: 8"
Rear Wheel Size: 12"
Wheel Locking/Non-Locking: LOCKING
Case Qty: 1
Sales Um: Each
Msrp: 399.95
Weight/ Each Weight: 27.6 lb
Overall Height Open: 37.75"
Overall Width Open: 28.25"
Overall Depth Open: 31"
Overall Height Folded: 37.5"
HCPCS Code: E1039
Overall Width Folded: 11"
Overall Depth Folded: 31"
Seat Height: 19.5"
Seat Width: 21.5"
Seat Dimension: 21.25"w x 15.5"d
Seat Width Between Arms: 22.5"
Handle Height: 37.75"
Arm Height From Floor: 29.25"
Arm Height From Seat: 10"
Back Dimension: 17.5"
Back Pocket Dimension: 9"w x 6.25"h
Back Height From Seat: 17.5"
Footplate Height From Floor: 5" 9"
Front Wheel Size: 8"
Rear Wheel Size: 12"
Wheel Locking/Non-Locking: LOCKING
Wheelchair Measuring Guide
Wheelchair Measuring Guide
Wheelchair Measurements:
- Hip Width:
Use this to figure seat width if it is the widest point. - Widest Point:
Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style. - Chest Width:
Measure the widest point of the thorax just below the armpit. This measurement may influence system width or back width. - Heel to Knee:
Use this for legrest extensions and seat height. - SRP to Knee (Seat Reference Point to Knee):
This will determine the seat depth. - Elbow to SRP (Elbow to Seat Reference Point):
Measure this width with the arm in a 90-degree angle at the elbow and the shoulder in a neutral position. - Shoulder Height:
This will determine the height and the style of the back panel or the start for a custom back. - Head Height:
This will help determine the proper headrest height.
